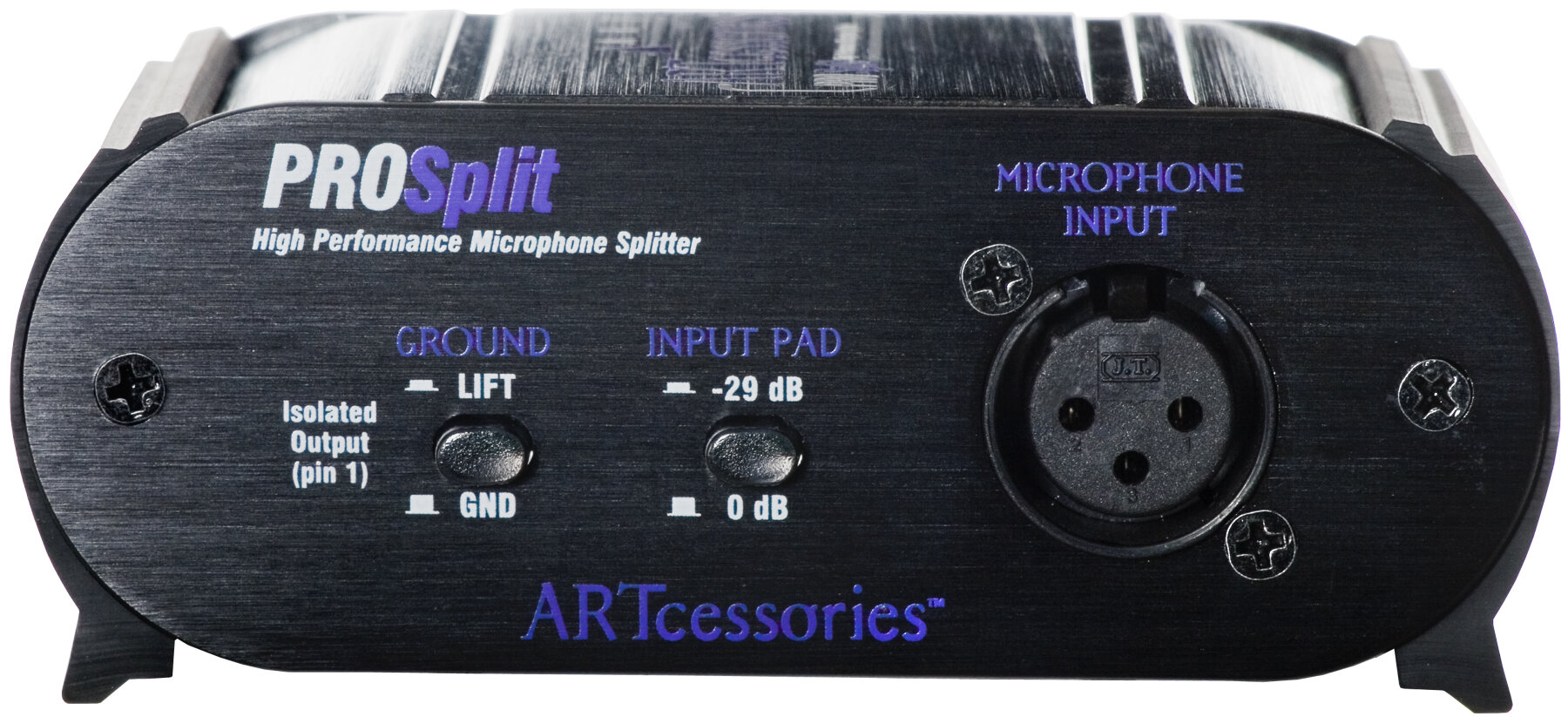

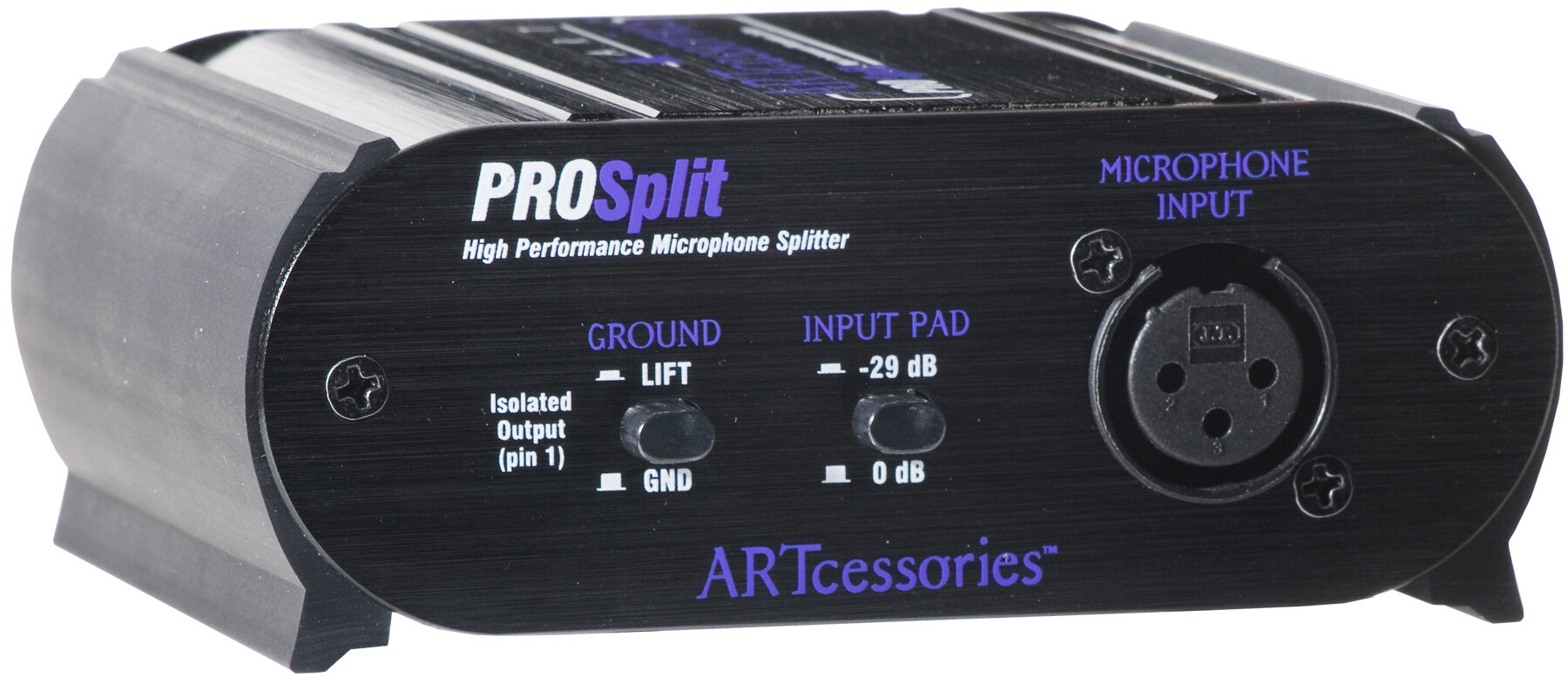

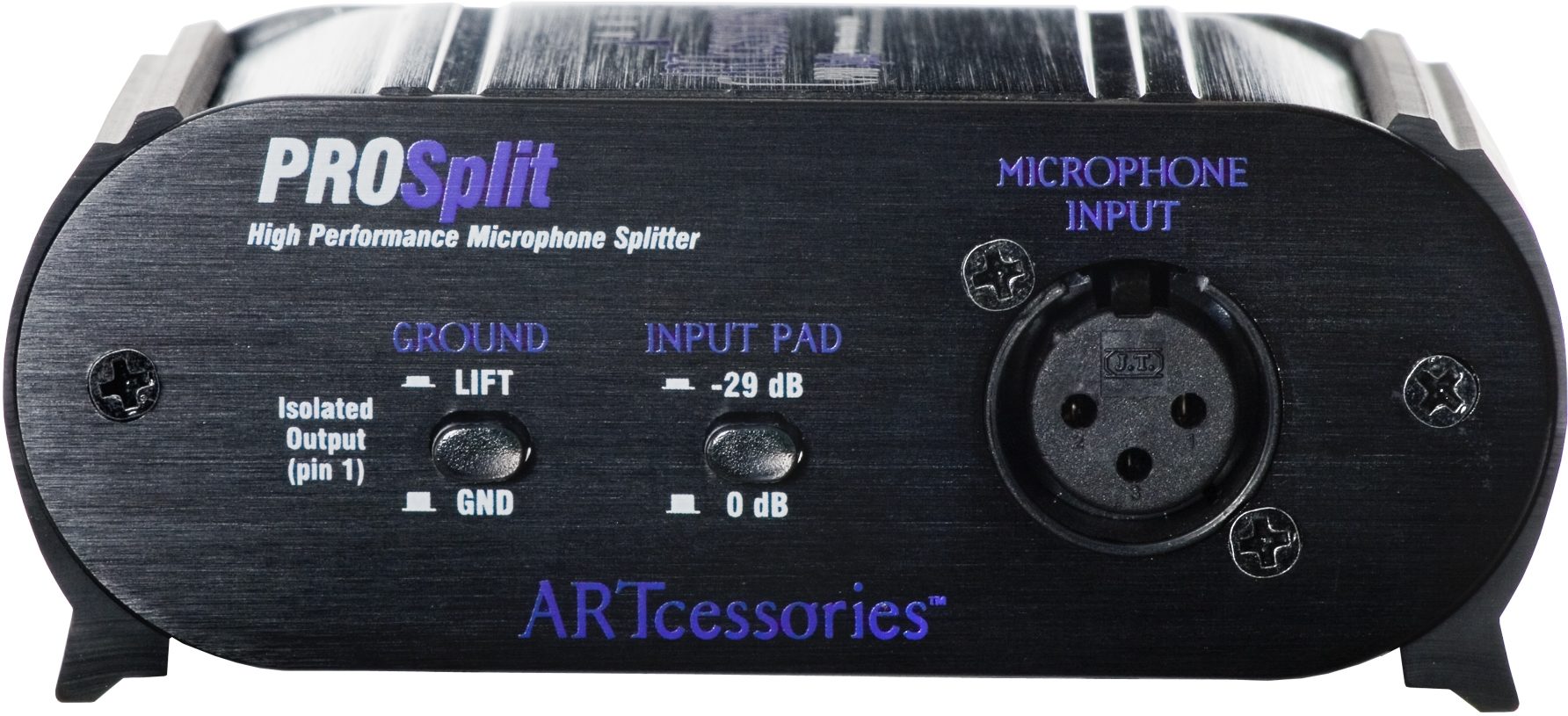

ART Prosplit 2-Way Microphone Splitter

Driven by phantom power, the ART Prosplit allows you to divide one mic input into two separate, balanced outputs.
The ProSplit provides one direct output and one transformer isolated output from a single microphone. Applications include sending the direct output to the main or Front-of-House mixer, with the second isolated output being sent to a monitor or recording mixer. The direct output passes phantom power from the main mixer to the microphone for use with condenser microphones.

The ProSplit includes a ground-lift switch on the isolated output to reduce noise due to ground loops between connected equipment. For versatility the ProSplit also features an attenuator pad switch on the input that can be used to alternately connect a preamplified (line-level) signal to the two microphone-level ProSplit outputs.
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1.75 lbs
Shipping Dimensions: 7 x 5 x 3 in
Manufacturer Part Number (MPN): ART PROSPLIT
For support or warranty questions, please contact the manufacturer:
Phone: 585-436-2720
(1 ratings)
Submitted January 4, 2011 by a customer from yahoo.com
ART Prosplit Mic Splitter Customer Review
Verified Customer zZounds has verified that this reviewer made a purchase from us.
Sound
This was used to split one microphone to feed two broadcast consoles. It worked much better than the "home-brew" resistive splitter previously used. However, the transformer in the unit isn't shielded and it WILL pick up hum from nearby power transformers, so place the unit carefully. Overall, I'm happy with the unit and would purchase it again for the same use without hesitation.
Musical Background:
Radio broadcast engineer
Musical Style:
N/A
2 of 2 people (100%) people found this review helpful. Did you?
