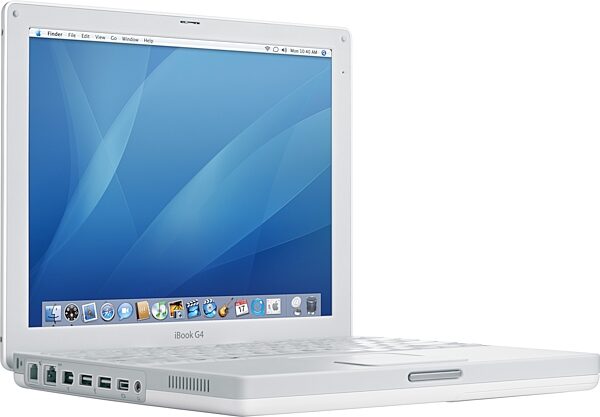

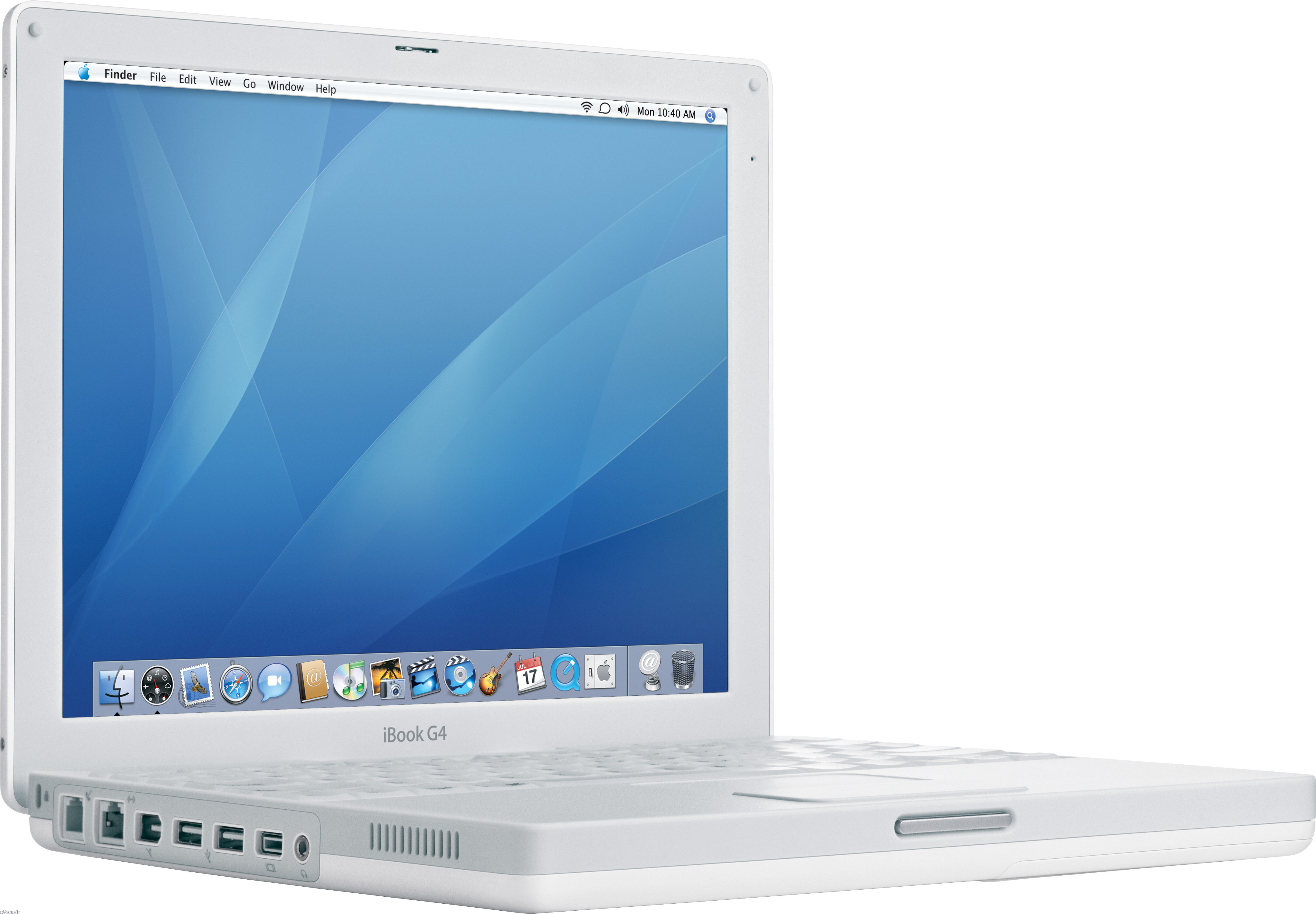

Apple G4 iBook Notebook Computer (1.33 GHz, 12 in.)

Model: M9846LL/A

Processor: 1.33GHz PowerPC G4

Level 2 cache: 512K at 1.33GHz

System bus: 133MHz

Memory (DDR SDRAM): 512MB PC2700 (333MHz) DDR SDRAM; supports up to 1.5GB; 1 available expansion slot

Hard drive (2): 40GB ATA/100 4200 rpm

Optical drive: slot-load Combo Drive DVD-ROM/CD-RW

Display: 12.1-inch (diagonal) TFT XGA

Graphics support: ATI Mobility Radeon 9550 with 32MB of dedicated DDR SDRAM

FireWire: one FireWire 400 port at up to 400 Mbps

USB: two USB 2.0 ports at up to 480 Mbps each

VGA, S-video and composite video output: Video mirroring supports VGA video out to an external display or projector (requires included Apple VGA Video Adapter) and S-video and composite video out to a TV or VCR (requires optional Apple Video Adapter, sold separately).

Modem (3): built-in 56K V.92 modem

Ethernet: built-in 10/100BASE-T Ethernet

Wireless(4): built-in 54-Mbps AirPort Extreme (Wi-Fi 802.11g); built-in Bluetooth 2.0+EDR

System software: Mac OS X version 10.4 Tiger

Software: iLife '05 (includes iTunes, iPhoto, iMovie HD, iDVD(5), GarageBand), Mail, Dashboard, Spotlight, iChat AV, Safari, Sherlock, QuickTime, iSync, iCal, DVD Player, Address Book, AppleWorks, iWork (30-day trial), Classic environment, Quicken 2005 for Macintosh, 2005 World Book Multimedia Reference Suite, Nanosaur 2, Marble Blast Gold, Microsoft Office 2004 for Mac Test Drive, Zinio Reader, XCode Developer Tools and Apple Hardware Test

Service and support: 90 days of free telephone support and one-year limited warranty. Product contains documentation. Backup copy of software is provided on CD-ROM.

Hardware accessories: Apple VGA Display Adapter, modem cable, power adapter, AC wall plug, power cord, lithium-ion battery

Detailed Specifications
Processor and memory:
-- 1.33GHz PowerPC G4 processor with Velocity Engine and 512K on-chip level 2 cache

-- 133MHz system bus

-- 512MB of PC2700 (333MHz) DDR SDRAM with support for up to 1.5GB

Storage:
-- 40GB Ultra ATA hard disk drive (2)

-- Combo Drive (DVD-ROM/CD-RW); writes CD-R discs at up to 24x speed, writes CD-RW discs at up to 16x speed, reads DVD-ROM discs at up to 8x speed, reads CD-ROM discs at up to 24x speed

-- Support for external FireWire and USB storage devices

Display:
-- 12.1-inch (diagonal) TFT XGA active-matrix display

-- Support for millions of colors at 1024 x 768 pixel resolution

-- Support for resolution scaling to 800 x 600 pixel and 640 x 480 pixel resolution with millions of colors

Graphics support: ATI Mobility Radeon 9550 graphics processor with 32MB of dedicated video memory and AGP 4X support

Communications:
-- Built-in 56K V.92 modem (RJ-11 connector) (3)

-- Built-in 10/100BASE-T Ethernet (RJ-45 connector)

-- Built-in 54 Mbps AirPort Extreme (compliant with 802.11g standard; Wi-Fi Certified for 802.11g and 802.11b interoperability) (4)

-- Built-in Bluetooth 2.0+EDR

Peripheral connections:
-- Two 480 Mbps USB 2.0 ports

-- One FireWire 400 port at up to 400 Mbps(6)

Audio:
-- 16-bit CD-quality stereo headphone jack

-- Built-in stereo speakers

-- Built-in omnidirectional microphone

-- Support for external USB audio devices such as microphones and speakers

Video:
-- VGA video output for video mirroring on an external display or projector (24-bit color) with included Apple VGA Display Adapter.

-- S-video and composite video output to TV or projector (requires Apple Video Adapter, sold separately)

Battery:
-- iBook G4 with 12.1-inch display: 50-watt-hour lithium-ion battery provides up to 6 hours of battery life on a single charge(7)

-- Integrated charge indicator LEDs on battery

Keyboard and trackpad:
-- Built-in full-size keyboard with 77 (U.S.) or 78 (ISO) keys, including 12 function keys, 4 arrow keys (inverted "T" arrangement) and embedded numeric keypad

-- Solid-state trackpad provides precise cursor control; supports tap, double-tap, drag and scrolling capabilities

Electrical and environmental:
-- Meets ENERGY STAR requirements

-- Line voltage: 100V to 240V AC

-- Frequency: 50 to 60 Hz

-- Operating temperature: 50 degrees to 95 degrees F (10 degrees to 35 degrees C)

-- Storage temperature: -13 degrees to 113 degrees F (-25 degrees to 45 degrees C)

-- Relative humidity: 20% to 80% non-condensing

-- Maximum operating altitude: 10,000 feet

-- Maximum storage altitude: 15,000 feet

Size and weight (12.1-inch model):
-- Height: 1.35 inches (3.42 cm)

-- Width: 11.2 inches (28.5 cm)

-- Depth: 9.06 inches (23.0 cm)

-- Weight: 4.9 pounds (2.2 kg) (1)

(1) Weight varies by configuration and manufacturing process.

(2) 1GB = 1 billion bytes; actual formatted capacity less.

(3) Compatible ISP and telephone services required. Your ISP may not support all V.92 features. Modem will function according to V.90 standards if V.92 services are not available. Actual modem speeds lower; speed depends on connection rate and other factors.

(4) Wireless Internet access requires AirPort Base Station or AirPort Extreme Base Station and Internet access (fees may apply). Some ISPs are not currently compatible with AirPort. Range may vary with site conditions.

(5) You need an Apple SuperDrive to burn DVDs in iDVD, but you can save iDVD projects as an archive on iBook G4 models with a Combo Drive and later transfer them to a SuperDrive-equipped system and burn them to a DVD.

(6) Actual rates will vary.

(7) Battery life depends on configuration and use.

(8) Internet access requires a compatible Internet service provider; fees may apply. Product contains electronic documentation. Backup copy of software is included.
