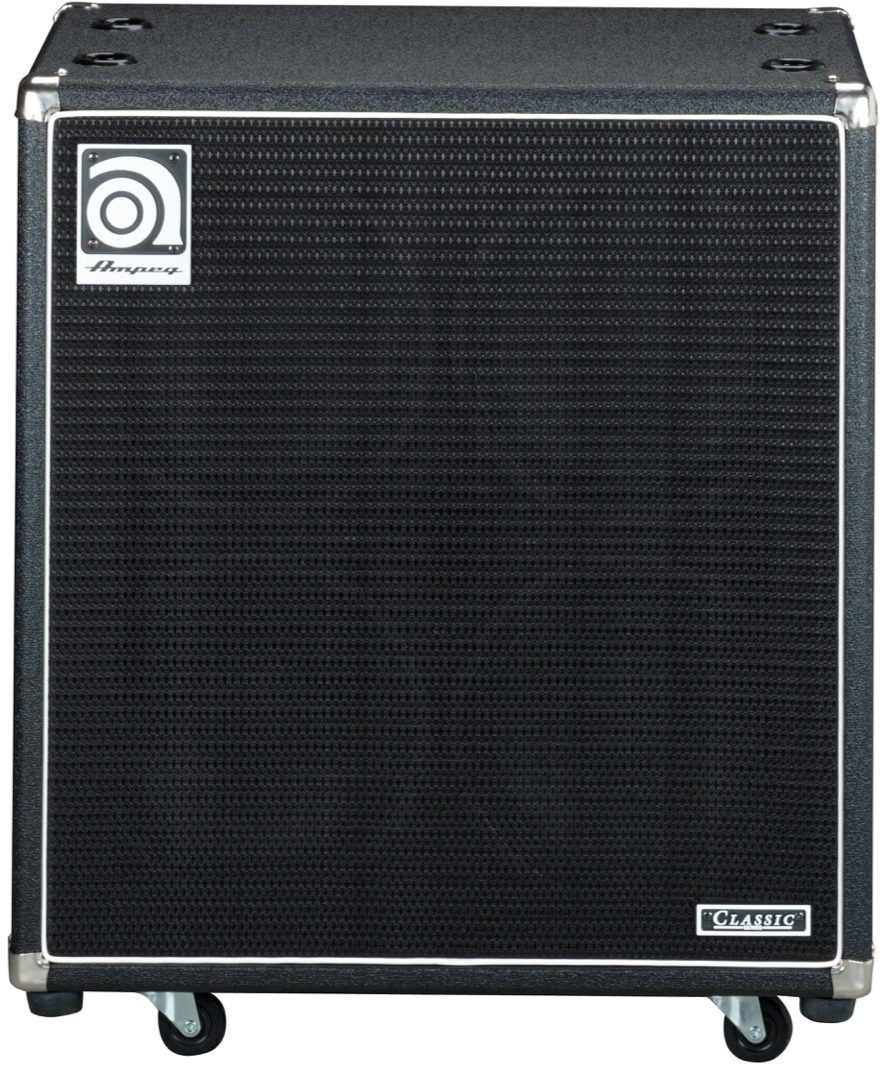

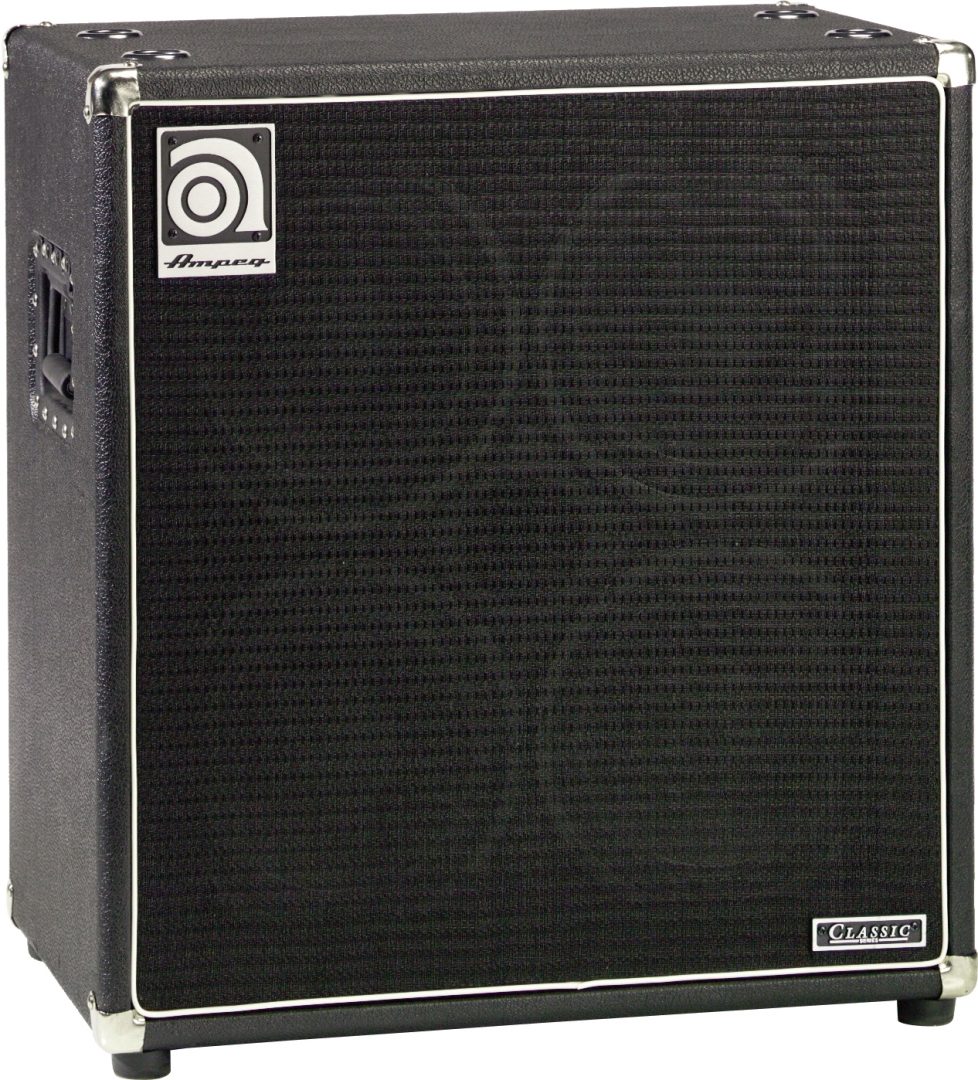

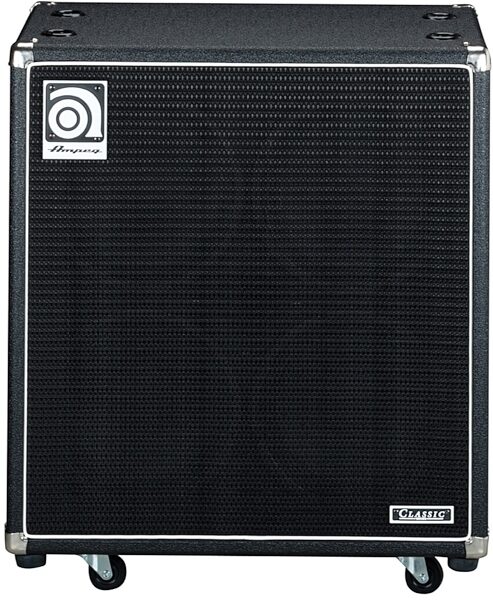

Ampeg SVT-410HE Bass Cabinet (500 Watts, 4x10")

Practical and functional, the SVT-410HE exemplifies the basics, providing you with dependably rugged construction and clear, crisp sound.

Overview

The world-renowned Classic Series cabinets are synonymous with bass enclosures and the sound they are expected to produce. And because Ampeg knows that players have different tastes, they make the configuration YOU are looking for. From the undeniable tone of the SVT-810E to the unexpected low end of the extended range SVT-410HLF, Ampeg enclosures have set the standard for decades.

All enclosures feature dual Neutrik Speakon and 1/4 in. input/output jacks. Cabinets using high-frequency horns contain a variable-level attenuator. To prevent overpowering and damaging the horns, a resistive bulb is wired in series with the horn for protection.

Specs

Dimensions: 25 x 24 x 16 in.

Weight: 91 lbs

Magnet weight: 30 oz

Size: 4 x 10 in.

Voice coil: 2 in.

Magnet weight: 8 oz

Voice coil: 1 in.

Crossover frequency: 4 kHz

Frequency response (-3 dB): 60 Hz - 18 kHz

Maximum SPL: 122 dB

Nominal impedance: 8 ohms

Connections: Parallel 1/4 inch and Speakon

Program handling: 1000 watts

RMS handling: 500 watts

Sensitivity: 98 dB

Usable low frequency (-10dB): 43 Hz

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 97 lbs; Shipping Dimensions: 28 x 26 x 18 in; Manufacturer Part Number (MPN): 99-030-2311
Blemished: Shipping Weight: 97 lbs; Shipping Dimensions: 28 x 26 x 18 in; Manufacturer Part Number (MPN): 99-030-2311

Documents and Manuals

For support or warranty questions, please contact the manufacturer:
Phone: 818-575-3600

Ampeg Bass Cabinets Quick Start Guide

Reviews

(23 ratings)

Submitted August 30, 2007 by a customer from aol.com

"Intellegent and Incredible"

Overall:

(see rating details)

I am considering purchasing the Ampeg SVT15E Bass Cabinet to complete the best bass sound.

Sound

I have had the Ampeg SVT410HE speakr cabinet long enough for two outdoor gigs. Using it with my Fender 400 Pro bass amp it has an incredible sound. Big, clear and immediate! This speaker cabinet is convenient to transport and set up. These 4 10's plus the 2 10's in the amp can produce not only the full, rich, and deep tones of the more lyrical songs but they can growl with the penetrating trebles for the more extreme rock pieces. This cabinet handled everything I could dish out including the huge tones on the E-sring. I play the Fender Jazz Bass with the pre-amp pick-up. Fantastic combination! I'm wondering just what this combo can't do.

Features

The multiple and various jacks in the cabinet back provide ample configurations. Side cabinet handles are convenient and rugged. The bottom rubber feet are large and hearty.

Ease of Use

Easy! Yes! Very easy! Very short! Clear! Very playable!

Quality

The craftmanship and design of this cabinet is simply and elegantly solid.

Value

Worth the money.

Manufacturer Support

Too soon to tell.

The Wow Factor

This is just the best practical addition to my equipment needs.
