Output Power Rating:

100 Watts RMS @ 4 ohms, 10% THD+N

Power Amp:

Class D

Preamp:

Legacy Ampeg preamp and tonestack circuits

Speaker:

1 x 12" custom Lavoce speaker, 4 ohms

Signal-to-Noise Ratio:

80 dB (20 Hz - 20 kHz unweighted)

Maximum Gain @ 1 kHz:

• Input: 48.5 dB
• Aux Input: 33 dB
• Effects Return: 29 dB

Input Impedance:

• Normal Input: 1 Meg ohms
• -15 dB Pad Input: 75k ohms

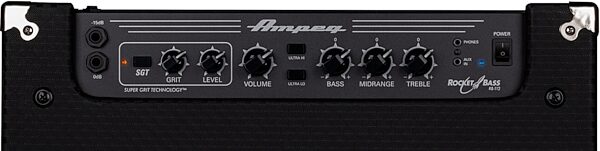

Tone Controls:

• Bass: +14/-13 dB @ 40 Hz
• Mid: +15/-9 dB @ 500 Hz
• Treble: +12/-20 dB @ 4 kHz

Ultra Hi Switch:

5 dB boost at 8 kHz

Ultra Lo Switch:

1 dB boost at 40 Hz, 10 dB cut at 500 Hz

Overdrive:

SGT (Super Grit Technology) circuit with Grit and Level controls, footswitchable

Inputs:

• 1 x 1/4" instrument input (0 dB)
• 1 x 1/4" instrument input (-15 dB pad)
• 1 x 1/8" Aux Input
• 1 x 1/4" TS Effects Loop Return

Outputs:

• 1 x 1/8" TRS stereo Phones output (mutes speaker when connected)
• 1 x 1/4" TS Effects Loop Send
• 1 x XLR Balanced DI Out (post-EQ, post-SGT, mic level) with Ground/Lift switch

Footswitch Jack:

1 x 1/4" TS (SGT on/off)

Maximum Operating Range:

45 degrees C ambient temperature, 93% relative humidity, up to 2000 m altitude

Power Requirements:

100 - 240V AC, 50 - 60 Hz, 150W Max

Size (H x W x D):

21.4 x 18.2 x 14.2 inches (543 x 462 x 360 mm)

Weight (Approximate):

25.9 lbs (11.75 kg)

Dimensions and Weight in Packaging

Base Item

• Shipping Weight: 30.75 lbs
• Shipping Dimensions: 25 x 23 x 19 in
• Manufacturer Part Number (MPN): 99-015-1925
