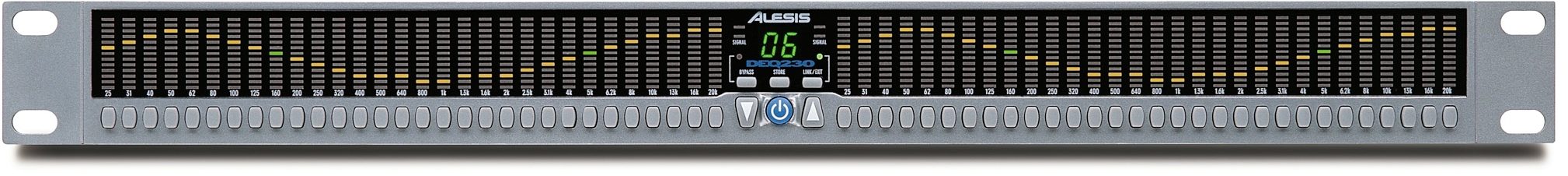

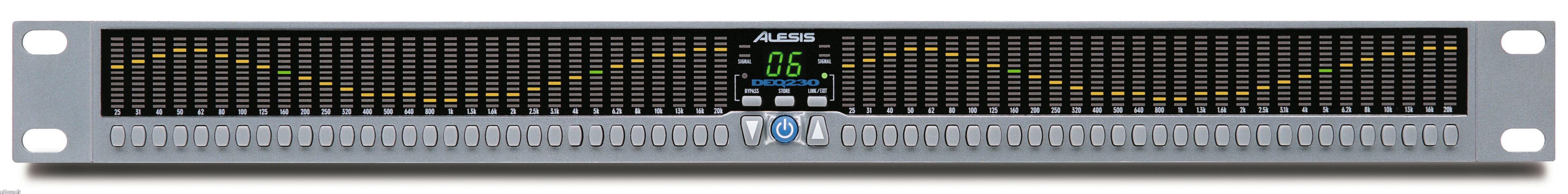

Alesis DEQ230 Digital 1/3 Octave Graphic Equalizer

No longer available at zZounds

zZounds Gear Experts Say...

Two channel, 24-bit A/D-D/A, 28-bit internal processing, 48kHz sample rate.

Overview

This is a 24-bit, pro-quality, 2-channel, 1/3-octave EQ with the ability to store and recall 60 preset and user programs. When you find just the right EQ on your kick drum - save it. When you find the right EQ for your PA in a club - save it. Next time you need it, recall it and save the hours upon hours otherwise trying to recreate that perfect EQ curve. There's even a "Lock" feature for contractors and installers. The DEQ-230 is housed in a space-saving 1U rackmount chassis and all inputs and outputs are 1/4 in. (balanced/unbalanced), making the DEQ perfect for any live, studio, or broadcast application.

Features

Two channel, 24-bit A/D-D/A, 28-bit internal processing, 48kHz sample rate

Large, intuitive graphic display

Store and recall 60 preset and user programs

Balanced 1/4 in. analog I/O, -10dBV

External 9VAC power supply

Specs

Specifications

Audio Input Input Connectors: 2 impedance-balanced 1/4 in. TRS jacks

Nominal Input Level: -10dBV (-15dBFS)

Maximum Input Level: +5dBV (1.78 Vrms)

Input Impedance: 10kOhms

Audio Output Output Connectors: 2 impedance-balanced 1/4 in. TRS jacks

Nominal Input Level: -10dBV (-15dBFS)

Maximum Input Level: +5dBV (1.78 Vrms)

Input Impedance: 220 Ohms

Audio Performance Signal to Noise Ratio: >96dB A-weighted, Analog In to Analog Out

THD+N: < 0.007%, Analog In to Analog Out

Frequency Response: 22-22kHz +/- 0.50dB, Analog In to Analog Out

Power Consumption: 15 Watts Max (90-230 VAC / 50-60Hz)

Mechanical Size (H x W x D): 1.75 x 19.0 x 5 in.

Rack Spaces: 1 Space

Weight: 3.0 lbs. (1.4kg)
