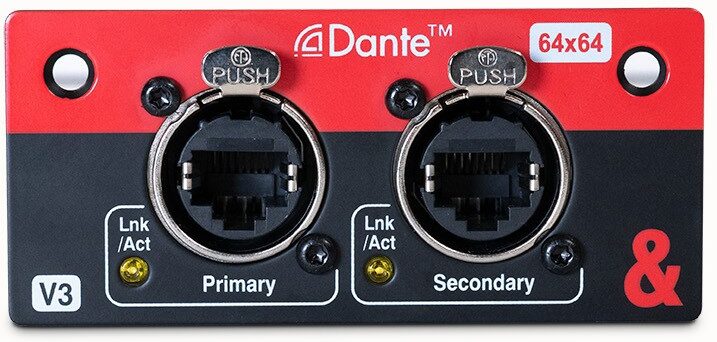

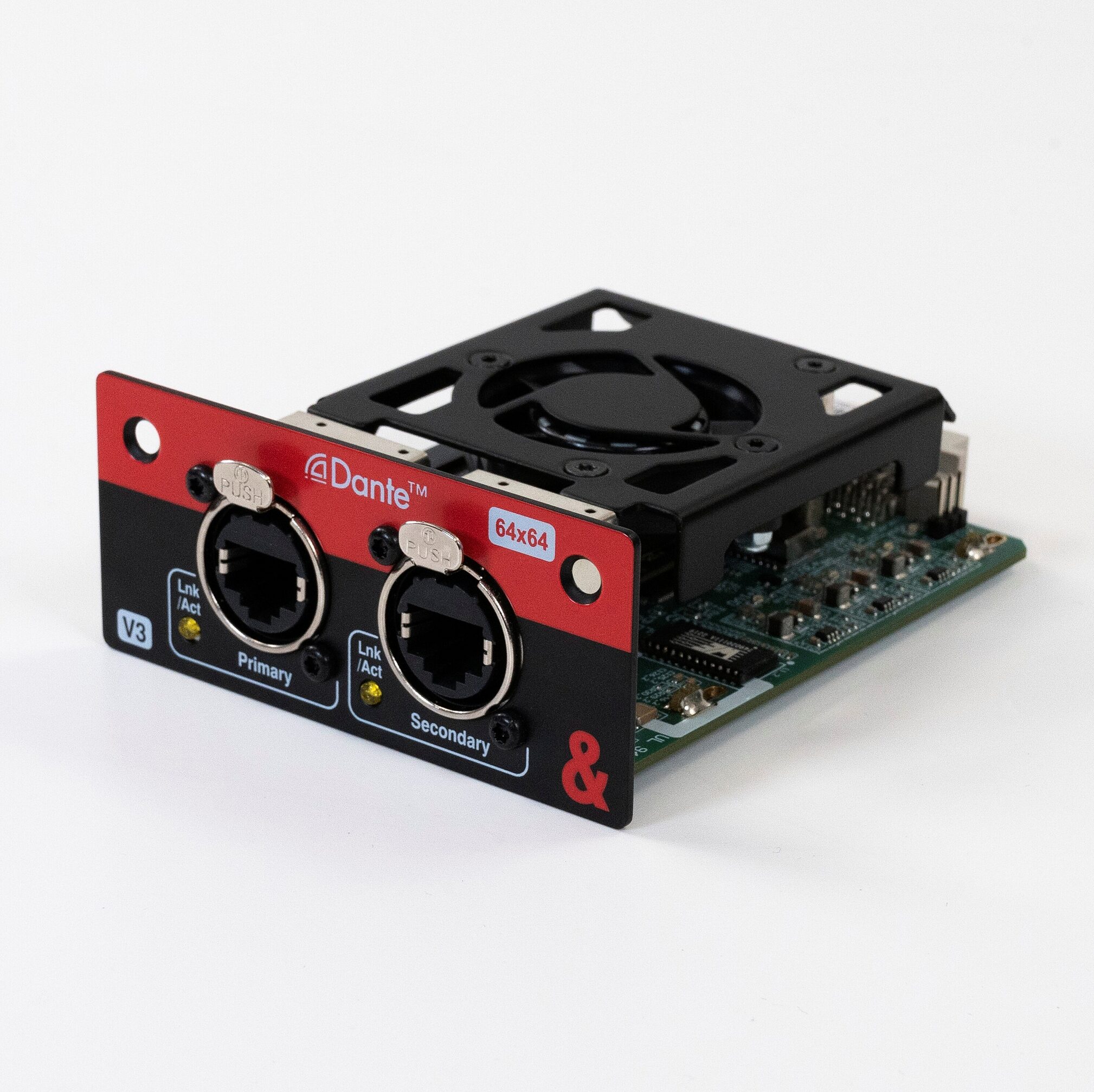

Allen and Heath SQ Dante 64x64 Network Card for SQ Mixers and AHM Processors

This is A&H's Version 3 Dante card for Allen and Heath SQ consoles, and AHM series audio matrix processors. The SQ Dante card provides any SQ mixer or AHM processor with a full 64×64 channel, 96kHz or 48kHz interface to a Dante network.

Please note that the SQ consoles are capped at 48x20, and you can only access that channel capacity.

Features:

- 64 Inputs by 64 Outputs
- Can run at 96K or 48K sample rates
- Installs with torx T8 security driver
- Compatible with all other Dante products, including Dante Virtual Soundcard.

Expand Your System With Dante

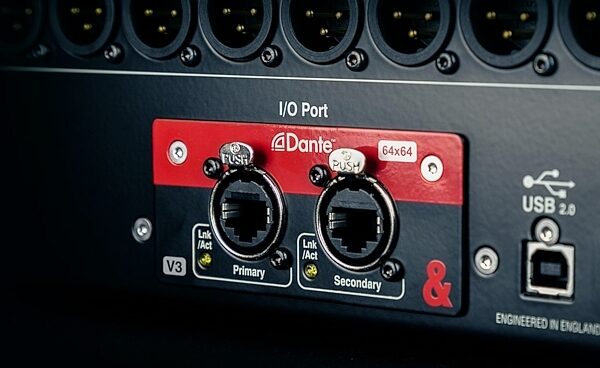

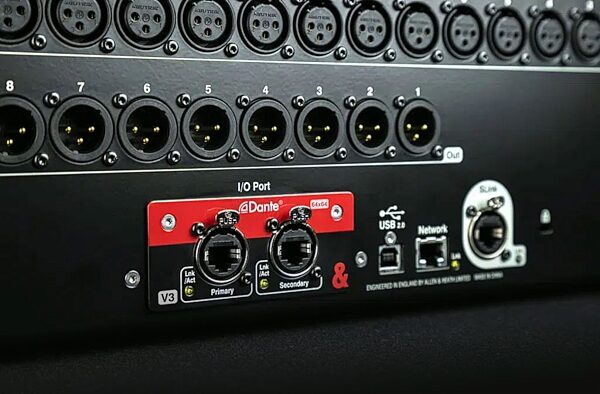

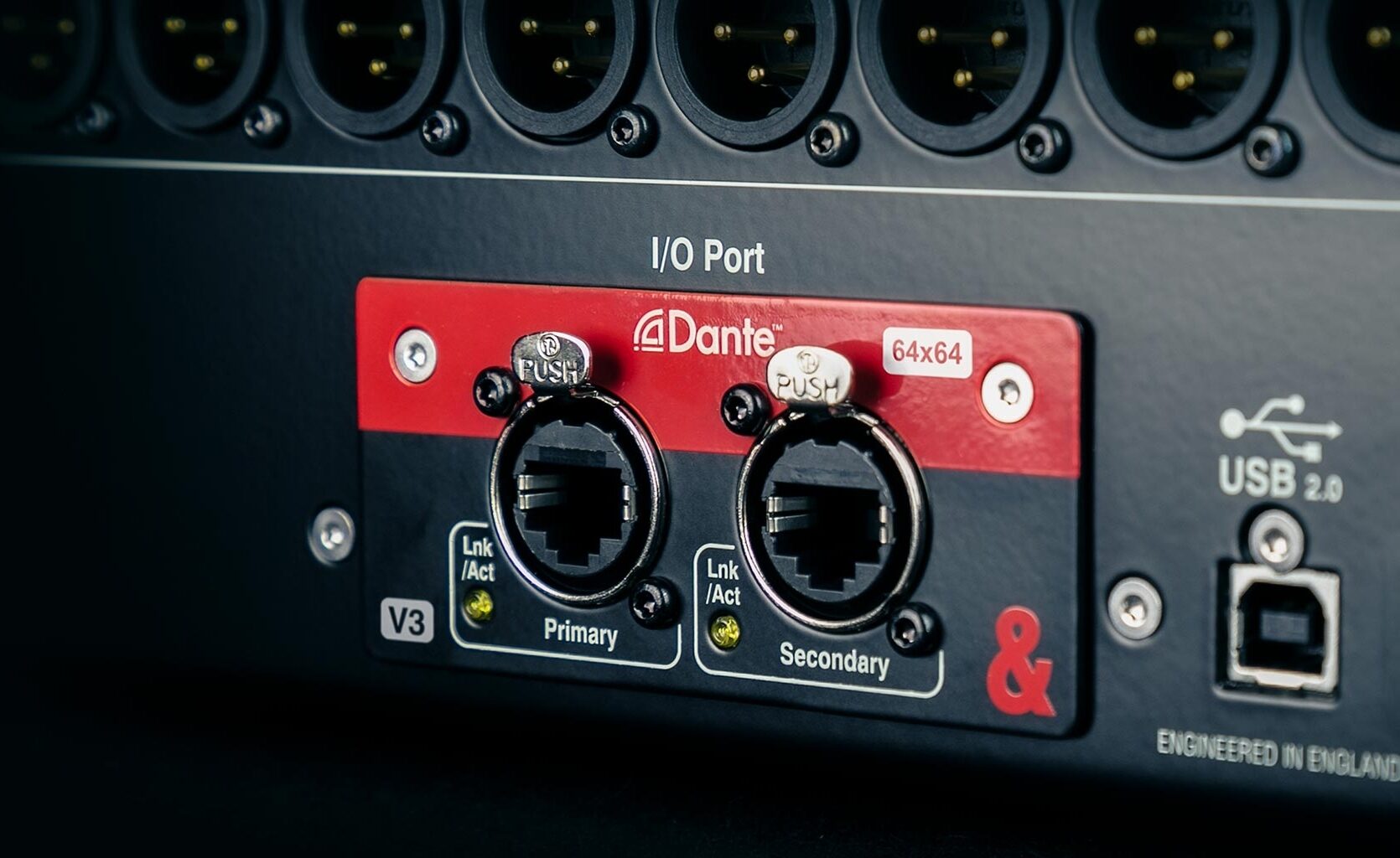

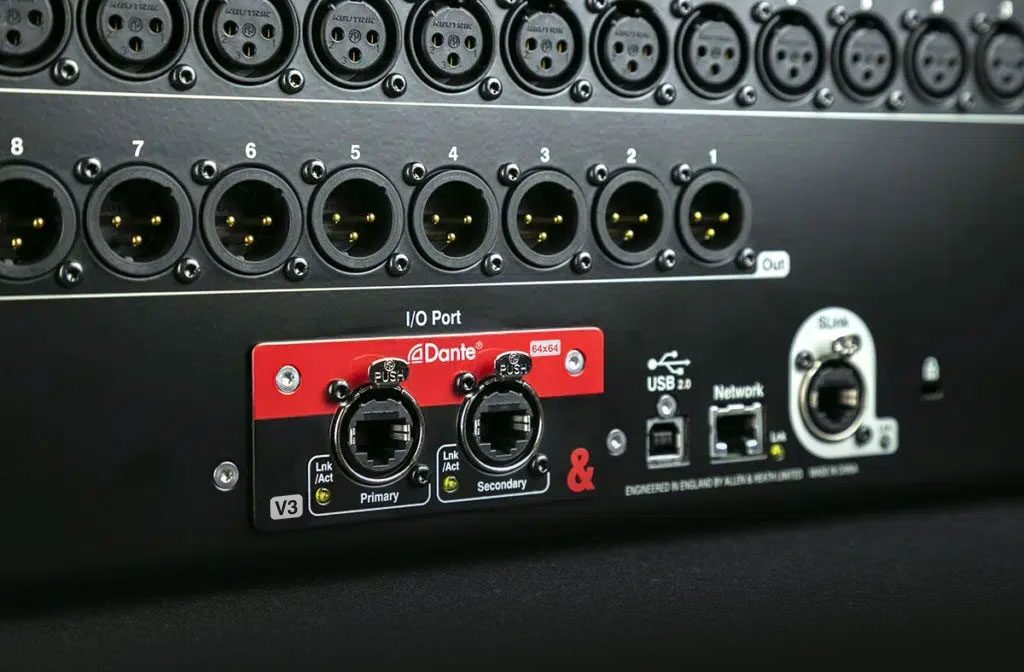

An SQ or AHM unit fitted with the Dante option card can seamlessly connect to DT expanders, wireless systems, amplifiers, preamps and any other devices on your Dante network, making full use of high-resolution 96kHz audio.

The SQ Dante card can be switched between 96kHz or 48kHz to accommodate Dante networks running at either sample rate. In addition to facilitating system integration, the card also enables digital splits and affordable multitrack recording direct to a computer.

Add Dante to AHM Matrix Processors

SQ Dante V2& V3 share all the features and specifications of the V1 module, with no differences for SQ users (SQ firmware V1.5 or higher required). In addition, the V2 & V3 modules can be fitted and used in an AHM matrix processor.
