Adam A3X Powered Studio Monitor

Mid-Woofer:
- Number: 1
- Basket: 4.5" (120 mm)
- Voice coil: 1" (25 mm)
- Cone material: Carbon Fiber

Tweeter:
- Number: 1
- Type: X-ART
- Diaphragm area: 4 inch (2420 mm)
- Equiv. Diaphragm: 2" (56 mm)
- Velocity transform ratio: 4:1
- Diaphragm weight: 0.17 g

Built-in Amplifiers:
- Mid-Woofer: 1
- Type: A/B
- Amp. power RMS / music: 25 W / 40 W
- Tweeter: 1
- Type: A/B
- Amp. power RMS / music: 25 W / 40 W

Control panel:
- Input Sensitivity: ∞ to +14 dB
- Tweeter gain: +/-4 dB

Input connectors:
- Analog: XLR / RCA

General data:
- Frequency response: 60 Hz - 50 kHz
- THD 90dB/1m > 100 Hz: <=0.8 %
- Long term output: >=98 dB
- Max. peak: >=106 dB
- Crossover frequencies: 2800 Hz
- Input impedance: 10 K Ohm
- Weight: 10.1 lb (4,6 kg)
- Magnetically shielded: No
- Height x Width x Depth: 10" (252 mm) x 6" (150 mm) x 7.5" (185 mm)
- Warranty: 5 Years
Dimensions and Weight in Packaging
Single Speaker
Shipping Weight: 14.25 lbs
Shipping Dimensions: 16 x 12 x 11 in
Manufacturer Part Number (MPN): ADP A3X
Pair
Shipping Weight: 28.5 lbs
Adam Warranty 5-year warranty
If you have additional warranty questions, please contact the manufacturer at usa-info@adam-audio.com

Adam Audio A3X Active Studio Monitor

With the A3X, ADAM Audio present their smallest monitor to date, making it perfectly suited for all environments where space is limited but sound shouldn't be constricted. The A3X combines a tiny footprint with the much acclaimed ADAM sound quality by using the X-ART tweeter for the higher frequencies, a guarantee for crystal clear music reproduction.

A 4.5" (basket) driver handles the lower registers. The diaphragm is made from carbon fiber, a material that is very light but very stiff and therefore capable of delivering colouring-free sound. Two built-in 25 Watt amplifiers powers each of the drivers directly.

Stereolink

A very handy and exclusive technology found in the two smaller AX monitors is the Stereolink. This is accomplished by a pair of additional RCA connections that allow for a bypass of the second stereo channel to the other speaker.

This technology connects two A3X speakers in such a manner as to allow the user the option to control the overall stereo volume of the system from either speaker's gain control. This makes the A3X a natural for "mixer-less" desktop applications where overall system volume needs to be adjusted easily.

Controls and Connectors

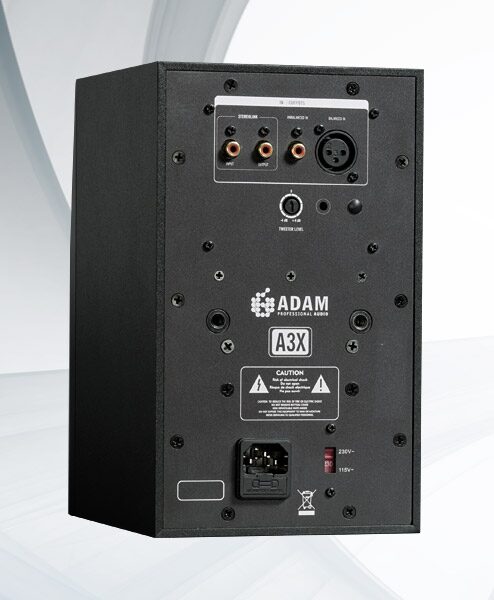

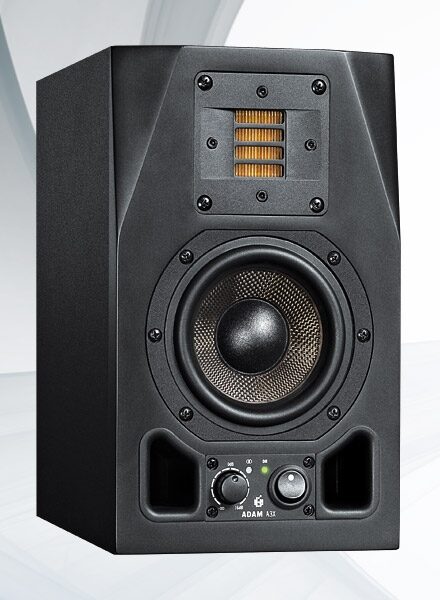

The front of the A3X sports dual ports for surprisingly low frequency response down to 60Hz. The front panel also has power and gain controls. The rear panel includes a tweeter gain control as well as balanced (XLR) jacks and unbalanced (RCA) jacks, allowing for greater connection flexibility.
