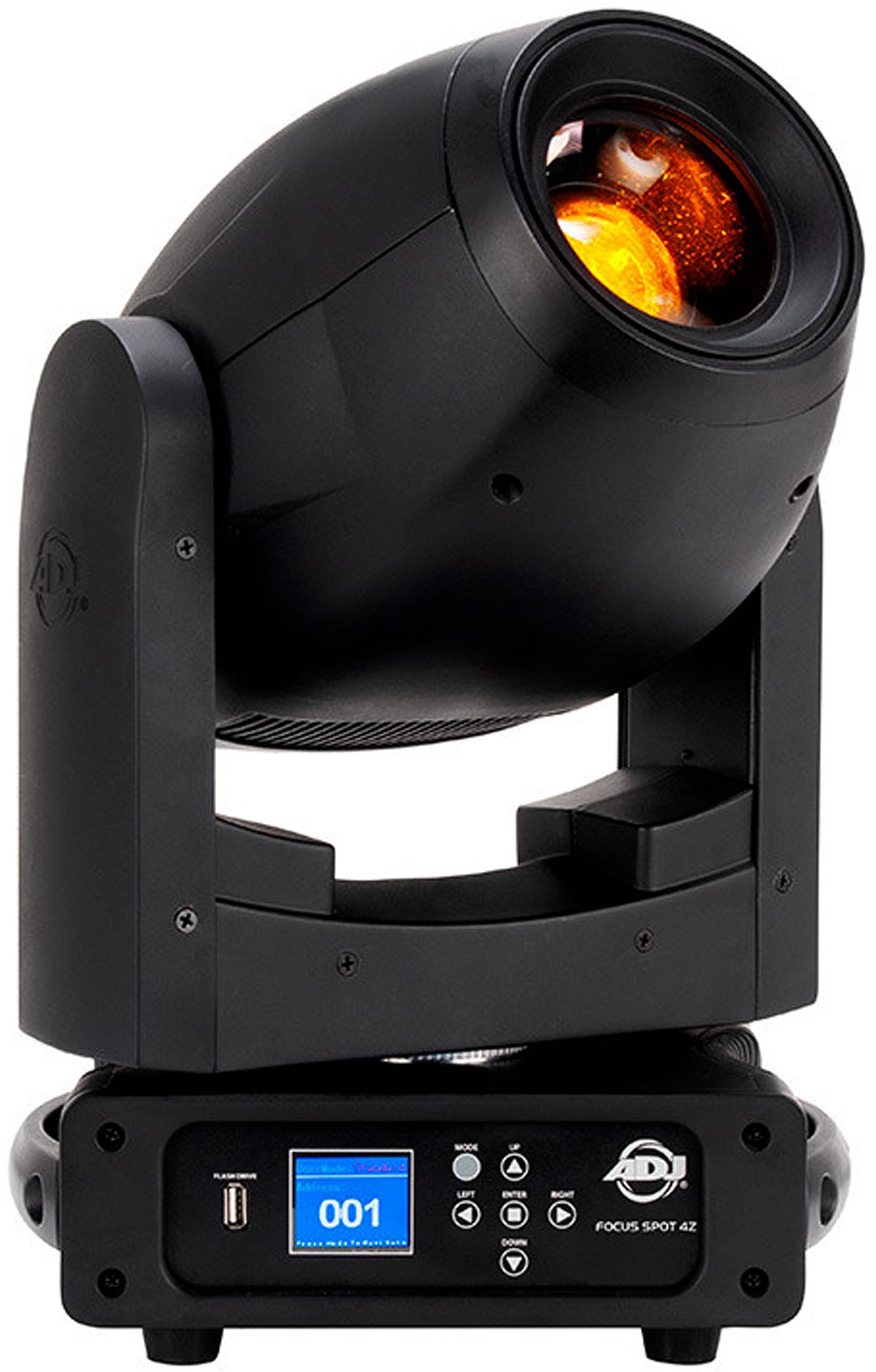

ADJ Focus Spot 4Z Effect Light

Need top-of-the-line lighting? The ADJ Focus Spot 4Z effect light is powered by a 200-watt cool white LED with motorized focus and zoom ideal for any venue.

The Focus Spot 4Z sits at the top of range of the popular Focus Series moving heads from ADJ Lighting. The Focus Spot 4Z is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus and zoom (11 ~ 22-degree zoom). It is designed for temporary events and fixed installations in nightclub, stages or churches.

The Focus Spot 4Z is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS, 8 vibrant colors plus white, and 2 prism wheels (one 5-facet linear and one 6-facet circular).

This light has locking powerCON In and out connectors to daisy chain the power, as well as 5-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as 16-bit fin pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 4Z offers a robust light output in a light weight, compact foot print (18-inch high and 23 pounds).


- Motorized Focus
- Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
- 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
- 0-100% smooth dimming
- Various strobe speeds
- USB firmware update port
- 2 cooling fans
WARNING: Cancer and Reproductive Harm -

Light Source: 200W Cool White LED Engine (50,000 hr.)
Color Wheel: 8 dichroic colors + white

GOBO Wheel:
- 6 aluminum GOBOs + open
- All GOBOs removable & rotatable
- GOBO Shake Effect
- GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)

Prism Wheel:
Prism Wheel 1: Rotatable 5-facet Linear
Prism Wheel 2: Rotatable 6-facet Circular
Prism Indexing

- 3 DMX Channel Modes: 16/18/22 Channels
- Color LCD display with 6-button function menu
- Data In/Out: 5-pin DMX
- Power In/Out: Locking powerCON (Daisy chain 4 units @ 120V; 10 units @ 240V)
- Control Mode: DMX512 or internal programs
- 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
- 0-100% smooth dimming
- Various strobe speeds
- USB firmware update port
- With Wired Digital Communication Network

- Pan: 540-degrees
- 16-bit Fine Pan: 630-degrees
- Tilt
- 16-bit Fine Tilt

Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
Power consumption: 240W max
Dimension: 18" x 10.97" x 7.15" / 457 x 279 x 182mm
Weight: 23 lbs. / 10 kg.
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 29.75 lbs
Shipping Dimensions: 24 x 17 x 13 in
Manufacturer Part Number (MPN): FOC200

For support or warranty questions, please contact the manufacturer:
Phone: 323-582-2650
