ADJ DP415 DMX Dimmer Switch, 4-Channel

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

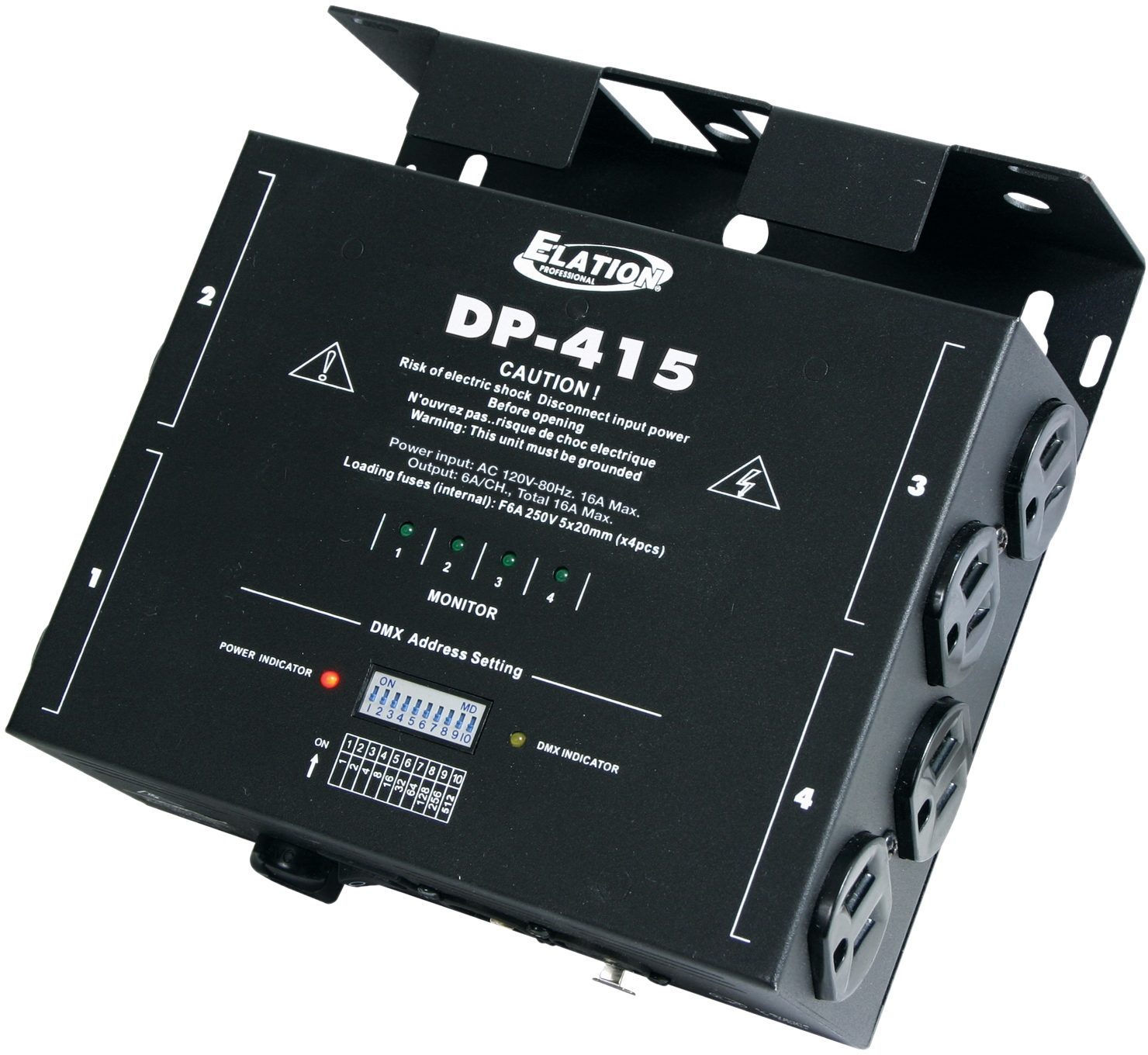

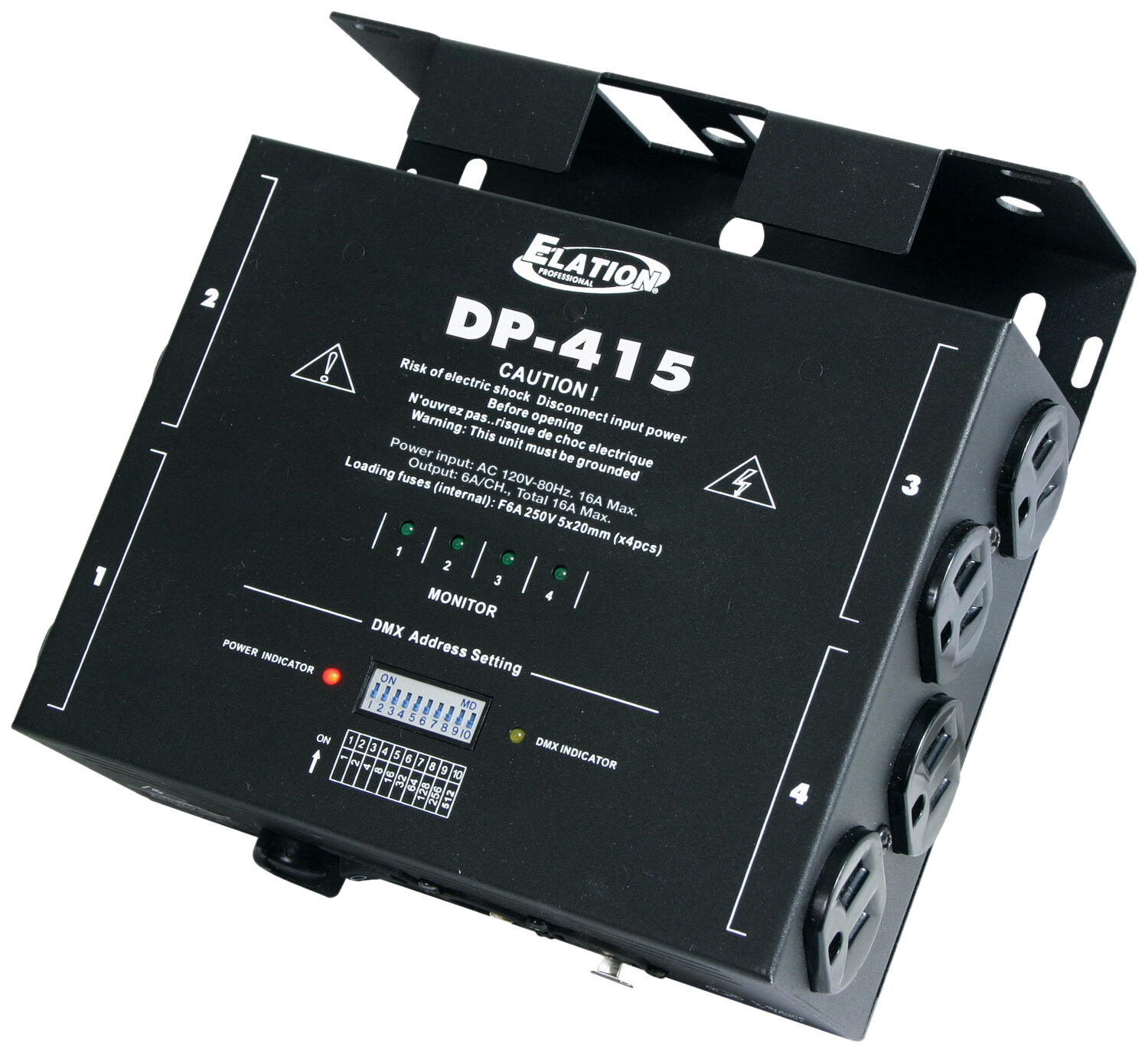

ADJ DP415 DMX Dimmer Switch, 4-Channel, Main

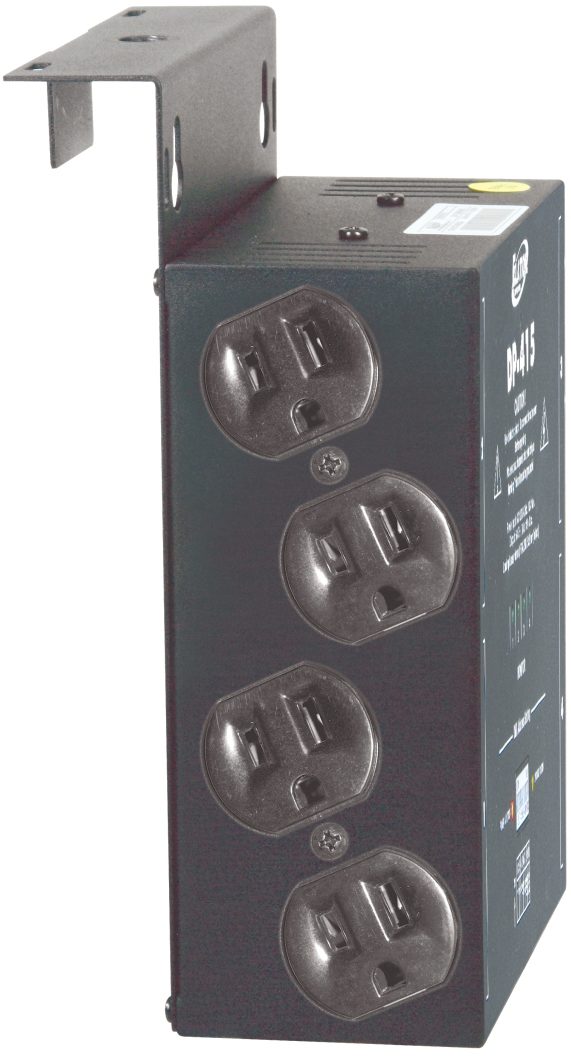

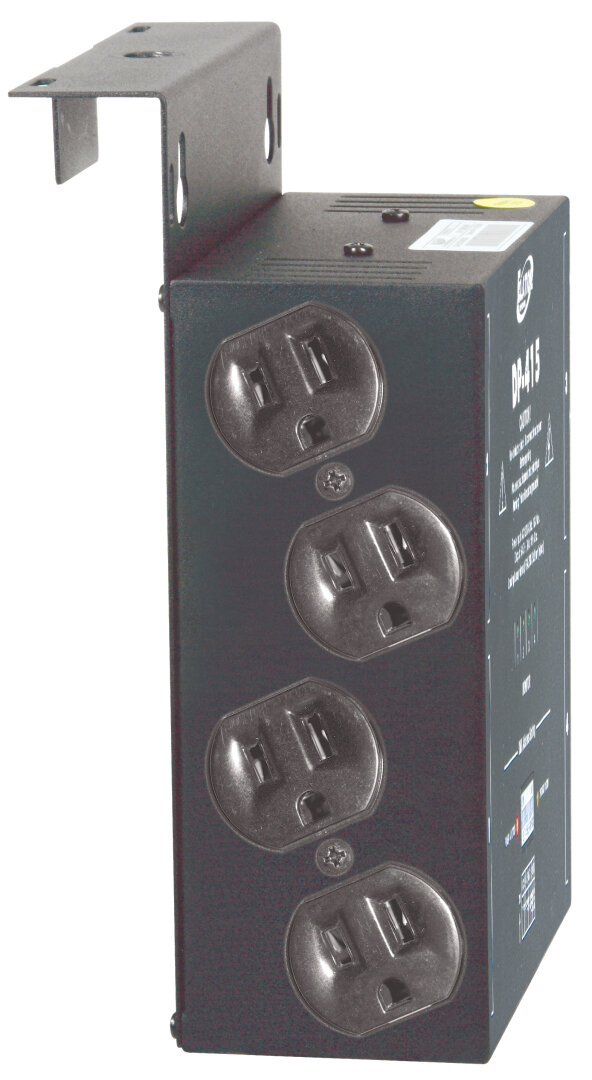

ADJ DP415 DMX Dimmer Switch, 4-Channel, Side

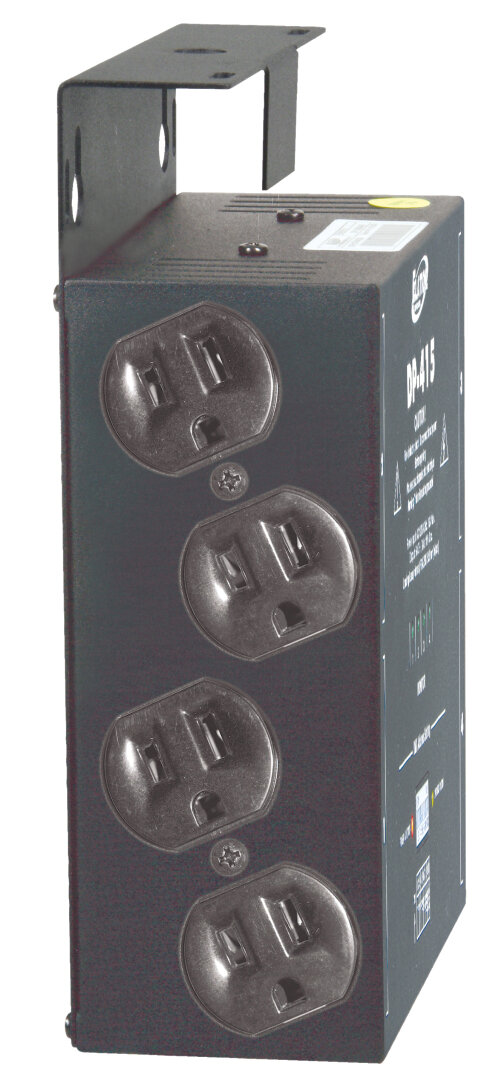

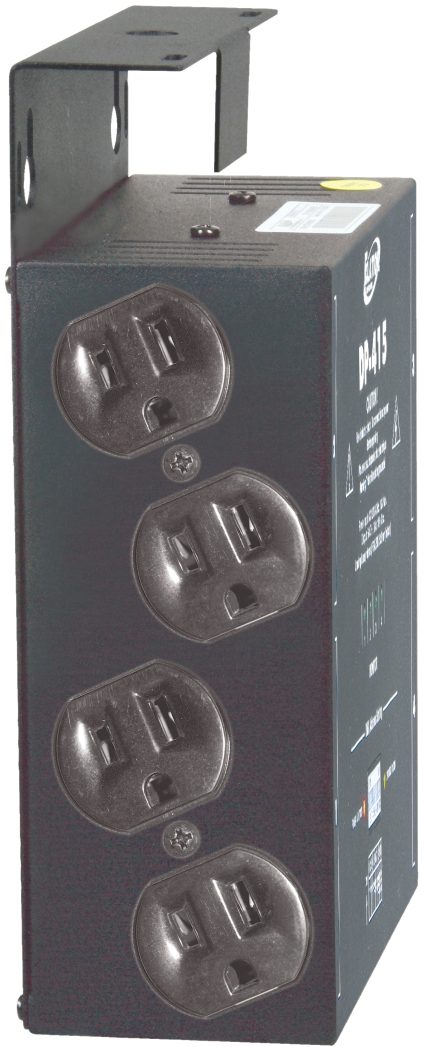

ADJ DP415 DMX Dimmer Switch, 4-Channel, Side 2
ADJ DP415 DMX Dimmer Switch, 4-Channel, Main ADJ DP415 DMX Dimmer Switch, 4-Channel, Side ADJ DP415 DMX Dimmer Switch, 4-Channel, Side 2
zZounds Gear Experts Say...
Temper and tame the mighty power of your lighting instruments with this combo dimmer and switch pack, capable of controlling up to 8 fixtures at once.

The American DJ Elation DP-415 is a versatile 4-channel dimmer pack that also doubles as a switch pack. This compact unit features eight, 3-prong Edison sockets (2 for each channel) controlling up to 8 fixtures. The built-in hanging bracket is reversible to hang on truss or can be used with a clamp.

Features:

- Compact 4-Channel DMX Dimmer
- 2x 3-pong Edison plugs per channel (8 total plugs)
- On/Off power switch
- XLR In/Out
- 10-position dip switch settings to address DMX
- Assign as a dimmer pack or switch pack
- Changeable hanging bracket to hang on truss
- LED "On" indications

- Power Input:AC 120V~60Hz, 15A max.
- Channel Output:Total 15A max.,5A per channel
- Fuse(Internal):F6.3A 250V 5x20mm(x4PCS)
- DMX Input:3-pin male XLR connector
- DMX Output:3-pin female XLR connector
- Dimensions (L x W x H):7 x 7 x 2.5 in., (180 x 177 x 64 mm)
- Weight:3 lbs., (1.2 kg)

For support or warranty questions, please contact the manufacturer:
Phone: 323-582-2650
Email: support@adj.com
Web: https://www.adj.com/support
Manual

Reviewers gave this product an overall rating of 4.5 out of 5 stars. (1 ratings)
Submitted March 8, 2012 by Glen Peoples in Colorado Springs , CO

"American DJ DP415 DMX Dimmer Switch "

Overall: 4.5 out of 5 stars
(see rating details)
Verified Purchaser zZounds has verified that this reviewer purchased this specific product from us.
I am using the DP415 in our Church to run stage lighting and control off and on switches for house lights. So far so good pretty simple to opperate if you read the instructions!

Musical Background:

Play Guitar, A/V Director for my Church

Musical Style:

Christian
4 of 5 people (80%) people found this review helpful. Did you?
Thanks for your opinion!
Rate and Review this Product
Read more reviews

No longer available at zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer
