ADJ DB Display MKII Rackable Decibel Display Light

Eye candy for your rack? Yes and no! The DB Display is for accurately scoping peak levels. But it also happens to create an awesome light show in your rack.

The all-metal ADJ DB DISPLAY MKII decibel display from American Audio is great for monitoring your sound volume. It also creates a great lightshow in your amp rack. Make sure your speakers stay in great shape by keeping those dBs under control through this monitoring system.

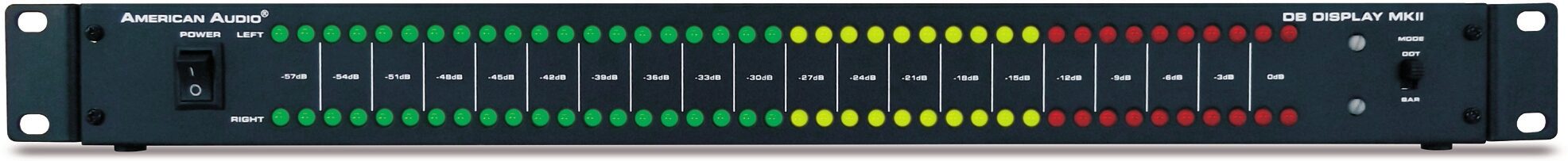

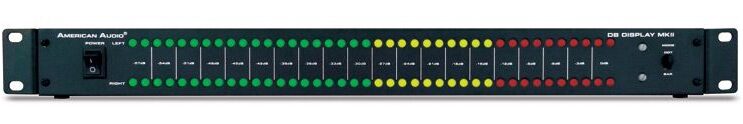

The LED display progresses from green through amber, to red. There are two different operating modes: Dot or Bar. A 5V power supply is included so you can get the unit plugged in an running right away. The DB DISPLAY MKII is perfect a stage, church, club or bar install or for a mobile entertainer.


- Designed to set in an amp rack to view your decibel level
- Creates a great light show in your amp rack
- Display progresses from green through amber to red
- Sensitivity adjustment on both left and right channels
- 2 separate modes: Dot and Bar
- Includes 5V power supply
WARNING: Cancer and Reproductive Harm -

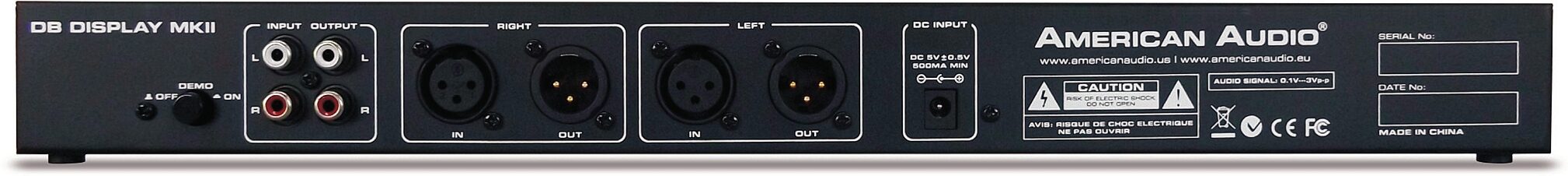

- Line Inputs: Left & Right RCA / Left & Right XLR
- Line Outputs: Left & Right RCA / Left & Right XLR
- Voltage Operation: DC 5V, 500mA Power Supply included
- Dimensions: 19" x 1.75" x 1.75" / 44.5mm x 483mm x 44.5mm
- Weight: 2.5 lbs. / 1.25kg.
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 3 lbs
Shipping Dimensions: 22 x 4 x 4 in
Manufacturer Part Number (MPN): DBD567
