Save money and hassle with this expertly-configured, bargain-priced PA package! We've done all the hard thinking for you--matching great-sounding speakers with powered mixers that have the right wattage to drive the speakers properly; choosing great, durable live sound mics; and selecting all the cables and stands you'll need to get everything connected and ready to use!

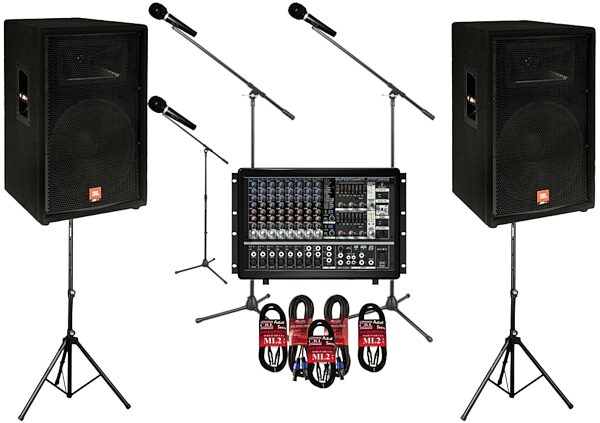

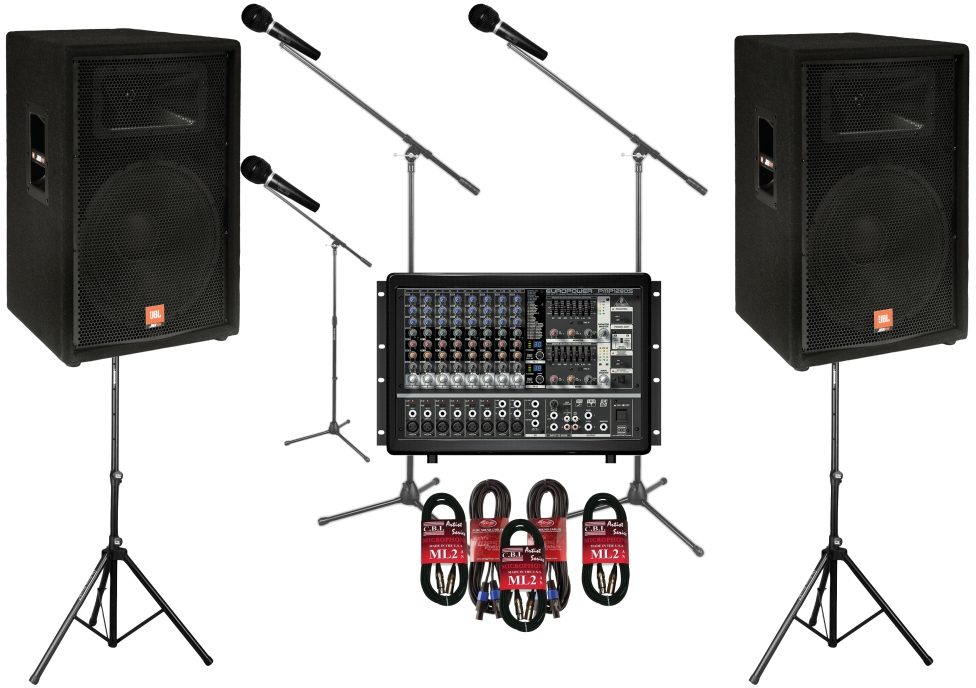

Includes:
1 x Behringer PMP1280S Europower Powered Mixer (1200 Watts)
2 x JBL JRX115 PA Speaker Cabinet (250 Watts, 1x15 in.)
2 x OnStage SS7761B Tripod Speaker Stand
3 x Audio Technica ST90MKII Dynamic Microphone (Total of 2 with Plus Package)
3 x CBI LowZ Microphone Cable (20 Foot)
3 x OnStage 7701B Tripod/Boom Microphone Stand
2 x Stagg Speakon to Speakon Speaker Cable

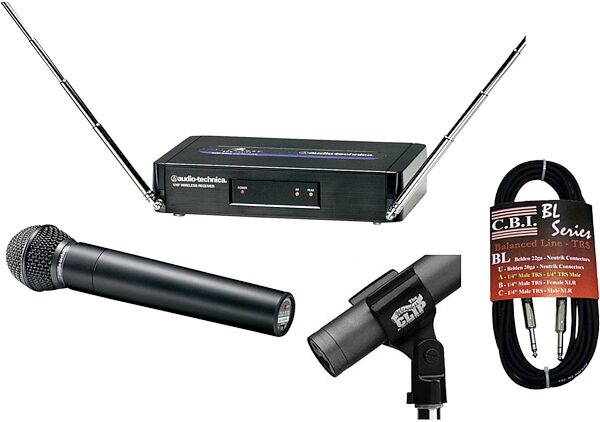

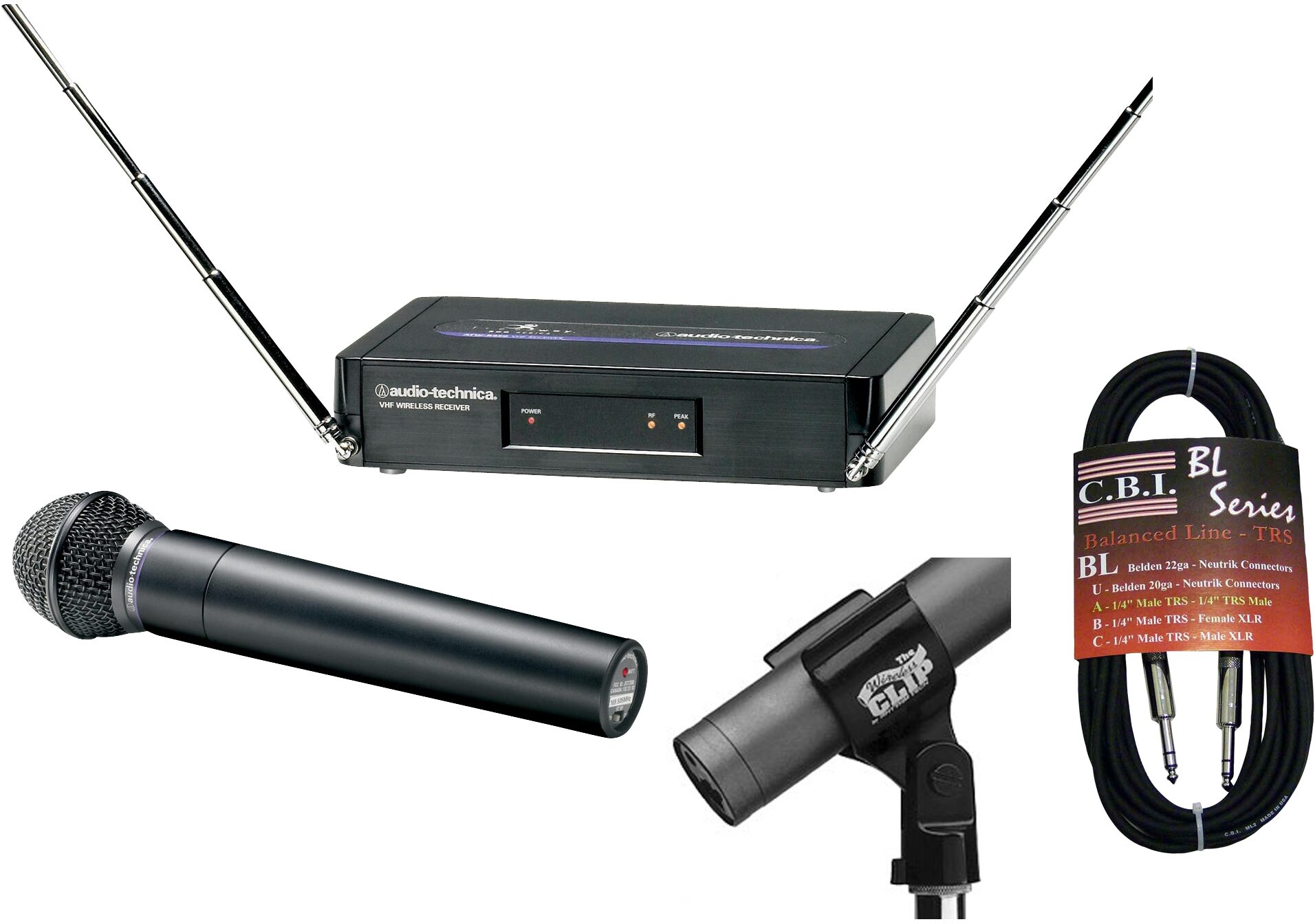

Plus Package includes:
1 x Audio Technica ATW252 Handheld Wireless System (Upgrade substitute for 1 handheld mic)
1 x CBI BL2A 1/4 in. 6 Foot TRS-TRS Cable (Upgrade substitute for 1 mic cable)
1 x Rhythm Tech Wireless Microphone Stand Clip
NOTE: Only New, Plus Package option includes Wireless System, TRS Cable, and Wireless Mic Clip.
Behringer PMP1280S Europower Powered Mixer (1200 Watts)
The PMP1280S powered mixer delivers more power, better sound at less weight!
The PMP1280S mixer delivers 1,200 Watts of massive power and incredible performance through new-generation amplifier technology, crystal-clear sound plus an ultra-compact and lightweight design. 24-bit stereo FX processors, IMP mic preamps, Voice Canceler and more round off this impressive package of power features.
Get massive power and great sound in a lightweight package!
Features:
Ultra-compact 2 x 600-Watt stereo powered mixer (1,200 Watt bridged mode)
Revolutionary amplifier technology: enormous power, incredible sonic performance and super-light weight
Ultra-compact design at nearly half the depth and weight of conventional powered mixers means no more lugging around dead weight
10-channel mixer section features 6 mono and 2 stereo channels plus separate tape returns
Two studio-grade 24-bit stereo FX processors with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies for easy feedback removal
Eight high-quality mic preamps with switchable +48 V phantom power for condenser microphones
Effective, extremely musical 3-band EQ, switchable Pad and Clip LEDs on all mono channels
Stereo 7-band graphic EQ allows precise frequency correction of monitor and main outputs
Voice Canceler function removes singer's voice from recordings for Karaoke applications
Selectable stereo (main L/R), double mono (main/monitor) or bridged mono amplifier operation mode
Speaker Processing function adjusts frequency response to match professional speaker systems like Behringer Eurolive series, etc.
Standby switch mutes all input channels during breaks while background music is provided via tape inputs
Adjustable stereo Aux input for connecting external signal sources
Internal switch-mode power supply, noise-free audio, superior transient response and very low power consumption
Rack mount brackets included
High-quality components and exceptionally rugged construction ensure long life
JBL JRX115 PA Speaker Cabinet
This trapezoidal, 15 in. speaker system is at home in live sound, dance music and speech reinforcement. It's equipped with low and high-frequency drivers built in JBL's Northridge, California factory. Features include the dual-angle, 35mm pole-mount socket as well as Neutrik Speakon and 1/4 in. input connectors.
Features:
Neutrik Speakon and 1/4 in. input connectors
Constructed of carpet-covered, 3/4 in. MDF - a material that is structurally and acoustically superior to the particleboard
Heavy gauge wire is used for inductors
SonicGuard high-frequency driver protection
Dual-angle pole socket (for conventional vertical position, or with a 10 degree down angle)
All metal handles
18-gauge, full metal grille
All JRX100 models have passed the same 100-hour, full rated-power torture test that JBL high-end touring systems must survive.
On-Stage SS7761B Tripod Speaker Stands
An extremely versatile speaker stand, this reversible-shaft design may be used with either 1-3/8 in. or 1-1/2 in. speaker cabinet mounts. Includes the added safety of a locking shaft pin to prevent accidental speaker slippage.
Audio Technica ST90mkII microphones
The ST90mkII is first and foremost a performance vocal mic. It features an on-off switch, plus it's a dynamic mic so it needs no phantom power -- you can use it with just about any mixer or recorder.
On-Stage 7701B Tripod/Boom Microphone Stands
Height adjustable mic stand comes with a durable tripod base and foldable legs for easy storage.
Features:
Solid cast end with standard 5/8-27 threads
Long 30 in. boom with molded plastic counterweight
Euro-Style boom with separate clutches for length and angle of boom. Allows user to make one-handed adjustments of boom angle while performing
Professional quality die-cast zinc clutch locks vertical shaft at any height from 36 - 63 in.
Clip-on cable holder
Steel-reinforced plastic leg housing offers less weight and exceptional strength
Folding legs with plastic endcaps for durability and reduced floor vibration. Base spread: 23 in
Info for Plus Package version only:
Audio Technica ATW252 Handheld Wireless System
Audio-Technica's Freeway 200 Series Wireless Systems are designed to provide reliable performance, easy setup and clear, natural sound quality. Each 200 Series professional VHF wireless system includes a receiver and either a body-pack transmitter or a handheld microphone/transmitter on a specific crystal-controlled frequency. A novel dipole antenna system on the receiver improves operation by providing a ground element in addition to the usual signal element.
Features:
Easy operation and clear, natural sound quality
Reliable performance and durable construction
Advanced dipole antenna system for extended operating range
Power, RF, and AF Peak indicators
Volume control, 1/4 inch. output jack and space-saving power supply
Rugged unidirectional dynamic element on handheld microphone/transmitter
Variable microphone trim control and easily accessible On/Standby/Off switch on transmitters
Professional locking connector on UniPak body-pack transmitter
Technical Info
Behringer PMP1280S Specs
Loudspeaker Outputs
Type: Neutrik Speakon-compatible connecter
- Load Impedance:
+ Main L/R: 4-8 ohms
+ Monitor/Main Mono: 4-8 ohms
+ Main Mono/Main Mono:4-8 ohms
+ Bridge: 8-16 ohms
DSP:
- Converter: 24-bit Delta-Sigma, 64/128-times oversampling
- Dynamics D/A: 90 dB
- Sampling rate: 40 kHz
- Delay time: max 5 secs
- Signal run time (Line in > Line out): approx. 1.5 ms
Display:
- Type: 2 x 2-digit, 7-segment LED
Output Power:
- RMS @ 1% THD (sine wave), both channels driven:
+ 8 ohm: 215 w
+ 4 ohm: 450 w
+ Bridged Mono 8 ohm: 900 w
Peak Power, both channels driven:
+ 8 ohm: 300 w
+ 4 ohm: 600 w
+ Bridged Mono 8 ohm:1200 w
Power Supply:
- Mains Voltage: 120 V~, 60 Hz
- Fuse:T 10 A H 250 V
Power consumption: 1000 w
Mains connector: IEC standard receptacle
Physical/Weight:
- Dimensions: approx. 12 2/5 x 18 1/10 x 8 3/5 inches
- Weight: 23.33 lbs
JBL JRX115 Specs
Frequency Range (-10 dB): 38 Hz - 16 kHz
Frequency Response (�3 dB): 50 Hz - 12.5 kHz
Sensitivity (1w/1m): 98 dB SPL
Nominal Impedance: 8 ohms
* Power Capacity: 250 watts
* Peak Power Capacity: 1000 watts
Recommended Amplifier Power: 250 watts to 500 watts into 8 ohms
Maximum SPL: 128 dB
Nominal Dispersion: 90 x 50 degrees
Crossover Frequency: 1.6 kHz
Dimensions (H x W x D): 27.5 in x 18.1 in x 17 in (699 mm x 460 mm x 432 mm)
Weight: 61 lbs (27.4 kg)
High Frequency Driver: JBL 2412 1 in. exit compression driver mounted on Progressive Transition Waveguide
Low Frequency Driver: JBL M115-8A
Input Connectors: Neutrik Speakon NL-4 (x1); 1/4 in. TS phone jack (x1); parallel
* "Power Capacity" and "Peak Power Capacity" ratings are based on the average and peak power capacity of product samples subjected to a 100 hour power test using random noise with a 6 dB crest factor, in accordance with IEC standards.
On-Stage SS7761B Tripod Speaker Stand
200 lb. capacity
Adjustable height (44 - 80 in.)
Black finish
On-Stage 7701B Tripod/Boom Microphone Stand
5/8-27 threads
30 in. boom
Molded plastic counterweight
Adjustable height from 36 - 63 in.
Steel-reinforced plactic leg housing
Folding legs
Plastic endcaps
Base spread: 23 in.
Info for Plus Package only:
Audio Technica ATW252 Handheld Wireless System
Overall System Specifications
Operating Frequency: VHF high band, 169 MHz to 172 MHz
Number of Channels: Fixed channel
Frequency Stability: ±0.005%
Modulation Mode: FM
Maximum Deviation: ±15 kHz
Operating Range: 200' typical
Operating Temperature Range: 40° F (4° C) to 110° F (43° C)
Frequency Response: 80 Hz to 13 kHz
Receiver Specifications
Receiving System: Non-diversity, single-channel, dual antenna system
Image Rejection: 50 dB minimum
Signal-to-noise Ratio: 80 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz
Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)
Sensitivity: 20 dBµV for 60 dB S/N (IEC-weighted)
Audio Output: 350 mV (1 kHz modulation, 10 kHz deviation, 100 k ohm load)
Output Connector: 1/4 in. TS ("mono") phone jack
Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
Dimensions: 7.48 in. (190.0 mm) W x 1.65 in. (42.0 mm) H x 5.12 in. (130.0 mm) D
Net Weight: 11.0 oz (311 g)
Accessory Included: Power supply
Handheld Transmitter Specifications
RF Power Output: 10 mW High position, 2 mW Low position, typical
Spurious Emissions: Under federal regulations
Dynamic Range: >=90 dB, A-weighted
Microphone Element: Dynamic unidirectional
Battery: 9V (NEDA type 1604) alkaline, not included
Current Consumption: 30 mA typical
Battery Life: Approximately 15 hours in High position; Approximately 20 hours in Low position (depending on battery type and use pattern)
Dimensions: 9.50 in. (241.3 mm) long, 2.10 in. (53.3 mm) maximum diameter
Net Weight: 12.7 oz (360 g) (without battery)
Accessory Included: AT8456a Quiet-Flex stand clamp
