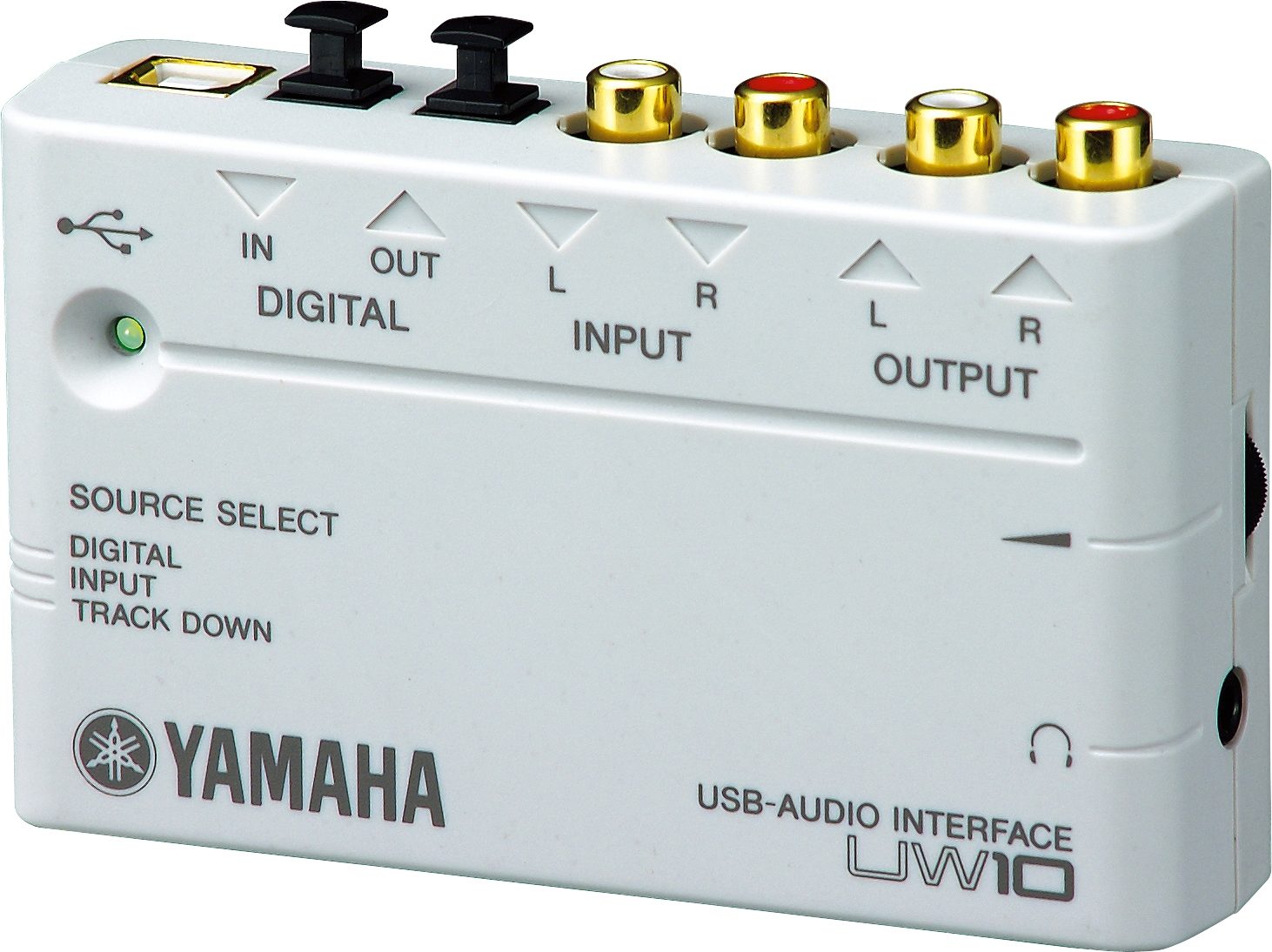

The UW10 is a high quality, compact USB audio interface featuring stereo S/PDIF optical I/O, two RCA analog inputs and outputs and a headphone jack. The UW10 is Windows 98, ME, XP compatible and uses ASIO drivers making it perfect for home and mobile recording applications.
The incorporated headphone amplifier provides quick and mobile monitoring. Includes Yamaha's unique trackdown mode and the TWEplus wave editor for audio editing and MP3 conversion.
Features
USB interface
4 Simultaneous inputs and outputs
Optical S/PDIF inputs and outputs
Headphone output
ASIO Driver support
Trackdown mode
Windows 98, ME and XP compatible
Includes TWEplus wave editor
Technical Info
Specifications
Audio Capability:
One stereo-line recording
One stereo-line playback
Sampling Frequencies:
Input:32 kHz, 44.1 kHz, 48 kHz
Output:32 kHz, 44.1 kHz, 48 kHz
Jacks and Connectors:
Digital in jack (optical)
Digital out jack (optical)
Line in jacks (RCA pin, L/R)
Line out jacks (RCA pin, L/R)
USB connector
Headphone jack (stereo mini)
Power Supply: USB bus power supply
Dimensions (approx.) [W x D x H]: 4.37 x 2.6 x 1.22 in. (111 x 65 x 31mm)
Weight: 2.09 lbs. (95g)
Option: Optical digital cable (with optical plugs)
System Requirements
Computer: IBM PC/AT or compatible computer that features a USB connector
CPU: Intel® Pentium® or Celeron® processor with 500MHz or faster
(Windows XP: Intel® Pentium® or Celeron® processor, 750MHz or faster)
Memory: 64MB or more (128MB or more recommended)
Available hard disk space: 10MB or more (excluding the space required for Acrobat Reader and MidRadio Player)
Operating System: Windows 98/98SE/2000/Me/XP
Note:
Some operating systems may require a superior environment than that specified above.
