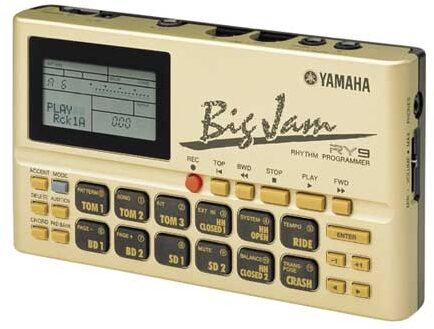

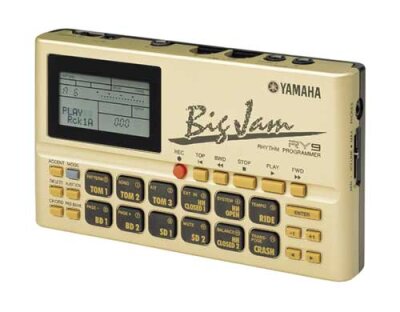

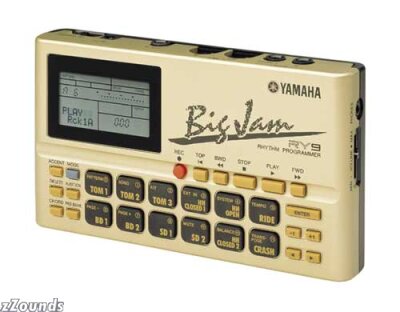

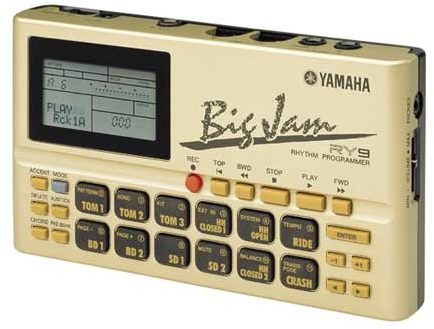

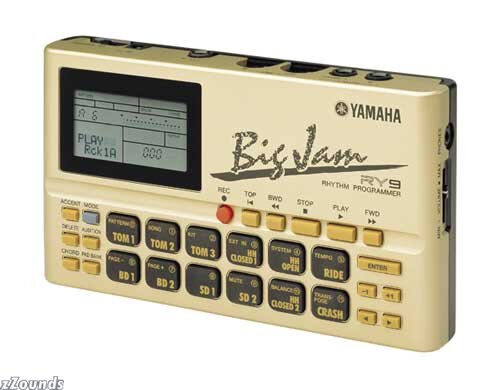

Yamaha RY9 Drum Machine

The RY9 is a great sounding drum machine packed with killer grooves for any kind of music. Yet more than a drum machine, the RY9 is a musician's best friend, loaded with outstanding features not available in conventional drum machines.

Features such as full bass and chord backing, as well as an exclusive guitar input for truly unique functions including guitar synthesizer, guitar tuner, and more! Whether you're a guitarist, composer, or even a DJ, you'll discover the RY9 gives you ultimate support for your music and it will never show up late for a gig or be too tired to jam.

Whether you're a heavy metal guitarist, a funk bassist or anything in between, the RY9 offers a diverse range of rhythm patterns to match your playing style. The 200 presets and 50 user patterns feature a full musical backup section, including Drum, Bass, Chord 1, and Chord 2 parts. You can change the chords at any time simply by entering the root note and chord type.

The RY9's 50 preset songs give you instant musical inspiration when playing with the band, recording at home, or simply jamming away. Plus, 50 user song locations are provided for you to arrange your own songs by chaining together various patterns and entering your own chord progressions. And because each music style has its own unique main and fill-in patterns, creating songs is fast and easy.

The RY9 is loaded with 128 incredibly realistic drum and percussion sounds to support any kind of music, from rock to dance music. From these sounds, 12 preset drum kits have been created for you. Also provided are 4 user kits, with which you can create custom sets by assigning each of the 24 pad locations (12 pads x 2 banks) with the drum sound of your choice. The pitch and volume of each pad can be set as well.

The RY9 is merely the size of a VHS cassette and can operate on batteries, so you can easily keep it in your guitar case and have it with you whenever and wherever inspiration strikes.

The volume of each rhythm backing part as well as the external input and synthesizer harmony levels can be precisely adjusted to achieve your ideal music mix. Plus, any of the backing parts can be muted on demand to suit your playing needs.

One of the most unique features of the RY9 is its external input, which allows you to use the unit as a guitar mixer, guitar tuner, and even a guitar synthesizer!

The MIX function combines the external guitar input signal with the sound of the RY9. This allows you to play along with the songs and patterns through the privacy of headphones, or connect to external PA or recording equipment using the RY9's stereo outputs. By using the Auto Start function, playback will begin the moment you hit a guitar string.

Use your guitar to trigger and play one of the RY9's 50 fantastic built-in voices, such as piano, brass and strings! SINGLE mode lets you play a single voice along with your guitar. HARM modes add an instrument harmony line to your playing. A total of 6 synthesizer modes are available for creative musical enjoyment.

The built-in guitar tuner allows you to easily check the tuning of your guitar. Simply play an open string and the note will be displayed on the LCD, indicating whether or not the pitch is in tune, sharp, or flat.

Technical Info

Tone Generator: AWM (Advanced Wave Memory) digital samples

Polyphony: 28 notes

Voices: 128 Drum voices and 50 Normal Voices

Pattern: Pattern Play (Patterns: 200 Presets, 50 User; 200 Backings; Swing, Clear, Copy),Pattern Record (Meter), Note Resolution (Record: 8 clocks per quarter note; Play 24 clocks per quarter note)

Song: Song Play (Songs: 50 presets, 50 Users; Repeat, Chain, Clear, Copy), Song Record(Part, Measure, Pattern, Delete, Insert, Chord Select)

Drum Kit: Drum Kit: (12 Presets, 4 Users), Kit Select, Pad Assign, Pad Level, Accent, Pan, Tune, Copy, Chase; 12 Drum Pads, Pad Banks (Drum, Percussion)

Ext IN: Mix, Type/Voice (6 Voice Types and 50 Voices), Tuner, Sensitivity, Start

System: Sync Clock, MIDI Channel, MIDI Program Change Receive Channel, Note Table/Note Number, Bulk Transmit/Receive, External In Voice Transmit Channel, Harmony Voice, Transmit Channel

Tempo: 40 ~ 250

Mute: Bass, Chord 1, Chord 2

Balance: Bass, Chord 1, Chord 2, External In, Harmony

Transpose: Half-steps (-12 ~ +12)

Controls and Connectors: REC, TOP, BWD, STOP, PLAY, FWD, ACCENT, MODE, DELETE, AUDITION, CHORD, PAD BANK, DRUM PADS x 12, ENTER, -1, +1, VOLUME,ON/STANDBY, LCD screen; OUTPUT (L/MONO, R), MIDI (IN, OUT), EXT IN, DC IN, PHONES

Power Supply Characteristics:
Battery: Six 1.5V AA size (SUM-3 or R6P) or equivalent batteries

AC Adapter: Yamaha PA3B (DC 12V 700 mA) (Not Included)

Consumption: 3.5 W

Output Impedance Line: 1 k ohm; Phones: 47 ohms

Dimensions (W x D x H)L 188 x 104 x 33 mm (7-1/2 x 4-1/8 x 1-1/3 in.)

Weight (without batteries): 360 g (13 oz.)
