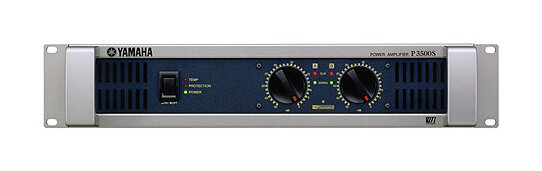

Yamaha P3500S P Series II Stereo Power Amplifier (550 Watts)

Jam right with this Yamaha stereo power amp It has full-bodied sound, immense power output and versatile features ideal for a variety of applications. (19) Read 2 reviews for this product | Rate and review this product
Ships to: Can ship to United States Can ship to APO/FPO
close [x]
zZounds.com 800-ZZOUNDS (800-996-8637)
List: $739.00
Savings: $209.01 (28%)
$529.99
or 4 payments of
$132.50 details
Coming SoonOrder Today!
FAST FREE SHIPPING
$$$$ Seen it for less? Request Lower Price
Questions? Call a gear expert now! (800-996-8637)
OWN THIS ITEM FOR
$132.50 PER MONTH

Product Description

The P-Series amps are an ideal match to Yamaha's popular Club Series loudspeakers and deliver a robust amount of pro quality power in a wide range of configurations designed to suit most any need. To achieve this, they're designed with big power output, and equipped with YS (Yamaha Speaker) Processing to deliver a signal that is tuned to the needs of the Club Series loudspeakers. All models feature both XLR and 1/4-inch TRS inputs and Neutrik Speakon (tm), 1/4 in., and 5-way binding post outputs to make connections quick and easy. Other features include Yamaha's exclusive EEEngine technology which delivers high performance with exceptional efficiency, sweepable high and low pass filters for optimizing output to any loudspeakers, compact and durable 2U chassis, and variable speed cooling fans.

Big Output Power

The P-Series Power Amplifiers deliver a robust amount of professional quality power in a wide range of configurations designed to suit most any need. In a 4- ohm bridged application, the P7000S delivers 3200 watts, the P5000S delivers 2600 watts, the P3500S 2000 watts, and the P2500S 1300 watts.

Those on a budget will find the lineup's high power output and affordable prices deliver higher quality without putting a strain on funds. Further savings are realized with extremely efficient operation utilizing Yamaha's exclusive EEEngine technology which keeps operational costs down by significantly reducing AC power consumption and heat generation.

The Perfect Match

The P-Series Power Amplifiers can be used with any loudspeaker system, but if you're using the Club Series, they will provide power and performance tailored to deliver maximum performance from your system. In an 8-ohm stereo application power output per channel on the P7000S is 700 watts, the P5000S 500 watts, the P3500S 350 watts, and the P2500S 250 watts. This wide selection lets you choose the amplifier that best matches the power handling capabilities of your speaker system.

All four models are equipped with independent sweepable high and low pass filters on each channel so you can optimize output for subwoofer or full range systems to provide peak audio quality and performance from any speaker system you may be using.

Light Weight and Setup Easy

Look at the specifications and you'll notice that the P2500S and P3500S are respectably light in weight making transport and setup less strenuous. What's amazing though, is the comparison in weight per watt when you look at the P5000S and P7000S. The use of a switching power supply makes these two models very lightweight while maintaining superior audio quality.

Flexible Connectivity

To provide the most flexible connectivity possible, all four models are equipped Neutrik Speakon (tm) output jacks, and 1/4-inch output jacks for each channel in addition to 5-way binding post. Channel inputs consist of both XLR and 1/4-inch TRS jacks.

* Speakon is the registered trademark of Neutrik AG.

Other Features

The P-Series' industrial design delivers a refined and impressive look with deep blue faceplates bordered in silver trim, handles, and mounts. The chassis is specially designed to provide added durability and strength. Continuously variable-speed fans mounted internally on either side of the front panel offer quiet, efficient cooling. Comprehensive protection consists of power on/off muting, DC detection, thermal protection, current limiting, and a protective cover for the attenuators is also supplied.

EEEngine

EEEngine (Energy Efficient Engine) Technology makes more efficient use of AC power by reducing power consumption and heat generation without degrading output power or sound quality. When power requirements are low, the system uses a highly efficient current buffer to transparently switch input power on and off as needed. As power requirements increase, an independently responding auxiliary power line supplies additional power as required. Output isn't compromised, as the auxiliary power line is driven by the power supply voltage, which maintains maximum output to the speaker load.

YS Processing

With YS Processing (Yamaha Speaker Processing), you get direct compatibility with the popular Club Series loudspeaker systems. This special circuit optimizes output from the power amplifier to match the characteristics of Club Series speaker systems delivering a signal that is precisely what the speaker requires. With the YS Processing system, extra-smooth highs and enhanced low frequency from your Club Series loudspeaker system is assured.

zZounds is an authorized dealer of Yamaha products.
Specifications

Output Power
1kHz, THD+N=1% 8 Ohms Stereo: 390W + 390W
1kHz, THD+N=1% 4 Ohms Stereo: 590W + 590W
1kHz, THD+N=1% 8 Ohms Bridge: 1180W
20Hz-20kHz, THD+N=1% 8 Ohms Stereo: 350W + 350W
20Hz-20kHz, THD+N=1% 4 Ohms Stereo: 450W + 450W
20Hz-20kHz, THD+N=1% 8 Ohms Bridge: 900W
1kHz, 20mS nonclip 2 Ohms Stereo: 1000W + 1000W
1kHz, 20mS nonclip 4 Ohms Bridge: 2000W

Power Bandwidth (half power): 10Hz-40kHz (THD+N=0.5%)

THD+N (20Hz - 20kHz, half power): Maximum 0.1%

Intermodulation Distortion (60Hz: 7kHz, 4:1, half power: Maximum 0.1%

Frequency Response: 0dB, +0.5dB, - 1dB f=20Hz-50kHz

Channel Separation: Minimum 70dB 1kHz

Residual noise (Att. min.): Maximum 70dB

S/N Ratio: 102 dB

Damping Factor: 200 max.

Sensitivity @8 Ohms +4dB

Voltage Gain (Att. max): 32.1dB

Input Impedance: 30kOhms balanced; 15kOhms unbalanced

Controls
Front Panel: POWER switch (push on/push off) attenuator (31position) x 2

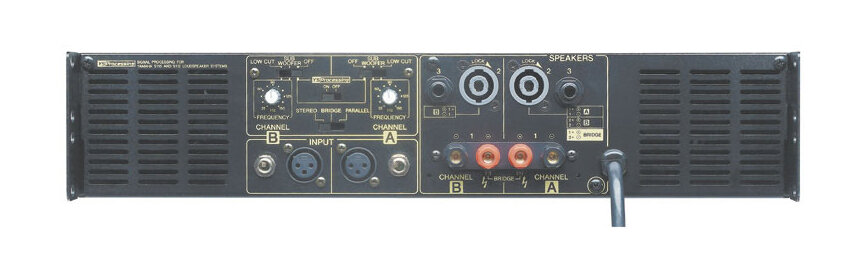

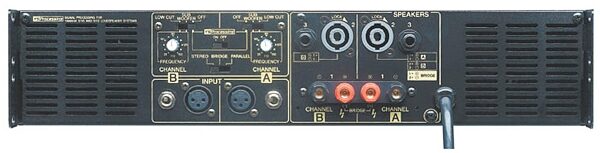

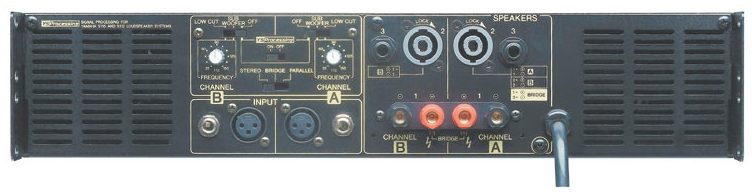

Rear Panel:
MODE switch (STEREO/BRIDGE/PARALLEL)
FILTER switch (SUB WOOFER/LOW CUT/OFF) x 2
FREQ. CONTROL (25Hz-150Hz) x 2
YAMAHA SPEAKER PROCESSING switch (ON/OFF)

Connectors
Input: XLR-3-31 type/ch, 1/4 in.
Output: SPEAKON, 5-way biding post, 1/4 in. phone/ch

Indicators
POWER: x 1 (Green)
PROTECTION: x 1 (Red)
TEMP: x 1 (Red) heatsink temp 85 degrees
YS PROCESSING: x 1 (Yellow)
SIGNAL: x 2 (Green)
CLIP: x 2 (Red)

Load Protection
POWER switch on/off mute
DC-fault power output cut

Amplifier Protection
Thermal (heatsink) temp 90 degrees C
VI limiter
Limiter Circuit: Comp. THD 0.5%
Cooling: Dual variable-speed fan / Single variable-speed fan

Power Requirements: USA/120V 60Hz

Idle Power Consumption: 30W

1/8 Power Consumption: 450W

Maximum Power Consumption (4 Ohms): 2000W

Dimensions (W x H x D): 18-7/8 in. x 3-7/16 in. x 17-15/16 in.

Weight: 26.5 lbs
Dimensions and Weight in Packaging
Shipping Weight: 37 lbs
Shipping Dimensions: 23 x 23 x 8 in
If you have additional warranty questions, please contact the manufacturer at 714-522-9011
Customer Reviews
4.5 out of 5 (19 ratings) Rate and Review This Product
This review has been selected by our experts as particularly helpful. "Great bang for your buck!"
Sound: As with the older "big-iron" Yamaha's I have owned/used, the sound quality is top notch. I'd rate it a step up from any of the entry level offerings from Crown, Behringer, Peavey, Mackie and the like. Clean, smooth power all night long. It seems to handle loads much better that the older amps I have, stays much cooler driving dual 15" subs, and responds smoother when driven into clipping. Feature: The features available heavily influnced my decision to buy this amp. Sweepable hi/lo pass filters(12db/oct), bridge-dual mono-stereo switch, On/off output mutes, low power consumption, 2U case and relative light weight. None of the other entry level amps offer all this. Quality: Build quality looks strong both externally and internally. Well laid out and easy to use controls. A rigid case with pro quality connectors that should last many years. Value: Value? This amp provided may target features, power, and weight at a cost only slightly above some of the competitions enrty level offerings with none of the features. Comparable to a QSC PLX, only cheaper. Overall: Overall I'm very satisfied with the amp, and will replace others I have with more of this line.
Style of Music: Everything
28 of 28 people (100%) found this review helpful. Did you?
Thanks for your opinion!
close [x]

Thank you. Your vote has been counted. Could you briefly tell us why the review was or was not helpful?

zZounds has verified that this customer bought this product from us. "Yamaha P3500S"
Overall: I was looking for a good solid amp with options that the yamaha p3500s has.im using this amp in a home theater set up coupled to a diamond d6 12" car sub.outstanding amp for home theater and sounds fantastic on music as well.i was originally looking at behringer amps.glad i didnt,this thing runs cool and quiet even when pushed hard.i dont expect this amp to go bad for 50 years or so.ha maybe even longer than that.if you are looking for a excellent pa amplifier for home theater,i highly recommend you look at the p series of yamaha.would i buy again ? yes,most definitely.only way i see me buying another though,is if the one i have is destroyed by a fire or mother nature.oh,and my av reciever is a yamaha HTR-5830(its discontinued now).so if you are like me and wont settle for plate amps for subs,then what you will need is,a good av reciever with a sub out,then to get the signal correct to the pa amp,you will need the ROLLS MB15B.i call it a line converter,signal matching device.works very well no fuss.i was watching a movie with the wife the other day and with this amp,it sounded like the train on the movie was coming through the living room !!! cant go wrong with yamaha and zzsounds did an outstanding job getting me my amp 2 days before christmas.they are very fast shippers and top business peeps.
Style of Music: rock,hip hop,rap,blues
