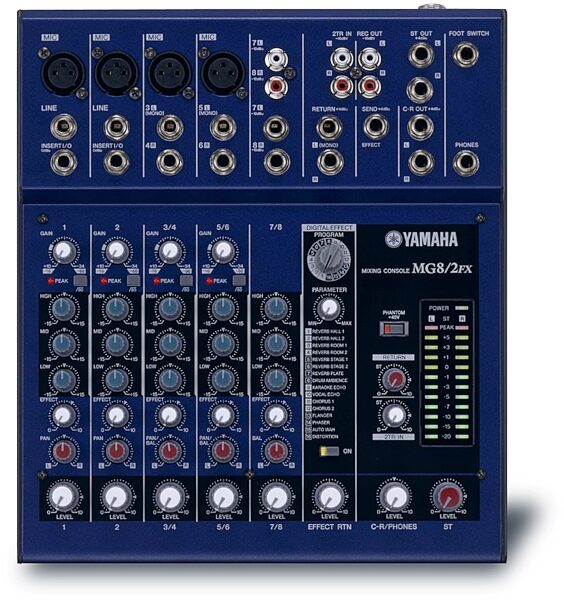

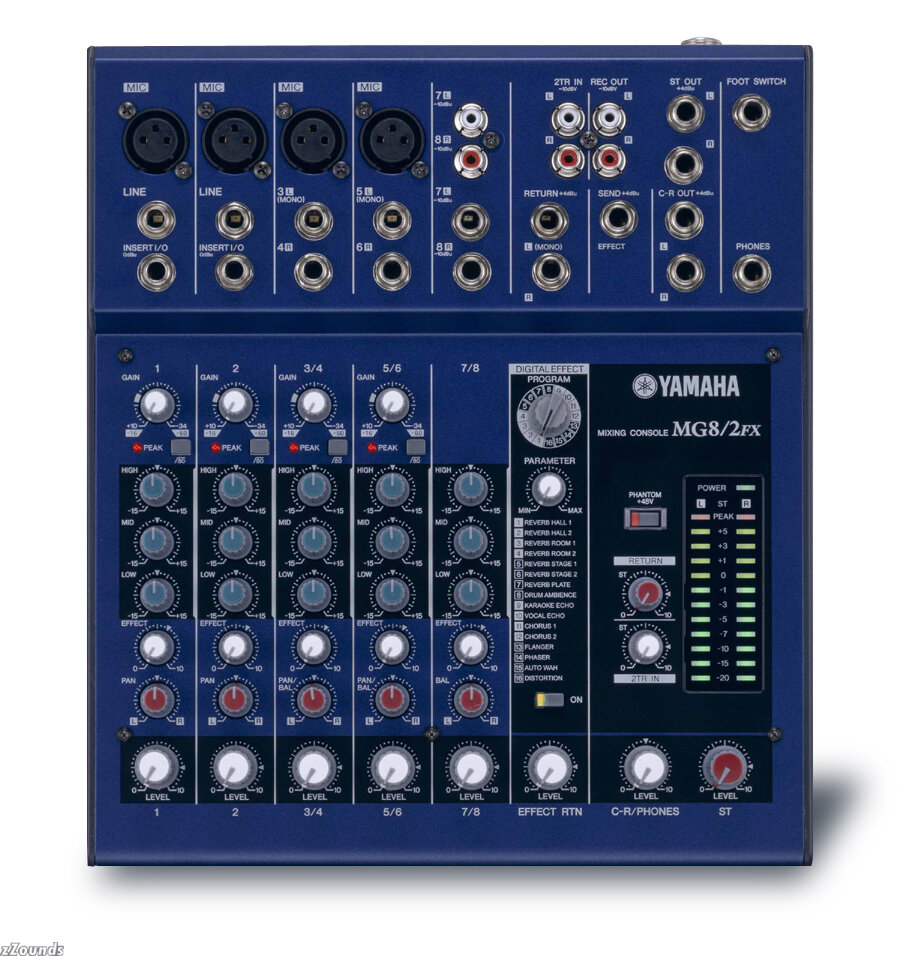

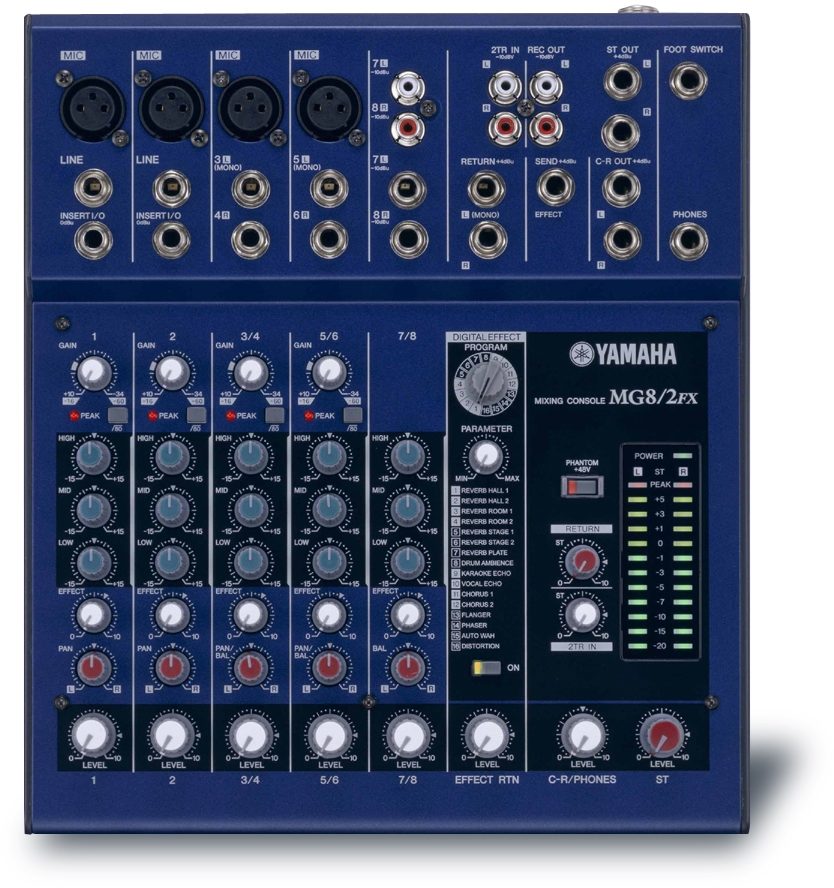

Yamaha MG82FX 8-Input Stereo Mixer with DFX

If you simply need to mix a few sources to stereo - but insist on the finest audio quality available - the MG8/2FX is the way to go. It's compact and convenient to use, but won't compromise your signal in any way. And the MG8/2FX's built-in effects can take your music to a new dimension. For demo and music production, small sound reinforcement applications, or simply as a super utility mixer for any application, you can't lose with this compact performer.

Features Found Only on the MG8/2FX
It may be small, but the MG8/2FX is packed with a surprising amount of signal-processing power. Renowned Yamaha multi-effect technology brings you a range of reverb, delay, chorus, flanger, phaser, distortion, and other effects built in - total of 16 types in all (Same as MG12/4FX). Each effect program has a number of editable parameters as well as effect on/off switching and return level control. Additional convenience is provided by a footswitch jack to which you can connect an optional footswitch for effect on/off switching.

8 Input Channels
The MG8/2FX has two mono microphone/line inputs and three stereo line inputs, two with mono microphone input capability. Gain trim covers a wide -60dB thru -16dB range for microphone input, and -34dB thru +10dB for line input. A variety of Balanced XLR connectors are provided on both mono inputs and two of the stereo inputs (a total of four XLR connectors), in addition to phone jack connectors. Two of the stereo channels can accept mono microphone input either via the XLR or phone jack connectors. The remaining stereo inputs feature both phone jack and pin jack inputs for broad connectivity. A separate stereo 2-track input with pin-jack connectors is provided for independent input of signals from CD players or similar sources.

Four Low-noise, High-precision Mic Preamps
The microphone preamps provided on the two mono channels and two of the four stereo channels would be worth the price of the entire mixer if packaged separately. These are high-performance head amplifiers that will bring out the best in any dynamic or condenser microphone.

Phantom Power
So you can take advantage of the superior sonic quality of professional-class studio condenser microphones, all four high-performance mic preamps feature switchable phantom power. A single switch turns phantom power on or off for all four channels.

Insert I/O
Mono input channels feature insert I/O patch points so you can add compressors or EQ for vocals, a noise gate on a guitar channel, or other extra signal processing to individual channels as required.

3-band Channel EQ & HPF
Designed for smooth, "musical" response, the 3-band equalizers provided on all input channels are one more sonic tool you can use to create clean, professional mixes. All mono microphone input channels also feature a switchable high-pass filter that can be used to cut out unwanted low-frequency noise.

Aux Send/Return
The MG8/2FX is also fully equipped to handle external effects and monitor systems. Use the post-fader auxiliary send in conjunction with the stereo auxiliary returns to add reverb, delay, or other external effects to the mix, and the pre-fader sends to feed a separate mix to your monitor system.

Stereo, Control Room, Rec, and Headphone Outputs
In addition to the main L and R phone-jack stereo outputs, the MG8/2FX also offers phone-jack control room, pin-jack recording, and stereo phonejack headphone outputs. You have plenty of outputs for a wide range of applications - monitoring, master recorder feed, etc.

12-segment Meters for Accurate Visual Monitoring
Output level monitoring is made accurate and easy with high-visibility 12-segment level meters.

Compact, Portable Design
Weighing in at a mere 1.8 kg, the MG8/2FX can easily be carried just about anywhere. You get top-quality mixing performance in the rehearsal studio, club, outdoors - wherever you need it.

Optional Mic Stand Mount
What could be more convenient than having your mixer mounted on a microphone stand for freedom of placement and easy access? With the optional BMS-10A Mic Stand Adaptor you can do just that, and have your sonic control center within easy reach all the time. This can be particularly handy when using the mixer as a drum sub-mixer or as a cue box in a recording situation.

Easy Operation and High Reliability
All switches and controls used in these mixers have been chosen for smooth, reliable operation as well as easy visual confirmation.

Technical Info

Total Harmonic Distortion: Less than 0.1 % (THD+N) 20 Hz - 20 kHz @ +14 dBu (Stereo Out)

Frequency Response: -3, 0, +1 dB 20 Hz - 20 kHz @ +4 dBu (Stereo Out)

Input Hum and Noise: -128 dBu Equivalent Input Noise/-100 dBu Residual Output Noise, 20 Hz - 20 kHz, Rs = 150 Ohm, Input Gain = Maximum, Input sensitivity = -60 dB

Crosstalk: -70dB @ 1kHz

Mic Input: 4 (Ch 1 - 2, 3/4, 5/6: XLR)

Line Input: 2 (Ch 1 - 2: TRS:Phone)

Stereo Input: 2 (Ch 3 - 4, 5 - 6: TRS:Phone), 1 (Ch 7 - 8: TRS:Phone/RCA:Pin)

Insert I/O: 2 (Ch 1 - 2: TRS:Phone = T: Out, R: In, S: Gnd)

Aux Send: 1 (Effect / AUX)

Aux Return: 1 Stereo (L/MONO, R: TRS:Phone)

Effects Send: (Same as AUX Send)

2 Track Input: 1 Stereo (L, R: RCA:Pin)

Record Out: 1 Stereo (L, R: RCA)

Stereo Out: 1 Stereo (L, R: TRS:Phone)

C/R Out: 1 Stereo (L, R: TRS:Phone)

Phones Out: 1 (TRS:Phone Stereo)

Phantom Power: +48 V

Channel and Stereo Channel Input Gain Control: 44 dB variable

Channel and Stereo Channel High Pass Filter: 80 Hz 12 dB/Octave

Channel EQ (+/-15 dB Max.): High, 10 kHz (Shelving); Mid 2.5 kHz (Peaking); Low 100 Hz (Shelving)

Internal Digital Effects: 16 Programs, Parameter Control

Dimensions: 9.88 in. x 11.41 in. x 2.55 in. (251 mm x 290 mm x 65 mm)

Weight: 4 lb. (1.8 kg)

Power Requirements: 20 W, 120 V, 60 Hz AC
