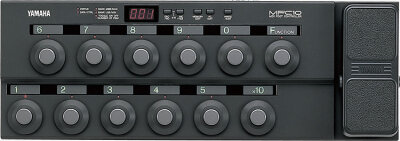

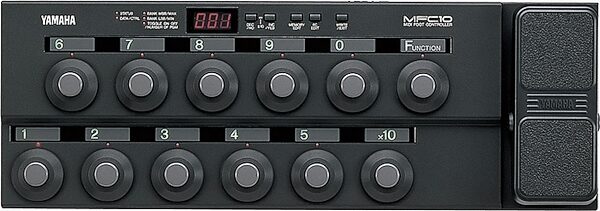

TheYAMMFC10 is suitable for use with products such as the G50 Guitar MIDI Converter and the WX11 Wind MIDI controller.
100 Control Changes and 128 Program Changes
Up to 12,800 program changes if 100 bank select messages are used.
Connections and Jacks
The YAMMFC10 features a WX-in jack for connection to a WX11, and a built-in expression pedal. Four external assignable SW/Exp Pedal connectors are also provided.
Program Change Mode
By operating the foot switches, you can transmit 128 different Program Change and Bank Select messages from memory. Bank Select MSB: h'Bn, h'00, 00-127; Bank Select LSB: h'Bn, h'20, 00-127; Program Change: h'Cn, 00-127.
By operating the foot switches, you can transmit 100 different Control Changes etc. from memory. Note Off: h'8n, 00-127, 00-127; Note On: h'9n, 00-127, 01-127; Control Change: h'Bn, 00-127, 00-127; Program Change: h'Cn, 00-127; Start/Stop/Continue: h'FA, h'FB, h'BC; Song Select: h'F3, 00-127

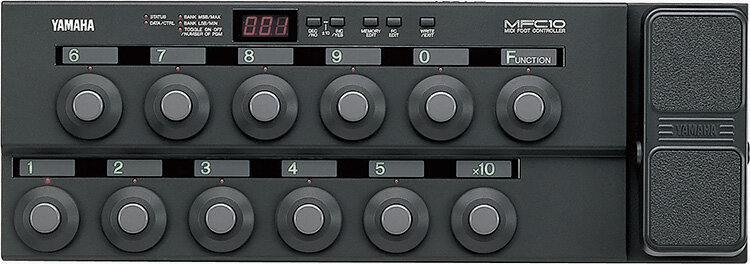

Markings on the Foot Switches
The number (0-9), F, and x10 markings on the foot switches are always illuminated by a green LED, allowing operation even in a dark location. Of these, the numbers (0-9) change to red when a memory is selected, and "F" lights red in Function mode.
Control Changes, etc. can be transmitted using the build-in foot controller (pedal) or an external foot controller. Control Change: h'Bn, 00-120, 00-127; After Touch: h'Dn, 00-127; Pitch Bend: h'En, 00-127, 00-127
MIDI IN Connector
A MIDI IN connector is provided and its input is merged and transmitted from MIDI OUT.
A WX-IN jack is provided, allowing controllers such as the WX11 to be directly connected. (A switch allows you to select between this and MIDI IN.)
Function Select Switch
The Function Select Switch lets you choose to use the Program Change mode and Function mode together or independently. This allows 25 memories (5 banks x 5 memories) to be used as program changes. However, by pressing the [Function] foot switches [1-5], you will be able to use 25 program changes and 100 functions.
Program Change or Function Mode
The Function Select Switch allows you to use the previously described Program Change mode and Function mode independently. In this case you will be able to use 128 program changes and 100 functions.
Program Change/Function Mode: Used Together
Program Change mode and Function mode can be used together. Foot switches [6-0] are fixed as Function switches, and foot switches [1-5] are used for program changes.
zZounds is an authorized dealer of
Three 7-segment LEDs, 27 LEDs, Panel switches x 5, Function select switch, Foot switches x 12, Foot controller x 1, MIDI IN/WX-IN select switch
Connectors MIDI IN (WX-IN)/OUT, Foot Switch or Foot Controller inputs (FC5, FC7, etc.) x4, DC 12V IN: 12V/700mA
Power Supply: PA3B or equivalent AC adapter
Dimensions (W x D x H): 24" x 8 1/4" x 2 1/4"
Weight: 7 lbs. 11 oz.
- Dimensions and Weight in Packaging
- Shipping Weight: 11 lbs
