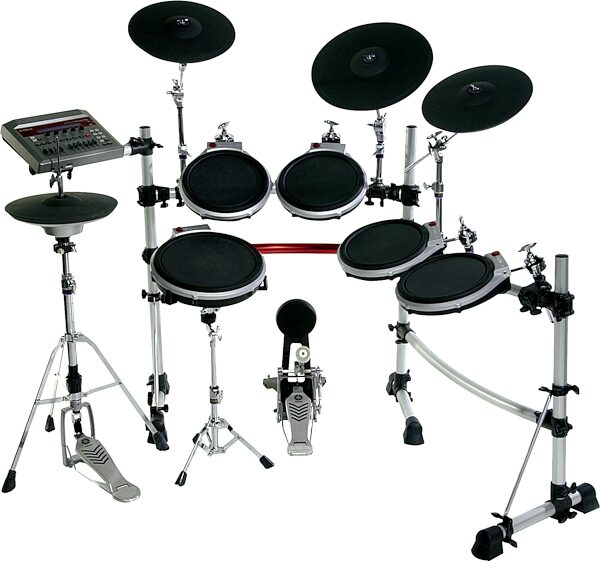

Yamaha Drums combines the best of digital technology research with advanced drum manufacturing in the new DTXTREME IIS. Upgrades include a new rack, great feeling pads, sampling capabilities and a selection of physically modeled voices from the award-winning Yamaha Motif. New, soft 3-zone rubber pads offer the ultimate in performance comfort, natural feel and rebound.
Each pad includes individual controls for pitch and pad selection, and snare pads feature adjustable dampening control. The high hat controller combines an acoustic-type stand with electronic pads for a traditional look and feel.
Onboard electronics include 2.177 realistic drum voices, 128 GM voices, up to 90 preset drum kits, 40 user kits, 164 preset songs, up to 32 user-created songs, the Groove Check practice feature and an easy-view back-lit display. More than 8 MB of voices, kits or songs may be stored on SmartMedia
Technical Info
Voices: 2,171 drum, 128 General MIDI
Tone Generator: 16-bit AWM2
Drum Kits: 90 factory preset, 40 user programmable
Pads: TP120SD (1), TP100 (4), PCY150S (1), PCY130S (1), PCY130 (1), RHH130 (1), KP65 (1)
Polyphony: 64 notes
Multi Timbres: 16 parts
Trigger Inputs: 1-8 3-zone, 9/10-15/16 stereo (single trigger x 2)
Effects: Reverb x 12 types, Chorus x 14 types
Sampling Memory: Max 8MB
Sampling Frequency: 44.1 kHz
Sampling Source: Aux in
Sampling Time: Max 94 sec. (monaural)
Sample Format: AIFF, WAV (load only)
Sequencer: 2 track MIDI sequencer
Songs: 101 factory pre set, 32 user
Memory storage: SmartMedia (3.3v)
Power Supply: DC 12V/AC Adaptor (PA-5C or PA-5D)
