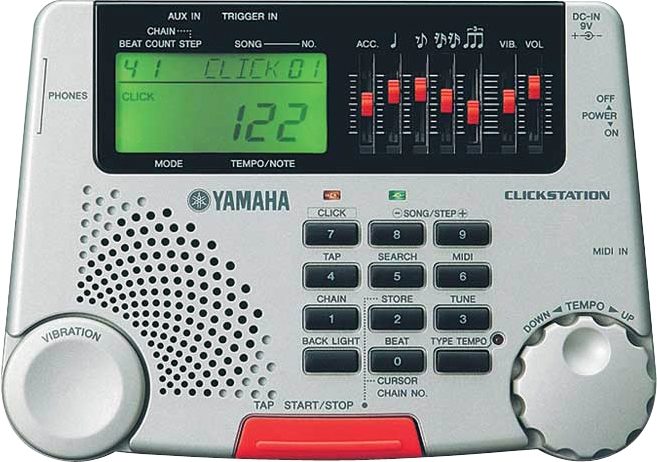

Yamaha CLST100 ClickStation Programmable Metronome

Yamaha has introduced a new concept in traditional timekeeping with the debut of the ClickStation programmable metronome. ClickStation features a small, round vibrating pad that pulsates with the beat, providing time reference through the sense of feel - eliminating the need for audible or visual cues, plus individual fader-type volume controls for half-, quarter-, eighth- and sixteenth-note, as well as eighth-note triplets and accompaniment, and storage for 86 tempo settings that you can chain together.

The ClickStation is also equipped MIDI allowing you to sync with a sequencer or other MIDI device. Its trigger input jack provides remote start/stop of playback, or tap tempo functions from an electronic drum pad. Other features include an easy-to-read backlit LCD display, plus a 10-key pad for tempo input and quick access to functions.

86 memory allocations
ClickStation gives you the ability to save 86 tempos to have readily accessible. If you are going to use it in a live situation you can program up to 10 chains of 20 songs, making transitions between songs quick and smooth.

Feel the Tempo
The ClickStation has a small round vibrating pad so if you can't hear it or watch the light you can press the pad to feel the tempo.

Individual Subdivision Volume Adjustment
You have individual sliders to adjust the volume in subdivisions of half, quarter, eighth, sixteenth notes and eighth note triplets, and accompaniment. This lets you fine-tune the volume output of each subdivision to create complex rhythms.

Backlit LCD Display
This feature let's you see the LCD display even on a dark stage. It can be set to stay on as long as the power is on or to switch of to save battery power.

10-Key Pad
In addition to the jog dial, the 10-key pad provides past input of tempos and access to ClickStation's functions.

MIDI In Jack
With the MIDI In jack, ClickStation is able to sync with the MIDI clock from a sequencer or other MIDI devices.

Trigger Input
Connect a Yamaha DTX pad and use the pad to start/stop the metronome or use it for the tap tempo function.

Technical Info

Specifications

Metronome:
- Tempo: 35-300 beats/minute
- Tempo Accuracy: 0.16%
- Vibration: Pulses in sync with the tempo
- Tempo LED: Flashes in sync with the tempo/beat

Tuning Pitch:
- Range: C2 - B6
- Standard Pitch: 438-446 Hz
- Accuracy: +/- 1 Cent

Memory:
- Memory Allocations: 86
- Total number of chain programs: 10
- Steps: 20 songs (per chain program)

Input/Output:
- Trigger In: Standard monaural phone jack
- MIDI In: Standard 5-pin DIN connector
- AUX In: Standard Stereo Phone Jack
- DC In: 9V
- Phones: Standard Stereo 1/4 in. Phone Jack x 1; Mini Stereo 1/8 in. Phone Jack x 1

Speaker: 57mm x 1

Power Supply: Optional Power Adaptor (PA-3C) or 9-Volt 6LR61 (x1)

Dimensions: 6-11/16 x 4-13/16 x 1-7/16 in. (170 x 122 x 37 mm)

Weight: 395g (13.9 oz) (including battery)

Full-service tempo maintenance to help you stay on the beat! MIDI input, 10-key pad, LCD display, 86 memory locations.
