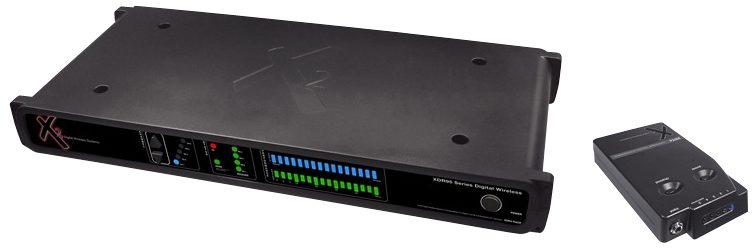

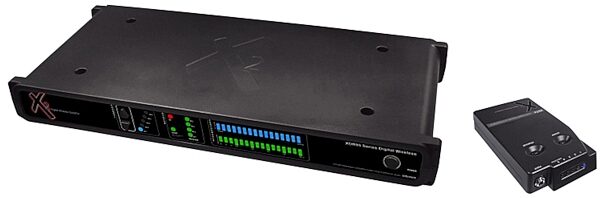

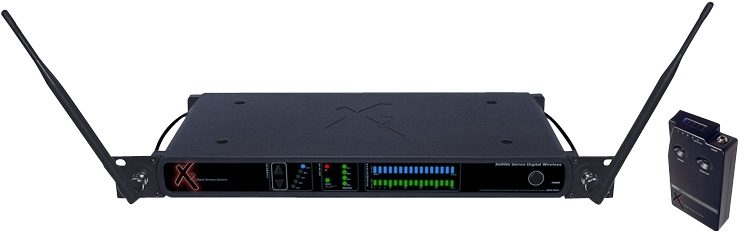

Line 6 X2 XDR95 24-Bit Digital Rackmount Wireless Instrument System

Manufacturer's Description for Line 6 X2 XDR95 24-Bit Digital Rackmount Wireless Instrument System

A breakthrough in wireless technology, X2(TM) XDR95 Rackmount Guitar Wireless System from Line 6 features award-winning solutions that traditional analog wireless systems simply cannot deliver.

Providing guitarists with total freedom, superior tone and refreshing simplicity, X2 XDR95 allows for a completely uninhibited musical experience. Performers can finally keep their energy and attention on their performance, not on their rig. X2 XDR95 provides this kind of revolutionary support.

Boasting extended frequency response and dynamic range, X2 XDR95 produces brilliant sound quality comparable to that of high-quality audio cables. Instead of tripping over dozens of feet of tangled cable, performers will fall for X2 XDR95's clear and powerful tone.

Featuring an extended range of 300 feet, the length of an entire football field, X2 XDR95 provides at maximum range the same blazing signal and brilliant, uncompressed tone that it provides at the source. Analog wireless systems, notorious for rolling-off low end, force players, especially bass players, to sacrifice tone for wireless functionality. With X2 XDR95, players can easily interact with the crowd at the foot of the stage without any loss in sound quality.

Extremely versatile, X2 XDR95 even simplifies the recording process. The extended frequency response, 10 Hz - 20 kHz, satisfies the expectations guitarists have come to demand from high-quality cable, but without the tangled mess. With their rigs cranked to 11 in the iso-booth, guitarists can play near the band and keep the all-important vibe and that ensures a great take.

Eliminating common issues that adversely affect traditional analog wireless systems, X2 XDR95 utilizes exclusive Line 6 dual-RF technology to guarantee a strong and constant signal and to neutralize issues of static, interference and jamming caused by cell phones, wireless networks and other unforeseen or unknown sources of RF energy.

Free of complicated setup, X2 XDR95 provides out-of-the-box simplicity. Complete with all the batteries, antennae and accessories necessary, it's easy to fire up X2 XDR95 and hit the ground running.

Features
Extended frequency response matches that of high-quality audio cables (10 Hz - 20 kHz ); Extended operating range (300' line-of-sight); Extended dynamic range (>118 dB); 24-bit Delta Sigma A/D conversion

Exclusive anti-jam and dual-frequency broadcast technologies provide immunity from static, interference and dropouts

5 compatible user-selectable channels (can be used simultaneously)

Roams freely throughout N. and S. America; 2009 Compliant; Full two-year warranty

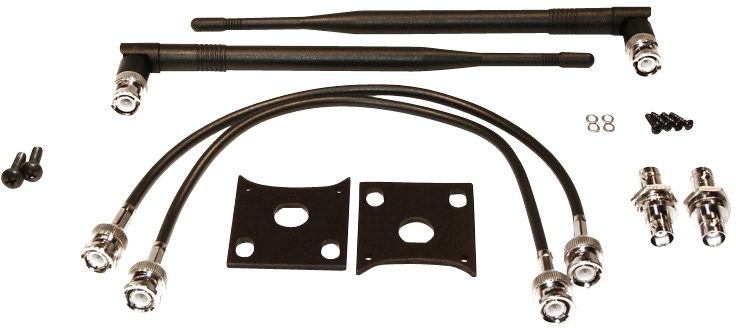

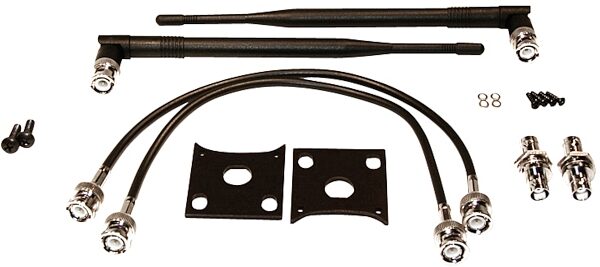

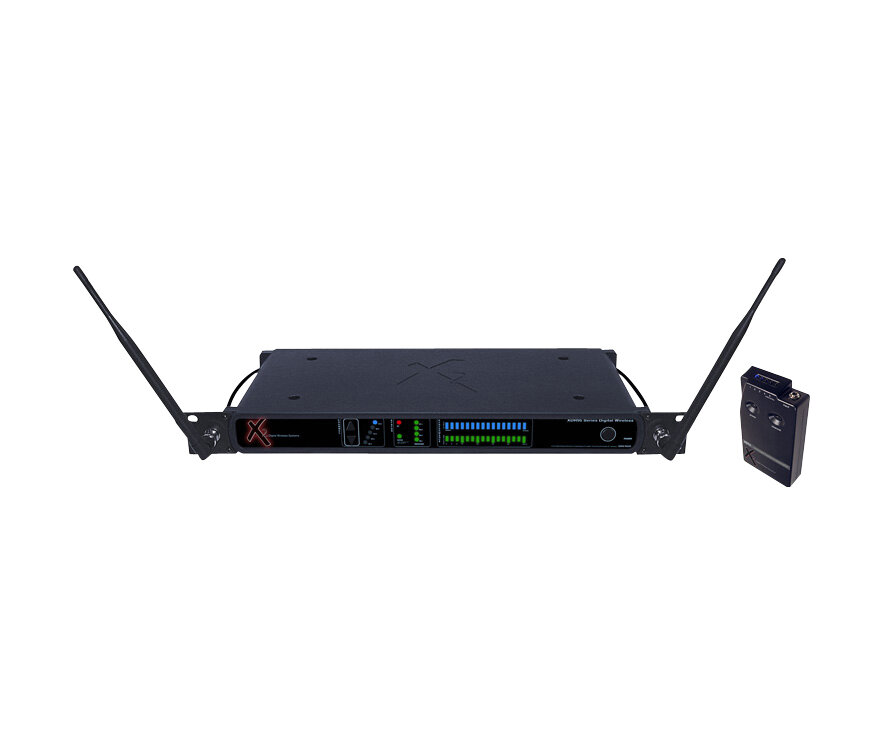

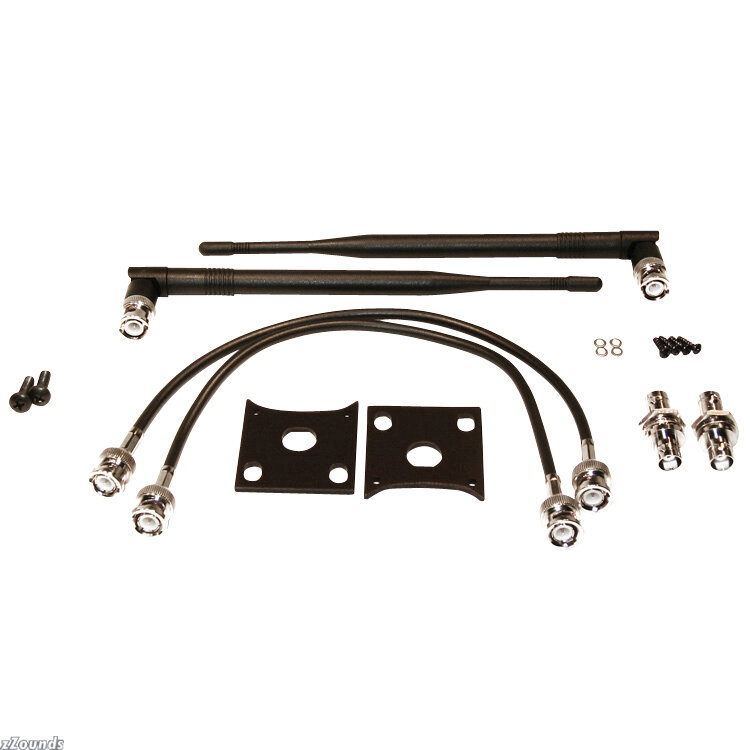

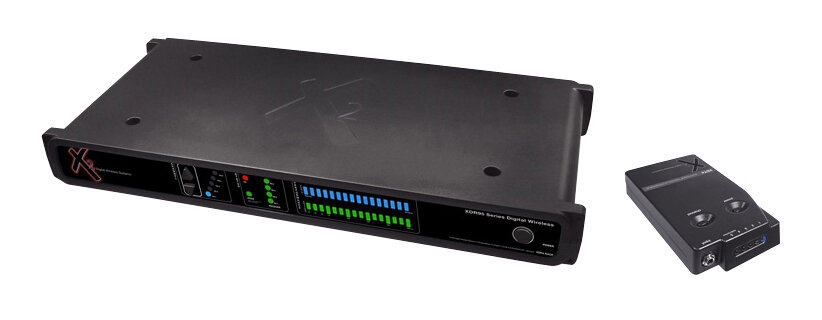

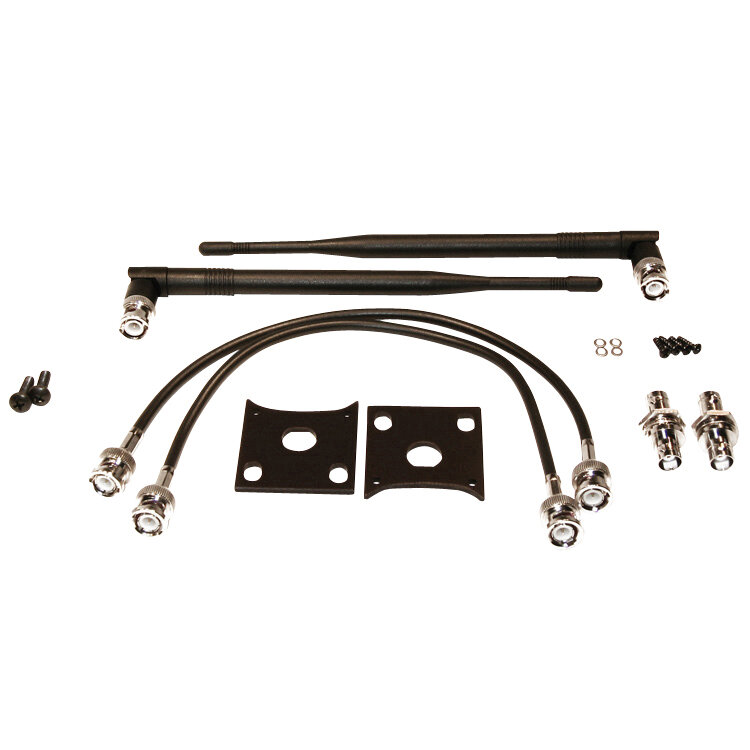

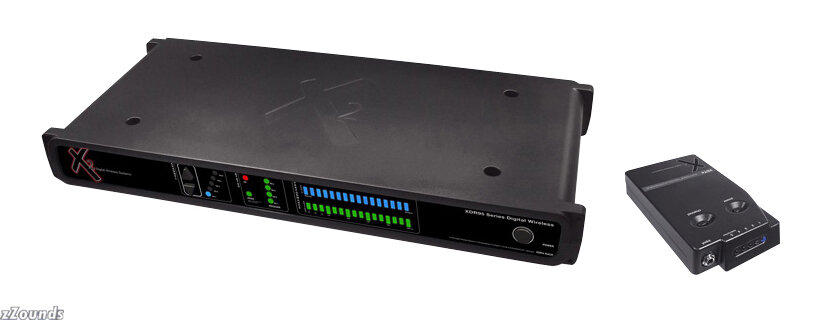

Includes digital rackmount receiver with mounting hardware, digital bodypack transmitter (both feature polycarbonate housings impact-tested to 300 lbs.), locking instrument cable, all applicable antennae, all applicable batteries and power supply

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC’s wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure. zZounds is an authorized dealer of Line 6 products.

Transmission format: X2 proprietary digital audio transmission

Frequency Response: 10 Hz - 20 kHz

Audio Dynamic Range: Greater than 118 dB

Distortion: 0.03% THD

RF Carrier Frequency: 902 MHz to 928 MHz, FSK, dual frequency transmission

Number of Selectable Frequencies: Five

RF Output Power: 15mw

Audio Output Level: Unity gain with transmitter input

Polarity: Positive voltage at input yields positive voltage at output

Transmission Range: 300 ft. line-of-sight (may vary due to local conditions)

FCC Approval: Part 15 approved, no user-license required

Operating Temperature Range: –20° to +85° C (-4° to +185° F)

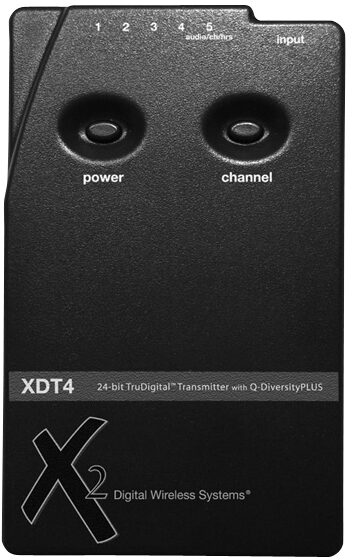

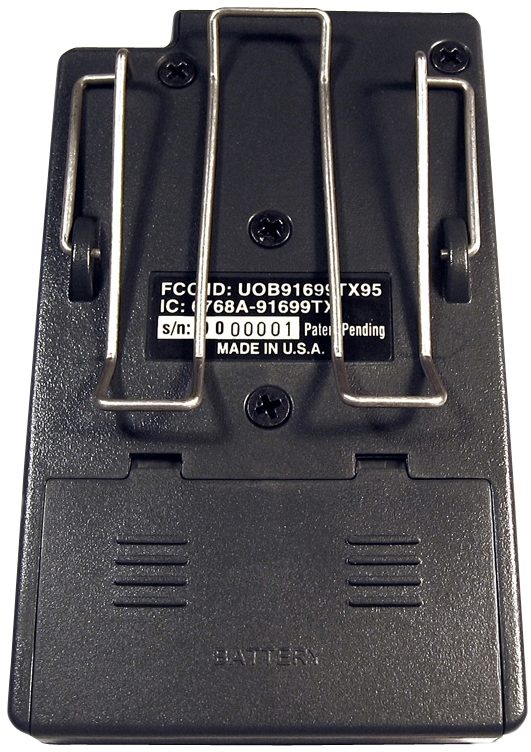

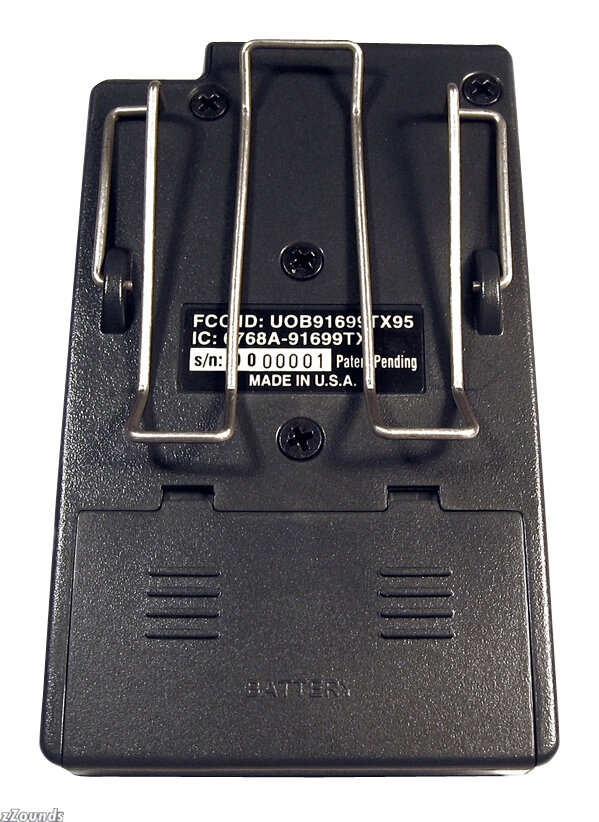

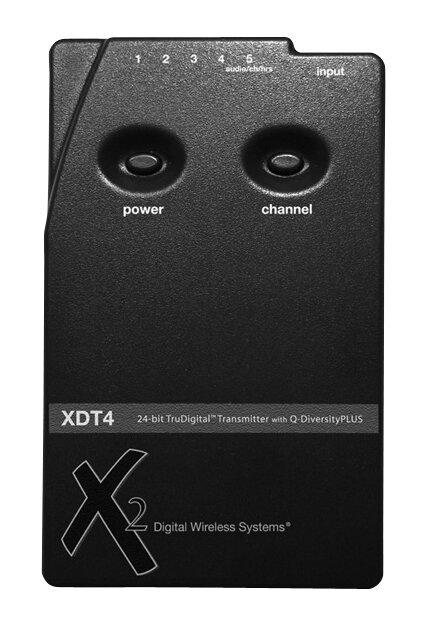

XDT4 Transmitter
A/D Conversion: 24-bit Delta Sigma, 128 times over sampling

Input Impedance: 1.2 M-ohm

Connectors: 1/8 in. unbalanced locking connector

Controls: Power on/off, Channel select

Five Segment LED Display: Power On, Channel, Battery Life, Audio Level Meter

Dimensions: 4 H x 2.4 W x .66 D in.

Battery Life: 9V alkaline, switching power supply, two modes:
Q-DiversityPLUS mode: ~5.5 hrs in (dual frequency)
Q-Diversity mode: ~6.5 hrs in standard (single frequency)

Weight: 0.25 lbs. (with 9v battery installed)

Housing: Polycarbonate, impact tested to 300 lbs.

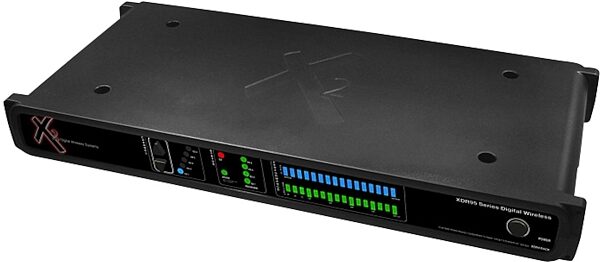

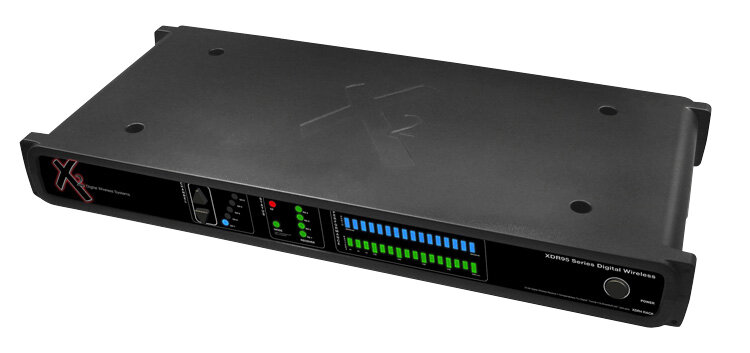

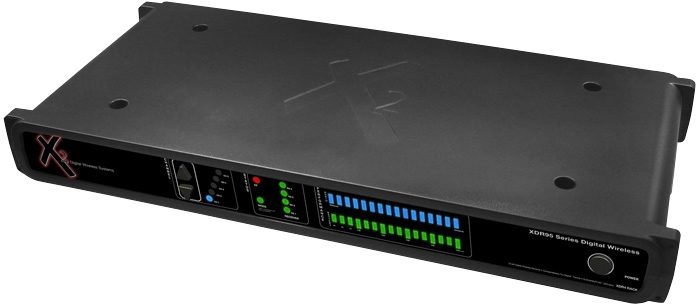

XDR4 Receiver
D/A Conversion: 24-bit Delta Sigma, 128 times over sampling

Output: 2.12V RMS (Unbalanced: 1.8K Ohm)

Connectors: 1/4 in. Unbalanced TRS output 1.8K-ohm impedance, tip= instrument voicing, ring= full bandwidth, sleeve= ground, XLR Balanced 600 ohm

LED display: Power On, RF, Channel, Diversity, Battery Life, Audio Level Meter

Controls: Power on/off, Channel/Mode select

Dimensions (WxHxD): 16.2 x 1.75 x 7.5 in.

Power Requirements: 9V DC 500mA via included AC/DC adapter

Weight: 2.5 lbs. (with rack hardware and antenna installed)

Housing: Polycarbonate, impact tested to 300 lbs.
