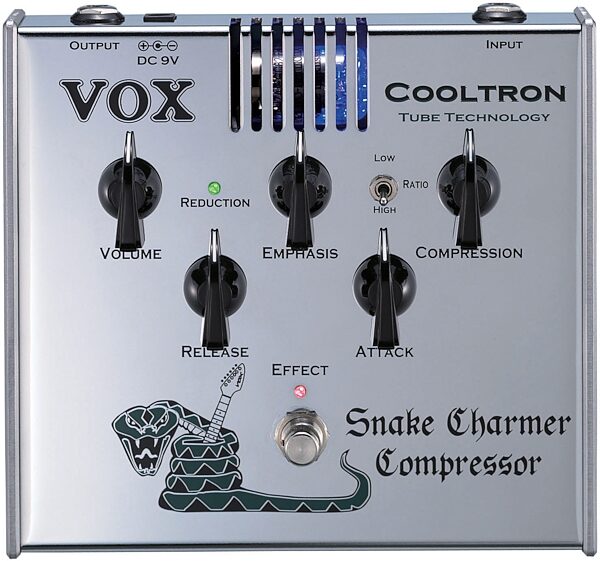

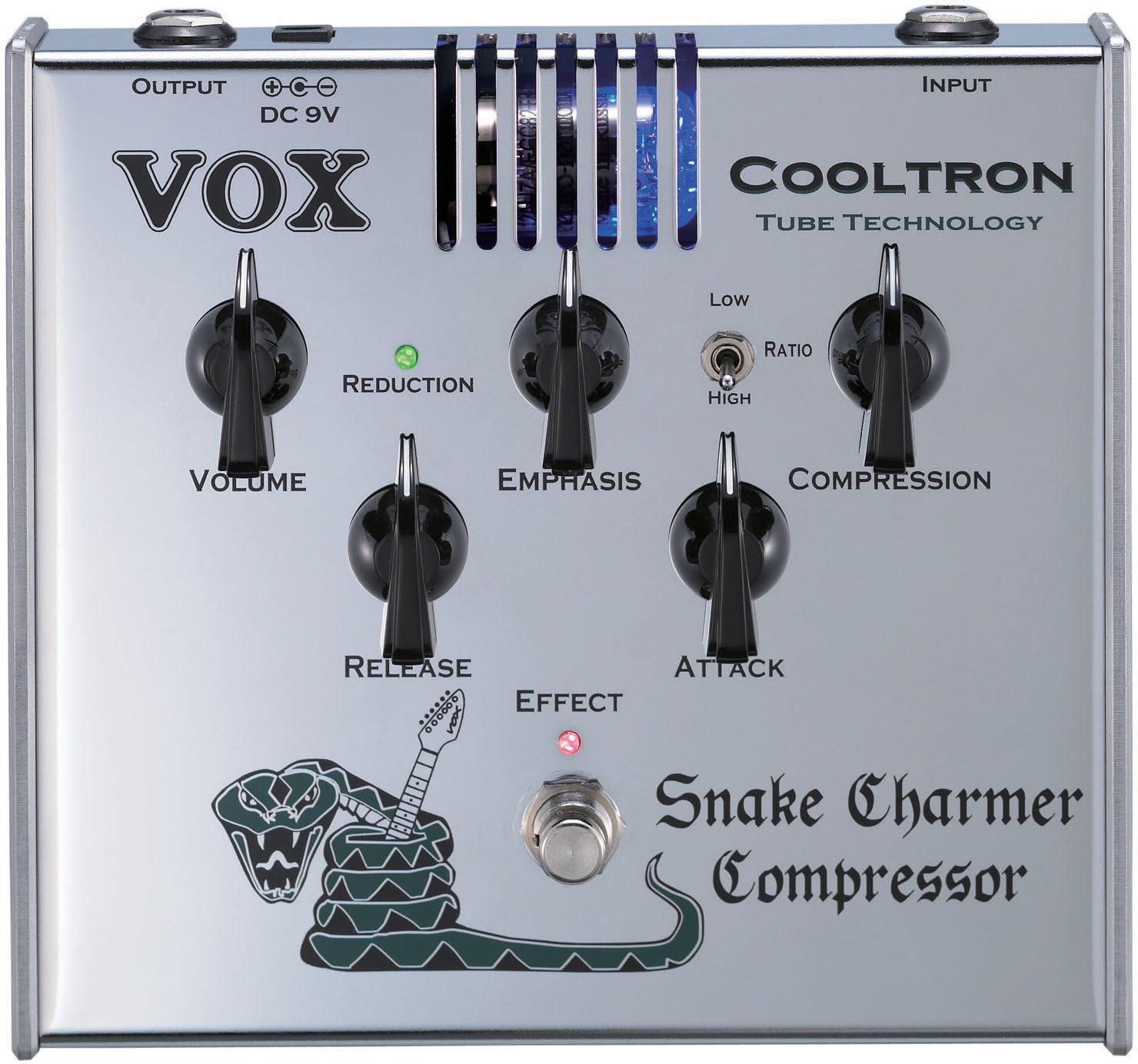

Vox Snake Charmer Compressor Cooltron Pedal

Manufacturer's Description for Vox Snake Charmer Compressor Cooltron Pedal

A tube in a pedal? Pretty cool.

Introducing the COOLTRON series of effect pedals, three very special stompboxes that use a 12AU7 preamp-type tube at low voltage to deliver the kind of tone that, until now, would have been impossible to achieve in a battery-powered pedal.

Tame your tone with the new Snake Charmer Compressor. The result? Silky smooth, mesmerizing tone that behaves as it should. The Snake Charmer's compression affects the ratio and threshold of the signal, smoothing out peaks and spikes. At the same time, the Snake Charmer also increases the Gain level to complement the corresponding ratio and threshold settings so that the overall gain remains constant.

There's also a Gain Reduction Indicator that gives you visual cues of the results of your settings. And a High/Low Switch lets you choose between two overall levels of ratio. The Snake Charmer is equipped with other controls for Attack, which determines how quickly the gain reduction kicks in, and Release, which determines how long the gain is attenuated. Finally, the High-End Emphasis control fine-tunes the amount of compression applied to the top end of the guitar signal.

Want to know how it all works?
Normally, tubes are used at high voltages and this restricts their use in battery-powered devices such as guitar effects pedals. Historically, attempts have been made to use tubes at low voltages in what has been dubbed 'starvation' mode, but these circuits don't allow the tube to function in an acceptable manner. The tube simply cannot be biased to a satisfactory operating condition. Plus, the necessary heater (filament) current is too high to deliver acceptable battery life. Imagine how annoying it would be to have to change batteries every ten minutes during a gig!

Here's what makes the COOLTRON system tick. The COOLTRON circuit basically operates by using two very special signal paths. The first is the 'servo circuit,' which provides the right conditions between the plate of the tube and the grid. This achieves controllable, stable parameters for the tube and provides the correct operating conditions for the tube to function as it would if run at a higher voltage. The second circuit is a patented power supply that provides a low voltage, low current supply to the heater elements in the tube. Since the tube is now running at such a reduced supply level, the anode current is much smaller than normal. This means that the amount of heat required at the cathode to achieve sufficient cathode current emission is much smaller - hence the ability to run the heaters at a lower level and for COOLTRON pedals to run for 16 hours on 4 x AA batteries!

The COOLTRON system provides true tube sonic performance at very low voltage and at reduced heater current - ideal for inclusion into guitar effects pedals. COOLTRON guitar effects pedals offer valuable tube type sonic performance. zZounds is an authorized dealer of Vox products.

Connection: Input: x1 (guitar input), Output: x1 (line output)

Input / output impedance: 830 k-ohm / 4 k-ohm

Tube: 12AU7 (ECC82)

Power supply: Four AA alkaline batteries or DC9V AC adapter

Battery life: Approx. 18 hours

Current consumption: 95 mA

Dimensions: 168.5 (W) x 155.5 (D) x 64.0 (H) mm / 6.63 in. (W) x 6.12 in. (D) x 2.52 in. (H)

Weight: 1,007 g (excluded batteries / 1,102 g included batteries)

Included items: Four AA alkaline batteries
