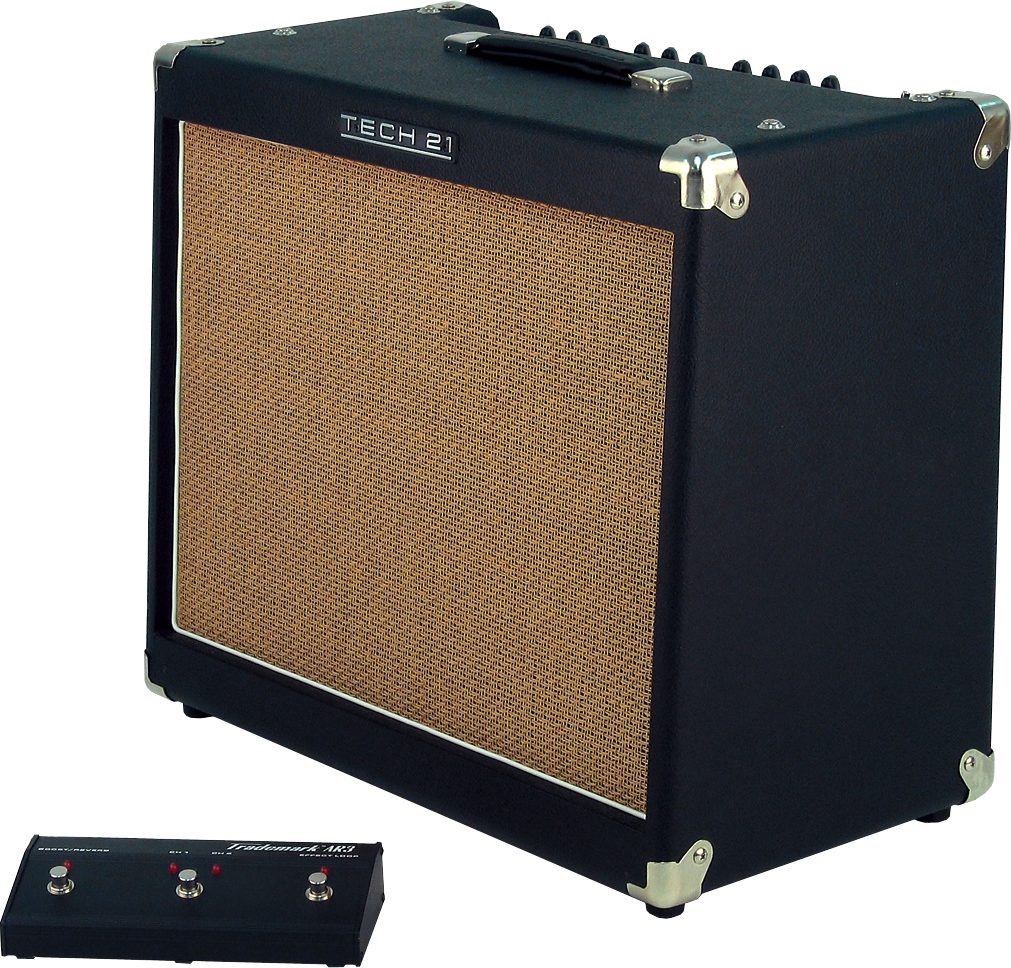

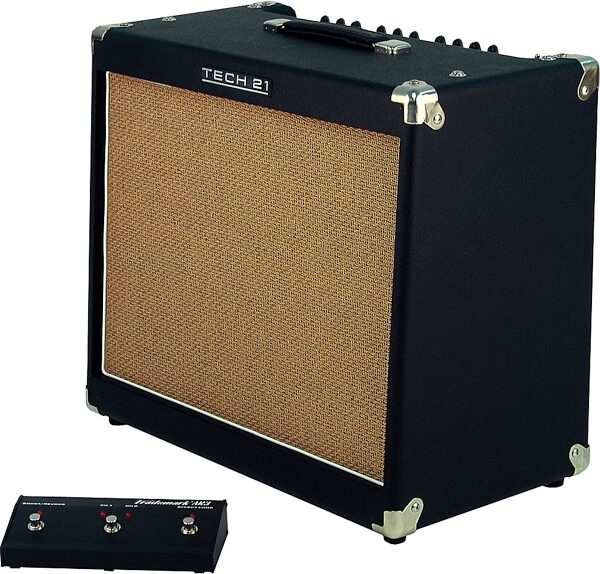

Tech21 TM60 Trademark 60 Guitar Combo Amplifier (60 Watts, 1x12 in.)

From vintage to modern, Tech 21's Trademark 60 offers the industry's most desirable tube amp sounds, and provides the flexibility to create your own signature sounds as well. This 60-watt combo guitar amplifier has 2 channels. The Boost function expands the capability of the 2 channels by increasing each of their output levels up to 9dB, providing 4 footstwitchable sound options.

Built into the Trademark 60, is Tech 21's highly-acclaimed SansAmpTM Tube Amplifier Emulation circuitry, which encompasses all aspects of multiply-miked tube amp rigs. By incorporating this proprietary technology with a Tech21 special design 12 in. speaker, the Trademark 60 sounds as big and smooth as a vintage 4x12 cabinet. For studio and live applications, the SansAmp circuitry also enables the Trademark 60 to be run direct to the mixer of a recorder or PA system.

Channel 1 offers a range of Fender-styles, from sparkling clean, to semi-dirty, to saturated Tweed-style. It has its own Drive, Punch, and Level controls. Punch sets the amount of midrange break-up and overdrive. There's also a Bite button which tightens the low end and add brightness.


Channel 2 delivers amp sounds ranging from traditional Marshall�-style, to Mesa/Boogie� Rectifier-style, to Vox AC30-style. It has its own Drive, Growl, and Level controls. Growl is a powerful and sophisticated midrange control. It can give you that scooped-out, heavy sound without making your guitar sound thin, and without any loss of volume. There's a Weep button, which increases the amount of even harmonics and thickens the sound. It provides a "singing" quality like that of a Class A tube amp.

The Master Section includes Low and High EQ controls. The Boost and Reverb functions can be accessed via the footswitch - either individually or in tandem by utilizing the Link button. For solos, in particular, this unique feature gives you the ability of increasing the size of your sound, as well as the volume.

Included with the Trademark 60, is a triple-function footswitch to alternate between channels, engage the Effect Loop, and activate the Boost and Reverb functions. Tech 21's footswitch is engineered to utilize any standard 1/4 in. instrument or speaker cable vs. the usual problematic custom mulit-pin connector. Other features include a full-length, top-of-the-line Accutronics 3-spring reverb; an XLR Direct Output; a Headphone Output that doubles as a 1/4 in. direct out should an XLR input not be available on your recorder; and a courtesy power outlet so you can neatly secure your effects in the back of the amp.

The exceptionally versatile Trademark 60 gives you a truckload of big amp sounds in an affordable, cost-effective, 36 lb. combo. Above all, the Trademark 60 delivers consistent, professional quality sound at home, in the garage, on stage, and in the studio

Technical Info

Model Number: TM60

Input Impedance: 1M Ohm

Nominal Input Level: -20dBm

Optimal Output Load: 8 Ohms

Power Output: 60W

Effect Loop Input Impedance: 1M Ohm

Effect Loop Input Level: approx. -10dBm

Effect Loop Output Impedance: 1K Ohm

Effect Loop Output Level: approx. -10dBm

Maximum Power Consumption: 120W

AC Input Power: 100V, 117V, 220V, 230V, 240V

Cycles: 50/60Hz

Speaker: Celestion 7080, Special design 12 in. 80 Watts - 8 Ohms

Dimensions (W x H x D): 20 x 17 x 11 in.

Weight: 36 lbs.

Replacement parts are available, i.e., knobs, grill panel, speaker, logo plate, Footswitch, etc. For more information, please contact Tech 21, Inc.

Note: With ongoing product development and improvements, specifications and/or the cosmetic appearance of the Trademark 60 may change without prior notice.

Two-channel, 60-watt 1x12" combo with SansAmp-derived analog modeling! Channel 1 goes from clean to tweedy, with Punch midrange boost and Bite brightness switches. Channel 2 covers a variety of classic higher-gain sounds, with Weep switch adding thickness and Growl for mid scooping. Spring reverb. Solo boost. Headphone and DI out. Includes footswitch.
