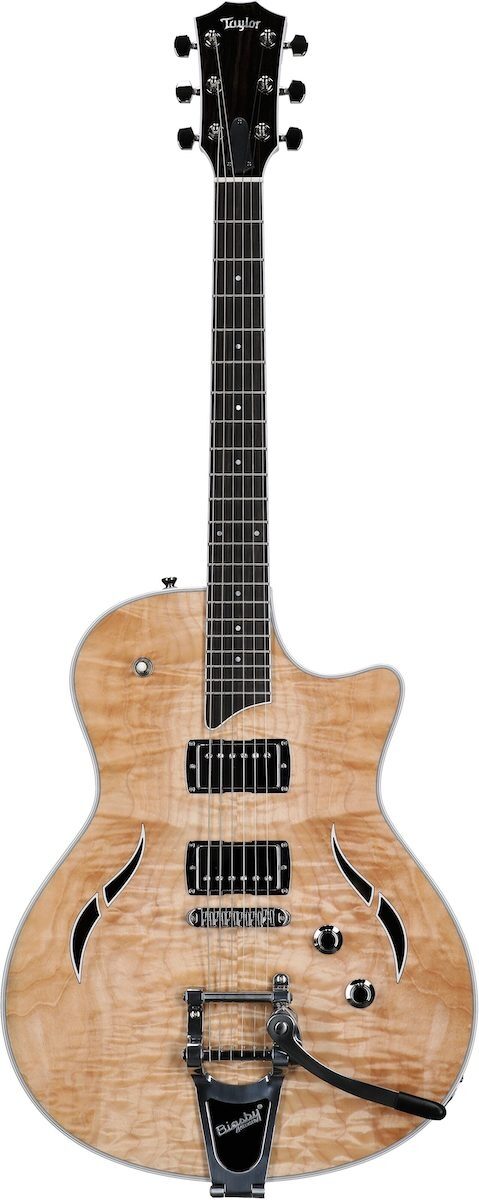

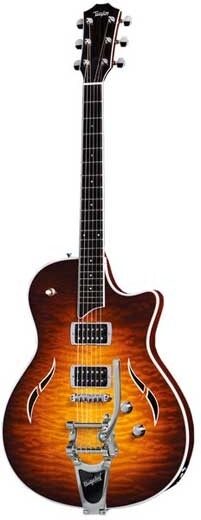

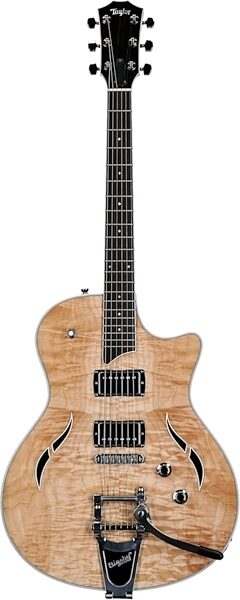

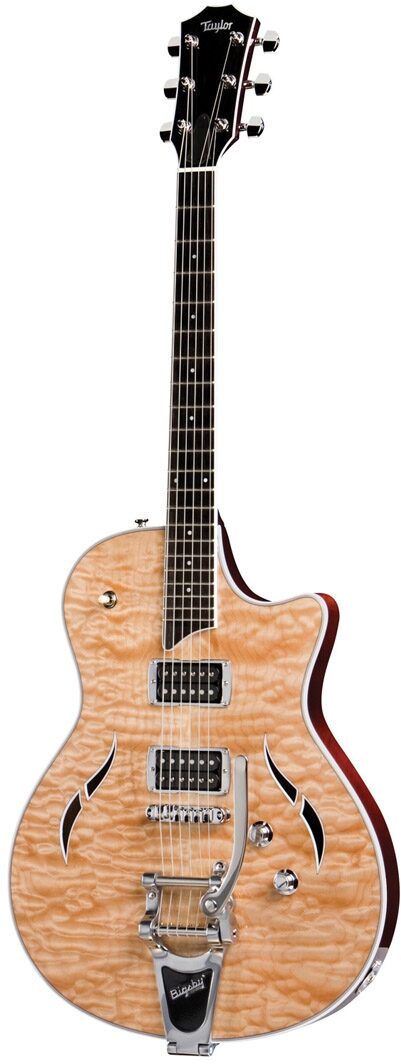

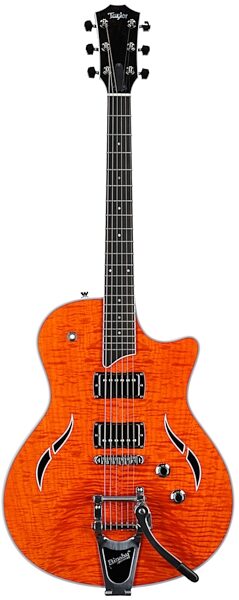

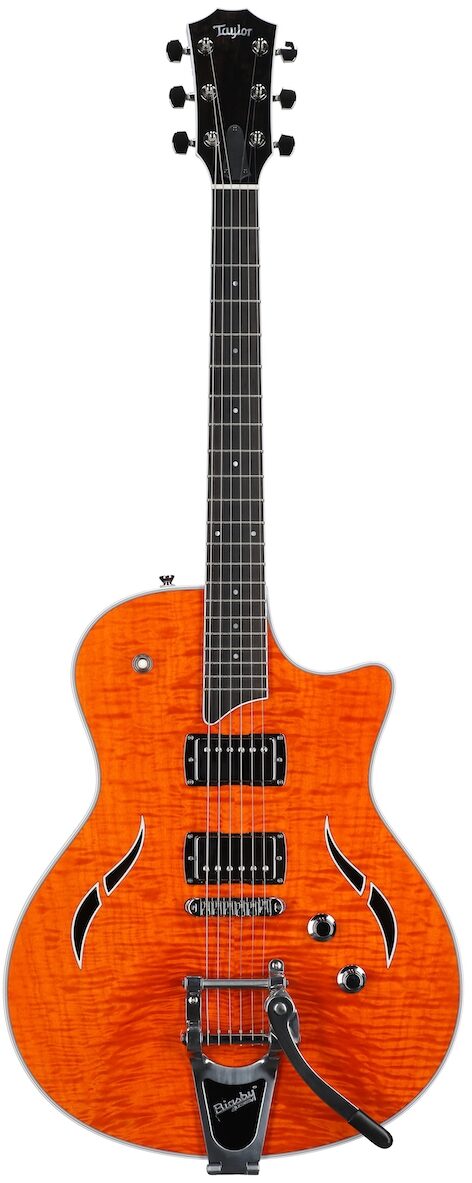

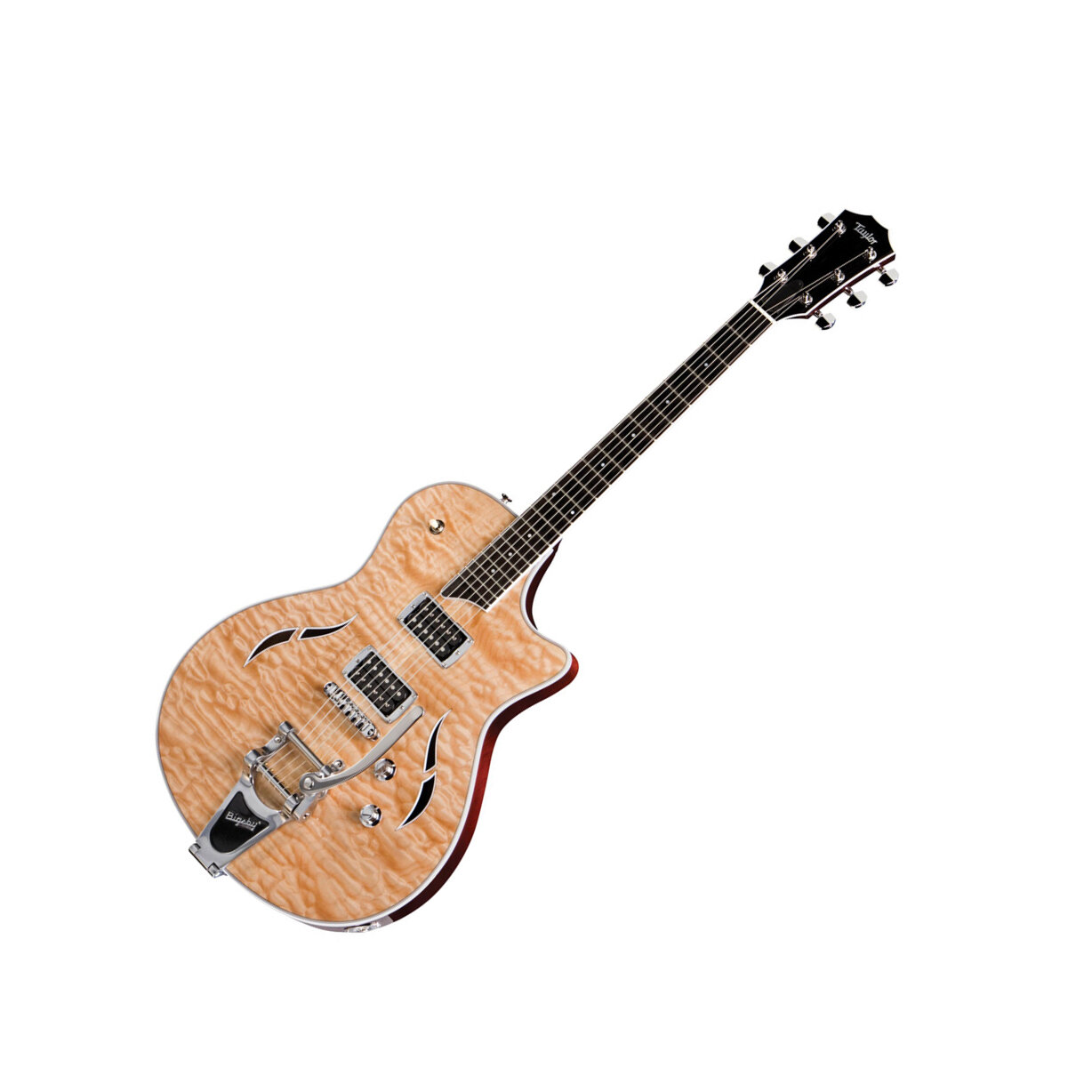

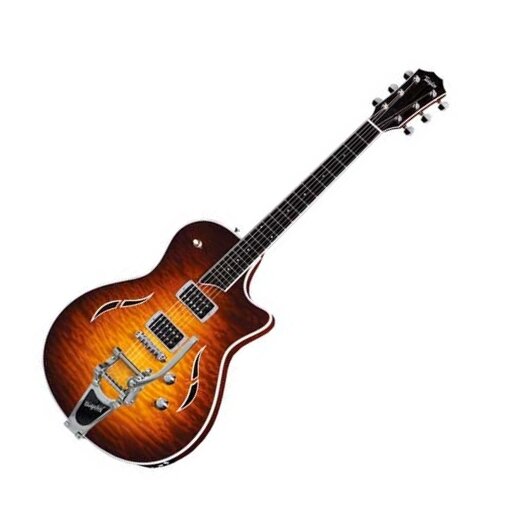

Taylor T3B Semi-Hollowbody Electric Guitar with Bigsby Tremolo

The T3 continues Taylor's quest to expand the range of tones available to the electric player. Inspired by both the T5 and the SolidBody, they've taken the classic semi-hollowbody sound and applied our signature Taylor design and tonal touches, blending their high-definition Style 2 pickups with a coil-splitting application to give players killer humbucker and single coil sounds in one guitar. A push-pull tone knob brings two sweeping modes of tone control. They've also paired a Bigsby tailpiece with a roller bridge on the T3/B model, giving players a high-performance vibrato bar without the pitch issues.

What's great about the T3 is the way it soups-up a semi-hollowbody's essential sound, transforming it into a hotrod guitar capable of a wider range of tones as a result of Taylor pickups, coil-splitting, and unique tone control. All on top of signature Taylor traits you can always count on, like superb intonation and easy playability.

Pickups
The T3 pickups feature a pair of the same full-size, Style 2 HD (high definition) humbuckers used on the SolidBody Standard. A three-way switch covers three standard configurations: full neck, neck/bridge and full bridge. A twist was added using old-school coil-splitting. Pulling up on the volume knob activates a coil splitter, which in effect turns the humbuckers into single coils.

Tailpiece
For Taylor in the case of the Bigsby, pairing it with a roller bridge was the key to achieving smooth functionality. Traditionally, Bigsbys are attached to fixed bridges, and as they work, the notched strings drag across a hard point. The T3's Bigsby/roller bridge combo eliminates the problems associated with fixed bridges and tuning stability.

Push/Pull Control Knobs
The T3 volume and tone knobs both utilize push/pull pots, which give players two tiers of unique tone control. Pulling up on the volume knob activates a coil splitter, which in effect turns the humbuckers into single coils. The three-way switch functions the same way, allowing you to choose between full neck, neck/bridge and full bridge single coil tones. In its down position, the tone knob functions much like it does on the SolidBody, boosting the mids. Pulling up the knob engages a second capacitor, which mellows the tone without squashing it into a muddy sound. Within that tonal range is a fresh Taylor electric voice: a mellow, old-school jazz tone that's loaded with warmth and fatness. And there's a lot of cool rock tones in-between.

Body/Neck Design
The sapele T3 body is designed as a semi-hollowbody electric. The body is hollowed out like the T5, except for a solid block of wood that runs down the length of the center. Unlike the T5, the T3 has no acoustic bracing inside it. The quilted maple top is laid directly on top of the internal block like the Taylor SolidBody. The sapele neck incorporates Taylor's rock-solid single-bolt T-Lock(TM) just like the T5 and SolidBody, and a precisely milled pocket spacer is used to secure the perfect neck angle. Another departure from the T5 is the T3's use of beefier electric-style frets, giving electric players a familiar feel.

Technical Info

Specifications
Body: Sapele

Top: Quilted Maple

Neck: Sapele

Fretboard: Ebony

No. of Frets: 21

Controls: Master Volume (pull knob for single coil)

Master Tone: Traditional control for first two-thirds, last third peaks the mids (pull knob to activate second capacitor)

Pickup Switching:
- (2) Taylor Style 2 HD Humbuckers w/ coil-splitting capability
Position 1: Full neck pickup
Position 2: Neck and bridge pickups
Position 3: Full bridge pickup
- (2) Single Coils
Position 1: Neck pickup
Position 2: Neck and bridge pickups
Position 3: Bridge pickup

Bridge: Bigsby Vibrato (T3/B)

Machine Heads: Taylor Chrome

Hardware: Chrome

Pickguard: None

Scale Length: 24 7/8 Inches

Truss Rod: Adjustable

Neck Width at Nut: 1 11/16 Inches

Fretboard Inlays: 4mm Mother-of-Pearl Dots

Strings: Light Gauge Nanoweb(R) Coated Elixir(R) Strings (.010 - .046)
