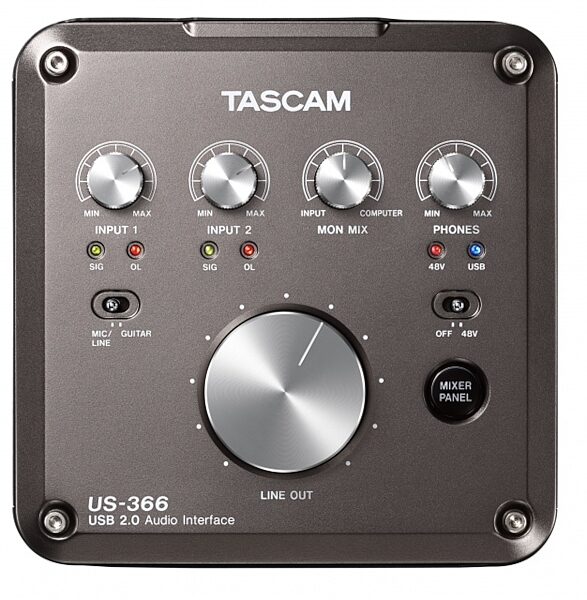

Tascam US-366 USB Audio Interface

The US-366 has 2 XLR mic pres, a Hi-Z input, and MIDI I/O -- plus onboard DSP for running compressors, EQ, and reverbs without bogging down your computer. (1) Read 1 review for this product | Rate and review this product
Ships to: Can ship to United States Can ship to Canada Can ship to Puerto Rico Can ship to APO/FPO
close [x]
zZounds.com 800-ZZOUNDS (800-996-8637)
List: $289.99
Savings: $90.00 (31%)
$199.99
Play as you Pay on
orders $249.00+ details
In StockShips Today
FAST FREE SHIPPING
$$$$ Seen it for less? Request Lower Price
Questions? Call a gear expert now! (800-996-8637)
PAYMENT PLANS ON ORDERS $249.00+
PLAY AS YOU PAY

Product Description

In the process of creating music, many engineers have started utilizing high-resolution formats while recording to ensure the best quality sounds. The Tascam US-366 is suited perfectly for these types of recordings.

The US-366 is designed with two XLR with +48V phantom power and two TRS inputs. Having both options for condenser mics and line level inputs ensures you are getting the best possible sound and lowest-noise when recording. In addition, INPUT-1 can connect any high-impedance equipment (like a guitar) directly.

On-board Effects

The US-366 comes with on-board effects such as compressor, 3-band EQ, and Reverb -- all located on the DSP. While recording, you can use the input effects for any input signal and the reverb effect on any monitoring signal at the same time. The US-366 is built with a "Mixer Panel" button located conveniently on top. This button provides a one-click recall function for the DSP mixer. When pushed a second time the mixer panel will be conveniently hidden.

Two Handy Operational Modes

The multi-track mode is ideal for music creation. This mode delivers independent monitor-mixing from a send-level like an inline-console to a PC. In addition, this mode delivers monaural-monitoring.

The stereo-mix mode makes podcast recording or broadcasting convenient and easy. An output audio signal from any PC can relay that signal back to the PC again via your DSP mixer. Any BGM from a PC can mix your voice by microphone then the mixed sound will transfer back to the PC again.

RC-3F Footswitch Ready

The US-366 can connect the optional RC-3F foot-switch to provide hands-free control for your DAW. Utilize this feature while playing your instrument or recording at a distance from your computer. This feature operating on "Mackie Control" or "HUI" emulation and can be select from two modes.

Features:

- High-quality HDDA (High Definition Discrete Architecture) mic pre-amps
- Up to 24bit/192kHz recording
- Two XLR/TRS (MIC/LINE) inputs with full +48V phantom power supply
- Low-latency monitoring via DSP mixer
- On-board digital mixer (DSP mixer) delivers two operation modes
- On-board digital effects (DSP effects)
- Dedicated "MIXER PANEL" button recalls DSP mixer with one-click
- Oversized LINE OUT volume knob
- Two TRS analog balanced outputs
- Two RCA analog unbalanced outputs
- 18mW+18mW headphone output
- Desktop design provides highly stability and usability
- Aluminum body provides premium looks and luxurious feel
- USB bus-powered for mobile recording
- Steinberg Cubase LE6 bundle (Included CUBASE LE can not record by 192kHz)
- LINE 3-4 connectors can select between input or output, up to six inputs or six outputs(When operating on 192kHz, LINE 3-4 connectors outputs same signal as digital output.)
- Coaxial/Optical digital input and output (one input connector available at a time)
- RC-3F optional footswitch ready

zZounds is an authorized dealer of Tascam products.
- Supported sampling frequency: 44.1/48/88.2/96/176.4/192kHz
- Supported bit rate: 16/24bit (Internal operation is 24bit)
- Analog audio Inputs
- MIC IN (INPUT 1/L, 2/R): XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
- Input impedance: 2.2kohms
- Nominal input level (INPUT:MAX): -65dBu
- Nominal input level (INPUT:MIN): -22dBu
- Maximum input level (INPUT:MIN) :-6dBu
- LINE IN (INPUT 1/L, 2/R) : 6.3mm(1/4 in.) TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
- Input impedance: 15kohms(LINE)/1Mohms(GUITAR)
- Nominal input level (INPUT:MAX) :-39dBu(LINE)/-55dBV(GUITAR)
- Nominal input level (INPUT:MIN) : +4dBu(LINE)/-12dBV(GUITAR)
- Maximum input level (INPUT:MIN) : +20dBu(LINE)/+4dBV(GUITAR)
- LINE OUT (LINE OUT 1/L, 2/R) : 6.3mm(1/4 in.) TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
- Output impedance: 100ohms
- Nominal output level: +4dBu
- Maximum output level: +20dBu
- LINE OUT (LINE I/O 3-4) : RCA pin-jack (When set to "OUTPUT" at LINE I/O switch)
- Output impedance: 200ohms
- Nominal output level: -10dBV
- Maximum output level: +6dBV
- PHONES:
- Connector: 6.3mm(1/4 in.) stereo phone jack
- Maximum output level: 18mW+18mW or more(THD+N 0.1% or less, 32ohms loaded)
- USB
- Connector: USB B type 4-pin
- Format: USB2.0 HIGH SPEED mass storage class
- Power: USB bus powered (5V, Max 500mA)
- Power consumption: 2.5W
- Dimensions (W x H x D): 140 x 42 x 140 mm
- Weight: 500g
- Operating temperature: 5-35 degrees C
- Bundle software: Cubase LE6
- Accessories: CD-ROM (includes dedicated driver), USB cable (1.5m), DVD-ROM (Cubase LE6),
- Insert sheet for Cubase LE, Warranty card
- Audio performance
- ADC chip set dynamic range: 102dB *1
- DAC chip set dynamic range: 106dB *2
- Frequency response
- Mic preampr: 10Hz to 68kHz, +0.5/-3.0dB
- MIC IN to LINE OUT: 10Hz to 40kHz, +0.5/-3.0dB
- MIC IN to PHONES: 10Hz to 30kHz, +0.5/-1.0dB
- THD: 0.0045% or less *3
- S/N ratio: 98dB or more *4
- EIN: -120dBu or less *5

System Requirements

- Windows OS:
- Windows XP:32bit SP3 or more, 64bit SP2 or more
- Windows 7:32bit, 64bit
- Windows 8:32bit, 64bit
- DRIVER: ASIO2.0, WDM(MME)
- Macintosh
- OS: Mac OS X Snow Leopard(10.6.8), OS X Lion, OS X Mountain Lion
- DRIVER: Core Audio

- *1 FS=48kHz, A-Weight
- *2 FS=44.1kHz, A-Weight
- *3 US-322:MIC IN to LINE OUT, INPUT 1/2 knobs at MIN position, FS=88.2/96kHz, JEITA
- *4 US-322:MIC IN to LINE OUT, INPUT 1/2 knobs at MIN position, FS=88.2/96kHz, JEITA
- *5 US-322:MIC IN to LINE OUT, INPUT 1/2 knobs at MAX position, FS=88.2/96kHz, JEITA
Dimensions and Weight in Packaging
Shipping Weight: 3 lbs
Shipping Dimensions: 10 x 9 x 8 in
If you have additional warranty questions, please contact the manufacturer at 323-727-7617
