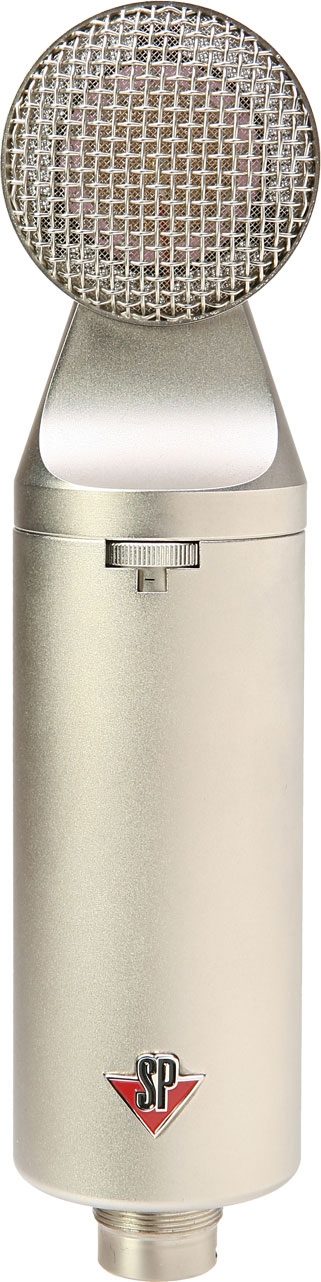

Studio Projects CS1 Large Diaphram Condenser Cardioid Bottle Microphone

The Studio Projects C1 is a large diaphragm, fixed-cardioid condenser microphone employing a 1.06 in. (27 mm) capsule, high quality, low noise amplifier and balanced, transformerless output circuitry. It features switchable -10dB or -20dB pad and 6dB@75Hz or 150Hz high pass filter for added control in various recording applications and a clear, full response expected from a large capsule microphone design.

Versatility is key in the recording arena, and the Studio Projects C1 is a well-proven and award winning tool. It is designed to deliver the finest quality vocal and instrumental recordings and will serve to enhance any professional or project studio at an unbelievably low price.

Features

Pressure-Gradient Transducer: 1.06 in. (27 mm) 6um mylar diaphragm

High Pass Filter, 6dB/octave@ 75Hz or 150Hz

-10dB, -20dB Pad

Applications

Close miking of instruments with high sound pressure levels

Announcer’s mic for broadcasting/dubbing

Home recording and project studios

Vocalist recording

Spot mic for: wind instruments, strings, percussion and guitar amps

Technical Info

Included Accessories

Shockmount

Foam wind screen

Case

CS1 Specifications

Type: Pressure gradient solid state condenser microphone

Polar pattern: Cardioid

Frequency response: 30-20,000Hz.

Sensitivity: 14mV/Pa=-37dB(0dB=1V/Pa).

Output impedance: <200 Ohm.

Load impedance: >1000 Ohm.

Maximum SPL: 131 dB SPL for 1% THD @1000Hz (0dB SPL=0.00002Pa).

Noise: (Line): 27dB (A weighted) 17dB.

S/N: 77dB.

Power requirement: 48 +/- 4V

Current consumption: <2.5mA

Circuit: JFET impedance converter, discrete balanced output

Connector: Gold-plated 3-pin XLR

Size: diameter 2.1 in. length 8.9 in.

Weight: 26.9 oz

Pad: -10dB, -20dB

Low cut: 6dB/Octave at 75 Hz or 150 Hz.

The bottle-style CS1 delivers full-range performance you'd expect from a large-diaphragm condenser! Large 1.06 in. diaphragm and low-noise amplifier give clean, dynamic results. Tweak your tone with -10dB or -20dB pads and high-pass filtering. Great for close-mic'ing high-SPL instruments!
