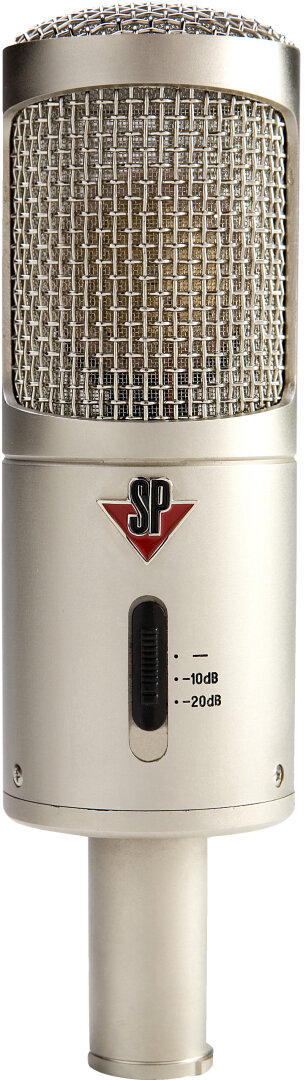

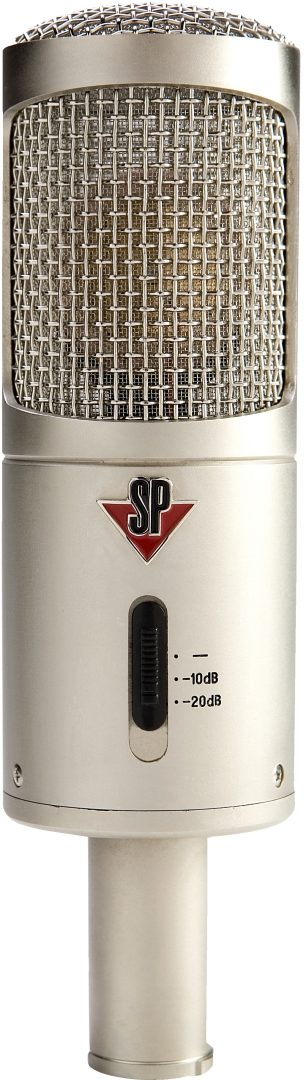

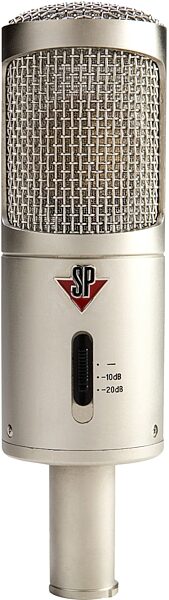

Studio Projects B1 Large Diaphragm Condenser Microphone

Personal use items that are used at your mouth or in your ear cannot be returned once opened due to health laws. This includes all microphones, guitar talk boxes, ear plugs, and in-ear earphones. details

About This Product!

Description

Docs

From Our Catalog

Featuring upgraded electronics and a sleek new look, the new SP microphone product line is the result of 5 years of research and development by Brent Casey, veteran microphone designer and Vice President of Engineering of Studio Projects. The new electronics allow for better signal to noise ratio, as well as greater dynamic range.

All B Series microphones (except the TB1) now feature -10dB and -20dB pads.

The Studio Projects B1 condenser microphone is a large diaphragm cardioid microphone in a pressure-gradient transducer employing high quality transformerless design and extremely low noise.

It will enhance any professional or project studio application at an unbelievable low price. As a result of uncompromising dedication and today's advanced production abilities, Studio Projects has broken the barrier of quality vs price for today's recording studio environment.

Being versatile is the key in the recording arena, and the Studio Projects B1 is no exception. Equipped with a true 1 in. 3 um gold sputtered large diaphragm in a pressure gradient transducer capsule, the B1 will deliver the finest quality of vocal and instrumentation recordings in a wide variety of applications while offering a natural extended transparent high end, yet offer the thick bodied low end expected from a quality microphone.

Applications:
A do-all, general-purpose recording microphone

Great for close miking amplifiers with high sound pressure levels

Great for production, broadcast, and voice over work

Perfect for the professional and home project studio

A quality vocal mic suitable for all vocal styles

Included Accessories:
Foam windscreen

Zippered Bag

Shockmount

Technical Info

Type: FET 3 micron 1 in. large single diaphragm

Polar pattern: Cardioid

Frequency Response: 20~20000Hz

Sensitivity: -34dB,(0dB=1V/Pa)

Output Impedance: <200 Ohm

Load Impedance: >1000 Ohm

Maximum SPL: 132db

Noise: 12dB-A (IEC651)

S/N: 82 dB

Power Requirement: 48 +/- 4V

Current Consumption: <2.5mA

Circuit: Transformerless circuit, featuring extremely low self noise and large dynamic range

Connector: Gold-plated 3-pin XLR

• Owner's Manual
• Clip Adjustment Proceedure
• Polar Plot and Graph

At any price, the B1 is one of the best large-diaphragm condenser mics out there. Smooth frequency response with gentle presence boost gives you detailed sound on any source, especially vocals. High, 132 dB SPL handling plus -10 and -20dB pads make it great on guitar amps and drums. Includes bag, shockmount, and windscreen.
