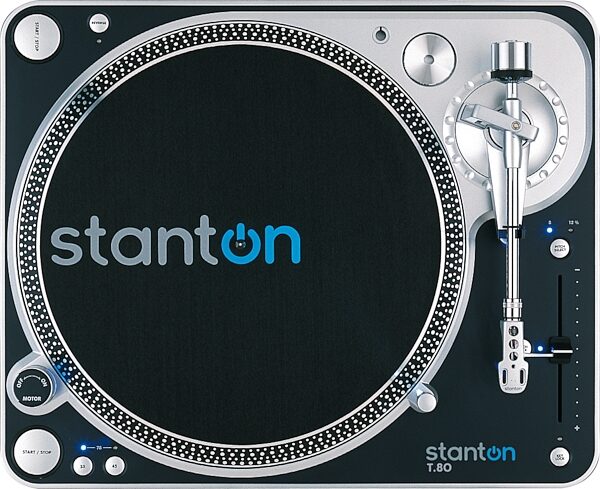

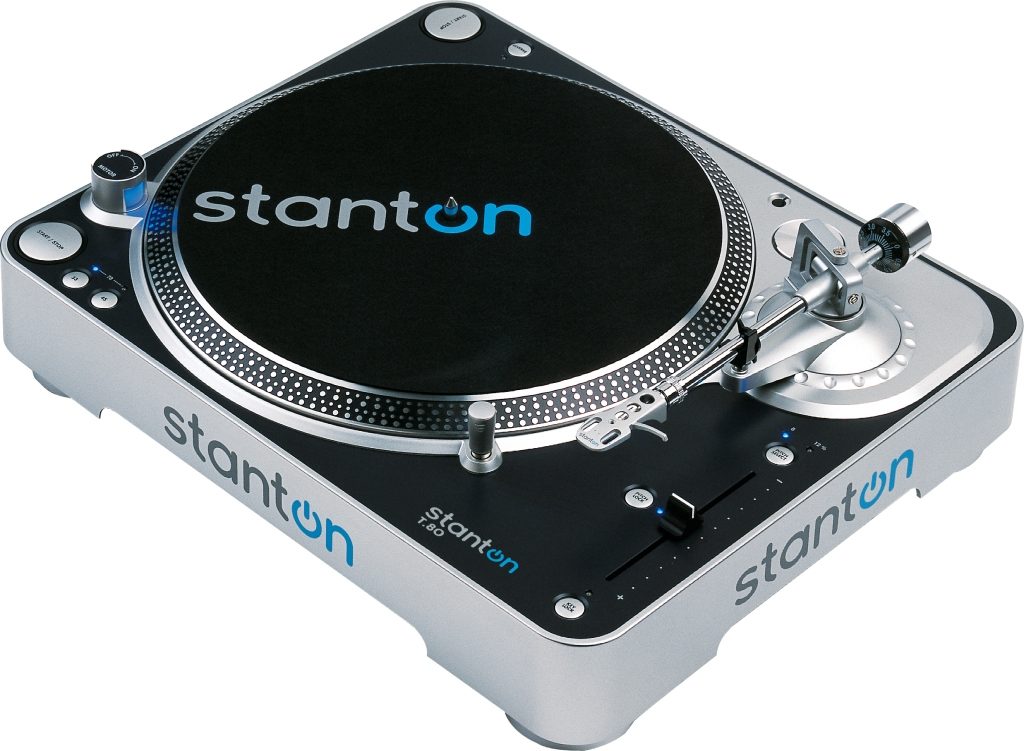

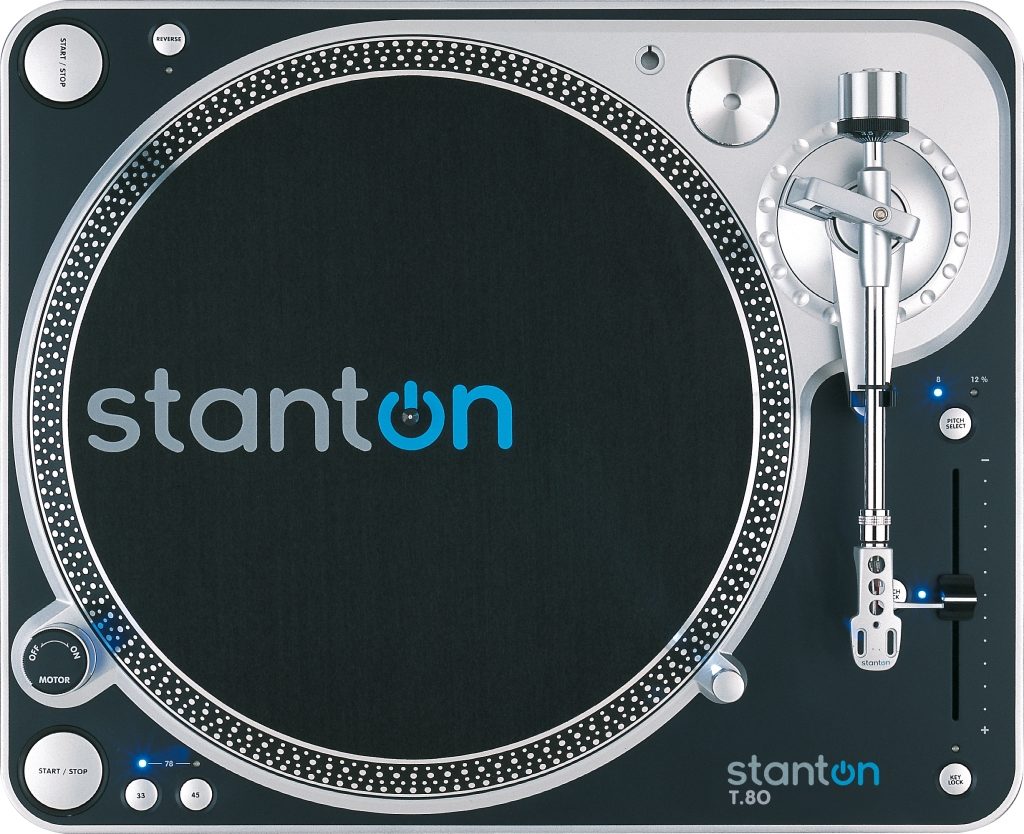

Stanton T80 Direct Drive Digital Turntable with 500B Cartridge

Stanton T80 Direct Drive Digital Turntable with 500B Cartridge
The Stanton T80 brings futuristic looks and the latest digital technology together in a world-class turntable with a powerful direct-drive motor. With Key Lock built-in, DJs can adjust the tempo of a record without affecting pitch, while a S/PDIF digital output makes the T80 great for archiving vinyl or for use with a digital mixer.

Features

Pro-quality turntable with high-torque direct drive motor and unique design

Straight tone arm for superior tracking when scratching

Unique digital features like Key Lock (Master Tempo) and S/PDIF output

2 Start/Stop switches for mix or battle setup

3 playback speeds (33, 45, 78 RPM), plus Quartz Lock and target light

Pitch control slider with selectable range (+ / - 8%, 12%)

Includes Stanton 500B cartridge, slip mat and cloth dust cover

Technical Info

Turntable Section
Frequency Response: 30 Hz to 20 kHz +1/- 2 dB/ RIAA filter

THD+N: < 0.03% at 1 kHz

S/N Ratio:
Line: <-65 dB
Digital Output (SPDIF): 0.5Vp-p (Load 75 ohms)

Type: 3-speed full manual

Motor: 8-pole, 3-phase, brushless DC motor

Speeds: 33 1/3 and 45rpm and 78 rpm

Wow and Flutter: Less than 0.15% WRMS (JIS WTD) with 33 1/3 rpm

Pitch Controls: +/- 8%, +/-12%

Starting Torque: More than 1.6 kgf.cm

Starting Time: Less than 1 sec with 33 1/3 rpm

Braking Time: Less than 1 sec with 33 1/3 rpm

Braking System: Electronic Brake

Pitch Bend: +/- 6%

Time for Speed Change:
Less than 1 sec with 33 1/3 rpm
Less than 1 sec from 45 to 33 1/3 rpm
Less than 1 sec from 33 1/3 to 78 rpm

Audio Output: Phono/Line output

Tone Arm Section
Tone Arm Type: Static balanced straight shaped tone arm with cardan's suspension

Effective Arm Length: 191mm

Tracking Force Range: 0-3g

Applicable Cartridge Weight: 6-10g

Direct-drive turntable with S/PDIF digital outputs! Built-in key lock for adjusting tempo independent of pitch. Three speeds. Includes 500B cartridge.
