Shure PGX14/93 UHF Lavalier Wireless System with WL93 Microphone

zZounds' Take on Shure PGX14/93 UHF Diversity Lavalier

Public speakers usually rely on sound reinforcement technology to get their message out to the masses. Speeches and presentations are delivered into a microphone, pushed through the PA system, and ultimately out through loudspeakers to the audience. While wired microphones are common, the latest wireless technology offers unrestricted movement for more freedom on stage. Still, non-technical presenters may shy away from wireless, especially if they are responsible for their own audio management. That's why Shure created the PGX series. It offers the same legendary sound-quality Shure is known for, in an extremely easy to set-up wireless package.

Easy Operation

In concept, a wireless system works like a miniature radio station. The microphone sends your voice to the transmitter, and the receiver plucks the sound out of the air. In the same way you tune your car radio to find a favorite station, the wireless transmitter and receiver need to be tuned for proper operation. This process can be confusing with some systems, but Shure makes it simple. Frequency selection is automatic, so you're up and running with no hassles. Even better, the PGX14 is frequency-agile. This means you can quickly change channels if you notice interference. With the press of a button, any hiss or crackle goes away. Since multiple channels are available, you can use up to nine PGX systems at the same time.

Microphone and Transmitter

PGX14's include a Shure WL93 lavalier microphone for unobtrusive use. Thread the thin cable up under your shirt, with the microphone element at chest-height. It will pick up your voice, along with some natural chest-resonance for added warmth and character. The package includes a tie-clip and sew-on bracket for a variety of mounting options. You also get a windscreen for outdoor use. The small PGX1 transmitter clips to your belt for out-of-the-way positioning, and it has some additional controls for more tailored vocal pickup. The onboard gain adjustment lets you boost or cut the input volume so you get the strongest level possible without clipping. If you are a dynamic speaker, the -10dB pad is useful for taking the edge off your voice, delivering balanced, undistorted audio. During breaks, the mute button can help avoid embarrassment. Anyone who has broadcasted a trip to the bathroom can attest to this. Long speeches and extended training sessions are no problem; the bodypack transmits for up to eight hours on two AA batteries.

Versatile Receiver Integration

PA systems come in different flavors, but the PGX14 receiver has the output connections to integrate into any sound environment. The balanced XLR jack is well-suited to a professional quality mixing board, and the 1/4-inch unbalanced jack gives good audio to more basic systems. Dual antennas help lock-on to the broadcast transmitter, offering reliable operation at a distance up to 300 feet. If you travel, you never know what sort of facilities the next venue will have. Bring a PGX14, and you'll get professional results every time. The package also includes an AC adapter to power the receiver, and a carrying case for protected storage and transport.

Manufacturer's Description for Shure PGX14/93 UHF Lavalier Wireless System with WL93 Microphone

Created for active musicians and presenters who also manage their own sound, Shure PGX Wireless improves your performance and simplifies your setup. Innovations such as automatic frequency selection and automatic transmitter setup make wireless quicker and completely worry-free. PGX systems now feature Shure's patented Audio Reference Companding, delivering the crystal clear sound quality that pro audio engineers trust. It's the best-sounding, simplest choice in wireless, from the leader in live performance sound.

WL93 Lavalier Microphone

WL93 Microphones are economical omnidirectional, subminiature, lavalier, condenser microphones designed for general speech applications where a visually unobtrusive microphone is desirable. All WL93 models are supplied with a mounting block with attached tie bar, a sew-on mounting bracket, and an acoustic windscreen to minimize wind noise in outdoor applications. All WL93 models include a cable terminated with a 4-pin mini connector which connects directly to a Shure wireless body-pack transmitter.

PGX1 Bodypack Transmitter

Designed to meet the needs of traveling performers, Shure's PGX1 can be used with headworn, lavalier, or instrument microphones, or with guitars or basses.

PGX1 Features

- Audio Reference Companding: crystal-clear sound beyond the limits of conventional wireless technology.
- Automatic Transmitter Setup
- Multi-function LED Indicator (power, lockout, mute, low battery)
- 10db pad
- 2 AA batteries provide 8 hours of continuous use
- 18 MHz operating range

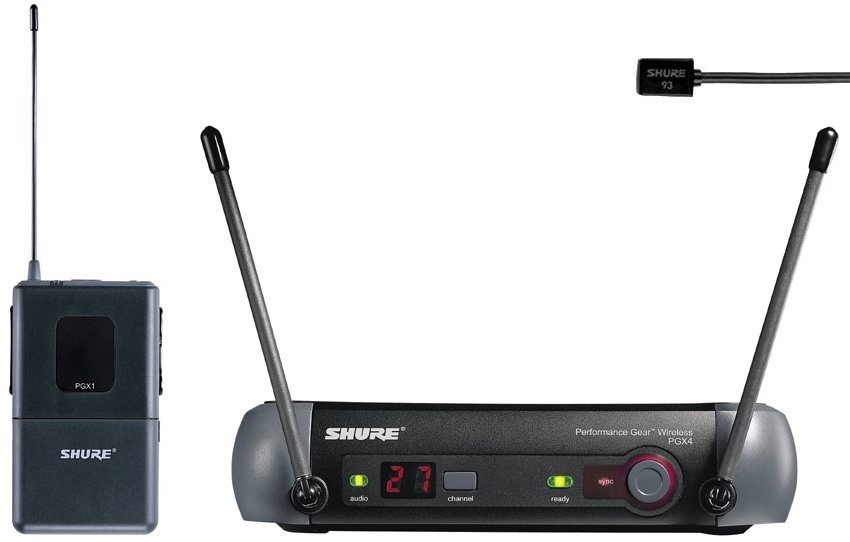

System Includes

:- Shure PGX4 receiver
- Shure WL93 Lavalier Microphone with PGX1 Beltpack Transmitter
- (2) AA batteries
- Power supply
- User guide

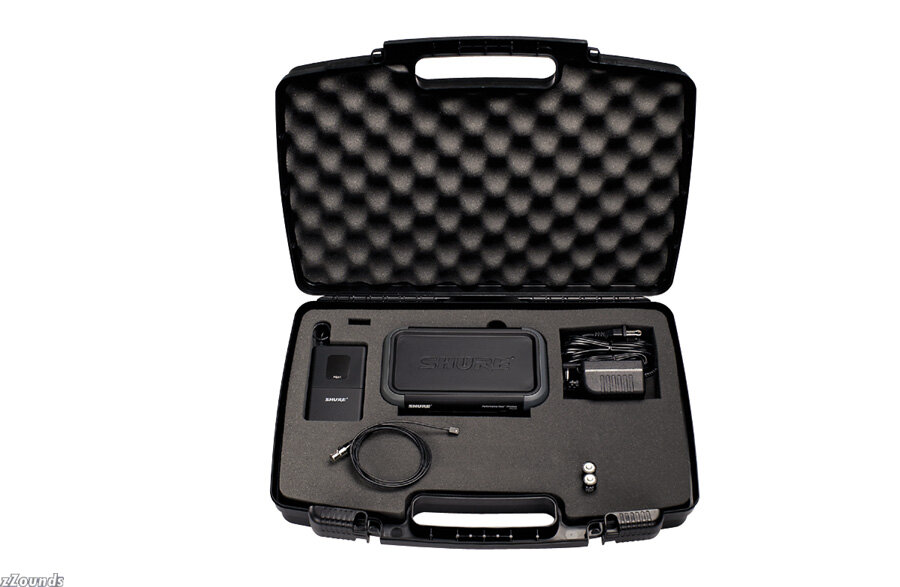

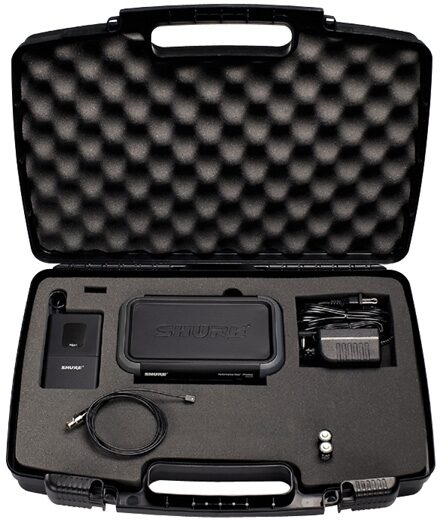

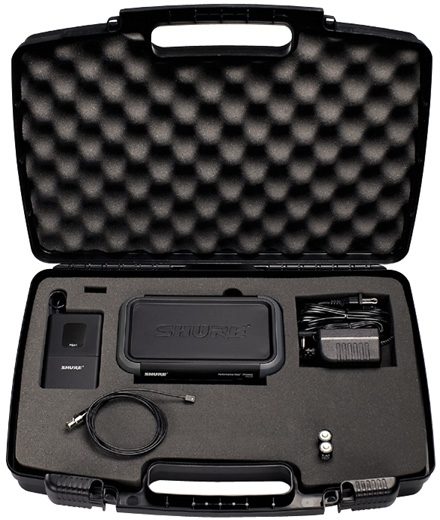

- Carrying case

Optional Accessories

- Zipper Bag (PGX1): model #26A13
- Universal Rack Tray: model #URT

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure. zZounds is an authorized dealer of Shure products.

-Channel Frequencies:
Channel H6: 524.000 to 542.000 MHz
Channel J6: 572.250 to 589.875 MHz
Channel L5: 644.000 to 662.000 MHz
- System Working Range: 100 m (300 ft.) Note: actual range depends on RF signal absorption, reflection, and interference
- Audio Frequency Response (+/- 2 dB):
Minimum: 45 Hz
Maximum: 15 kHz
(Overall system frequency depends on microphone element.)
- Total Harmonic Distortion (Ref. +/- 33 kHz deviation, 1 kHz tone): 0.5 %, typical
- Dynamic Range: >100 dB A-weighted
- Operating Temperature Range:
18 deg. C (0 deg. F) to 50 deg. C (122 deg. F)
Note: battery characteristics may limit this range
- Transmitter Audio Polarity:
Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.

PGX4 Receiver
- Dimensions: 40 mm H x 181 mm W x 104 mm D (1.6 x 7.125 x 4.1 in.)
- Weight: 327 g (11.5 oz.)
- Housing: ABS
- Audio Output Level (Ref. +/- 33 kHz deviation with 1 kHz tone):
XLR connector (into 600 & load): 19 dBV
1/4 inch connector (into 3000 & load): 5 dBV
- Output Impedance:
XLR connector: 200 Ohms
1/4 inch connector: 1kOhm
- XLR output:
Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio
- Sensitivity: 105 dBm for 12 dB SINAD, typical
- Image Rejection: >70 dB, typical
- Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply

PGX1 Bodypack Transmitter
- Audio Input Level:
-10 dBV maximum at "mic" gain position
+10 dBV maximum at 0dB gain position
+20 dBV maximum at -10dB gain position
- Gain Adjustment Range: 30 dB
- Input Impedance 1 MOhm
- RF Transmitter Output: 30 mW maximum
(dependent on applicable country regulations)
- Dimensions: 108 mm H x 64 mm W x 19 mm D (4.25 x 2.50 x 0.75 in.)
- Weight: 81 grams (3 oz.) without batteries
- Housing: Molded polycarbonate case
- Power Requirements: 2 AA-size alkaline or rechargeable batteries
- Battery Life: >8 hours (w/ alkaline batteries)

Dimensions and Weight in Packaging

Channel H6

Shipping Weight: 5 lbs

Shipping Dimensions: 18 x 12 x 4 in

Channel J6

Shipping Weight: 5 lbs

Shipping Dimensions: 18 x 12 x 4 in

Channel L5

Shipping Weight: 5 lbs

Shipping Dimensions: 18 x 12 x 4 in

Channel H6, with Gator GM1W Bag

Shipping Weight: 7 lbs

Channel L5, with Gator GM1W Bag

Shipping Weight: 7 lbs

Channel J6, with Gator GM1W Bag

Shipping Weight: 7 lbs
