Shure PGX1485 UHF Wireless System with Lavalier

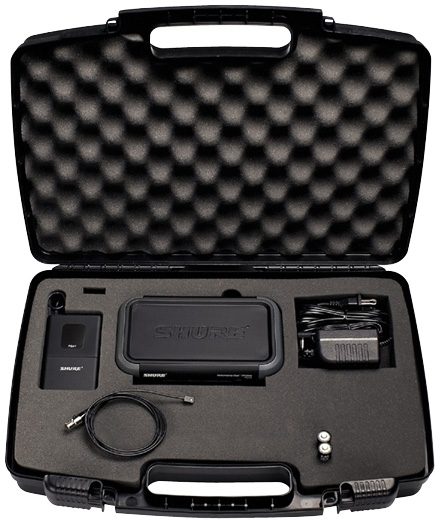

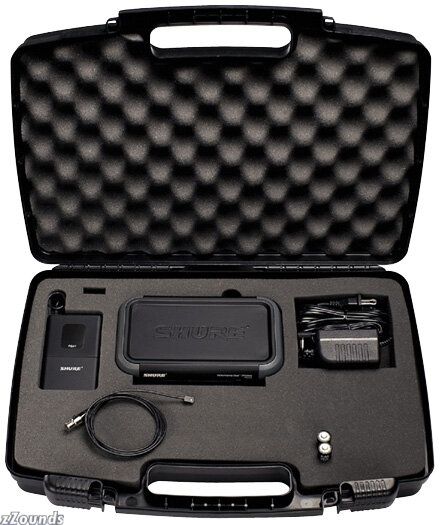

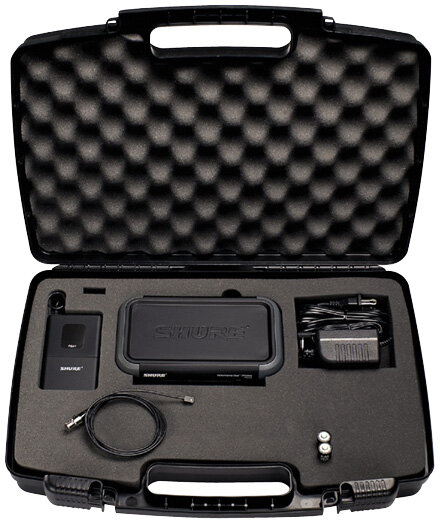

It's never been easier to go wireless and sound like a pro. Shure's new PGX Performance Gear Wireless brings the superior sound of Shure Microphones together with innovative setup features in eight easy-to-use packages. Durably constructed, with included carrying case, PGX Performance Gear is the perfect system for performers on the go who want worry-free performance, every time.

PGX Performance Gear Wireless Systems feature Shure's patented Audio Reference Companding for crystal-clear sound beyond the limits of conventional wireless technology.

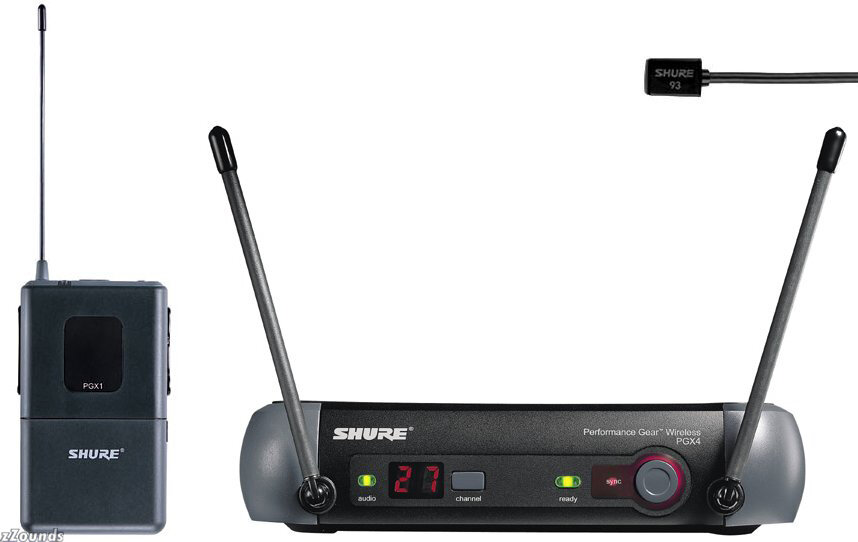

Model PGX14/85 includes:
WL185 Lavalier Mic
PGX1 Bodypack Transmitter
PGX4 Diversity Receiver

WL185 Lavalier Mic (Cardioid)
The WL185 is a lavalier electret condenser microphone designed for use with a wireless body-pack transmitter. This microphone has a 1.2 meter (4 ft.) cable terminated with a miniature 4-pin mini connector. The furnished tie clip can be rotated in 90 degree intervals for placement flexibility.

Recommended for general purpose sound reinforcement applications requiring good rejection of ambient noise. Use of windscreen highly recommended. Pickup angle is 130 degrees.

PGX1 Bodypack Transmitter
Designed to meet the needs of traveling performers, Shures PGX1 can be used with headworn, lavalier, or instrument microphones, or with guitars or basses.

* Automatic Transmitter Setup
* Multi-function LED Indicator ((power, lockout, mute, low battery)
* -10db pad
* 2 AA batteries provide 8 hours of continuous use
* 18 MHz operating range

PGX4 Diversity Receiver
Shures PGX4 receiver makes wireless setup a snap. With features like Automatic Frequency Selection and Automatic Transmitter Setup, the PGX4 offers the best in wireless to performers on the go.

* Automatic Transmitter Setup
* Automatic Frequency Selection
* 90 Selectable frequencies across 18 MHz bandwidth
* 1/4 wave antennas
* Microprocessor- controlled diversity
* Channel display LED
* XLR and 1/4 in. outputs

Technical Info

Channel Frequencies
Channel H6: 524.000 to 542.000 MHz
Channel J6: 572.250 to 589.875 MHz
Channel L5: 644.000 to 662.000 MHz

System Working Range: 100 m (300 ft.)
Note: actual range depends on RF signal absorption, reflection, and interference

Audio Frequency Response (+/- 2 dB):
Minimum: 45 Hz
Maximum: 15 kHz
(Overall system frequency depends on microphone element.)

Total Harmonic Distortion (Ref. +/- 33 kHz deviation, 1 kHz tone): 0.5 %, typical

Dynamic Range: >100 dB A-weighted

Operating Temperature Range:
18 deg. C (0 deg. F) to 50 deg. C (122 deg. F)
Note: battery characteristics may limit this range

Transmitter Audio Polarity:
Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.

PGX4 Receiver
Dimensions: 40 mm H x 181 mm W x 104 mm D (1.6 x 7.125 x 4.1 in.)

Weight: 327 g (11.5 oz.)

Housing: ABS

Audio Output Level (Ref. +/- 33 kHz deviation with 1 kHz tone):
XLR connector (into 600 & load): 19 dBV
1/4 inch connector (into 3000 & load): 5 dBV

Output Impedance:
XLR connector: 200 Ohms
1/4 inch connector: 1kOhm

XLR output:
Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio

Sensitivity: 105 dBm for 12 dB SINAD, typical

Image Rejection: >70 dB, typical

Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply

PGX1 Bodypack Transmitter
Audio Input Level:
-10 dBV maximum at "mic" gain position
+10 dBV maximum at 0dB gain position
+20 dBV maximum at -10dB gain position

Gain Adjustment Range: 30 dB

Input Impedance 1 MOhm

RF Transmitter Output: 30 mW maximum
(dependent on applicable country regulations)

Dimensions: 108 mm H x 64 mm W x 19 mm D (4.25 x 2.50 x 0.75 in.)

Weight: 81 grams (3 oz.) without batteries

Housing: Molded polycarbonate case

Power Requirements: 2 AA-size alkaline or rechargeable batteries

Battery Life: >8 hours (w/ alkaline batteries)

Rebates

Clip-on WL185 cardioid lavalier mic with PGX1 bodypack transmitter.
