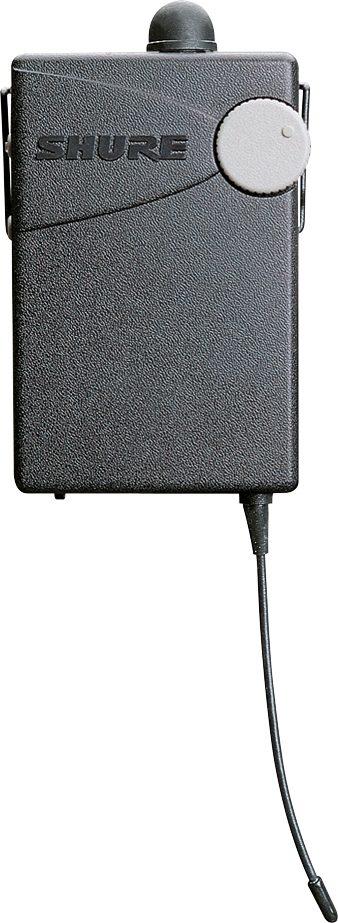

Shure P4R Wireless Bodypack Receiver for PSM400

The Shure P4R is an add on wireless bodypack for the PSM400 monitor system.

Features
High-impact plastic chassis

Frequency locater

Technical Info

Operating Controls:
Operating mode (Stereo, Mono, MixMode)
Volume knob
Balance
Defeatable limiter
High-frequency boost
Frequency select

Backlit LCD Indicators:
RF reception
Battery life
Operating mode
Frequency

RF Frequency Range: 944 to 952 MHz

Operating Range: 300 feet (environment dependent)

Audio Frequency Response: 50 Hz to 12 kHz (+/- 3 dB)

RF Sensitivity: 1 mV typical

Image Rejection: 55 dB typical

Spurious Rejection: 60 dB typical

Squelch Threshold: 4.5 mV typical

Antenna: attached whip

Power Requirements: 9 V alkaline battery

Battery Life: up to 8 hours, volume dependent

Audio Output Connector: 3.5 mm Stereo (Left = tip, Right = ring, Ground = sleeve)

Minimum Load Impedance: 16 ohms

Net Weight: .28 lbs.(125 g )

Overall Dimensions: 3-1/4 x 2-1/2 x 1-1/32 in.(82.6 mm X 63.5 mm X 26.2 mm)

Important NOTE:
Due to the FCC reallocation and auction of frequencies in the 700 MHz band, Shure has chosen to move the PSM 400 products from the HF band (722 to 746 MHz) to the new X1 band (944 to 952 MHz). There are no changes to pricing.

The X1 band extends from 944 to 952 MHz (8 MHz total). This portion of the RF spectrum is called the “STL band” because it is used for Studio-Transmitter Links between a radio station studio and a transmitter in a different location. It is outside of the TV band, new wireless services, and public safety bands.

NOTE: PSM 400 systems operating in the X1 band are not compatible with the PA770 antenna combiner.
