Product Description

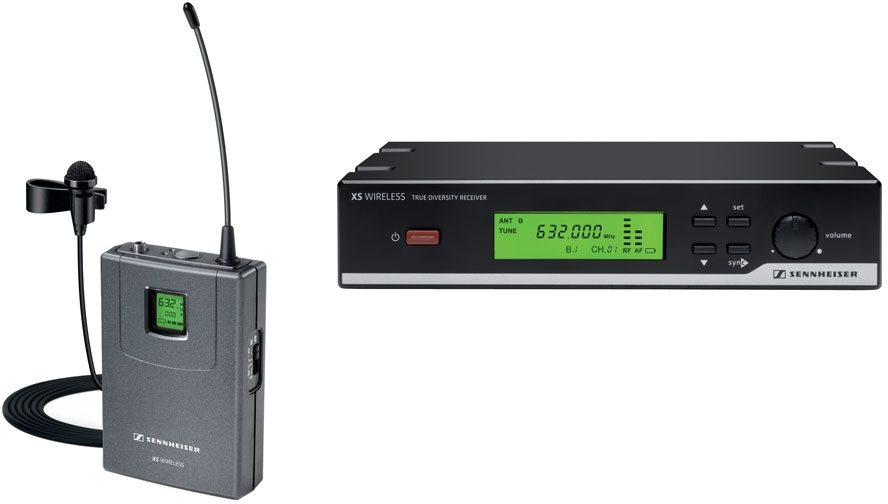

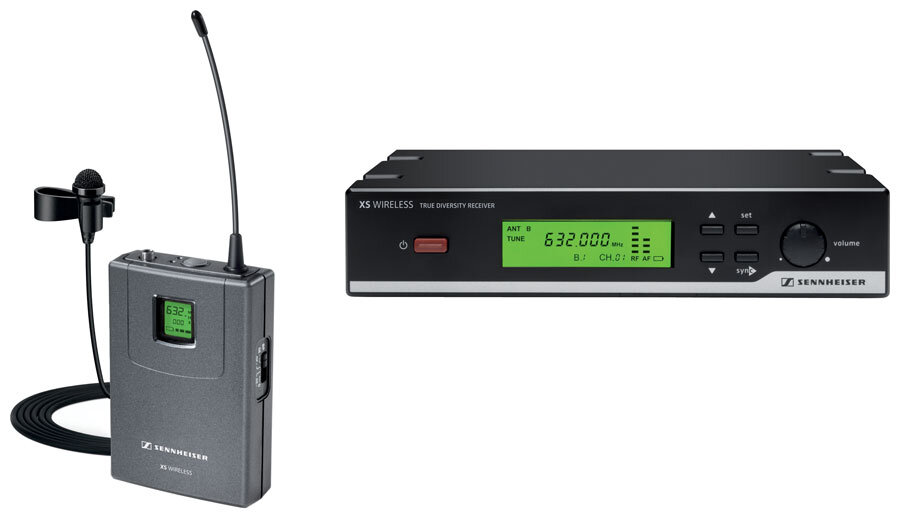

Make your presentations come to life! Rugged, reliable and easy-to-use, XS Wireless delivers renowned Sennheiser sound to small venues, conference rooms or houses of worship. The Sennheiser XSW 12 Presentation Set includes a compact bodypack transmitter and inconspicuous omnidirectional microphone that provides natural speech reproduction. An all-metal True Diversity receiver offers 960 tunable frequencies, with powerful scan and sync functions that ensure up to 10 hours of trouble-free operation.
Features
- True Diversity reception for worry-free operation
- 24 MHz switching bandwidth
- 960 available frequencies, tunable in 25 kHz steps
- 8 frequency banks containing 12 coordinated channels each
- Powerful scan function identifies available channels within a bank
- Component synchronization at a distance with new "Remote Channel" sync
- Up to 10 hours of operation with (2) AA batteries
- Up to 250 feet of transmission range
- Illuminated audio mute button on transmitters
- Balanced (XLR) and unbalanced (1/4") outputs
- 2 frequency ranges: A (548-572 MHz) and B (614-638 MHz)
Package Includes:
(1) SK 20 bodypack transmitter
(1) EM 10 true diversity receiver
(1) ME 2-2 omnidirectional clip-on mic
(1) NT 2-3 power supply
(2) rod antennas
(2) AA batteries
(1) Pouch
(1) Instruction manual
Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones
NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
zZounds is an authorized dealer of
Sennheiser products.
-
Modulation: Wideband FM
-
Frequency range: A: 548-572 MHz, B: 614-638 MHz
-
Switching bandwidth: 24 MHz
-
Frequencies: 960, tunable in 25 kHz steps
-
Frequency presets: 8 frequency banks, each with 12 coordinated factory-preset channels
-
Signal-to-noise ratio: >= 103 dBa
-
Total harmonic distortion (THD): <= 1%
-
Temperature range: 32* F to 104* F
-
(0* C to +40* C): undefined
-
Receiver principle: True diversity
-
Sensitivity (at peak deviation): < 3 uV at 52 dBarms S/N
-
Adjacent channel rejection: >= 60 dB
-
Intermodulation rejection: >= 50 dB
-
Blocking: >= 65 dB
-
AF frequency response: 60 Hz - 16 kHz
-
Antenna input: 2 BNC connectors, 50
-
AF output voltage (at peak dev., 1 kHz AF): XLR (balanced): +14 dBu; " (unbalanced): +8 dBu
-
Receiver power supply: 12 VDC nom. / 300 mA
-
UPC code: 615104219670
-
EAN code: 4044155072716
-
Dimensions (single): 13.39 x 13.58 x 3.35 in
-
Weight (single): 3.59 lbs
-
Dimensions (master carton): 15.35 x 13.98 x 11.02 in
-
Weight (master carton): 13.23 lbs
-
Master carton quantity: 3
- Dimensions and Weight in Packaging
- Channel A
- Shipping Weight: 4 lbs
-
Shipping Dimensions:
3 x
14 x
13 in
- Channel B
- Shipping Weight: 4 lbs
-
Shipping Dimensions:
3 x
14 x
13 in
