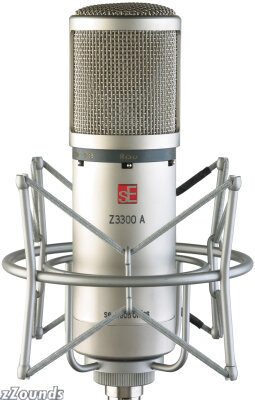

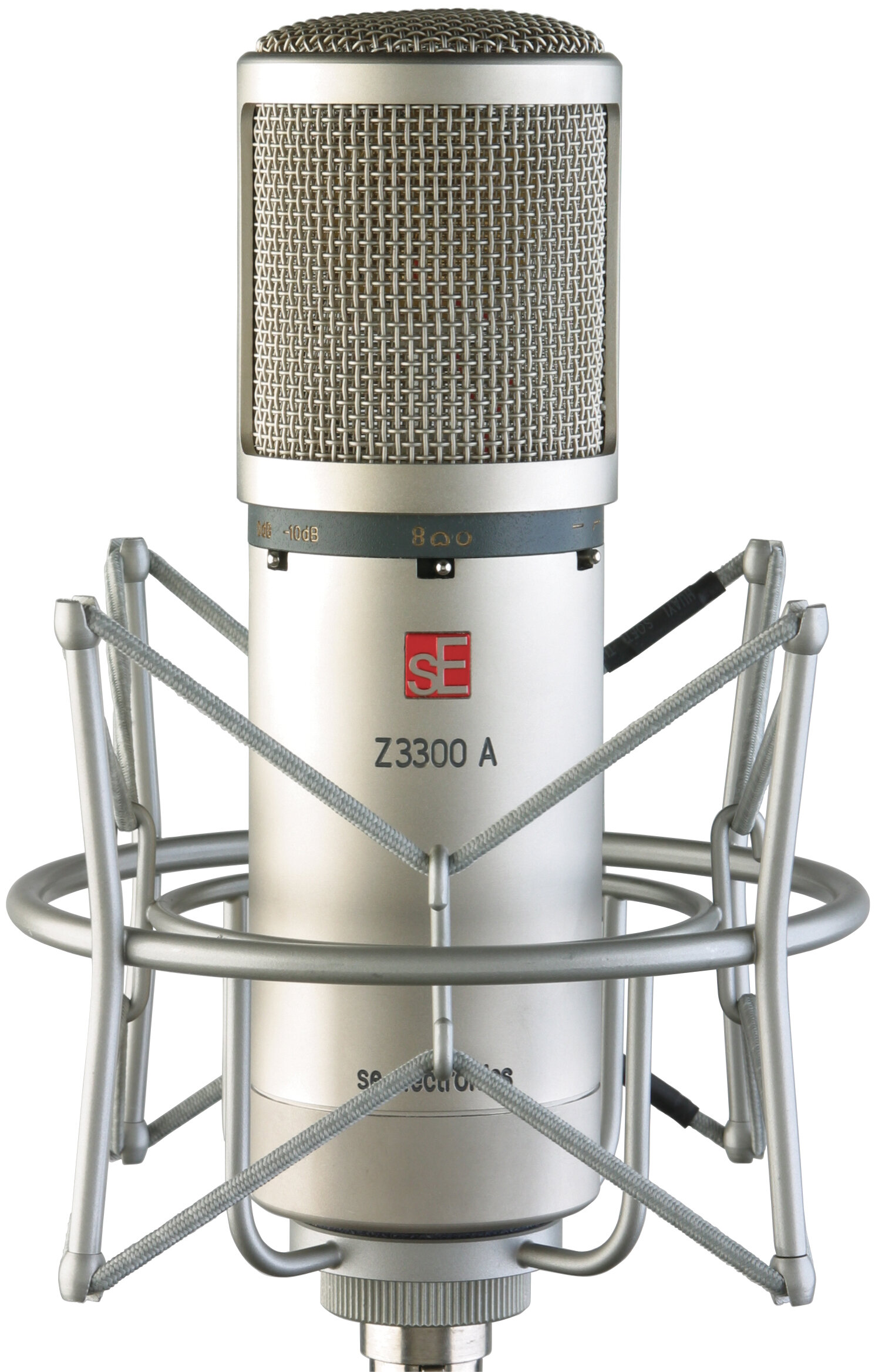

The Z3300A is SE's most versatile Class A FET 48V phantom powered microphone. Incorporating twin 1.07 in. gold-plated diaphragms it features selectable polar patterns (omni, cardioid, and figure-eight) and 100Hz low cut filter switches conveniently accessible on the microphone. New ultra clean, ultra quiet Z range electronics make the Z3300A the ultimate solid state microphone for almost any recording application. For vocals or piano or acoustic instruments -- the versatility of the Z3300A is the right choice- every time.
Technical Info
Frequency response: 20Hz-20kHz
Sensitivity: 12.6mV/Pa - 38+/- 2dB(0dB=1V/Pa 1000Hz)
Polar pattern: cardioid, omni, figure 8
Impedance: < 200 ohms
Equivalent noise level: 20dB (A weighted)
Max SPL for 0.5% THD@1000Hz: 125dB
Power requirement: phantom power 48V +/- 4V
Connector: 3-pin
XLR Size: 60mm x 192mm
