Samson UHF Synth 32 Headset Wireless W/QV Mic

Featuring groundbreaking wireless technology, Samson's new UHF Synth 32 system provides 32 selectable UHF frequencies in both the receiver and transmitter. The system's compact half-rack receiver features a large front-panel LCD display on the front panel and a comprehensive feature set. The system includes patent-pending PLL synthesized VCO circuitry in the transmitters along with SAW (Surface Acoustic Wave) filters in the receiver. The system also includes built-in Noise Squelch circuitry.

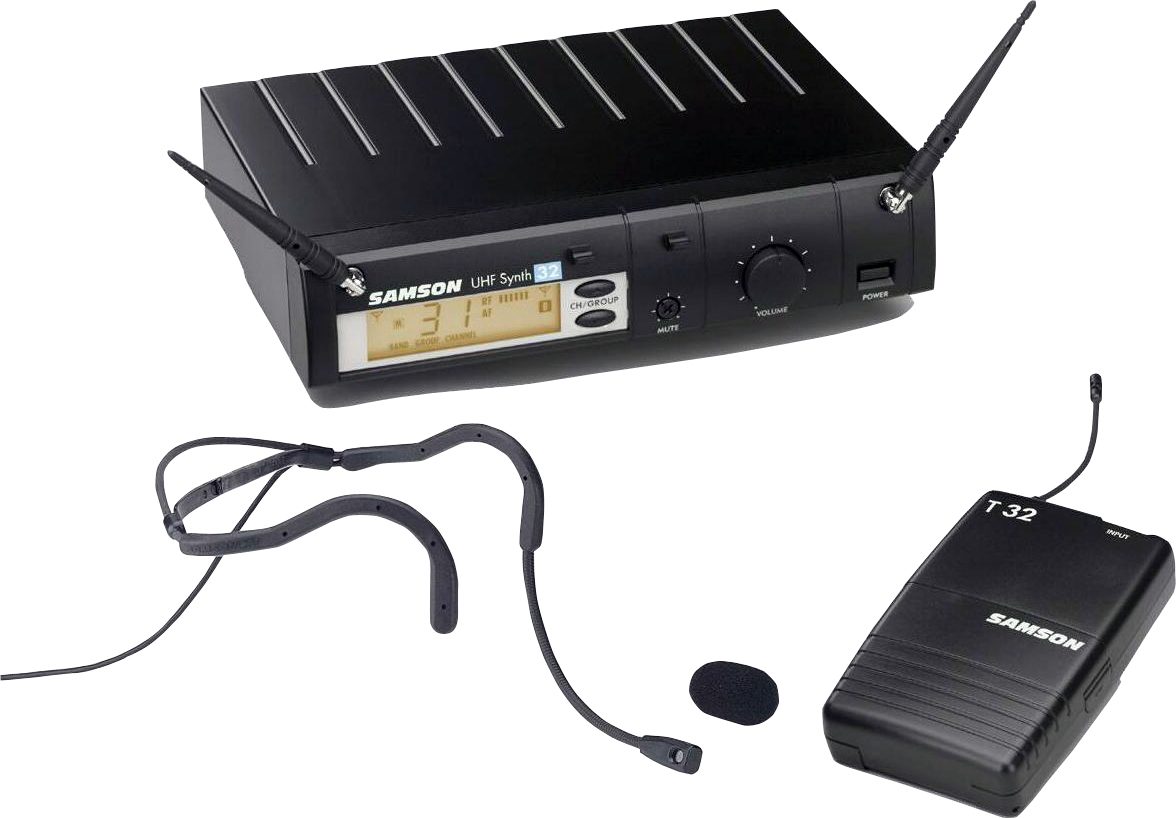

System Includes: R32 Receiver, T32 Beltpack Transmitter, and Samson QV Headset.

Features
Synthesized UHF wireless system with 32 selectable frequencies in both receiver and transmitter

LCD display indicates Channel, Group, Audio Level/RF Level, Diversity A/B antenna, and Mute

SAW (Surface Acoustic Wave) filters for discriminating wireless reception

Built-in Noise Squelch circuitry mutes system wide-band noise

Balanced XLR output and Õ in. output. Compact half-rack receiver design with optional rack-mount kit

Transmitters feature PLL synthesized VCO technology to eliminate spurious emissions in multi-user venues

Transmitter features battery life indicator and full complement of controls

Tuned molded antennas for enhanced reception

9V battery operation

3-pin mini-XLR connector

About Samson Audio
Samson's mission is to create precision audio tools for professionals, all with exceptional sound, a wealth of practical features, and rugged construction to ensure consistent performance and long life in all kinds of applications. Their power amplifiers, equalizers, powered mixers, mixers, specialized products, racklight/power distribution systems, microphones, and other unique products to come, are all dedicated to one idea: The art of high technology is best served by making excellence more accessible to everyone.

Technical Info

System Includes: R32 Receiver, T32 Beltpack Transmitter, and Samson QV Headset.

System
Channels: 32 per band (3 Bands)

Modulation Type: FM

Noise Reduction Type: Compander

Distance: 100 m

System Transmitters (T32 and H32)

Oscillation Type: PLL Synthesized Control OSC

Pre-Emphasis: 50 µSec

Antenna Type:
T32: Wire (permanently attached)
H32: Integral Dipole

Input (T32): TB3M QG (Mini-XLR) Connector

Maximum Input Level:
T32: 0 dBv
H32: -20 dBv

Battery: MN1604 9-volt alkaline

Controls:
T32: Power On/Off, Mute On/Off, Level Control (Trimpot), Group, Channel
H32: Power On/Off, Audio On/Off, Level Control (Trimpot), Group, Channel
LED Indicator: Battery status, Frequency availability

Operating Voltage: 9 Volts

Frequency Range: Low Band: 778.125 MHz - 782.000 MHz

Middle Band: 801.125 MHz - 805.000 MHz

High Band: 854.900 MHz - 858.850 MHz

Current Consumption: 32 mA (typical)

RF Power: 10 mW

Frequency Stability: ± 15 kHz

Spurious Ratio: 1 uW

Deviation: 15 kHz

T.H.D.: 2% max. @ 1 kHz

Signal to Noise Ratio: > 100 dB

Audio Frequency Response: 50 Hz to 15 kHz ± 3.5 dB

Battery Life: 14 hours (typical)

Approvals: Complies with ETS 300 422, ETS 300 445, and FCC Part 74

Dimensions (W x H x D):
T32 (without antnna): 102 x 66 x 24mm (4 x 2.6 x 9 in.)
H32 (without mic element): 37 (dia) x 151mm (1.4 x 5.9 in.)

Weight (without battery, mic element)
T32: 80 g (2.8 oz.)
H32: 65 g (2.3 oz.)

Receiver (R32)
Oscillation Type: PLL Synthesized Control OSC

De-emphasis: 50 µsec

IF Frequency: 10.7 MHz

Antennas: Dual 1/4 Wavelength

In/Out: 5.5 mm DC Inlet, Unbalanced Output (1/4" phone jack), Balanced Output (female XLR connector)

Display: LCD Display (with backlit amber color)

Display Contents: Frequency Group/Channel (7 segments, 2 digits), Frequency Band (High, Mid, Low), Antenna A/B, MUTE display, RF Level Meter (6 points), AF Level Meter (6 points)

Controls: Power On/Off Switch (Front), Frequency Up/Down Switch (Front), Audio Level Volume (Front), Squelch Level Volume (Front), Balanced Output Level Switch (Rear)

Operating Voltage: 9 VDC, 65 mA (min.) - 140 mA (max.) @ 9 V Battery or supplied AC adapter

Frequency Range:
Low Band: 778.125 MHz - 782.000 MHz
Middle Band: 801.125 MHz - 805.000 MHz
High Band: 854.900 MHz - 858.850 MHz

Squelch Sensitivity: 10 dBuV to 40 dBuV adjustable

Sensitivity: (AF = 1 kHz, dF = 20 kHz) = < 6 dBuV @ 20 dB S/N

Selectivity: ± 150 kHz (AF Out Ratio -60 dB)

T.H.D.: < 1% @ 1 kHz

Signal to Noise Ratio: > 95 dB (overall)

Audio Frequency Response: 50 Hz - 15 kHz (± 3.5 dB)

AF output level: -10/-20/-40 dBv

Audio Output Impedance: Unbalanced (1/4 in. Jack): 10 k ü

Balanced (XLR Jack): 600 ü

Dimensions - without antennas (W x H x D): 198 x 42 x 140mm (7.8 x 1.7 x 5.5 in.)

Weight: 13.6 oz. (385 g)
