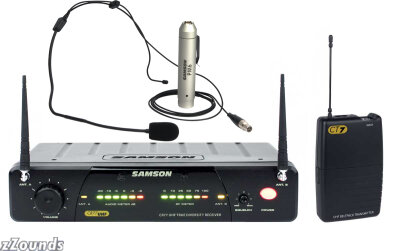

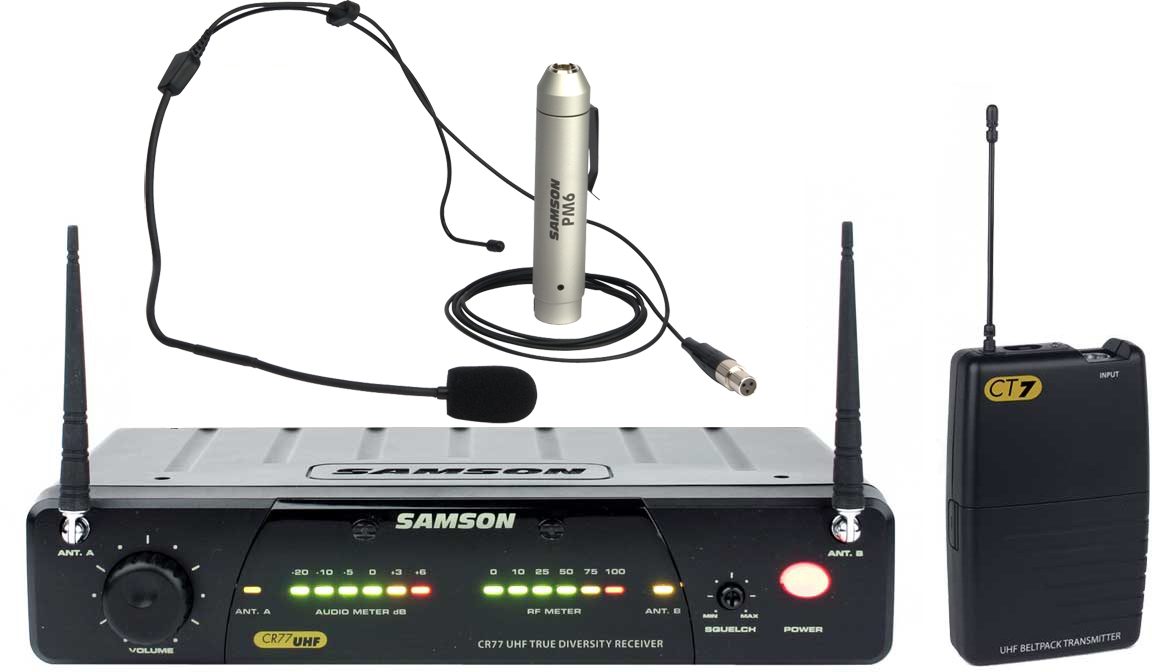

Samson Concert 77 UHF TD Wireless with QV10E Headset Transmitter

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
open zoom image for Samson Concert 77 UHF TD Wireless with QV10E Headset Transmitter, Main
open zoom image for Samson Concert 77 UHF TD Wireless with QV10E Headset Transmitter, Main
open zoom image for Samson Concert 77 UHF TD Wireless with QV10E Headset Transmitter, Main
open zoom image for Samson Concert 77 UHF TD Wireless with QV10E Headset Transmitter, Main
open zoom image for Samson Concert 77 UHF TD Wireless with QV10E Headset Transmitter, Main
open zoom image for Samson Concert 77 UHF TD Wireless with QV10E Headset Transmitter, Main
Samson Concert 77 UHF TD Wireless with QV10E Headset Transmitter, Main Samson Concert 77 UHF TD Wireless with QV10E Headset Transmitter, Main Samson Concert 77 UHF TD Wireless with QV10E Headset Transmitter, Main Samson Concert 77 UHF TD Wireless with QV10E Headset Transmitter, Main Samson Concert 77 UHF TD Wireless with QV10E Headset Transmitter, Main Samson Concert 77 UHF TD Wireless with QV10E Headset Transmitter, Main
zZounds Gear Experts Say...
Includes: CR77 receiver, CT7 transmitter, and QV10E mic.

Samson Technologies was founded 20 years ago when they introduced some of the first affordable wireless technology ever. The latest line of wireless gear in that tradition: Concert 77. UHF quality diversity wireless that anyone can afford.

CR77 Wireless Receiver
This true-diversity half-rack unit with PLL frequency control works with all Concert 77 wireless systems. Rugged, durable and crystal clear with incredible range. UHF (Ultra High Frequency) means clearer frequencies with less interference. Diversity reception means no dropouts. Concert 77 represents sophisticated wireless technology at great prices.

CT7 Belt-Pack Transmitter
For use with all other Concert 77 Systems. This compact and simple-to-use belt-pack has on/off and level control.

Headset System
Concert 77 is the perfect affordable wireless system for fitness instructors, public speakers, anyone who needs a hands-free microphone. Includes the Samson Qv Vocal headset for performance.

QV10E Headset Condenser Microphone
The QV10E headset mic allows drummers, keyboardists and other musicians to perform "hands free" vocals without affecting their playing technique. It produces a full-range sound with enough definition to ensure that every word is heard clearly, even at higher volume levels.

The elegant, lightweight low profile headset design produces a wide 60 Hz to 18 kHz frequency response for accurate vocal reproduction. Its unidirectional cardioid pickup pattern provides maximum gain before feedback. The condenser… read more mic has a flexible gooseneck for easy microphone positioning. In addition, the QV10E has a waterproof design that's perfect for high-humidity environments. The PM6 phantom power adapter is also included. read less

Channel Frequencies
Channel U1: 801.375 MHz
Channel U2: 801.875 MHz
Channel U3: 803.125 MHz
Channel U4: 803.750 MHz
Channel U5: 804.500 MHz
Channel U6: 804.750 MHz

Receiver (CR77)
Type of Reception: Single Superheterodyne, True Diversity

Oscillation Type: Synthesized PLL Frequency Control

D-emphasis: 50 sec

IF Frequency: 10.7 MHz

Antenna: 1/4 Wavelength Rod

In/Out: DC Inlet, Balanced Output, Unbalanced Output

Display (LED): Antenna A/B (Green), Power On (Red), Peak (Yellow), RF Level (5 pc)

Level Controls: Volume, Squelch

Operating Voltage: 12 Volts + 10 %

Current Consumption: 160 mA (at all LED lights)

Receiving Frequency Range: 801 - 805 MHz

Sensitivity: 18 dB @ THD 2%

Squelch Sensitivity: 0 - 40 dB (Adjustable)

Selectivity: 150 kHz (AF Out Ratio -60 dB)

S/N Ratio (Overall): 90 dB (w/ IHF-A fi lter)

Residual Noise: 90 dBv (w/ IHF-A fi lter)

Band Mute: 50 kHz / 100 kHz (RF IN: 46 dBu EMF)

AF Frequency Response: 50 Hz - 15 kHz ( 3 dB overall)

Audio Output Level - Unbalanced: 0 dBv

Audio Output Level - Balanced: -20 dBm (Line), -40 dBm (Mic) Switch
Selectable

Audio Output Impedance/Unbalanced: 5 k Ohms

Audio Output Impedance/Balanced: 600 Ohms

Dimensions: 8.5 in. (w) x 1.75 in. (h) x 4.6 in.(d) 216 mm (w) x 44 mm (h) x 116 mm (d)

Weight: .75 lb / 340 g

Transmitter (CT7)
Oscillation Type: Synthesized PLL Frequency Control

Pre-emphasis: 50 sec

Antenna: 1/4 Wave Length Wire (permanently attached)

Input: TB3M QG (Mini XLR) Connector

Maximum Input Level: 3 V p-p

Battery: Duracell MN 1604 9-volt alkaline

Switches/Controls: Power On/Off, Audio On/Off, AF Level

Display (LED): Battery Low/Mid/High (<5.3V/5.3-7V/7V)

Operating Voltage: 9 Volts +20%/-40%

Current Consumption: 47 mA

RF Power: 10 mW

Frequency Stability: + 20 kHz

Spurious Ratio: 2.5 nW

Deviation: 20 kHz (16.5 kHz-23.5 kHz)

T.H.D. (Typical): 0.5%

AF Frequency Response: 50 Hz - 15 kHz (3 dB overall)

Battery Life: 12 Hours

QV10E Headset
Elegant, lightweight low profile headset design

Wide 60 Hz to 18 kHz frequency response for accurate vocal reproduction

Flexible gooseneck for easy microphone positioning

Waterproof design perfect for high-humidity environments like aerobics instruction

Unidirectional cardioid pickup pattern provides maximum gain before feedback

PM6 phantom power adapter included
