Roland UA-55 Quad-Capture USB 2.0 Audio Interface

Product Description

With a pair of premium VS Preamps onboard, plus superb 24-bit/192 kHz audio quality, ultra-low latency performance, and convenient USB bus power, the Roland UA-55 Quad-Capture sets a new standard for portable USB2 audio interfaces. Its compact, durable design and pristine sound makes it the perfect foundation for portable, multichannel computer-based productions on the go. With quality and performance that far exceeds its size and price, the Roland UA-55 Quad-Capture stands at the head of its class.

Roland UA-55 Quad Capture Features

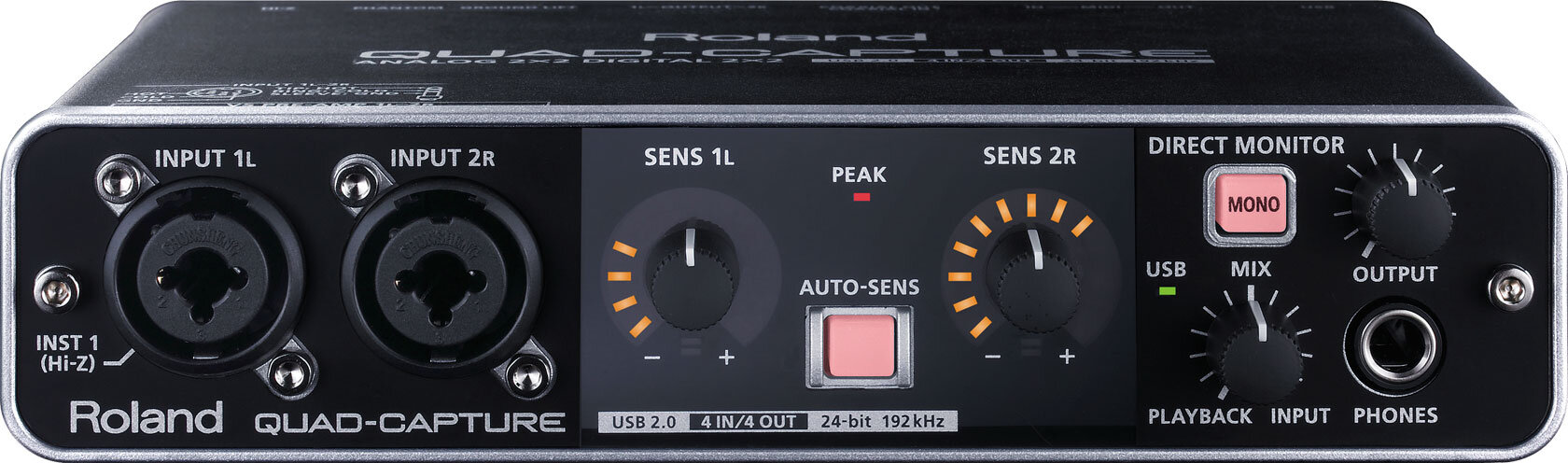

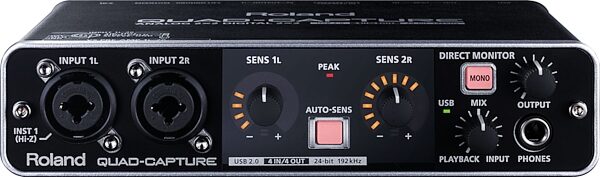

- Two combo XLR/TRS inputs with premium mic preamps (VS Preamps), two TRS outputs, coaxial I/O, headphone out, and MIDI I/O
- Graphical Control Panel software provides fast, intuitive control of the VS Preamps
- Phantom power, ground lift, and Hi-Z switches
- One-click Auto-Sens function intelligently sets optimal input levels for the preamps
- Extreme low-latency VS Streaming driver
- Low-noise, wide-range power supply
- Compact with durable aluminum body and Direct Box functionality
- Bundled with Cakewalk Sonar X1 LE

VS Preamps

The Roland Quad-Capture boasts two premium-grade, digitally controlled mic preamps (VS Preamps) made from the same high-grade components as the preamps found in Roland's V-Studio 700 and M-400 digital mixer. Two XLR/TRS combo inputs are provided for the preamps, plus independent phantom power, low-cut filter, phase invert, and digital compression for each channel. The VS preamps can be controlled easily and intuitively with the included graphical Control Panel software (Mac/PC).

One-Click Auto-Sens

Never before has it been faster or easier to set perfect input levels--simply activate the Auto-Sens feature with the push of a button, play your connected instruments, and the Roland Quad-Capture automatically sets the ideal recording level for each input. Whether you're a beginner or a professional, Auto-Sens is great for quick, fail-safe recordings, saving you setup time and letting you focus on where it starts... the performance.

VS Streaming

The Roland Quad-Capture offers incredible stability and industry-leading low-latency USB performance via Roland's proprietary VS Streaming technology. All current Mac and PC DAW platforms are supported through ASIO 2.0/WDM (Windows) and Core Audio (Mac).

Low-Noise Power Supply

One of the Roland Quad-Capture's key "behind-the-scenes" features is its low-noise, wide-ranging power supply. Designed to deliver a clean, balanced input and output, it provides a reliable foundation for any professional audio application or environment. When driven by the USB bus power supply, the Roland Quad-Capture's power is regenerated, providing the analog circuitry ideal voltage for the very best sound quality and efficiency in mobile environments.

Aluminum Build, DI Functionality

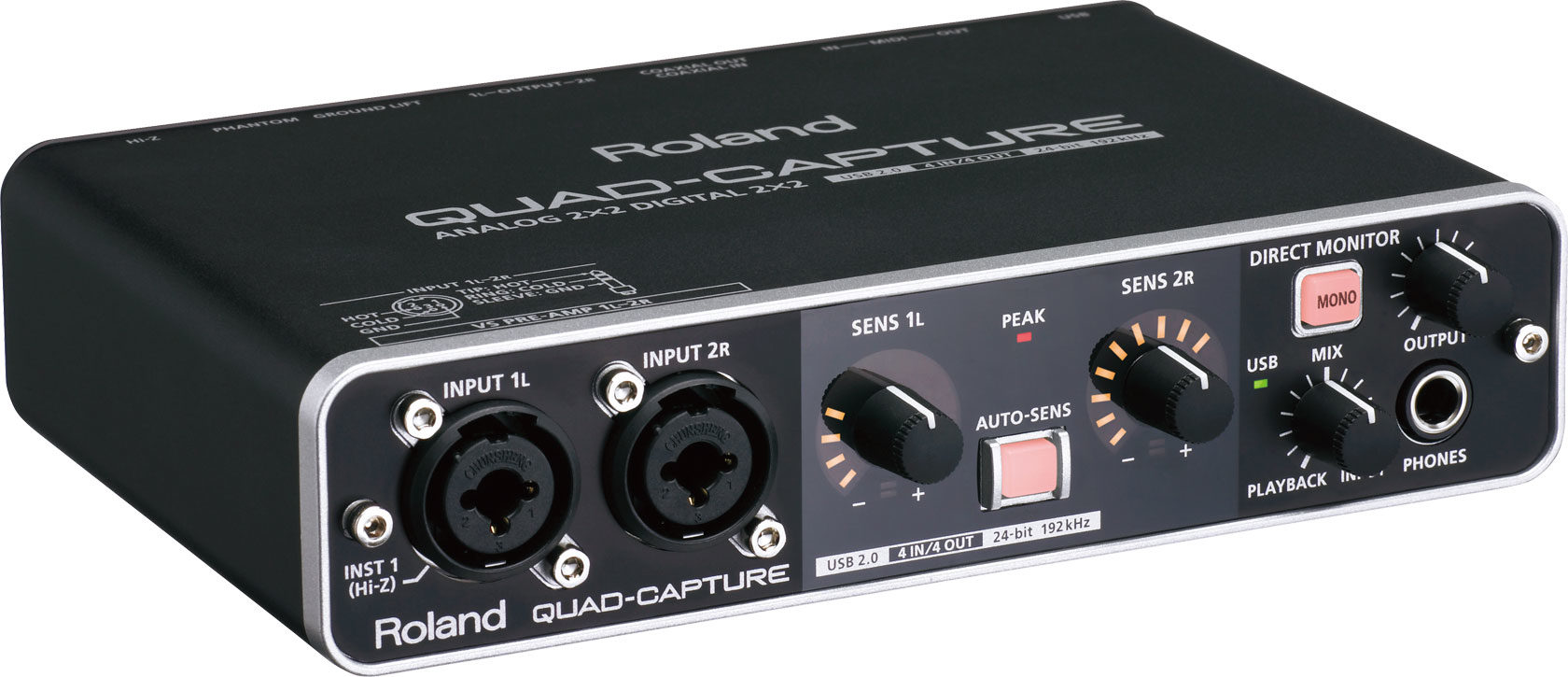

The Roland Quad-Capture is small, strong, and housed in a road-tough aluminum body, so you can transport it anywhere with the confidence that its premium internal components are securely protected. For live-concert environments, the Roland Quad-Capture also provides Direct-Box (DI) functionality, essential for noise-free live stage use.

Sonar X1 LE Bundle

Every Roland Quad-Capture package includes a complimentary copy of Sonar X1 LE software for PC that's designed to work fluidly and seamlessly with the interface. Derived from Cakewalk's award-winning Sonar X1 DAW software, the LE version give you a powerful set of software tools for writing, recording, editing, and mixing your music. zZounds is an authorized dealer of Roland products.

- Number of Audio Record/Playback Channels: < Sampling Frequency = 96 kHz, 48 kHz, 44.1 kHz > Recording: 4 channels, Playback: 4 channels < Sampling Frequency = 192 kHz > Recording: 2 channels, Playback: 2 channels
- Signal Processing: PC interface: 24-bit, AD/DA Conversion: 24-bit, Internal: 40-bit
- Sampling Frequency AD/DA Conversion: 192 kHz, 96 kHz, 48 kHz, 44.1 kHz, DIGITAL (IN/OUT): 96 kHz, 48 kHz, 44.1 kHz
- Nominal Input Level: Input jacks 1-2 (XLR type): -60 to -6 dBu, Input jacks 1-2 (1/4-inch TRS phone type): -50 to +4 dBu
- Nominal Output Level: OUTPUT 1-2: +0 dBu (balanced)
- Headroom: 14 dB
- Input Impedance: Input jacks 1-2 (XLR type): 4.8 kOhm (balanced), Input jacks 1-2 (1/4-inch TRS phone type): 15 kOhm (balanced)
- Output Impedance OUTPUT 1-2: 2 kOhm (balanced), PHONES: 47 Ohm
- Frequency Response: 192.0 kHz: 20 Hz to 90 kHz (+0/-8 dB), 20 Hz to 60 kHz (+0/-2 dB), 96.0 kHz: 20 Hz to 40 kHz (+0/-2 dB), 48.0 kHz: 20 Hz to 22 kHz (+0/-2 dB), 44.1 kHz: 20 Hz to 20 kHz (+0/-2 dB)
- Residual Noise Level: INPUT 1-2 -> MAIN OUT: -95 dBu typ. (GAIN: min., 600 Ohm terminated, IHF-A) * Internal Direct Monitor Mixer setting, Input channel fader: Unity
- Dynamic Range: < AD block > INPUT 1-2: 104 dB typ. (GAIN: min.) < DA block > OUTPUT 1-2: 109 dB typ.

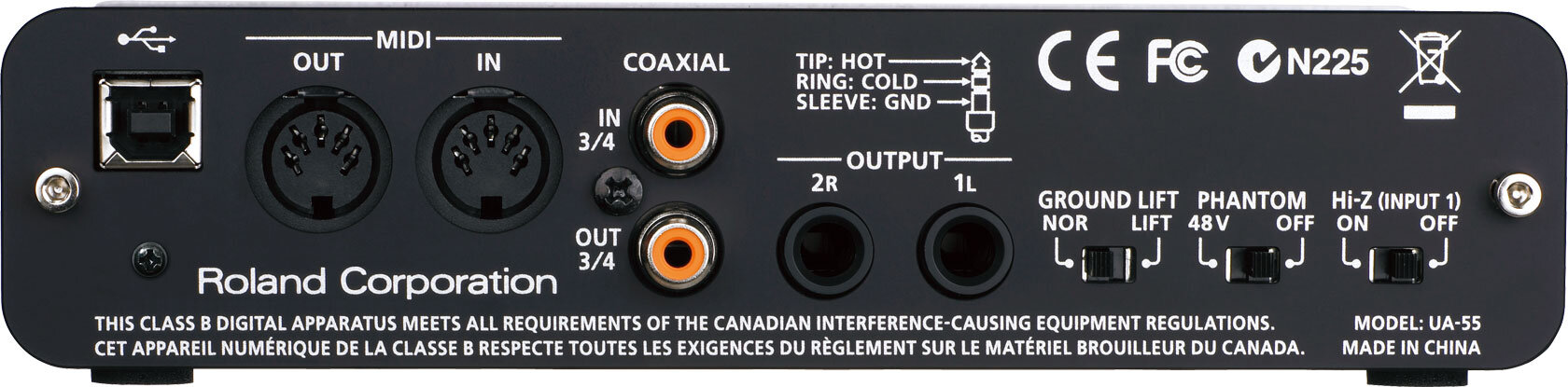

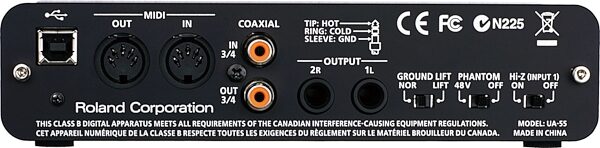

- Connectors: Input jacks 1-2 (XLR type / 1/4-inch TRS phone type) XLR type (balanced / phantom power: DC 48V, 6mA Max) * Current value per channel. 1/4-inch TRS phone type (balanced), Coaxial Input connector, Coaxial Output connector, Headphone jack (Stereo 1/4-inch phone type), Output jacks 1-2 (1/4-inch TRS phone type (balanced)), MIDI connectors (In, Out), USB connector
- Interface: Hi-Speed USB, Digital input/output: Coaxial type (Conforms to IEC60958 consumer format.), MIDI input/output
- Power Supply: USB Bus Power
- Current Draw: 480 mA
- Dimensions: 184.6 (W) x 133.9 (D) x 44.3 (H) mm / 7-5/16 (W) x 5-5/16 (D) x 1-3/4 (H) inches
- Weight: 0.57 kg / 1 lbs 4 oz
- Included Accessories: Owner's Manual, Cakewalk SONAR LE DVD-ROM (for Windows), Driver CD-ROM, USB cable

Dimensions and Weight in Packaging

Shipping Weight: 3 lbs

Shipping Dimensions: 10 x 8 x 4 in
