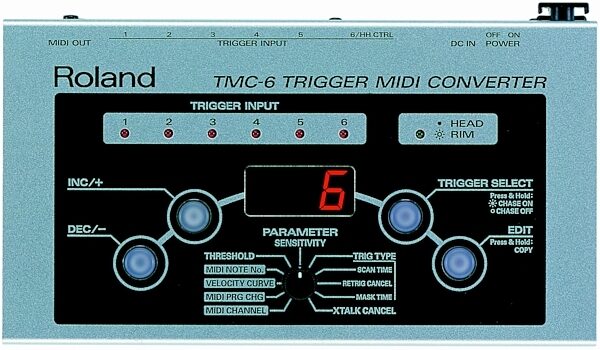

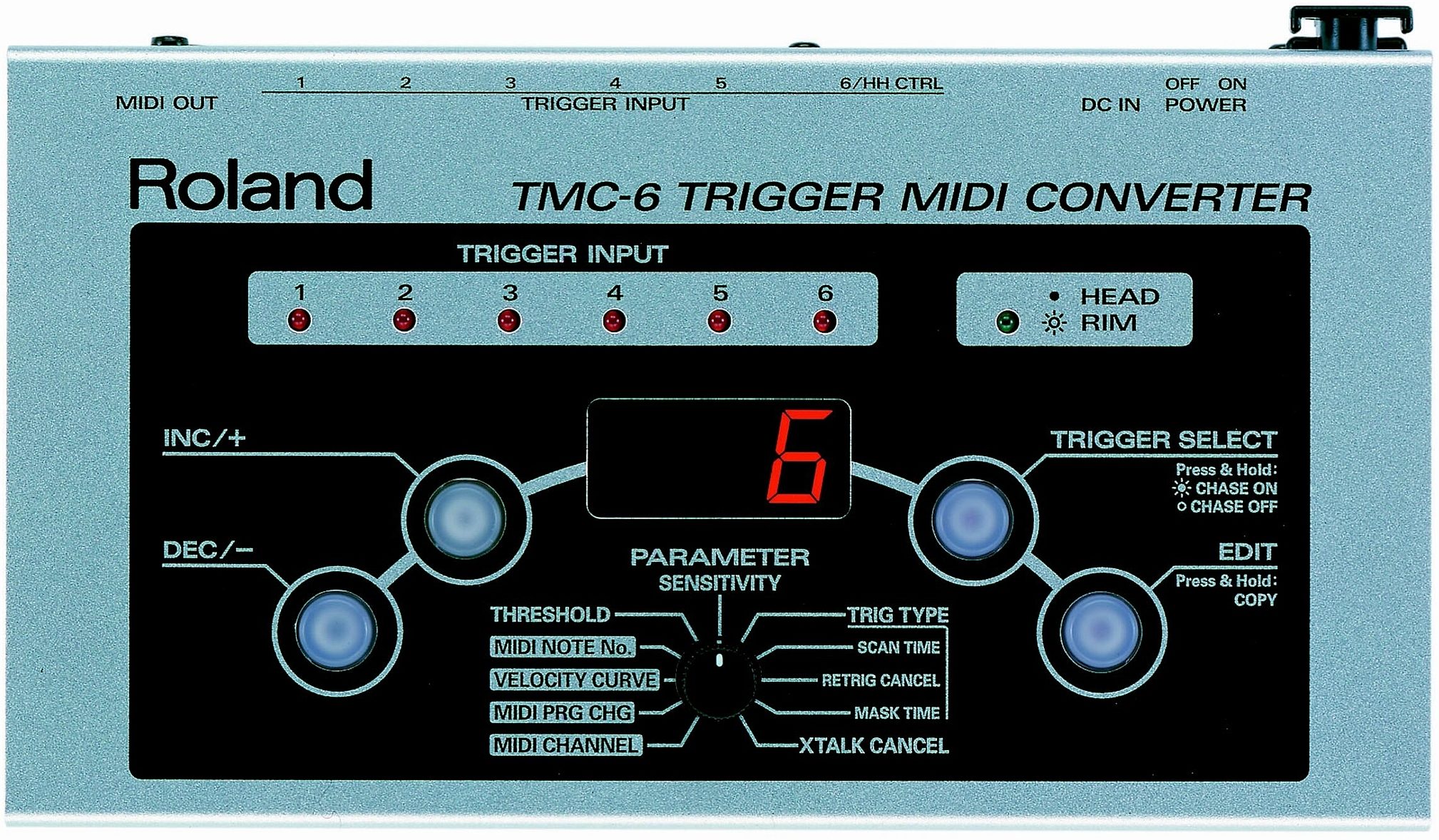

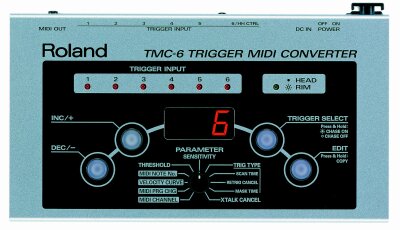

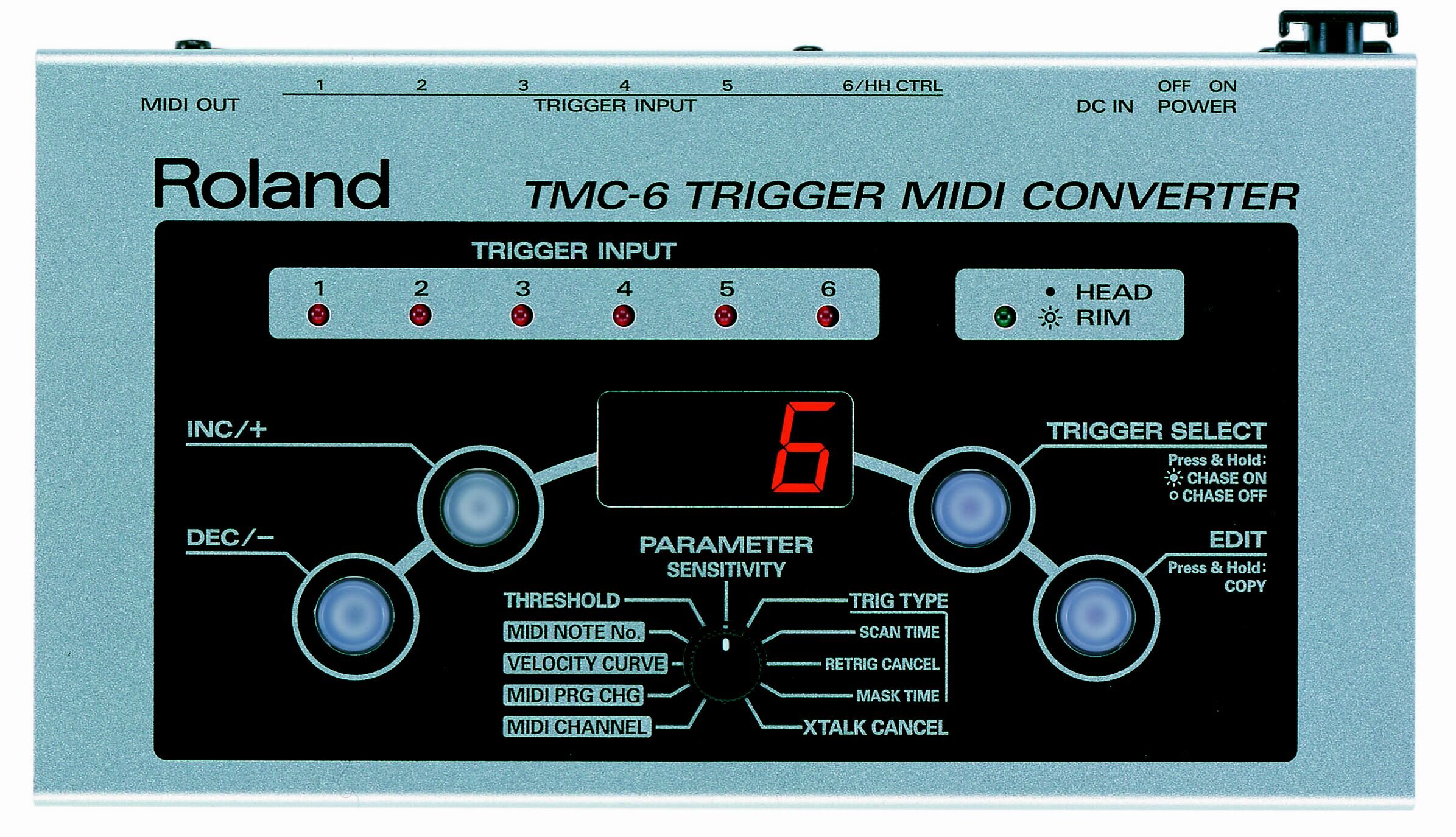

Roland TMC6 Trigger to MIDI Converter, Main

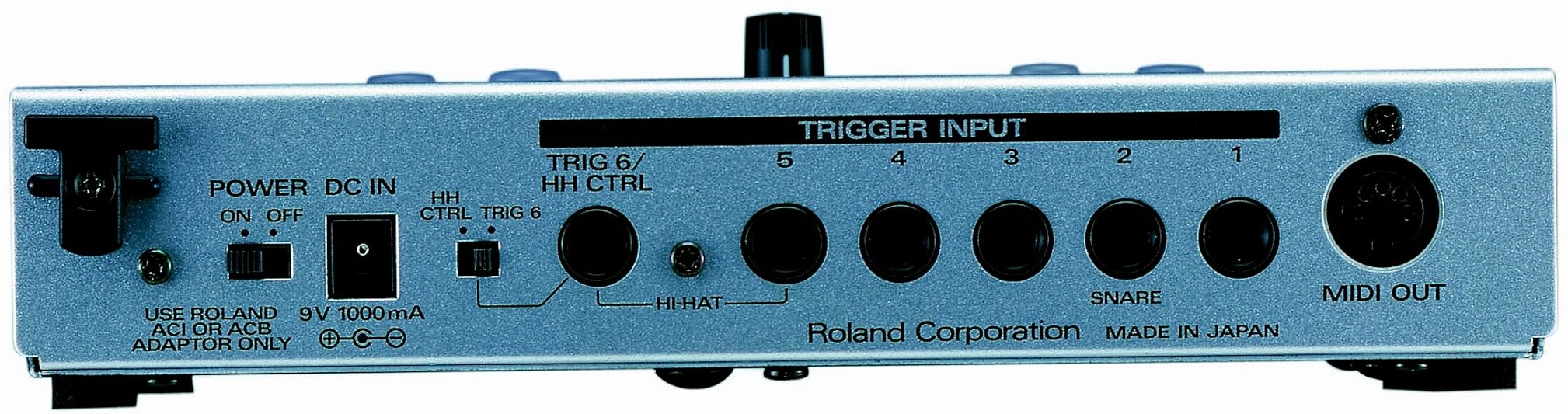

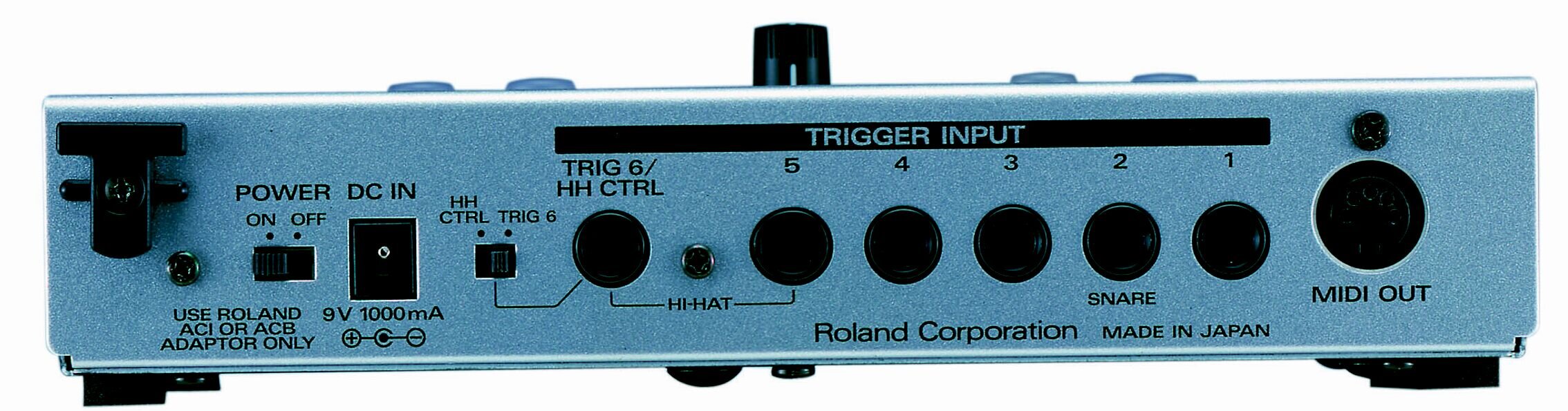

Roland TMC6 Trigger to MIDI Converter, Rear
Roland TMC6 Trigger to MIDI Converter, Main
Roland TMC6 Trigger to MIDI Converter, Rear
Roland TMC6 Trigger to MIDI Converter, Main
Roland TMC6 Trigger to MIDI Converter, Rear
Roland TMC6 Trigger to MIDI Converter, Main
Roland TMC6 Trigger to MIDI Converter, Rear
Roland TMC6 Trigger to MIDI Converter, Main Roland TMC6 Trigger to MIDI Converter, Rear Roland TMC6 Trigger to MIDI Converter, Main Roland TMC6 Trigger to MIDI Converter, Rear Roland TMC6 Trigger to MIDI Converter, Main Roland TMC6 Trigger to MIDI Converter, Rear Roland TMC6 Trigger to MIDI Converter, Main Roland TMC6 Trigger to MIDI Converter, Rear
zZounds Gear Experts Say...
6 trigger inputs. Uses V-Drums triggering technology.

The TMC-6 Trigger MIDI Converter makes it easy to play and trigger MIDI modules and samplers from an acoustic drum set, or expand the sound palette of electronic drum sets. This affordable device uses the lightning-fast triggering technology of Roland's V-Drums for reliable triggering and super-accurate dynamics--making it easy for acoustic drummers to tap into electronic sounds of their favorite MIDI module, or for V-Drums owners to expand their trigger inputs.

Features
Affordable trigger-to-MIDI converter for use with acoustic sets or V-Drums

6 Trigger inputs compatible with all Roland drum pads or acoustic drum triggers

Uses V-Drums triggering technology for reliable and ultra-fast triggering

Supports separate head/rim shot triggering of PD-120/80R V-Pads

Supports 3-way triggering capabilities of CY-15R and CY-12R/C V-Cymbals

Works with FD-7 Hi-Hat Control Pedal

Trigger chase On/Off function; 12 User memories for storing settings

Mounting plate included

Number of Memories: 12

Display: 7 segments, 3 characters (LED)

Connectors: Trigger Input Jacks x 6 (7 Inputs), MIDI OUT Connector, AC Adapter jack

Switches: INC, DEC, PARAMETER SELECT, TRIGGER SELECT, EDIT, TRIG6/HH
CTRL SELECT, POWER

Power Supply: AC Adapter (DC 9 V)

Current Draw: 1,000 mA

Dimensions (W x D x H): 218 x 127 x 58 mm (8-5/8 x 5 x 2-5/16 in.)

Weight: 850 g (1 lbs., 14 oz.), excluding AC Adapter

Accessories: Owner's Manual, AC Adapter (ACI/ACB Series), Mounting Plate, Screws (M5 x 12 mm) x 4

Options:
Pads (PD-5, PD-6, PD-7, PD-9, PD-80, PD-80R, PD-100, PD-120)
Cymbals (CY-6, CY-12H, CY-12R/C, CY-14C, CY-15R)
Kick Trigger (KD-7, KD-80, KD-120)
Hi-Hat Control Pedal (FD-7)
Cable (PCS-31 (STEREO<-->MONOx2))
Foot Switch (BOSS: FS-5U, DP-2), Pad Stand (PDS-15)
Pad Mounts (MDH-7U, MDH-10U)
All-Purpose Clamp: APC-33

Note: The specifications are subject to change without notice.
