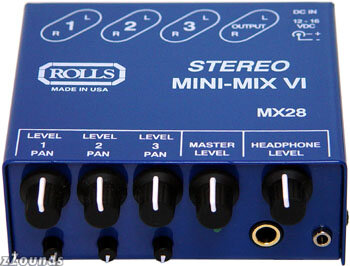

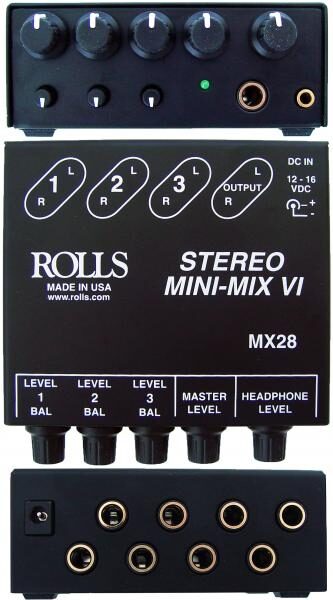

The MX28 is a 3-channel true stereo line mixer. Each channel has an individual 1/4 in. input for the right and left sides, and the outputs are individual right and left 1/4 in. jacks. Each channel has a level and pan (balance) control. The Master Level controls the output volume and the Headphone Level controls the level to the 2 headphone outputs.
Technical Info
Input Impedance: 10 k Ohms
Output Impedance: 100 Ohms
Max Gain: +27 dBV
Max Input Level: +30 dBV
Max Output Level: +13 dB
Frequency Response: 20 - 20 kHz +/- 1 dBV
THD + Noise: .005%
Power: +12 VDC 150 mA (center negative)
Adapter provided in the U.S.A.
Dimensions (W x H x D): 4.25 x 1.75 x 4.5 in.
Weight: 1.2 lbs.
09/04
Price lowered, New, was $74.95, now only $62.95.
