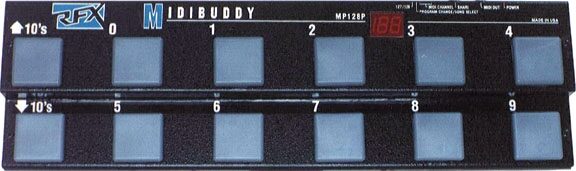

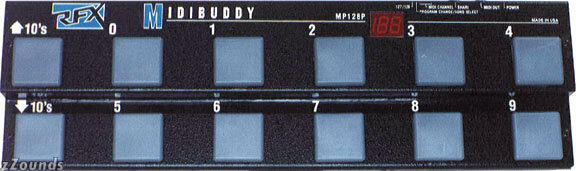

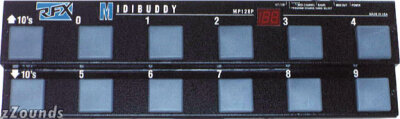

RFX MP128 MIDIBuddy Foot Controller for MIDI Effects

The MP128 is a MIDI foot controller designed to send MIDI program change, and MIDI song pointer information on any of the 16 MIDI channels. The MIDIBuddy also features MIDI sharing and operates via MIDI phantom power, which eliminates the need for the irritating "wall-wart" power supply.

The RFX line of effects pedals features dual operation, top-loaded, easy-access battery replacement, silent FET switching, headphone output, optional MIDI control, and more.

The rack-mount processors and MIDI patching systems are manufactured for reliable operation, whether in the studio or in the harsh road environment.

The RFX line of MIDI controllers is designed for convenient and efficient use. Each features 3-digit LED displays for readability at a distance, large footpads, and 0-127 or 1-128 operation.

All RFX products and accessories are constructed of steel chassis, and include a full year warranty. Also, all RFX pedals have a specially designed output that will drive standard pair of headphones for personal monitoring.

Technical Info

Size: 17 x 5 x 1.5 in. (381 x 127 x 38 mm)

Weight: 3 lbs. (1.4 kg)

Power: 7 - 15 VAC/VDC 80 mA

Phantom Power: 7 - 25 VDC 80 mA, pin 1 neg, pin 3 pos.

Display: 2-digit Red, .56 in. high efficiency

Output: Standard MIDI Program Change, Song Start/Stop

Output Jacks: Two 5-pin DIN jacks (MIDI OUT, MIDI SHARE)

Chassis: Black painted steel
