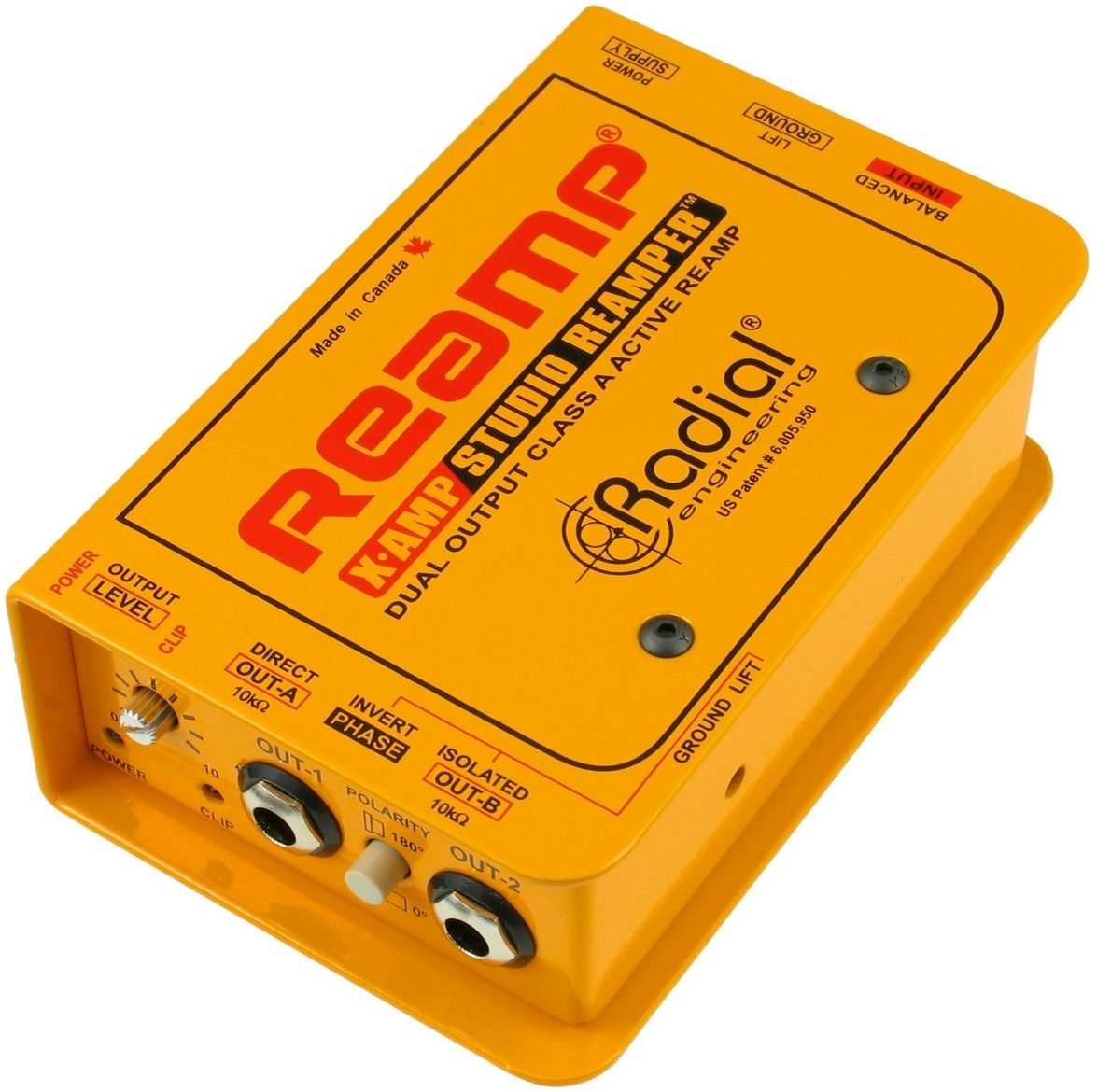

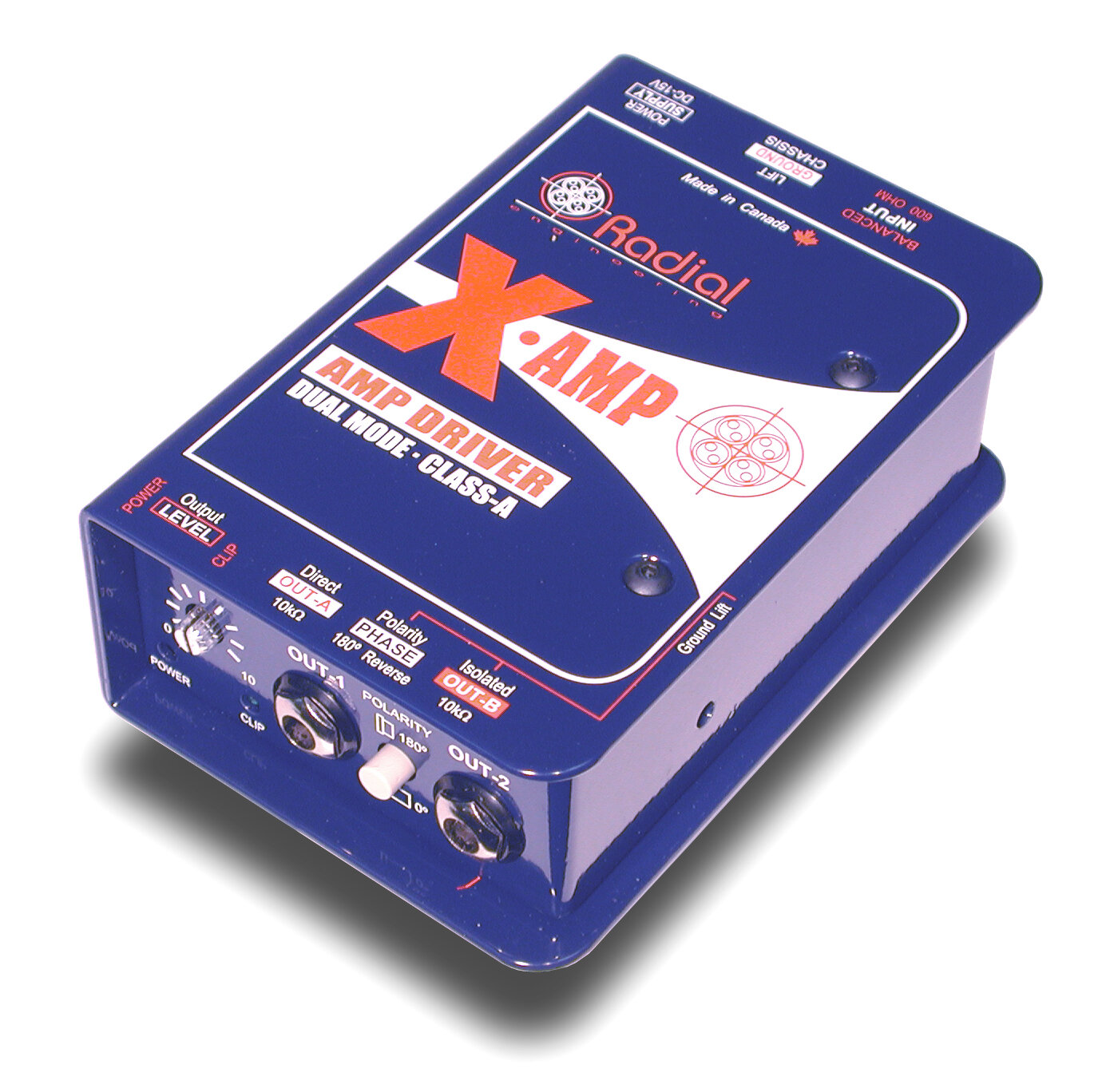

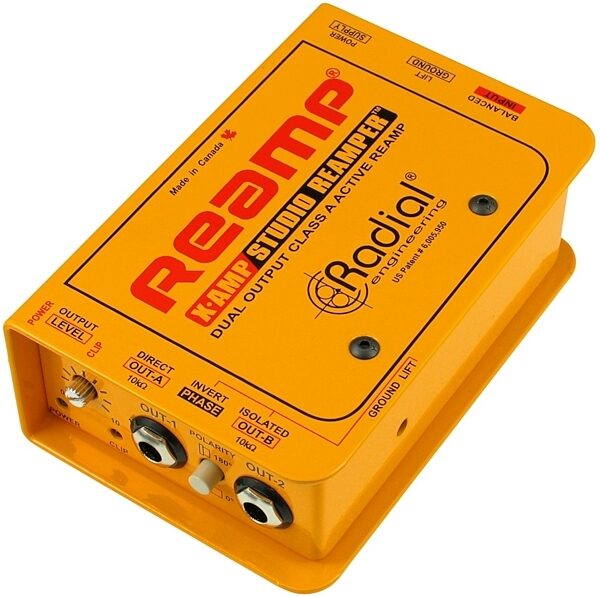

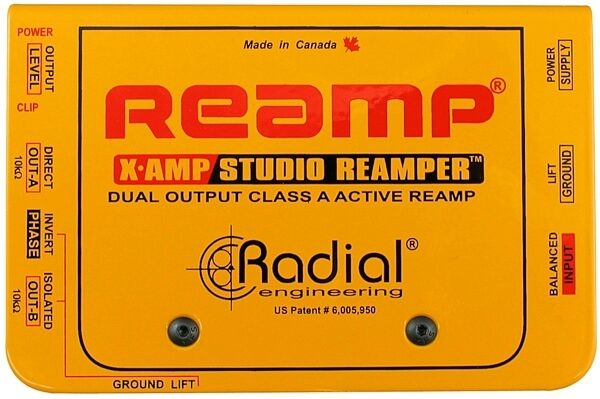

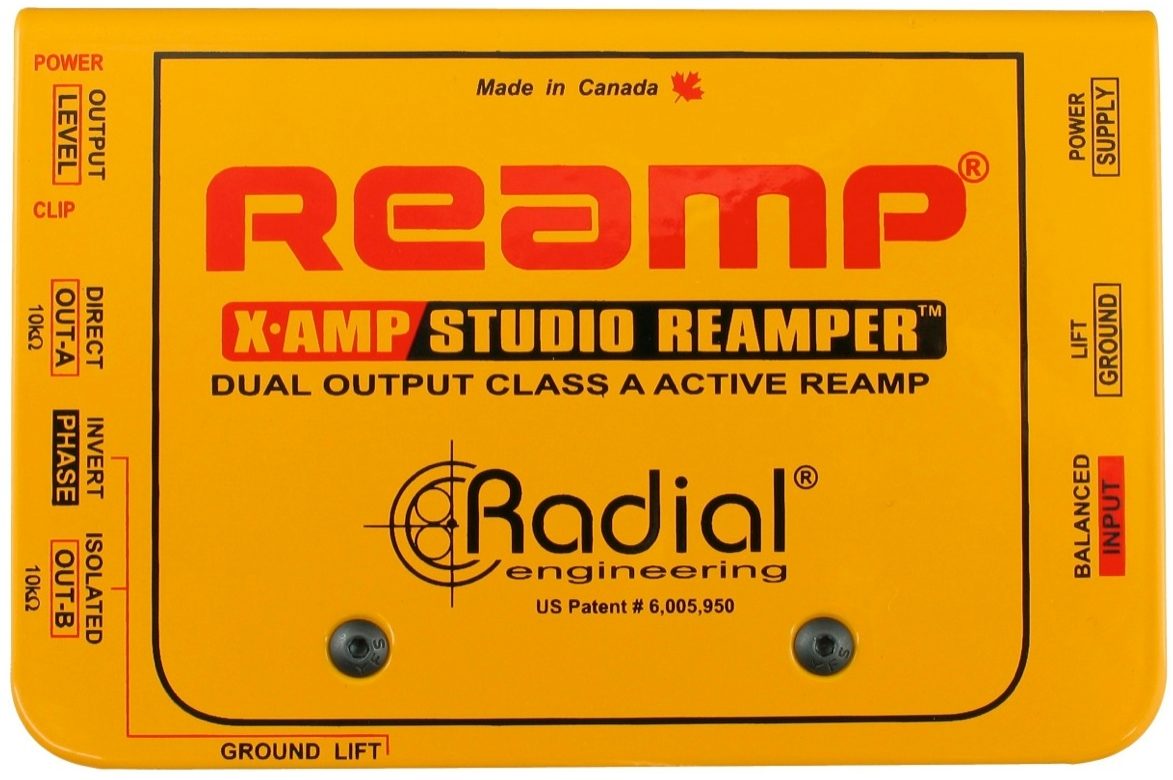

Radial X AMP Active Reamping Device

Following the critically acclaimed Radial JD7 Injector, the X-Amp employs a unique Class-A circuit design that has been optimized for use with guitars. Using the X-Amp is easy: One would, for instance, record a dry track using a high quality direct box, then send this track from the recorder to the X-Amp and then to either guitar amps, effect pedals or combinations thereof.

Recording using the X-Amp has many benefits: Once the basic track has been recorded, replacing or adding tracks can be done well after the session player has gone home. This eliminates tiresome repetition and assures a fresh vibrant performance on the final recording. Furthermore, by driving two amps at the same time, new sounds and textures can be created allowing the engineer - producer to make artistic decisions as the recording progresses.

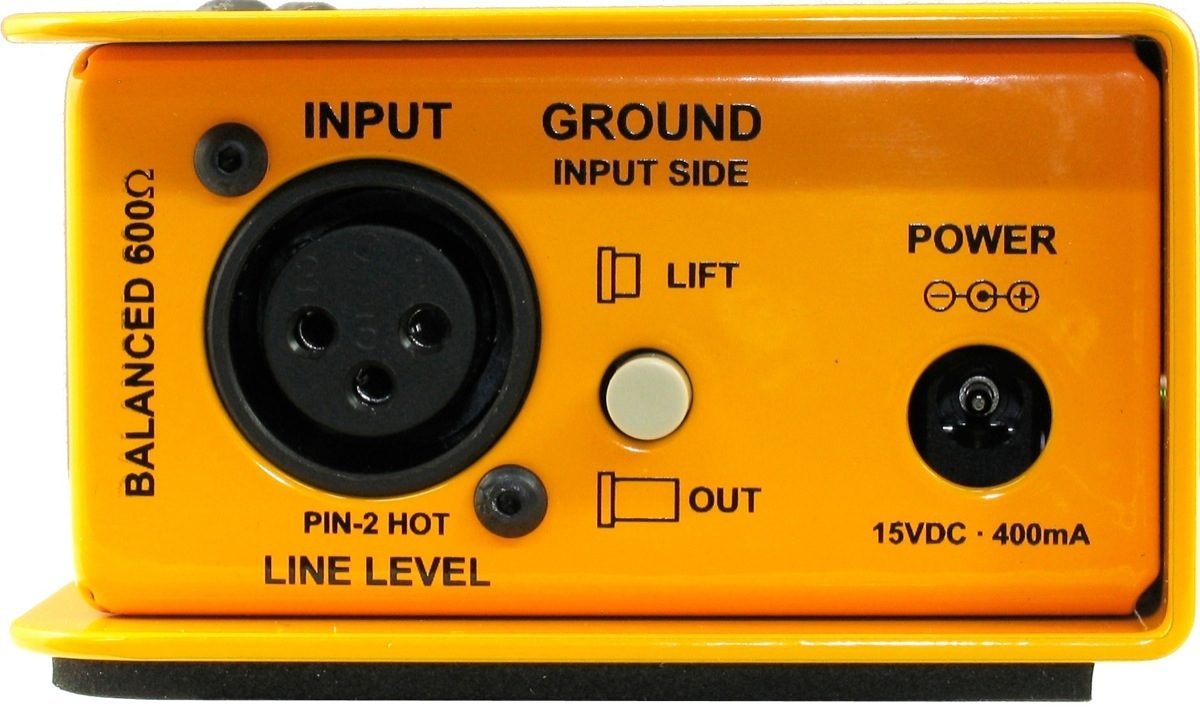

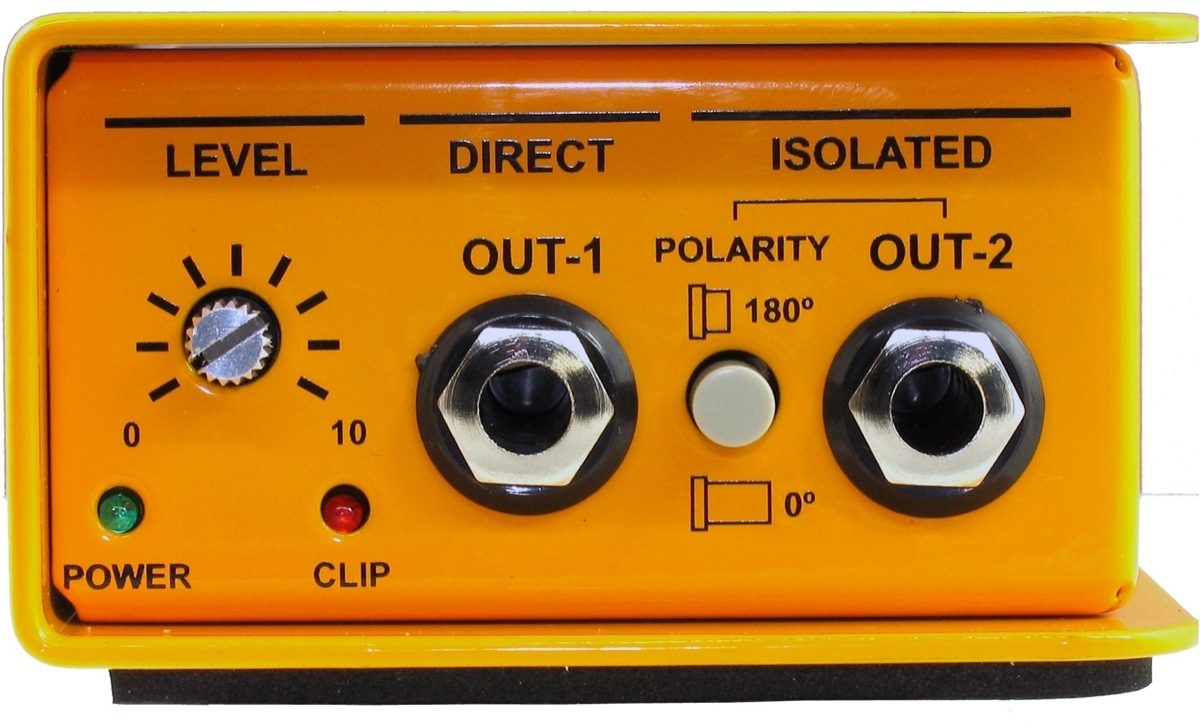

Features include balanced line level input with LED peak indicator and level control, Class-A circuit topology for optimal reach and frequency response, direct and isolated guitar amplifier outputs, 180? polarity reverse to bring both amps into phase, and dual ground lift options for noise-free operation.

As with all Radial products, the X-Amp is built like a tank to provide years of trouble-free performance. A welded I-beam internal skeleton provides a separate housing for maximum protection against external forces, which may cause stress on the PC board assembly while the outside bookend cover provides a protective zone for the switches, potentiometer and connectors. A full bottom no-slip pad performs double duty by keeping the X-Amp from sliding around when placed on a vibrating amplifier while also providing electrical and mechanical isolation.

Features
Active re-amping device

100% Class-A signal path

Two outputs to drive two amps

Input level overload LED indicator

Isolated output eliminates ground loops

Variable output level control
