PreSonus Monitor Station V2 Studio Monitor Control

The PreSonus Monitor Station lets you A/B/C between 3 speaker pairs, send 2 mixes to 4 headphone outs, listen in mono, and more. There's even a talkback mic! Rate and review this product
Ships to: Can ship to United States Can ship to Canada Can ship to Puerto Rico Can ship to APO/FPO
close [x]
zZounds.com 800-ZZOUNDS (800-996-8637)
List: $369.95
Savings: $70.00 (19%)
$299.95
or 4 payments of
$74.99 details
In Stock Will Ship Sep 22
FAST FREE SHIPPING
$$$$ Seen it for less? Request Lower Price
Questions? Call a gear expert now! (800-996-8637)
OWN THIS ITEM FOR
$74.99 PER MONTH

Product Description

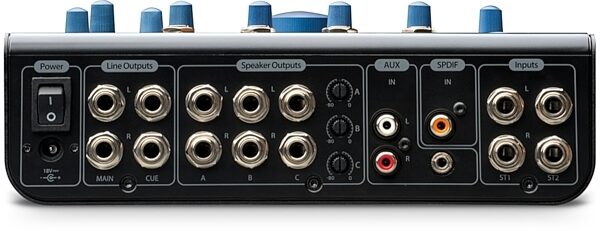

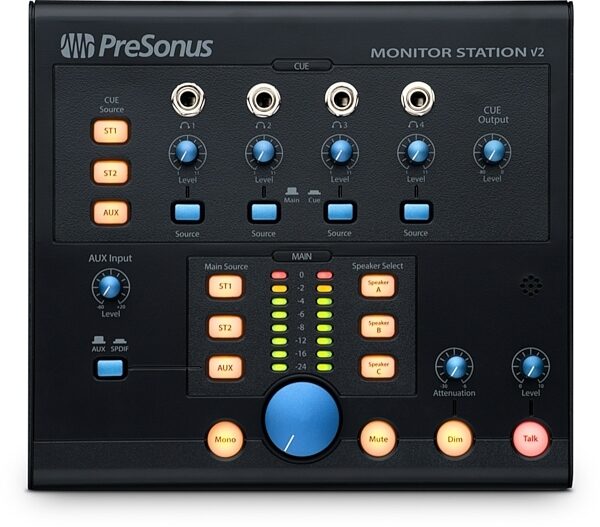

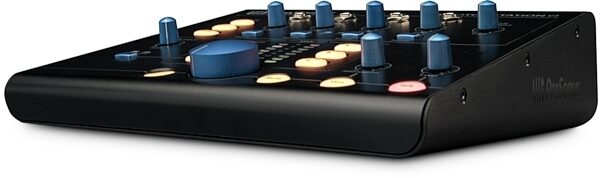

The PreSonus Monitor Station V2 Studio Monitor Control lets you easily manage multiple sources and monitor speakers from your desktop with three sets of stereo, line-level inputs, a stereo S/PDIF digital input, and three pairs of speaker outputs. You also get main mute, mono, and dim; main and cue outs; four loud headphone amplifiers, and a talkback mic.

This professional desktop studio-control system manages three stereo line-level sources, a stereo S/PDIF digital input, three sets of monitors, and four sets of headphones. Quickly and easily audition multiple stereo sources and switch between three sets of reference monitors, all from your desktop.

Features:

- 4 stereo input pairs into three selectable analog sources
- 3 stereo pairs of individually selectable speaker outputs with level controls
- Stereo S/PDIF digital input (44.1/48/88.2/96 kHz)
- Stereo Main and Cue outputs
- Large Main level control
- Cue section with Source select, input- and output-level control
- Main mute, mono, and dim switches with variable dim attenuation
- 8-segment color LED input meters with selectable reference level
- 4 screaming-loud stereo headphone amplifiers with level controls and independent source selection
- Built-in electret-condenser talkback microphone with input-gain control and Talkback button
- 9"/228.6 mm (W) x 2.5"/63.5 mm (H) x 8.5"/216 mm (D) desktop-type chassis
- External 18 VDC power supply

zZounds is an authorized dealer of PreSonus products.
Audio Inputs:
- Internal Talkback Microphone:
- Gain Range: +15 to +55 dB
- Type: Electret condenser
- Sensitivity: -42 dB
- Stereo 1 and Stereo 2 Inputs:
- Type: 1/4" TRS Active Balanced
- Input Impedance (Balanced) : 10 kOhm
- S/N Ratio (1 kHz @ +10 dBu, Unity Gain) : >105 dB
- THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain) : <0.0075%
- Frequency Response (+/-0.5 dB) : 10 Hz to 65 kHz
- Noise Floor (20 Hz to 20 kHz, 150Ohm input termination) : -96 dBu
- Maximum Input Level (Minimum Gain, 1 kHz @ 0.5% THD+N) : +22 dBu

Auxiliary Inputs:
- Type: RCA Active Unbalanced
- Input Impedance: 47.5 kOhm
- S/N Ratio (1 kHz @ 0 dBu, Unity Gain) : >115 dB
- THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain) : <0.01%
- Frequency Response (+/-0.5 dB) : 10 Hz to 50 kHz
- Gain Range: 80 dB to +10 dB

S/PDIF:
- Types: RCA 75 Ohm coax
- Dynamic Range: 113 dB
- THD+N: 0.0025% (1 kHz @ -1 dBFS)
- Maximum output at 0 dBFS: +18 dBu
- Sample Rates: 44.1, 48, 88.2, 96 kHz
- Input Meters (ST1, ST2, and Aux only) :
- Type: Dual 8-segment LED w/peak hold
- Sensitivity Range: -24 dB to 0 dB

Audio Outputs:
- Type: 1/4" TRS Active Balanced
- Output Impedance (Balanced) : 51Ohm
- THD+N (unwtd, 1 kHz @ 0 dBu, Unity Gain) : <0.01%
- Frequency Response (+/-0.5 dB): 10 Hz to 50 kHz

Speaker A, B, and C:
- Trim Range: -80 dB to 0 dB
- Main Level Range: -80 dB to 0 dB
- Dim Attenuation Range: -30 dB to -6dB

Cue:
- Cue Level Range: -80 dB to 0 dB
- Dim Attenuation (Talkback activated) : -20 dB

Headphones:
- Type: 1/4" TRS Active Stereo
- Headphones Maximum Output (60 Ohm load): 150 mW / channel
- Headphones Frequency Response (+/-1.0 dB) : 10 Hz to 50 kHz
- Power Supply Type: External DC Transformer/Internal Line
- Input Connector Type: Barrel, 5.5 mm outside diameter, 2.1 mm inside diameter
- Monitor Station Input Voltage Range: 18 VDC
- Power Requirements (Continuous) : 10W
- Dimensions: (H x D x W) 2.5 x 8.5 x 9" (63.5 x 216 x 228.6mm)
- Weight: 6 lbs. (4.54 kg)
Dimensions and Weight in Packaging
Shipping Weight: 5 lbs
Shipping Dimensions: 17 x 12 x 5 in
Presonus Warranty Presonus offers a one year warranty (parts and labor) on all new products. All non-new Presonus products carry a limited warranty of 90 days.
If you have additional warranty questions, please contact the manufacturer at 225-216-7887
