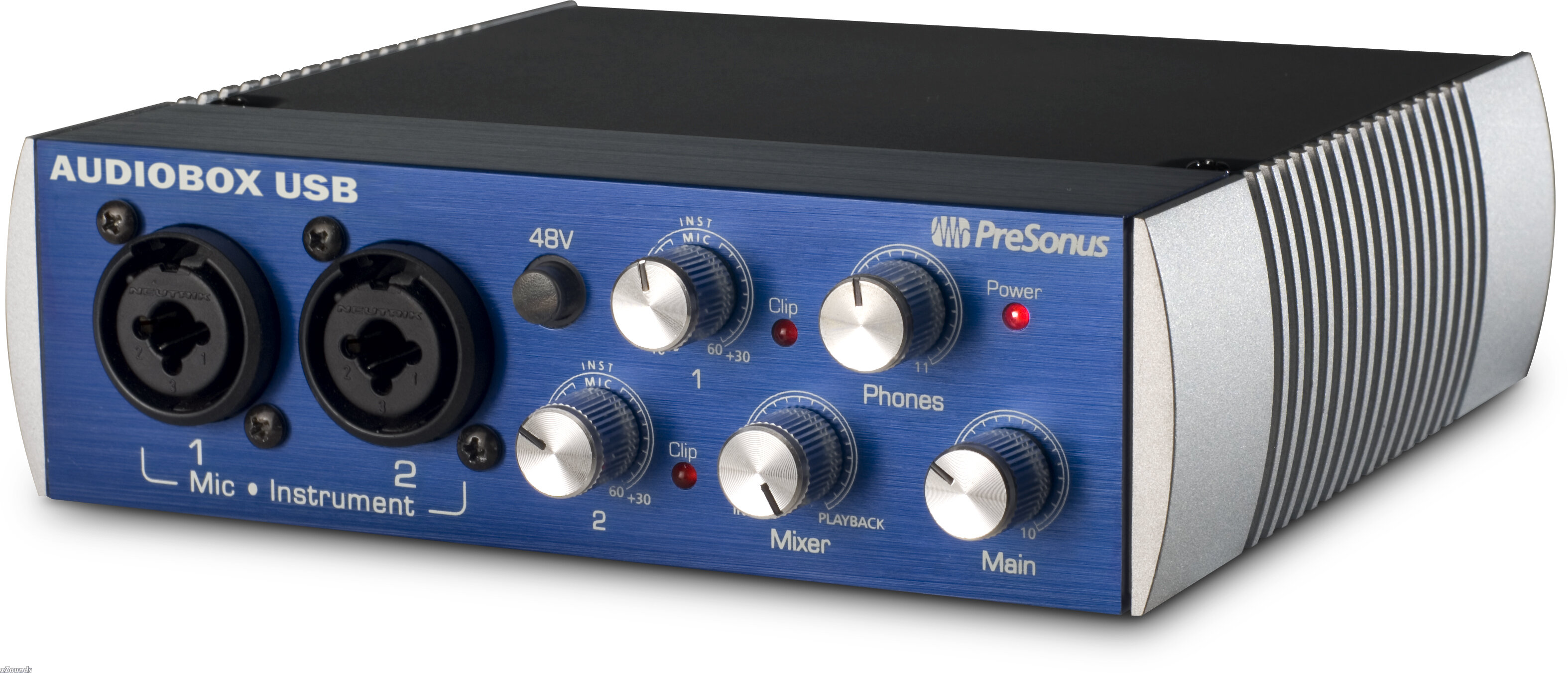

PreSonus AudioBox USB Recording Interface

Capture your ideas wherever you are with the PreSonus AudioBox USB 2x2 USB recording system. The AudioBox USB is a USB bus-powered audio recording interface featuring 2 microphone/instrument inputs with 48V phantom power, 2 balanced TRS outputs, MIDI in/out along with Presonus Studio One Artist recording and production software giving you everything needed to get started recording and producing your music.

Features
- 24-bit / 44.1, 48k USB audio recording interface

- 2 class A XMAX microphone / instrument preamplifiers

- 48V phantom power

- 2 balanced TRS outputs

- MIDI input/output

- Powered via USB

Pedigree Preamplifiers
PreSonus Audio has won numerous awards for designing the highest quality microphone preamplifiers in the industry at all price levels. The AudioBox USB is loaded with preamps that out perform any USB-based interface hands down. The preamplifiers in the AudioBox deliver high headroom, low noise and high gain giving you pure, full and rich sound.

Professional 24-bit converters
Most USB recording devices operate at 16-bit sample rate and use converters with dynamic range of less than 90dB. This translates into a pinched and relatively small sound. The AudioBox USB uses professional-grade analog to digital converters with dynamic range of 102dB and 24-bit sample rate so that the digital conversion is big, quiet and musical.

USB bus-powered
The AudioBox USB is USB bus-powered allowing you to take it anywhere inspiration hits. No wall warts, line lumps or power cables, just plug in to a powered USB port and you are ready to record.

Ready to hit the road
There's no plastic here. The AudioBox USB is housed in an all-metal chassis with metal knobs ready to withstand the rigors of travel. Toss it in your laptop bag and mobilize your music creation and production. Whether you want to record your shows, mix on the plane or write songs in your hotel room, the AudioBox is ready.

Technical Info

Specifications

Microphone Preamp
Type: XLR Female Balanced

Frequency Response (+/-3.0 dB): 14 Hz to 70 kHz

Input Impedance (Balanced): 1200 Ohm

THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain): < 0.008%

EIN (A-weighted, 55dB Gain, 150 Ohm Input, 20Hz to 22 kHz): -115 dBu

S/N Ratio (Unity Gain, Ref. = +4 dBu, 20Hz to 22 kHz): > 95 dB

Common Mode Rejection Ratio (1 kHz, 55 dB Gain): > 45 dB

Gain Control Range (+/- 1dB): 0 dB to 35 dB

Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N): -3 dBu

Phantom Power (+/-2 VDC): +48 VDC

Instrument Input
Type: 1/4 in.

TRS Female Unbalanced Input Impedance: 0.5 M Ohm

Line Outputs
Type: 1/4 in. TRS

Balanced Output Impedance: 51 Ohm

Headphone Output
Type: 1/4 in. TRS Active Stereo

Maximum Output: 60 mW/Ch @ 60 Ohm Load

Frequency Response (+/-1.0 dB): 20 Hz - 30 kHz

MIDI I/O
Type: Dual 5-pin Female DIN

Digital Audio
ADC Dynamic Range (Awtd, 48 kHz Sample Rate): 102 dB

DAC Dynamic Range (Awtd, 48 kHz Sample Rate): 110 dB

Bit Depth: 24

Reference Level for 0dBFS: +4 dBu

Internal Sample Frequency Selections (kHz): 44.1, 48

Power: USB Bus-powered

Physical
Main Chassis
Package Type: 1/3U - steel chassis

Dimensions (WxHxD): 5.5 X 5.5 X 1.75 in.

Weight: 5.0lbs

As a commitment to constant improvement, PreSonus Audio Electronics, Inc.reserves the right to change any specification stated herein at anytime in the future without notification.

System Requirements
Below are the minimum computer system requirements for the AudioBox USB.

Windows:
- OS: Microsoft Windows XP or Vista
- Peripherals: Powered USB 1.1 or 2.0 port.
- CPU/Clock: Pentium or Athlon at 900Mhz or higher recommended.
- Memory (RAM): 512MB or higher recommended.

Macintosh:
- OS: OS-X version 10.3.7 or later. Snow Leopard compatible.
- Peripherals: Powered USB 1.1 or 2.0 port.
- CPU/Clock: PowerPC G4/800Mhz or higher recommended.
- Memory (RAM): 512MB or higher recommended.

Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) that you might experience while monitoring audio or MIDI signals.
