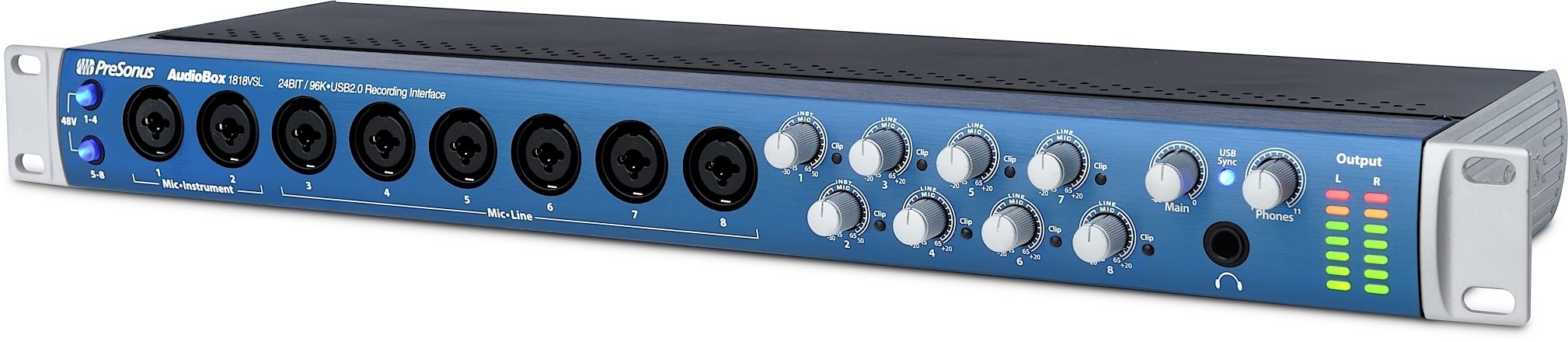

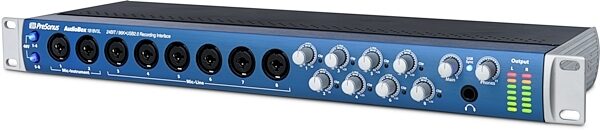

PreSonus AudioBox 1818VSL USB Audio Interface

Product Description

Recording bands and project-studio owners will love the revolutionary 18-channel, rack-mount PreSonus AudioBox 1818VSL because it has the power of an 18 x18 StudioLive digital mixer, including signal processing with near-zero latency and the same high-end pro audio quality, including high-headroom XMAX Class A preamps. Plus delay, reverb, and a complete PreSonus StudioLive 16.0.2 Fat Channel for compression, limiting, downward expansion, parametric EQ, and high-pass filter on all inputs and playback streams. These effects are so good that you can print them to disk or route them through your P.A. onstage!

The PreSonus 1818VSL sports 2 mic/instrument inputs and 6 mic/line inputs with high headroom XMAX(tm) preamps, 8-channel ADAT I/O, 2 effects buses, and more. It comes with PreSonus Studio One(tm) Artist DAW (Mac/Windows) and is compatible with virtually any recording software.

Features

- Next-generation 18 x 18 USB 2.0 audio and MIDI interface
- Virtual StudioLive(tm) Fat Channel software creates a 26 x 18 mixer for monitoring with near-zero-latency reverb, delay, high-pass filter, dynamics processing, and EQ for each analog input and playback stream
- 2 combo mic/instrument inputs and 6 combo mic/line inputs with high headroom, Class A MAX(tm) mic preamplifiers
- 24-bit resolution; 44.1, 48, 88.2, 96 kHz sampling rate
- Studio One Artist DAW software included zZounds is an authorized dealer of PreSonus products.

Microphone Inputs

Connector Type: Combo, XLR, female, balanced
Mic Preamp EIN: -133 dB, 20 kHz BW, max gain, Rs=40, A-wtd
Frequency Response: 20 Hz - 20 kHz, +/-0.25 dB, unity gain
THD+N: 0.002%, +4 dBu, 1 kHz, unity gain, 22 kHz BW, A-wtd
S/N Ratio: 97 dB, +4 dBu, 1 kHz, unity gain, 22 kHz BW, A-wtd
Gain Control Range: -15 dB to +65 dB
Input Max Headroom: +16 dBu, < 0.5% THD
Input Impedance: 1.7 k
Phantom Power: +48 VDC, 10 mA total

Line Inputs

Connector Type: Combo, TS, female, unbalanced
Frequency Response: 20 Hz - 20 kHz, +/-0.25 dB, unity gain
THD+N: 0.002%, +4 dBu, 1 kHz, unity gain, 22 kHz BW, A-wtd
S/N Ratio:
98 dB, +4 dBu, 1 kHz, unity gain, 22 kHz BW, A-wtd

Gain Control Range: -20 dB to +20 dB
Input Max Headroom: +21 dBu, < 0.5% THD
Input Impedance: 10 k

Instrument Inputs

Connector Type: Combo, 1/4-inch TS, female, unbalanced
Frequency Response: 20 Hz - 20 kHz, +/-0.25 dB, unity gain
THD+N: 0.003%, +4 dBu, 1 kHz, unity gain, 22 kHz BW, A-wtd
S/N Ratio:
89 dB, 0 dBu, 1 kHz, unity gain, 20 kHz BW, unwtd

Gain Control Range: -30 dB to +50 dB
Input Max Headroom: +21 dBu, < 0.5% THD
Input Impedance: 1 M

Analog Outputs

Connector Type: TRS, female, impedance balanced
Frequency Response: 20 Hz - 20 kHz, +/-0.25 dB
THD+N: 0.003%, 1 kHz, 22 kHz BW, A-wtd
S/N Ratio: 109 dB, 1 kHz, 22 kHz BW, A-wtd
Output Level: +10 dBu, <0.5% THD
Output Impedance: 51

Headphone Outputs

Connector Type: 1/4-inch TRS, female, stereo
Maximum Power: 120 mW/ch @ 60 load
Frequency Response: 20 Hz - 20 kHz, +/-0.5 dB, max gain
THD+N: 0.01%, 1 kHz, max gain, 20 kHz BW, A-wtd
S/N Ratio: 96 dB, 1 kHz, max gain, 20 kHz BW, A-wtd

Power

External Power Adapter: +18 VDC, 2.6A, center-positive
Connector Type: 5.5 mm OD, 2.1 mm ID, 9.5 mm length

Digital

ADC Dynamic Range: 114 dB, 48 kHz, A-wtd
DAC Dynamic Range: 114 dB, 48 kHz, A-wtd
Host Interface: USB 2.0 high-speed
Bit Depth: 24-bit
Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Latency: 2.8 ms - 6 ms, analog in to out
ADAT Optical I/O: Toslink(TM) connectors, ADAT/SMUX formats
S/PDIF I/O: RCA female connectors
Word Clock Output: BNC connector, 4.5 Vpp @ 75 load
MIDI I/O: 5-pin DIN connectors

Physical

1U rack-mountable
Road-rugged construction with all-metal chassis and metal knobs
Weight 4.6 lb. (2.1 kg)
18 VDC external power supply (included)

System requirements:

Below are the minimum computer system requirements for the AudioBox 1818VSL.

Windows

- Windows XP SP3, Vista x64/x32 SP2, Windows 7 x64/x32 SP1, Windows 8 x64/x32
- Intel Core Duo or AMD Athlon X2 processor (Intel Core 2 Duo or AMD Athlon X4 or better recommended)
- 2 GB RAM (4 GB or more recommended)

Macintosh

- Mac OS X 10.6.8 or later
- Intel Core Duo processor (Intel Core 2 Duo or Intel Core i3 or better recommended)
- 2 GB RAM (4 GB or more recommended)

Windows and Mac Systems

- USB 2.0 Port
- Internet connection (only for activation)
- DVD-ROM drive
- Monitor with at least 1024x768 resolution
- 20 GB hard-disk space
- Internal or external 7200 RPM storage drive highly recommended

Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) that you might experience while monitoring audio or MIDI signals.

Dimensions and Weight in Packaging

Base Item

Shipping Weight: 9 lbs

Shipping Dimensions: 24 x 12 x 5 in
