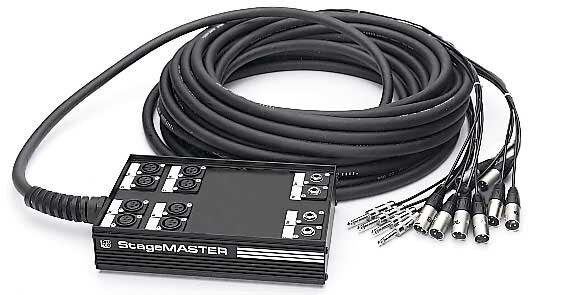

Re-engineered from the stagebox to the connectors for even greater reliability, the StageMaster multi-pair cables are an ideal choice for church groups, fixed installations, schools, and "one-nighter" portables. The rugged design features the latest in connectors and a cable that is extremely flexible for easy coiling. All StageMaster snakes are backed with a 3-year, limited warranty.
Features:
Reliable "no solder" contact points eliminate highly resistive connections
Sturdy strain relief at the stagebox helps ensure a long life of reliable use
Fan to box, fan to fan, and fan or box to blunt-cut configurations
Up to 32-channel configurations in 25 to 250 ft. lengths
New compact stagebox is strong, lightweight, and virtually unbreakable, while offering better access to individual cables
Pro Co's flexible Duralink "A" wire provides a clean, low-distortion signal and highly flexible cable
Durable XLR inputs and 1/4 in. outputs
Technical Info
Warranty: 3-Year Limited
Stage Box: Extruded Aluminum
Termination: Insulation Displacement
Connector Retention: Spring Detent
Strain Relief: ABS
Conductor Gauge: 24 AWG (.20 sq. mm)
Stranding: 7 x 32 (7 x .254 sq. mm)
Insulation: .012 in. (.305 mm) polypropylene
Shield: Aluminum/Polyester tape wrapped 100% coverage
Capacitance: Paired Conductors 21 pF/ft.
Capacitance: Conductors Tied to Shield 38 pF/ft.
