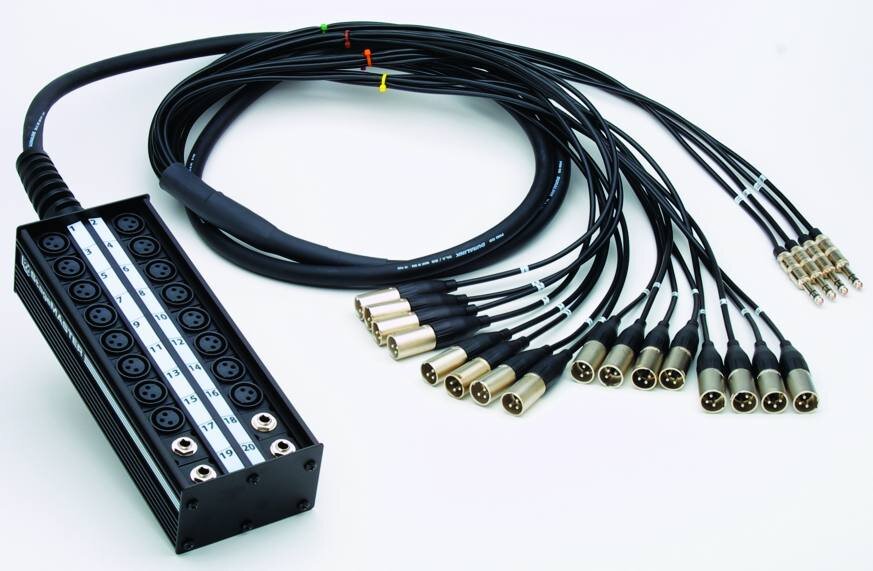

Pro Co Stagemaster 24 x 4 Snake

Re-engineered from the stagebox to the connectors for even greater reliability, the StageMaster multi-pair cables are an ideal choice for church groups, fixed installations, schools, and "one-nighter" portables. The rugged design features the latest in connectors and a cable that is extremely flexible for easy coiling. All StageMaster snakes are backed with a 3-year, limited warranty.

Features:
Reliable "no solder" contact points eliminate highly resistive connections

Sturdy strain relief at the stagebox helps ensure a long life of reliable use

Fan to box, fan to fan, and fan or box to blunt-cut configurations

Up to 32-channel configurations in 25 to 250 ft. lengths

New compact stagebox is strong, lightweight, and virtually unbreakable, while offering better access to individual cables

Pro Co's flexible Duralink "A" wire provides a clean, low-distortion signal and highly flexible cable

Durable XLR inputs and 1/4 in. outputs

Technical Info

Warranty: 3-Year Limited

Stage Box: Extruded Aluminum

Termination: Insulation Displacement

Connector Retention: Spring Detent

Strain Relief: ABS

Conductor Gauge: 24 AWG (.20 sq. mm)

Stranding: 7 x 32 (7 x .254 sq. mm)

Insulation: .012 in. (.305 mm) polypropylene

Shield: Aluminum/Polyester tape wrapped 100% coverage

Capacitance: Paired Conductors 21 pF/ft.

Capacitance: Conductors Tied to Shield 38 pF/ft.
