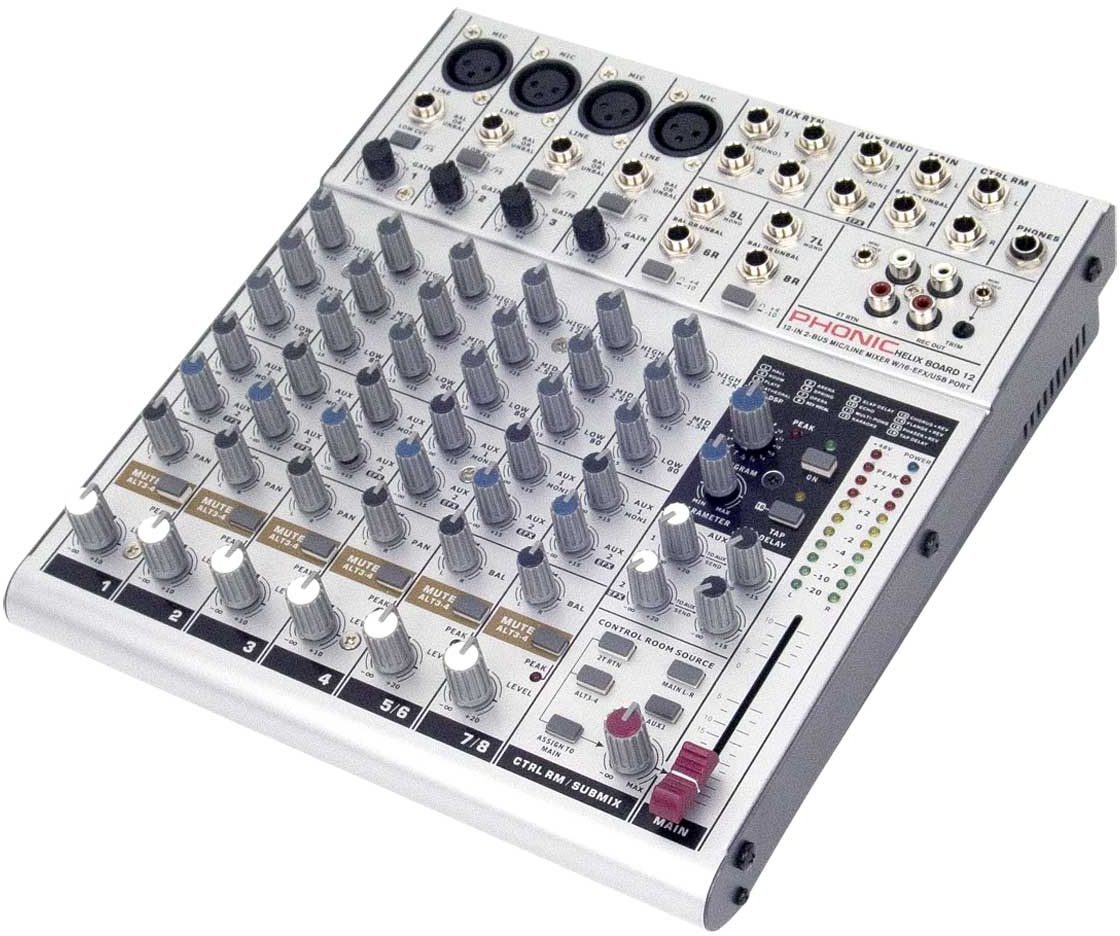

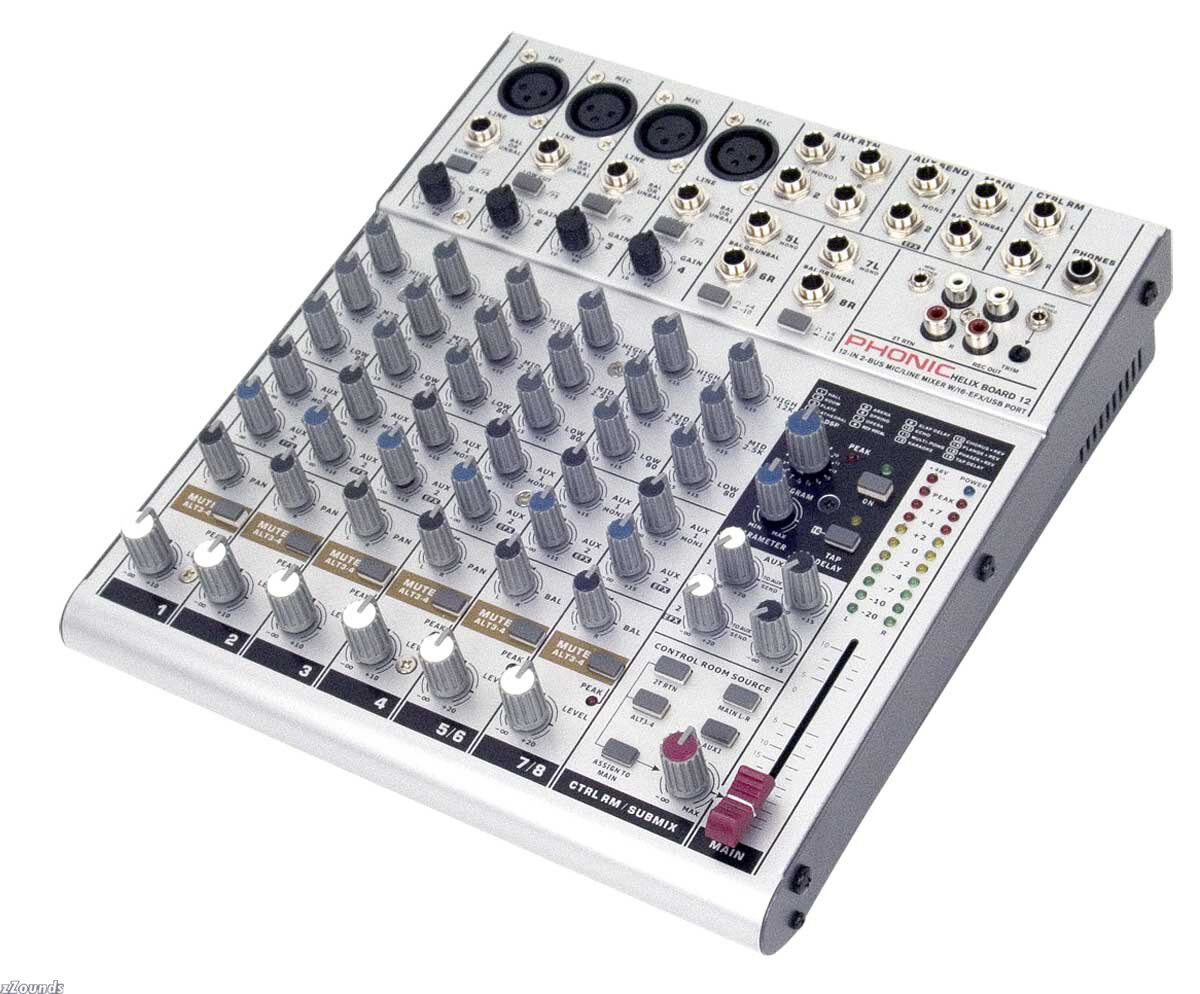

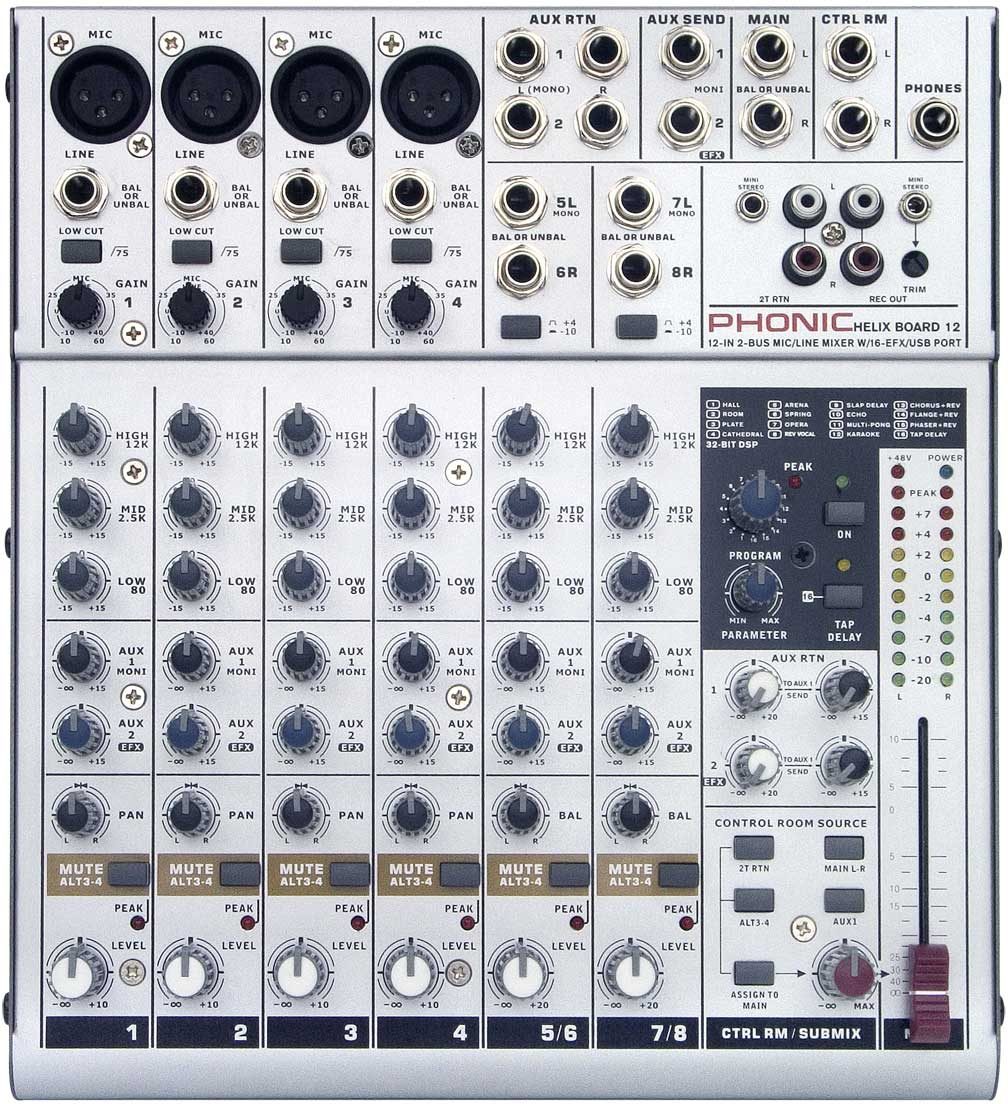

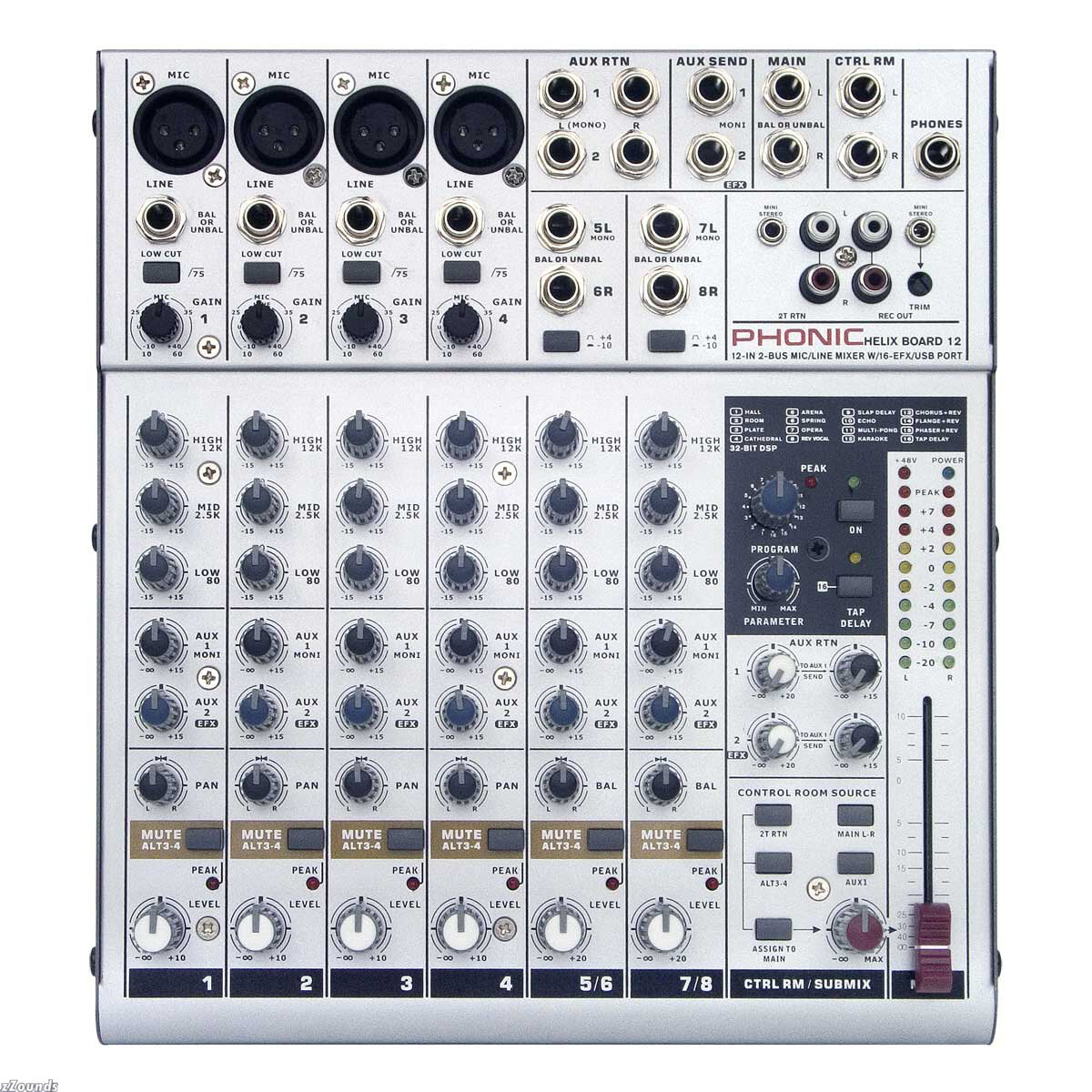

Phonic HelixBoard12 12-Channel USB Mixer

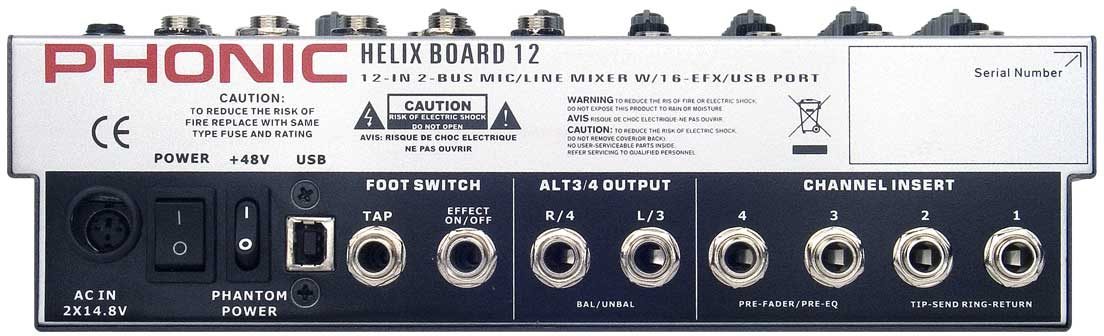

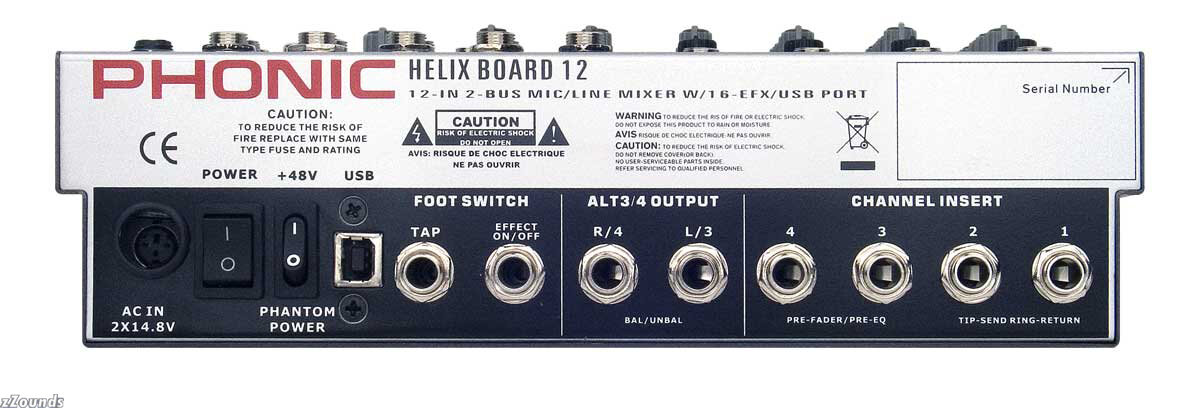

The Phonic Helix Board 12 USB is a 12-input compact mixer with four Mic/Line input channels, two paired stereo input channels and two stereo AUX returns. It has main 1/4 inch outputs, two AUX sends, control room outs, and stereo RCA and mini stereo input/output jacks with trim control for level matching while recording.

Connect a Helix Board to your computer's USB port to get live, CD-quality sound (16-bit stereo with 44.1 kHz sampling rate). Low latency playback lets you record directly to your computer and monitor in real-time. Helix Board mixers assure perfect audio quality when multi-track recording by allowing you to monitor previously recorded audio files through your headphones while recording another track. Helix Board mixers are compatible with most PC or Mac computers and no drivers are required. Combine the digital audio capabilities of the Helix Board 12 with audio workstation software, and there's no limit to what you can do.

Features

Stereo USB Direct Connectivity to your computer

Four mono Mic/Line channels

Two stereo channels, two stereo AUX Returns, two AUX Sends

3-band EQ on each channel

75 Hz low-cut filter on mono channel

Inserts and phantom power on Mic channels

Stereo AUX Send 1 cue for monitoring individual channel

Master AUX section with EFX to Monitor

Extra ALT 3-4 stereo bus

Mini Stereo I/O and RCA-type inputs and outputs

Rec out with trim control for record level matching

Control room/Phones source matrix

Balanced master output with 60 mm fader control

High-volume headphone output

DFX, our 24-bit digital multi-effect processor with 16 programs plus one main parameter control, tap control and foot switch jack

Stereo USB mixer with 12 inputs and 10x2 audio interfacing. Built-in 24-bit effects. Four mic pres, 4 mono mic/line channels, 2 stereo line channels, 2 stereo aux returns. Mac OS X/Windows XP compatible.
