This product is no longer available at zZounds.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

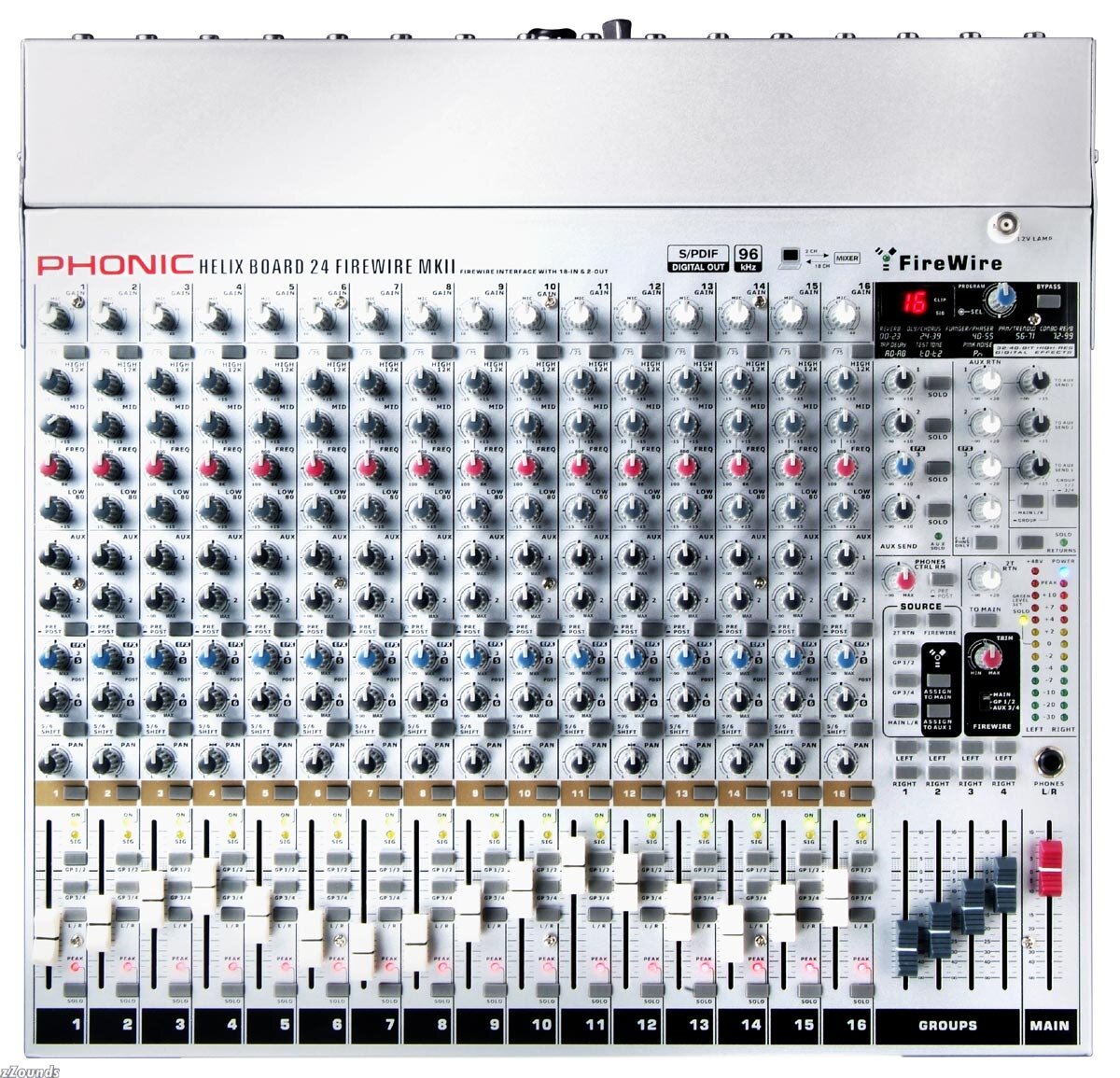

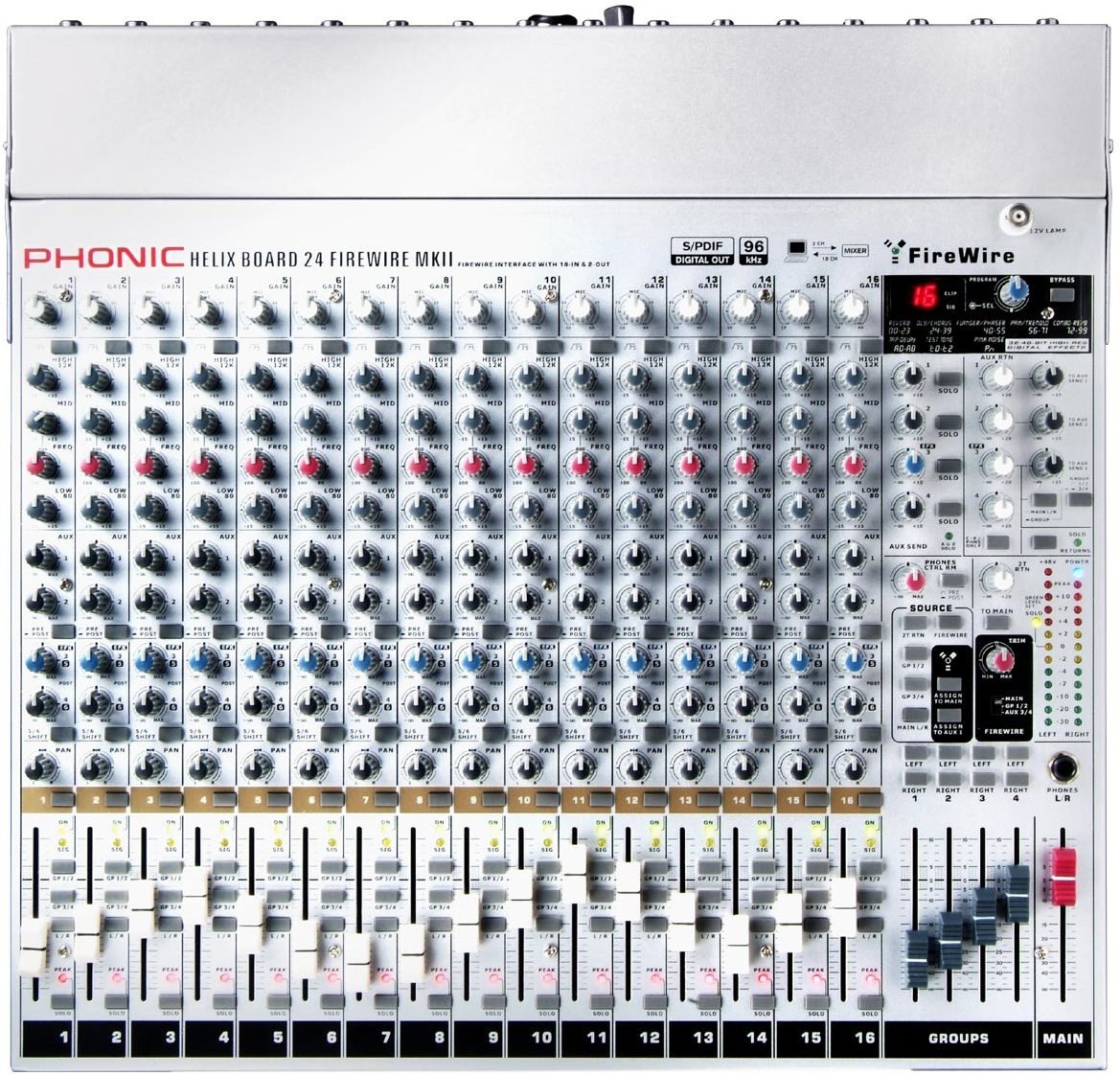

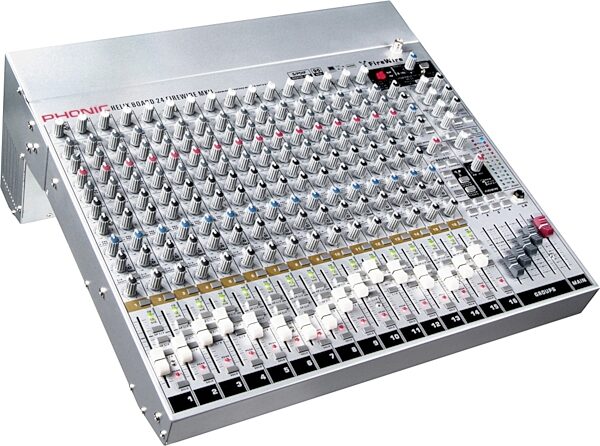

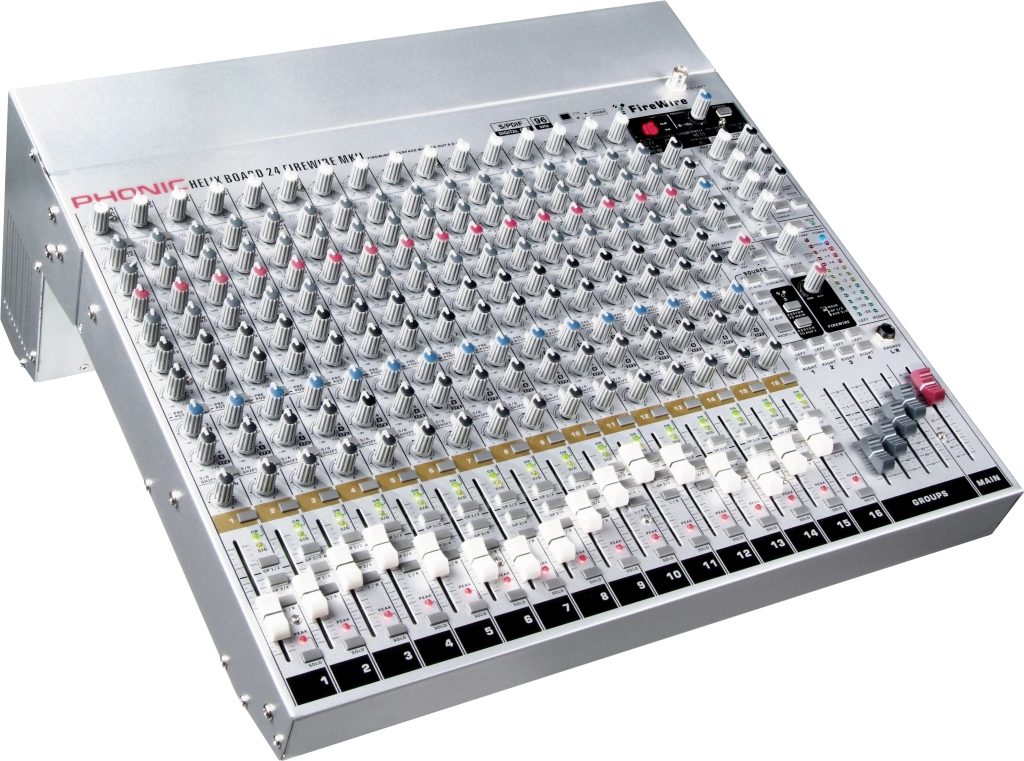

Phonic Helix Board 24 FireWire MKII 24-Channel Mixer
24-Input 4-Subgroup Mixer with DFX. Includes Cubase LE by Steinberg.
Loading...
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
About This Product!
Description
Docs
From Our Catalog
The Helix Board 24 FireWire MKII is the newest addition to Phonic's popular HelixBoard series of FireWire-enabled Mixers. It features a 96 KHz FireWire interface that lets you individually stream up to 18 independent channels of audio to the computer and return two channels to the mixer for monitoring - all with zero latency.
Pre/post Buttons, located underneath the console, allow each channel's EQ and fader (among other controls) to affect the channel's outgoing FireWire signal, allowing more versatile use. Digital S/PDIF output is also provided for direct connection to recording devices like DAT decks. The 3-band EQ with swept mids, insert points for connection to external processors, 6 Aux send mixing bus (2 Aux sends with pre/post buttons), and direct outputs for multi-track recording allow users incredible flexibility with mix control and signal routing. Mono channels have an AUX 5/6 shift button, expanding the number of outputs available.
But that's not all. The mixer features a dual-position input/output (I/O) pod that lets you use it as a desktop mixer or convert for rack mounting. The I/O pod rotates out of the way to save space in your rack. The built-in 32/40-bit digital effect processor has 100 popular programs, tap-delay, test tones (pink noise, 1kHz, etc), and footswitch jacks. Low cut filters eliminate P-pops, stage rumble and wind noise. Top it off with a subwoofer output, four true subgroups and individual phantom power switches on every channel, and you've got a perfect medium-sized rack-mountable mixer for live events or studio recording. Steinberg's Cubase LE digital audio workstation software also included.
96kHz FireWire interface for streaming 18 independent channels of audio to computer with zero latency
2 channels of monitoring from computer via FireWire interface, can be assigned to control room monitors, main mix and aux1
DFX, our 32/40-bit high definition algorithm digital multi-effect processor with 100 programs plus tap delay and foot switch jacks
Channel 17/18 routed to Computer can be selected from main mix, group 1/2 and aux 3/4
16 Mic/Line channels with inserts
3-band EQ with swept mid-range
75 Hz low-cut filter on each channel
AUX 1 & 2 with Pre/Post switch
Six AUX send mixing bus
Four stereo AUX returns, three with effect to monitor
+48V phantom power on Mic channels
Four true subgroups with main L and R routing switches
Direct outputs for multi-track recording
Control Room and Phones outputs with multi-input source matrix
Mono out with variable low pass filter from 60 Hz to 160 Hz for subwoofer

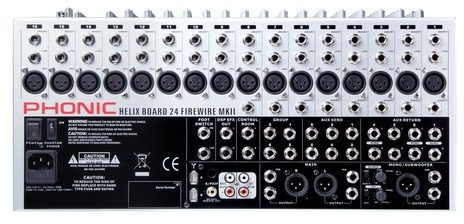

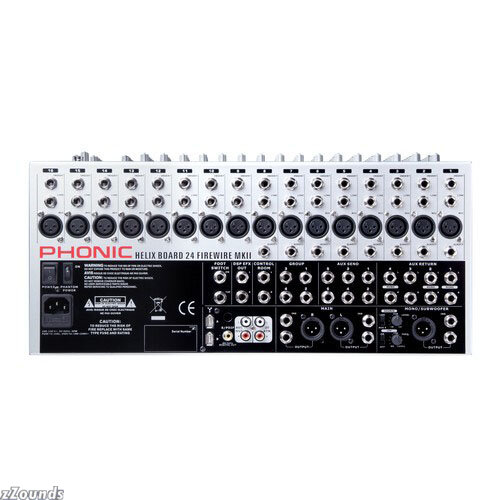

Dual-position I/O pod
Built-in switching power supply with universal connector, 100-240 VAC, 50/60 Hz
Rack-mounting kit included
S/PDIF digital audio output
Compatible with Mac OSX and Windows XP/Vista
Steinberg Cubase LE included
Pre/post Buttons, located underneath the console, allow each channel's EQ and fader (among other controls) to affect the channel's outgoing FireWire signal, allowing more versatile use. Digital S/PDIF output is also provided for direct connection to recording devices like DAT decks. The 3-band EQ with swept mids, insert points for connection to external processors, 6 Aux send mixing bus (2 Aux sends with pre/post buttons), and direct outputs for multi-track recording allow users incredible flexibility with mix control and signal routing. Mono channels have an AUX 5/6 shift button, expanding the number of outputs available.
But that's not all. The mixer features a dual-position input/output (I/O) pod that lets you use it as a desktop mixer or convert for rack mounting. The I/O pod rotates out of the way to save space in your rack. The built-in 32/40-bit digital effect processor has 100 popular programs, tap-delay, test tones (pink noise, 1kHz, etc), and footswitch jacks. Low cut filters eliminate P-pops, stage rumble and wind noise. Top it off with a subwoofer output, four true subgroups and individual phantom power switches on every channel, and you've got a perfect medium-sized rack-mountable mixer for live events or studio recording. Steinberg's Cubase LE digital audio workstation software also included.
Technical Info
FireWire Pre/post setting for swapping streaming input channels to computer from pre low cut, EQ to post EQ, post fader96kHz FireWire interface for streaming 18 independent channels of audio to computer with zero latency
2 channels of monitoring from computer via FireWire interface, can be assigned to control room monitors, main mix and aux1
DFX, our 32/40-bit high definition algorithm digital multi-effect processor with 100 programs plus tap delay and foot switch jacks
Channel 17/18 routed to Computer can be selected from main mix, group 1/2 and aux 3/4
16 Mic/Line channels with inserts
3-band EQ with swept mid-range
75 Hz low-cut filter on each channel
AUX 1 & 2 with Pre/Post switch
Six AUX send mixing bus
Four stereo AUX returns, three with effect to monitor
+48V phantom power on Mic channels
Four true subgroups with main L and R routing switches
Direct outputs for multi-track recording
Control Room and Phones outputs with multi-input source matrix
Mono out with variable low pass filter from 60 Hz to 160 Hz for subwoofer
Dual-position I/O pod
Built-in switching power supply with universal connector, 100-240 VAC, 50/60 Hz
Rack-mounting kit included
S/PDIF digital audio output
Compatible with Mac OSX and Windows XP/Vista
Steinberg Cubase LE included
16 mono inputs. Stream 18 independent channels to computer. 40-bit FX processor.
What Our Customers Say About zZounds
"zZounds is one of the best businesses I've ever dealt with. Excellent prices and service." - customer on November 2, 2009
Phonic Helix Board 24 FireWire MKII 24-Channel Mixer Reviews
9 out of 10
"Great for Live or amateur Studio use."
Feature:
Pretty much does everything a MixWiz will, but this has the added option of Firewire I/O.
Quality:
Time will tell. I've had this board for 6 months running the show in a rack, and had no problems. I have an old Phonic board I've used for about 15 years, and had a scratchy pot. No other problems. I don't expect any,
Value:
This is a steal. Look at a Presonus firepod and it's limited capabilities then look at this.
Desirability:
LOL. It looks like a mixer.
Sound:
Very transparent preamps. Many of the effects are good as well, but I do not use them (have another source) so we can use all of the aux channels for personal monitor mixes.
Ease of Use:
It's a mixing board. Know how to run one? Then this one is a piece o cake.
Support:
Never dealt with them.
Overall:
This thing is great for live use. We've used it with great results in the 'studio' as well. The drivers worked perfectly and everything worked great with a desktop. Had limited luck with a laptop. This board is worth every penny.
Pretty much does everything a MixWiz will, but this has the added option of Firewire I/O.
Quality:
Time will tell. I've had this board for 6 months running the show in a rack, and had no problems. I have an old Phonic board I've used for about 15 years, and had a scratchy pot. No other problems. I don't expect any,
Value:
This is a steal. Look at a Presonus firepod and it's limited capabilities then look at this.
Desirability:
LOL. It looks like a mixer.
Sound:
Very transparent preamps. Many of the effects are good as well, but I do not use them (have another source) so we can use all of the aux channels for personal monitor mixes.
Ease of Use:
It's a mixing board. Know how to run one? Then this one is a piece o cake.
Support:
Never dealt with them.
Overall:
This thing is great for live use. We've used it with great results in the 'studio' as well. The drivers worked perfectly and everything worked great with a desktop. Had limited luck with a laptop. This board is worth every penny.
Submitted: 07/22/2007
Style of Music: Folk Rock
10 out of 10
zZounds has verified that this customer bought this product from us.
"I love this interface."
Feature:
Nothing else even comes close. I use this in a live as well as studio environment. Having a full fledged mixer to record through is just the best way to go. I have used a friend’s firepod. The problem with the firepod is monitoring and small capacity. Sure you can connect headphones to an output and use the control panel software to set up monitoring inside the pod, but then you don't have any effects to provide to your singer. (singers love to hear themselves with re-verb). Or you can turn on monitoring on in the DAW software, but the delay really isn't acceptable in many situations. Even 5 milliseconds is audible. With the Helix you can just monitor through the mixer part and apply effects as you want with no noticeable delay and pure untouched audio dumping to the PC. Also, if you want you can switch the helix into a mode where the sound goes through the mixer (eq, faders, and effects) before it is dumped to the firewire on a per channel basis. I have found this to be unnecessary and not the best way to go but I can imagine needing this feature. So to all of those who are out there thinking about using a firepod or similar interface, I say buy this!!! .Having a mixer/firewire interface is definitely the way to go for me. If it was easier to do everything totally inside the computer, they wouldn't make control surfaces.
Quality:
I have had 2 Phonic boards and have not had a lick of trouble. This one is solid as a rock. I love it!
Value:
nothing else is even playing in the same game.
Desirability:
I wish it was some color other than brushed steel
Sound:
The helix 24 is an amazing product. There are a log of great effects, and the sound is very good. I am always hearing about the quality of Preamps on the Phonic products. I have tried quite a few different pre's on this by using the insert connection thus bypassing the on board pre's, none sounded any better, most worse. I would be happier if these preamps would produce more gain. I haven't found any specs about the actual gain on of these pre's but I estimate them to be somewhere around 50 db by comparing them to the other preamps. The sound always comes out very clean as long as you adjust the ASIO parameters with enough buffering to fit your situation. Overall, the mic and room are the only limiting factors in my getting amazing tracks with this thing, not the board or pre's If you want really great recordings go out and buy a couple of great mics, and treat your room acoustically. You can afford a lot of acoustic treatments if you take what you saved buying this board/interface instead of any other product which even has a fraction of this ones capabilities.
Ease of Use:
I have to gig this a little. I love that it is rack mountable, and use it all the time in a roll around rack. The problem is that when you put 16 channels into a rack mountable board, things get pretty close together. Some of the buttons ie group 3/4 send, main send, etc can be difficult for my fingers to get down to. I keep a pencil handy and use the eraser. Other than this.... awesome.
Support:
Very good. I had to ask a question to tech support once and I used email. I got a quick accurate response.
Overall:
Till it breaks. If I need more than simultaneous mics I will buy another and chain them.
Nothing else even comes close. I use this in a live as well as studio environment. Having a full fledged mixer to record through is just the best way to go. I have used a friend’s firepod. The problem with the firepod is monitoring and small capacity. Sure you can connect headphones to an output and use the control panel software to set up monitoring inside the pod, but then you don't have any effects to provide to your singer. (singers love to hear themselves with re-verb). Or you can turn on monitoring on in the DAW software, but the delay really isn't acceptable in many situations. Even 5 milliseconds is audible. With the Helix you can just monitor through the mixer part and apply effects as you want with no noticeable delay and pure untouched audio dumping to the PC. Also, if you want you can switch the helix into a mode where the sound goes through the mixer (eq, faders, and effects) before it is dumped to the firewire on a per channel basis. I have found this to be unnecessary and not the best way to go but I can imagine needing this feature. So to all of those who are out there thinking about using a firepod or similar interface, I say buy this!!! .Having a mixer/firewire interface is definitely the way to go for me. If it was easier to do everything totally inside the computer, they wouldn't make control surfaces.
Quality:
I have had 2 Phonic boards and have not had a lick of trouble. This one is solid as a rock. I love it!
Value:
nothing else is even playing in the same game.
Desirability:
I wish it was some color other than brushed steel
Sound:
The helix 24 is an amazing product. There are a log of great effects, and the sound is very good. I am always hearing about the quality of Preamps on the Phonic products. I have tried quite a few different pre's on this by using the insert connection thus bypassing the on board pre's, none sounded any better, most worse. I would be happier if these preamps would produce more gain. I haven't found any specs about the actual gain on of these pre's but I estimate them to be somewhere around 50 db by comparing them to the other preamps. The sound always comes out very clean as long as you adjust the ASIO parameters with enough buffering to fit your situation. Overall, the mic and room are the only limiting factors in my getting amazing tracks with this thing, not the board or pre's If you want really great recordings go out and buy a couple of great mics, and treat your room acoustically. You can afford a lot of acoustic treatments if you take what you saved buying this board/interface instead of any other product which even has a fraction of this ones capabilities.
Ease of Use:
I have to gig this a little. I love that it is rack mountable, and use it all the time in a roll around rack. The problem is that when you put 16 channels into a rack mountable board, things get pretty close together. Some of the buttons ie group 3/4 send, main send, etc can be difficult for my fingers to get down to. I keep a pencil handy and use the eraser. Other than this.... awesome.
Support:
Very good. I had to ask a question to tech support once and I used email. I got a quick accurate response.
Overall:
Till it breaks. If I need more than simultaneous mics I will buy another and chain them.
Submitted: 03/30/2009
Style of Music: all
