Peavey TLS6X 3-Way Loudspeaker (1000 Watts, 2x15 in.)

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
open zoom image for Peavey TLS6X 3-Way Loudspeaker (1000 Watts, 2x15 in.), Main
open zoom image for Peavey TLS6X 3-Way Loudspeaker (1000 Watts, 2x15 in.), Main
Peavey TLS6X 3-Way Loudspeaker (1000 Watts, 2x15 in.), Main Peavey TLS6X 3-Way Loudspeaker (1000 Watts, 2x15 in.), Main
zZounds Gear Experts Say...
Scorpion Plus woofers, RX22 titanium diaphragm, dynamic compression driver, 90 x 40 degree coverage

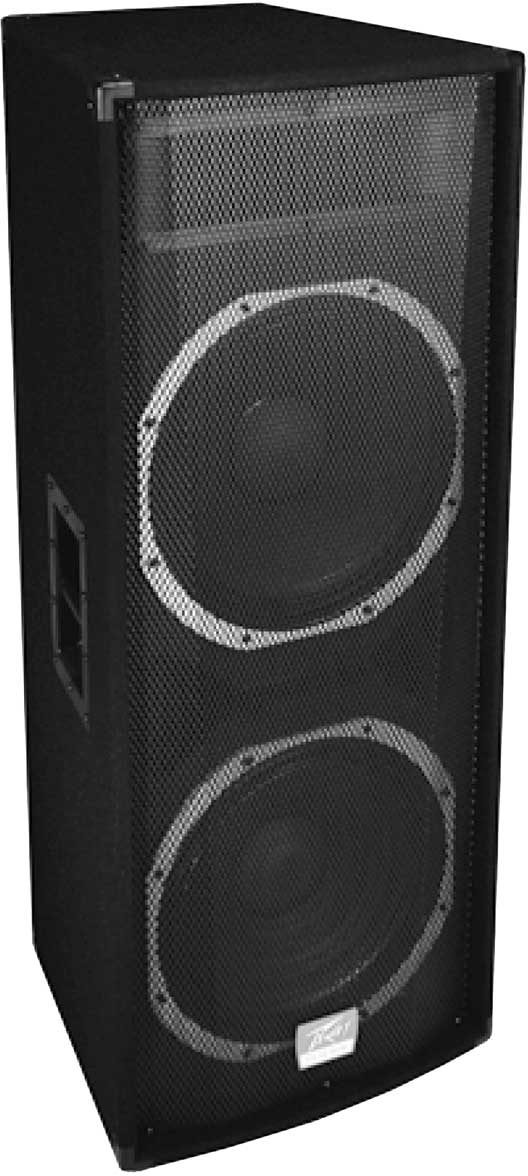

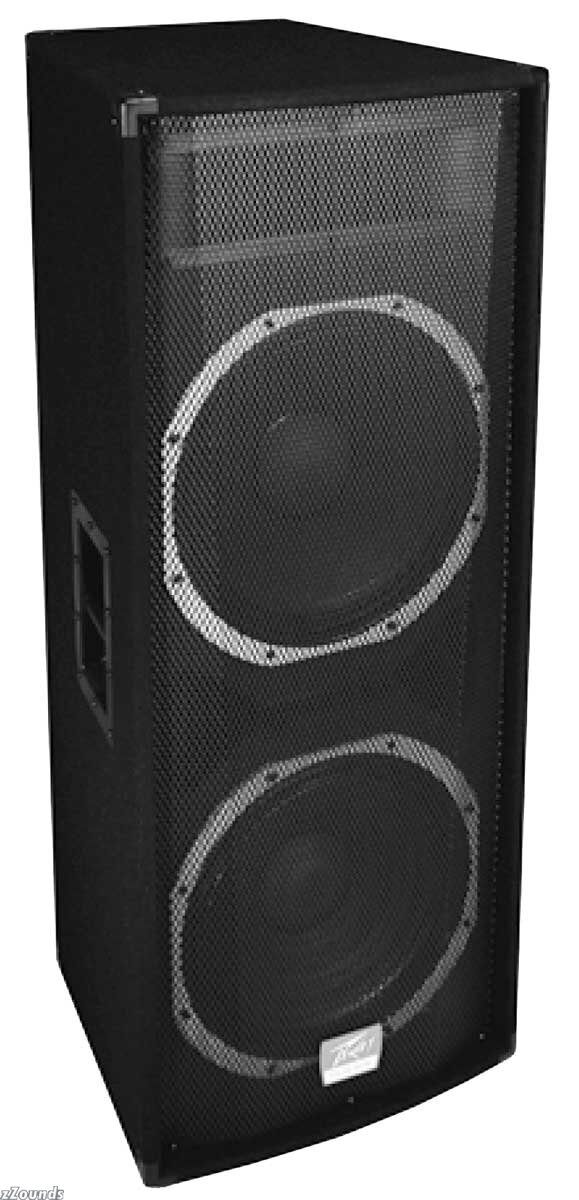

The Peavey TLS 6X is a quasi-three-way speaker system utilizing two 15 in. Scorpion Plus woofers and an RX22 titanium diaphragm, dynamic compression driver mounted on a 90 x 40 degree coverage constant-directivity horn.

The rugged, carpet-covered trapezoidal enclosure features steel handles, pocket casters and a top handle to facilitate portable use for music playback, live music or speech sound reinforcement. A full-length, black powder-coated steel grille provides driver protection and a professional appearance.

The TLS 6X speaker system is rated at 1,000 Watts program power handling, and the full crossover network includes high voltage film caps and Sound Guard III tweeter protection for clear punchy sound and excellent longterm reliability. Two 1/4 in. phone jack input connectors make hook-up a breeze.

Features
Quasi-three-way music playback enclosure

Peavey-exclusive Scorpion Plus woofers with 2.5 in. voice coils

RX 22 titanium diaphragm compression driver, with 2 in. diaphragm

Sound Guard III tweeter protection

1,000 Watts program/2,000 Watts peak power handling

Heavy duty crossover network for driver protection and EQ

Rugged, trapezoidal enclosure

90 x 40 degree coverage constant directivity horn for better off-axis tonality

High quality, heavy duty carpet covering

Steel handles

Steel corners

Rugged dado and rabbet construction for strong-yet-lightweight joints

T-Nut speaker mounting

Heavy duty full-length steel grille

Two pocket casters on bottom rear… read more for ease of transport

Top rear centered handle for use with the pocket casters read less

Frequency range (-10 dB, half space): 40 Hz to 18 kHz

Frequency response (± 3 dB, half space): 58 Hz to 16 kHz

Sensitivity (1w/1m): 100 dB

Power rating (program): 1,000 Watts

Peak power capacity (peak): 2,000 Watts

Maximum SPL: 132 dB

Transducer complement: Two Scorpion® Plus 15 in. premium woofers, RX™22 2 in. titanium diaphragm dynamic compression driver on a 90 x 40 degree coverage constant directivity horn

Driver Protection: Sound Guard™ III on the compression driver provides long- and medium-term overload and overdrive protection

Nominal coverage pattern: 90 x 40 degree

Electro-acoustic Crossover Frequency: 300 Hz, 2.2 kHz

Nominal Impedance: 4 Ohms

Input connections: Two 1/4 in. phone jacks in parallel

Enclosure Materials & Finish: Trapezoidal, black carpet-covered enclosure with dado-joined 1/2 in. MDF (Medium Density Fiberboard) and a full-length, black powder-coated steel grille

Dimensions (H x W x D):
- Front: 44.75 x 18.25 x 17.563 in. (113.66 x 43.36 x 44.61 cm)
- Rear: 44.75 x 12.25 x 17.563 in. (113.66 x 31.12 x 44.61 cm)

Weight: 85 lbs. (38.64 kg)

For support or warranty questions, please contact the manufacturer:
Phone: 877-732-8391
Email: customerservice@peavey.com
Web: https://peavey.com/c/Contact-Us
Spec Sheet
