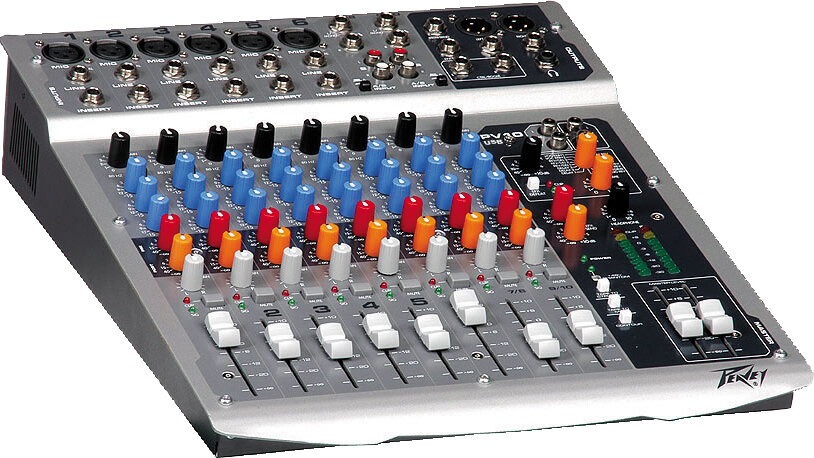

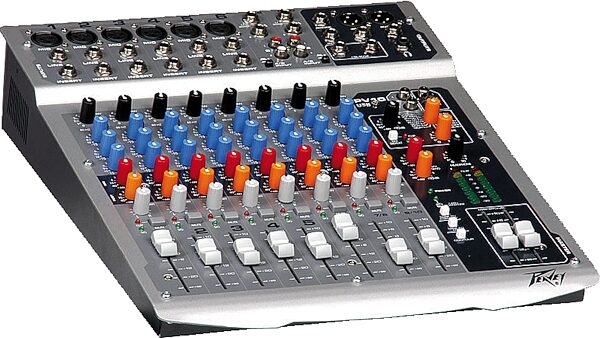

Peavey PV10USB 10-Channel Mixer with USB

The PV 10 USB features built-in DSP effects with multiple reverbs and delays, plus vocal enhancer and much more, while a USB port allows direct connection to a USB-equipped computer for recording from the mixer or playing back digital audio (compatible with Windows XP, ME & 2000). It also includes pre-fader monitor sends; post-fader effects send; inserts on all channels; and dual, switchable line inputs on the two stereo channels.

All PV Series mixers include our Tape to Control Room and Tape to Mix assigns, which allow the operator to monitor an external stereo signal without using any of the mixer's channels. In addition, the mixers' Control Room output sends a stereo master output signal to an external source for monitoring. Phantom power, effects send and a contour switch are also standard on all models.

Features
USB port to connect to a computer for recording or playing back digital audio to/from computer

Compatable with Win XP, ME and 2000

Built-in DSP effects processor

Six RQ (reference quality) low noise microphone inputs with insert points

Channels 7/8 and 9/10 with dual switchable stereo line inputs

3-band EQ on all channels

LED clip, signal, mute indication

One pre-fader monitor send

One post-fader effects send

Precision 60 mm faders on input channels and stereo master outputs

Control room output

Global 48V phantom power, tape to control room and tape to mix assignments

Stereo outputs with balanced 1/4 in. TRS and XLR connectors

Rugged console design

Universal switching power supply

Technical Info

Dimensions: 12.125 in. W x 3.5 in. H x 14.75 in. D (Unpacked), 18.625 in. W x 6 in. H x 16 in. D (Packed)

Weight: 12.5 lbs. (Packed), 9.3 lbs. (Unpacked)
