The Basic Idea. For the first time ever, audio, power, MIDI, footswitches, etc. can run side-by-side in one cable A patented cable and wiring scheme does this with no noise, crosstalk, or tone loss.

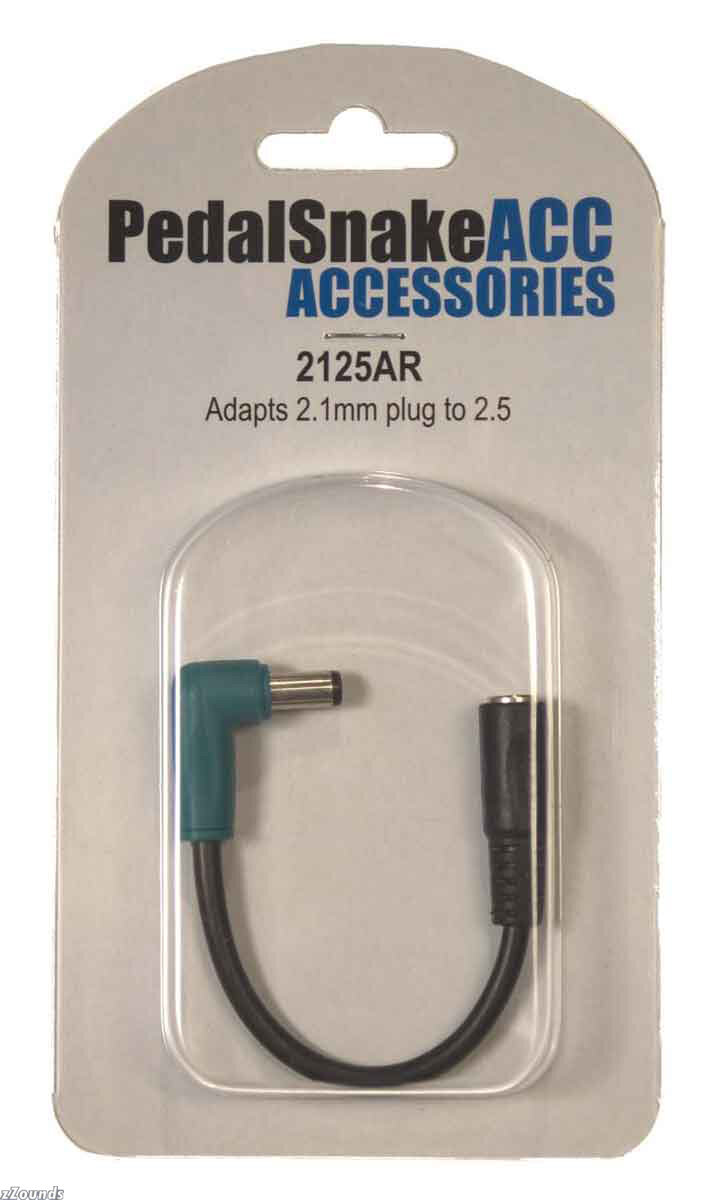

2125AR
Convert standard 2.1mm to 2.5mm (for Line6*, Whammy, Rotosphere, etc.) 1 2.1mm female socket, 1 male r/a 2.5mm plug; about 3 inches long. Used to power 2.5mm pedals thru PedalSnake PLines. These pedals often require their own 2.5mm power supply.
* Line6 modelers also require 21RP (reverse polarity) if powered from a standard center-negative 9VDC supply (like SnakePOWER 9D120).
2135AR
Convert standard 2.1mm to 3.5mm (for some DOD, Electro-Harmonix, etc) 1 2.1mm female socket, 1 male r/a 3.5mm plug; about 3 inches long. Used to power 3.5mm pedals thru PedalSnake PLines.

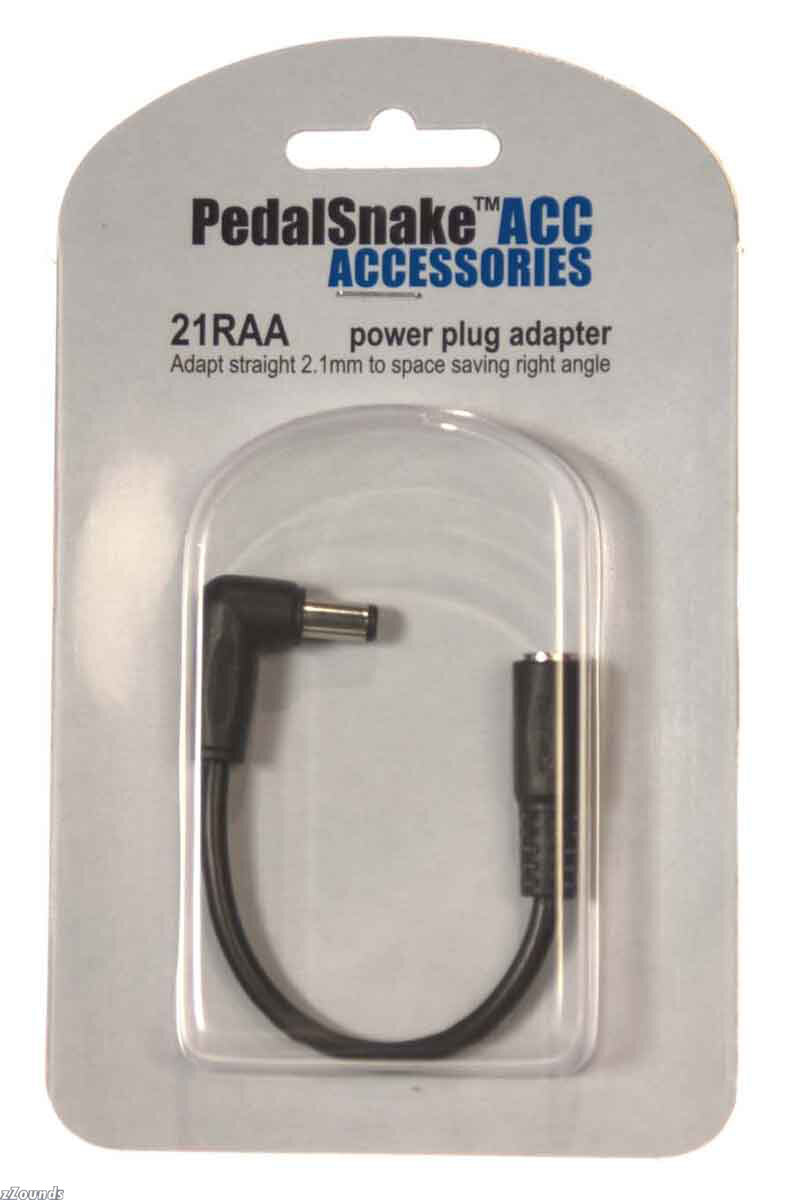

21RAA
The 1ST in the world! Convert any 2.1mm power plug to space-saving right-angle. About 3 inches long. Saves space on pedalboards. Convert any power supply, PLine, or daisy power-chain cable, and place pedals closer together.
21RP
Reverses polarity of 2.1mm male power plug. 1 female 2.1mm jack, 1 male 2.1mm plug (with reversed wiring); about 3 inches long. Used to power 2.1mm center-positive pedals (MoogerFooger, some Fulltone, etc.) from standard 2.1mm center-negative power sources (like Boss, Dunlop, etc.)
2521A
Convert 2.5mm plug to 2.1mm (for 2.5mm power supply) 1 female 2.5mm jack, 1 male 2.1mm plug; about 3 inches long. Use to connect a 2.5mm power supply to the Amp End of a 2.1mm PedalSnake PLine.
