PedalSnake PLine Pigtail Cables

The Basic Idea. For the first time ever, audio, power, MIDI, footswitches, etc. can run side-by-side in one cable A patented cable and wiring scheme does this with no noise, crosstalk, or tone loss.

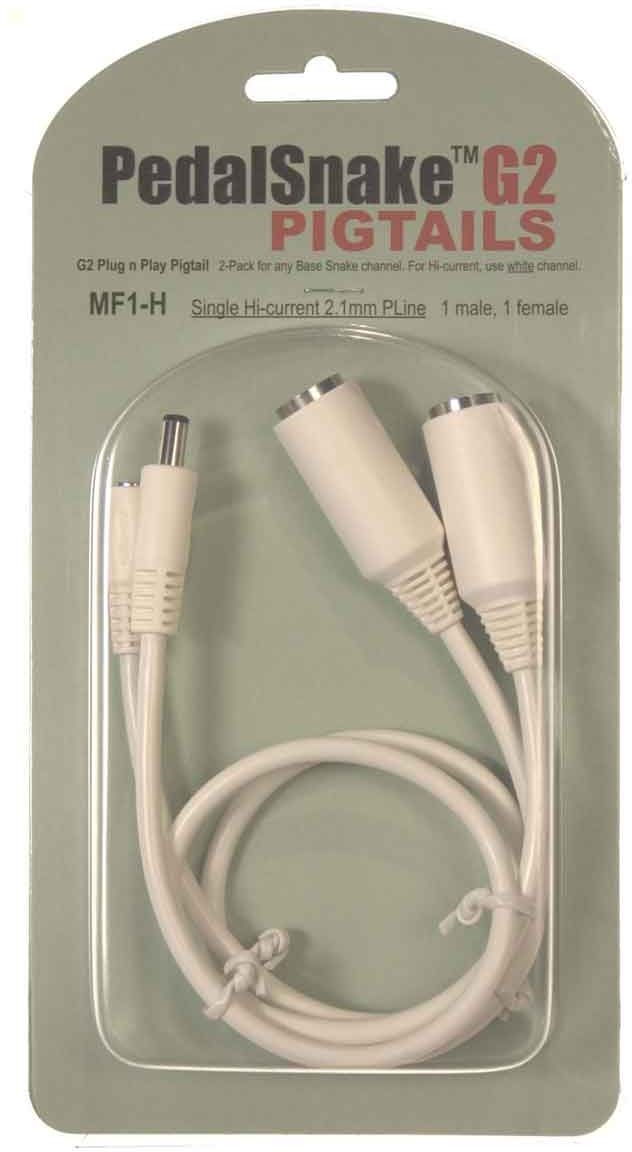

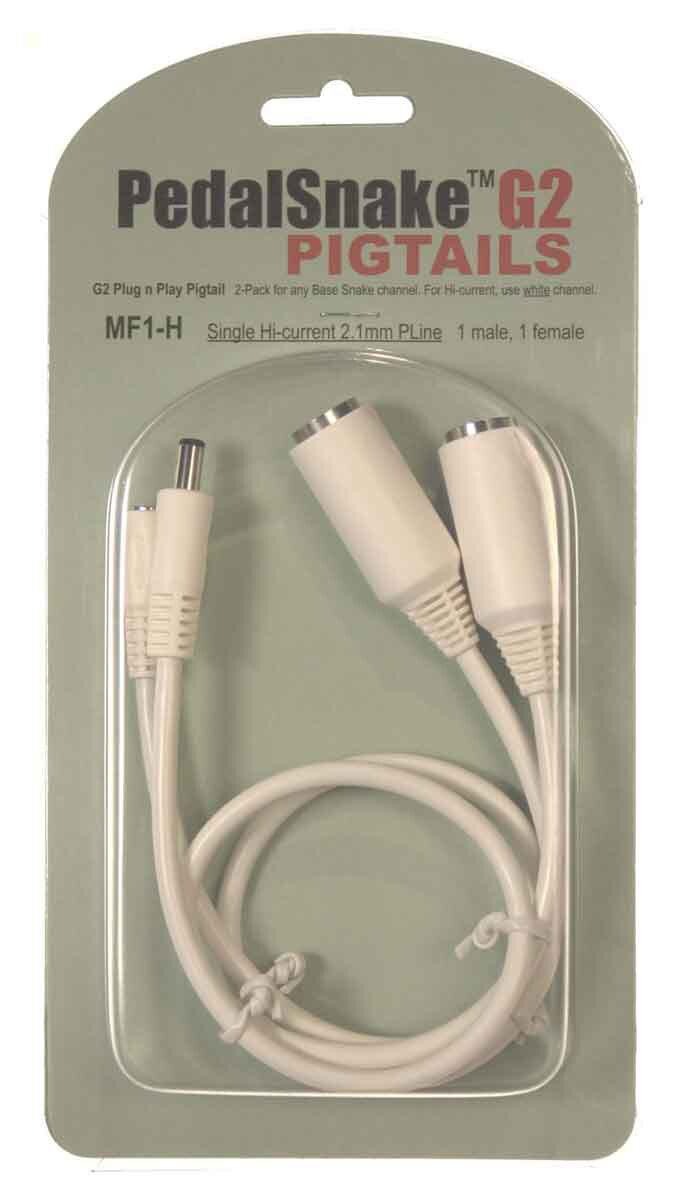

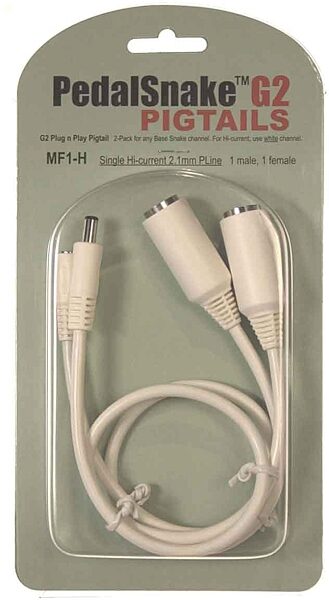

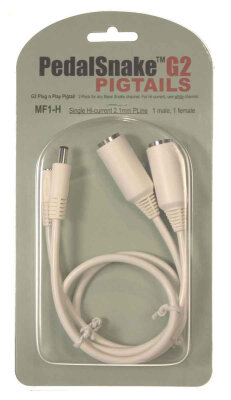

MF1-H
The PedalSnake MF1-H 2-Pack Single Hi-Current Power Line Pigtails are 2.1mm and come in a convenient 2-pack. Includes 1 male and 1 female both 15 inches long with 1 male plug, 1 female jack. For Hi-Current function (pedals with supplies rated 1600mA or more), plug into a 5-wire (white) BaseSnake channel (or a 7-wire channel on a Custom CS BaseSnake). When plugged into a 3-wire channel, limit use to pedals with supplies rated less than 1600mA.

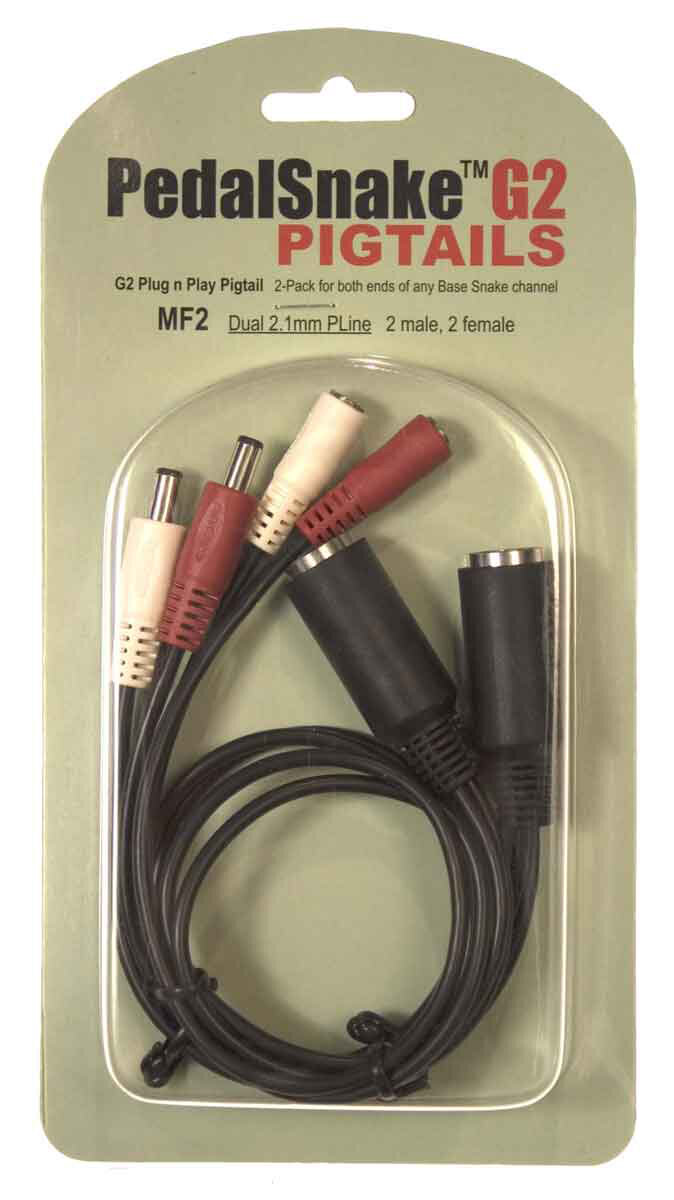

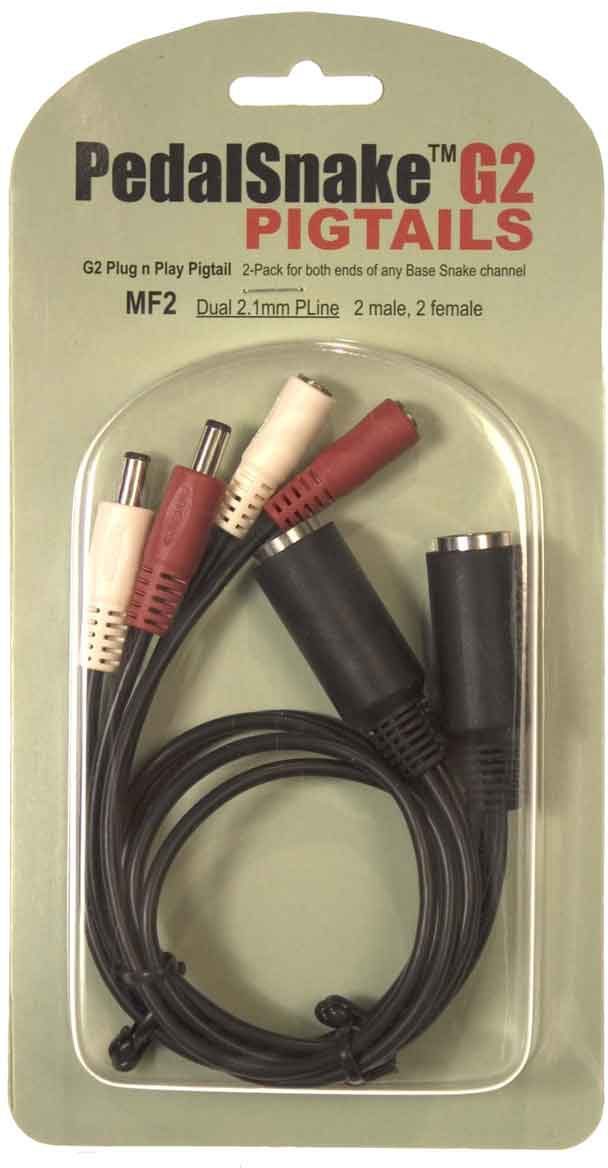

MF2
The PedalSnake MF2 Pigtail 2 Pack Dual PowerLine includes: (2.1mm 2-pack); 2 male, and 2 female both 15 inches long. Plug into any BaseSnake channel.

Limit use to: two isolated DC power supplies (wall warts), and/or pedals whose supplies are rated less than 800mA.

Both sides share one ground wire, so it is always safe (no hum) to apply within a single chain of pedals.

PedalSnake Products

BaseSnakes: Choose 4 or 7 channels, 18 or 24 feet.

GLine Pigtail 2-Packs: 1/4 inch GuitarLines configure a channel to be a guitar cord.

PLine Pigtail 2-Packs: Standard 2.1mm PowerLines (like Boss power connectors) configure a channel to carry low-voltage power from your power supplies to your pedals.

Power Plug Adapters for Pedals: Configure any PLine (or Power-Chain Cable) to plug into a pedal with non-standard power connectors.

Power Plug Adapters for Supplies: Configure any PLine to plug into a power supply non-standard power connectors.

Power-Chain Cable: Configure any PLine to power up to 4 pedals—chainable to power more.

SnakePOWER: Clean up your backline wiring too. SnakePOWER has no snarly cable’n’plug. Instead, its female power input jack allows MM style PLines to plug directly in.
