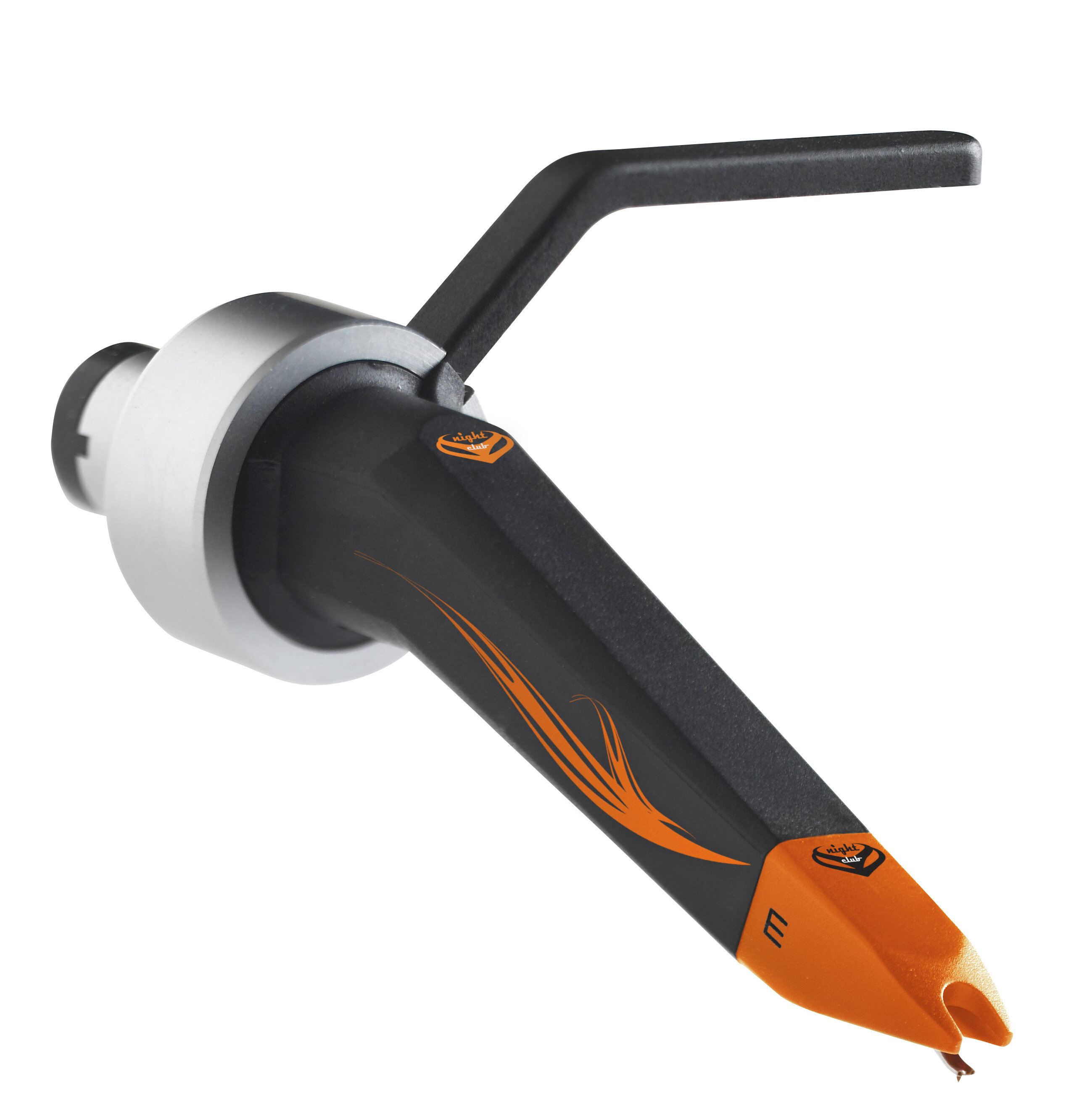

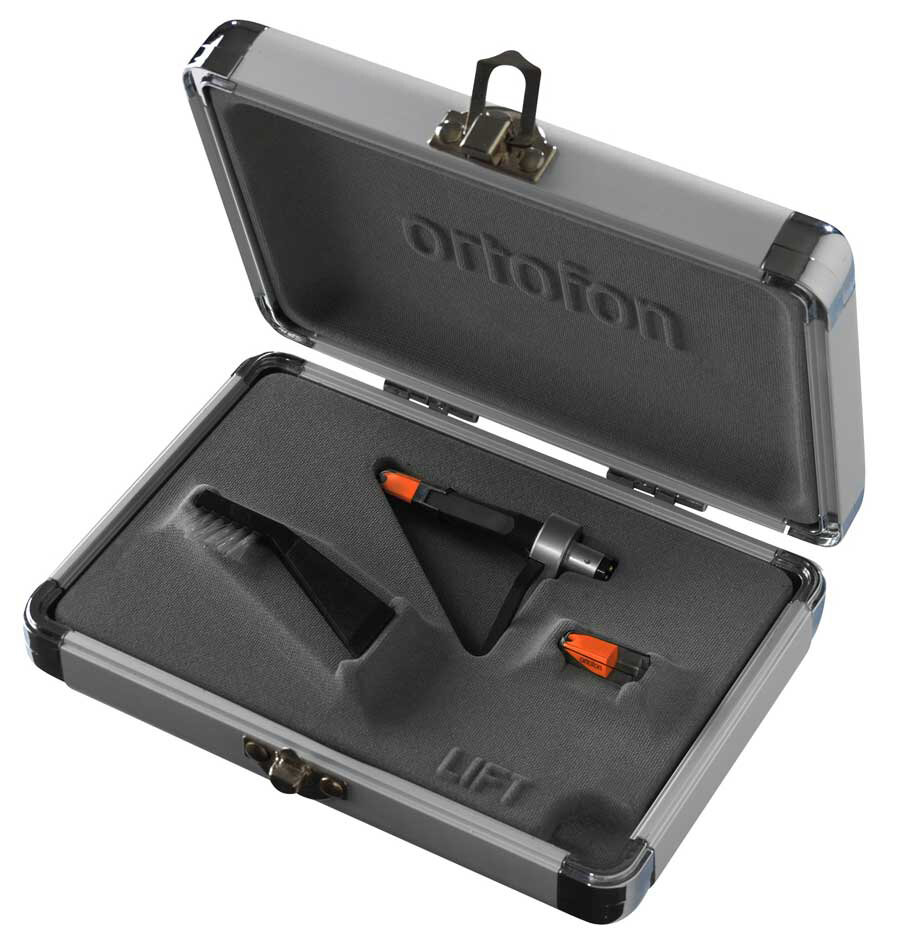

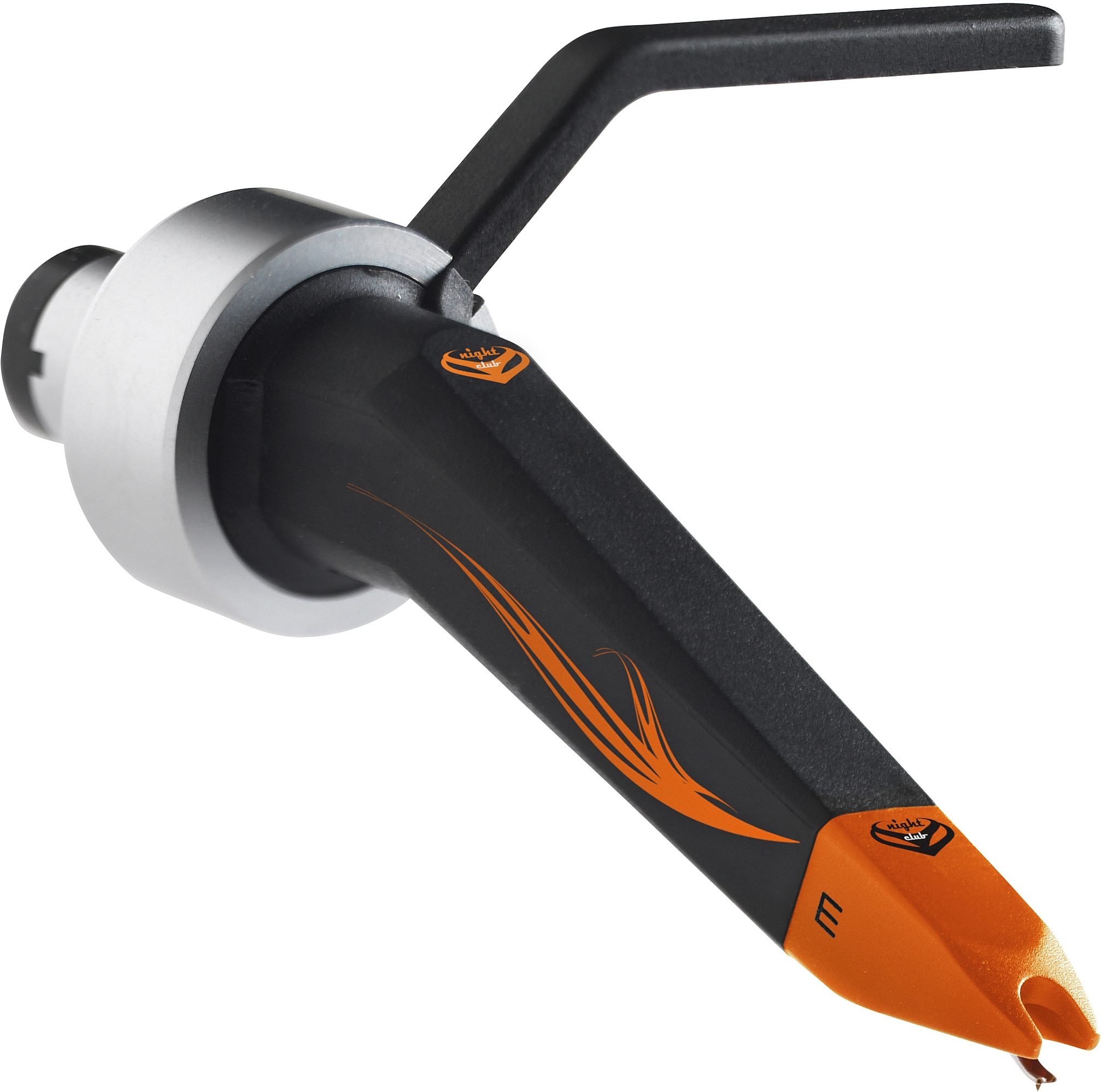

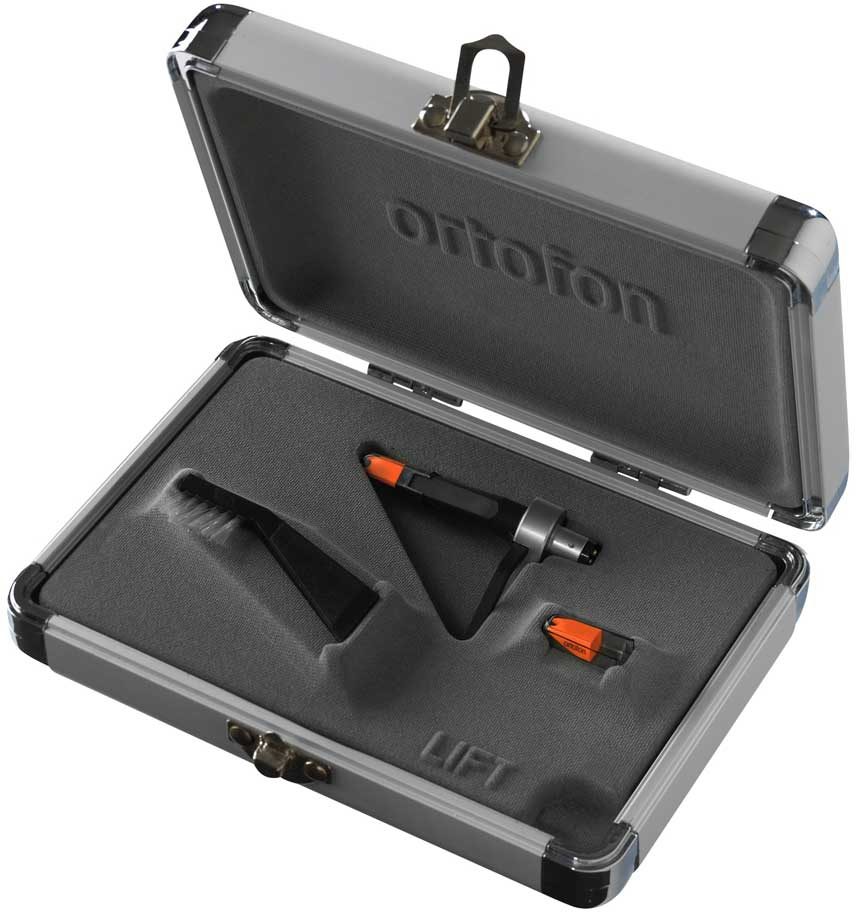

Ortofon Concorde Night Club MKII Cartridge Kit

The Ortofon Concorde Night Club MKII Cartridge boasts numerous sonic improvements in both club and studio settings. With a new cartridge body, the Night Club MKII offers increased output voltage for powerful, energetic sound and enhanced performance from integrated phono preamps such as the ones found in DJ mixers. The redesigned elliptical stylus provides well-balanced high frequency response and ample low-end reproduction. The Night Club MKII marks a new generation of club cartridges, designed to surpass the gold standard set by the original Night Club cartridge.

Technical Info

Output voltage at 1000Hz, 5cm/sec: 8 mV

Channel balance at 1kHz: 1.5 dB

Channel separation at 1kHz: 23 dB

Channel separation at 15kHz: 15 dB

Frequency range at -3 dB: 20-22,000 Hz

Frequency response: 20-20,000 Hz

Stylus type: Special Elliptical

Tracking force range: 2.0-5.0 g

Tracking force recommended: 3.0 g

Tracking angle: 20 degrees

Internal impedance, DC resistance: 1000 Ohm
